| Place of Origin: | Baoji，China |
|---|---|
| Brand Name: | HT SENSOR |
| Certification: | CE,RoHs,ISO9001 |
| Model Number: | BH93420-II |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Model NO.: | BH93420-II | Power: | 10-36VDC |
|---|---|---|---|
| Type: | Probe Type Put Into Water | Output: | 4-20mA |
| IP Rating: | IP68 | Customized: | Non-Customized |
| Design: | Accept Customized | Cable: | PE,PU,PTFE |
| Accuracy: | 0.25%, 0.5% | Diaphragm Material: | 316L Stainess Stee |
| Net Weignt: | 0.3kg | Transport Package: | Carton |
| HS Code: | 90261000 | Shipping Cost: | To Be Negotiated |
| Model: | 1 | ||
| High Light: | IP68 4-20mA Liquid Level Transmitter,Liquid Level Transmitter ISO9001,IP68 Fuel Engine Oil Pressure Sensor |
||

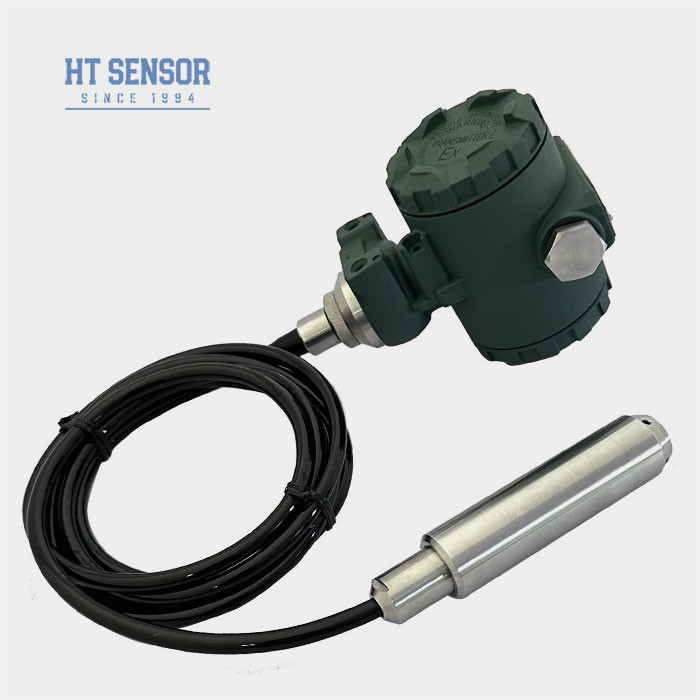

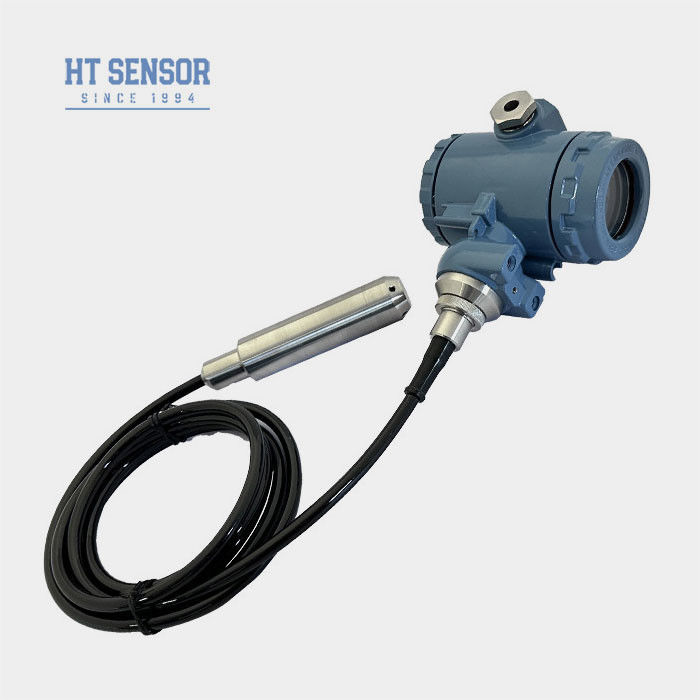

BH93420-II Ip68 4-20ma Water Level Transmitter Liquid Fuel Engine Oil Pressure Sensor
BH93420 II Water level Transmitter
Introduction of water level transmitter:
BH93420-III water level transmitter adopts high precision piezoresistive diffusion silicon pressure sensor as signal measurement element. It uses the depth of the liquid level to the diaphragm pressure to measure the static pressure directly related to the water level, and uses the amplifier circuit to convert the water level pressure value into a standard electrical signal output. The more detailed the on-site environment the customer provides during the process of customizing the product, the easier it is for us to select the right level meter to meet the customer's needs. Each product has been carefully designed, component selection, process curing, pressure cycle torture, aging, etc., to ensure that each product is stable and reliable.
The LED LCD display can visually observe the real-time liquid level depth without the need to add other equipment.
| Performance Parameters of water level transmitter | |
|---|---|
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, l1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.5Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 15~30VDC | 2/3/4 wire |
| RS485 Communication Protocol | 4 wire |
| Electrical Connection of water level transmitter |
| Selection Examples of water level transmitter |
| Ordering tips |
1. Please ensure that the measured medium is compatible with the product components in contact with it during selection.
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.
Product Features of water level transmitter:
| Order Guide of water level transmitter | ||||||||||
| BH93420 | Code | Outline Construction | ||||||||
| III | Liquid level transmitter with the 2088 housing | |||||||||
| Measurement Range | 0~10m…400m | |||||||||
| Code | Power Supply | |||||||||
| D1 | 24VDC | |||||||||
| Code | Output Signal | |||||||||
| S1 | 4~20mADC | S2 | RS485 | |||||||
| Code | Electrical Connection | |||||||||
| B5 | 2088 with display | |||||||||
| B6 | 3051A | |||||||||
| Code | Pressure Type | |||||||||
| G | Gauge Pressure | |||||||||
| A | Absolute Pressure | |||||||||
| S | Sealed Reference Pressure | |||||||||
| Code | Material | |||||||||
| 01 | 304 Stainless Steel | |||||||||
| 02 | 316L Stainless Steel | |||||||||
| Code | Cable Material | |||||||||
| C1 | PE | |||||||||
| C2 | PU | |||||||||
| C3 | PTFE | |||||||||
