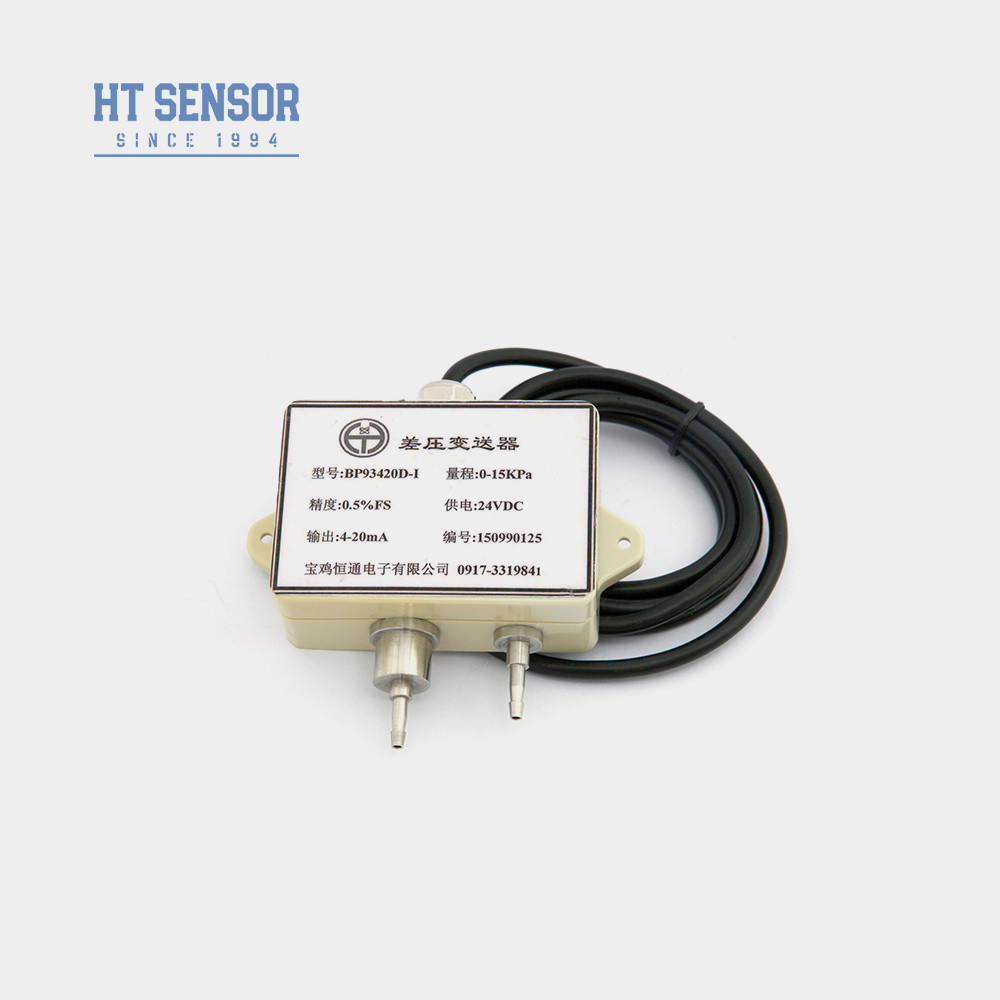

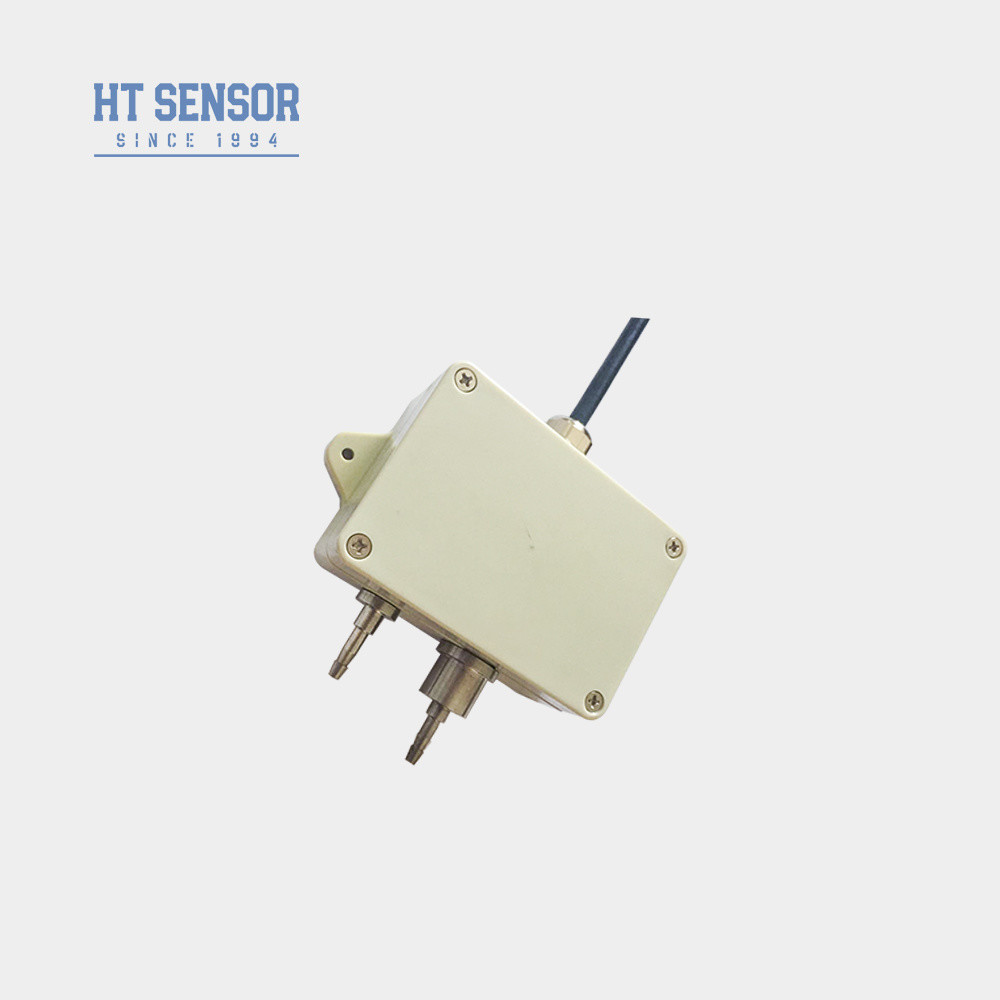

Bp93420d-I Differential Pressure Transmitter 500pa Air Pressure Transmitter

Basic Information
Place of Origin: Baoji,China
Brand Name: HT sensor
Certification: CE,RoHs,ISO9001
Model Number: BP93420D-I
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 5-8 work days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000PCS/Month
Detail Information
Model NO.: BP93420D-I Pressure Type: Differential Pressure
Transport Package: Standard Export Packing With Carton HS Code: 9026201090
Supply Ability: 20000PCS/Year Measuring Medium: Gas
Accuracy Grade: 0.5%,1% Pressure Range: 0-10kpa...~200KPa
IP Rating: IP65 Customization: Available | Customized Request
High Light:

Bp93420d-I Differential Pressure Transmitter

,

Differential Pressure Transmitter 500pa

,

500pa Air Pressure Transmitter


Product Description

500PA PLASTIC HOUSING AIR PRESSURE DIFFERENTIAL PRESSURE TRANSMITTER



BP93420D-I Differential pressure transmitter



Product Features:



BP93420DI is a differential pressure transmitter that utilizes the piezoresistive effect of semiconductor silicon material to convert differential pressure into an electrical signal. It is mainly used for measuring small differential pressures of non-corrosive dry gases, suitable for applications in industries such as boiler air supply, underground ventilation in the power and mining industries, and pressure automatic detection in ultra-clean workshops for process control



Product  Features:
1. The transmitter features a stainless steel structural design, making it compact and easy to install
2. It undergoes strict temperature compensation and aging screening, ensuring stable and reliable performances
3. The electrical interface can be selected as a plug-in or direct wiring option.


Applications:

1. Suitable for measuring differential pressure of various gases or liquids in pipelines of industries such as petroleum, chemical, power, and hydrology.
2. Applied in industrial on-site processes such as petroleum, chemica,metallurgy, power generation, and hydrology
3. Pressure measurement for pipelines and furnace chambers



Performance Parameters
Measurement Range 0-500Pa...~200kPa
Pressure Type Differential Pressure
Single-side Overload ≤3 times of the rated range
Static pressure The minimum value between 5 times the rated range or 7 MPa
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability ±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis ±0.03% (Typ.)  ±0.05%FS (Max.)
Long-Term Stability ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
Zero  Temperature Drift ±0.01%FS/ºC(>100KPa),   ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift ±0.01%FS/ºC(>100KPa),   ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC
Operating Temperature -30ºC~80ºC
Storage Temperature -40ºC~100ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 304,316L
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Explosion-proof Rating Intrinsically safe and explosion-proof
Protection Rating IP65
Weight ~0.45kg

Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA
3 wire
0/1~5V
0.5~4.5V 5VDC








Ordering tips:
1. When selecting the product, please ensure that the measured medium is compatible with the product's contacting parts.
2. To ensure reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter, ensuring a      slow and uniform pressure application to the positive and negative pressure chambers of the transmitter.
3. During installation, it is advisable to position the pressure interfaces at both ends horizontally to minimize the impact of the installation location on the product.
4. For special requirements such as strong vibration, instant impact force, strong electromagnetic interference, or radio frequency interference, please inform our company and specify these requirements in the order


Order Guide:
BP93420XX Pressure Transmitter
  Code Outline Construction
DII Differential  Pressure Transmitter
  Measurement Range 0-10KPa...~2MPa
  Code Power Supply
D1 24VDC
D2 5VDC
D3 Other
  Code Output Signal
S1 4~20mADC S5 0~20mADC
S2 1~5VDC S6 0~10VDC
S3 0~5VDC S7 0.5~4.5VDC
S4 0~10mADC
  Code Pressure Connection
J1 M20×1.5 Male
J2 G1/2  Male
J3 G1/4 Male
J4 1/2 NPT Male
J5 Other
  Code Electrical Connection
B1 Hirschmann
B2 PG7 Plug
B3 Sealed Cable Output
B4 Other
  Code Pressure Type
D Differential Pressure

Q&A:

1. Q: What are the features of your pressure sensor transmitters?
    A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
    A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
    A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
    A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
    A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
    A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network    is always available.
