| Place of Origin: | Baoji，China |
|---|---|
| Brand Name: | HT sensor |
| Certification: | CE,RoHs,ISO9001 |
| Model Number: | BPZK04-D |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Model NO.: | BPZK04-D | Contact: | Normally Open |
|---|---|---|---|
| Transport Package: | Carton | Specification: | 10kpa~40mpa |
| HS Code: | 80328100 | Supply Ability: | 50000PCS/Year |
| Type: | Electronic | Usage: | Control Switch |
| Application: | Commercial, Industrial, Vehicles | Explosion-proof Type: | Intrinsically Safe |
| Customization: | Available | Customized Request | ||
| High Light: | BPZK04 Electronic Differential Pressure Switch,2 Point Switch Electronic Control Switch,BPZK04 Electronic Control Switch |
||
BPZK04 DIFFRENTIAL ELECTRONIC PRESSURE SWITCH 2 POINT SWITCH

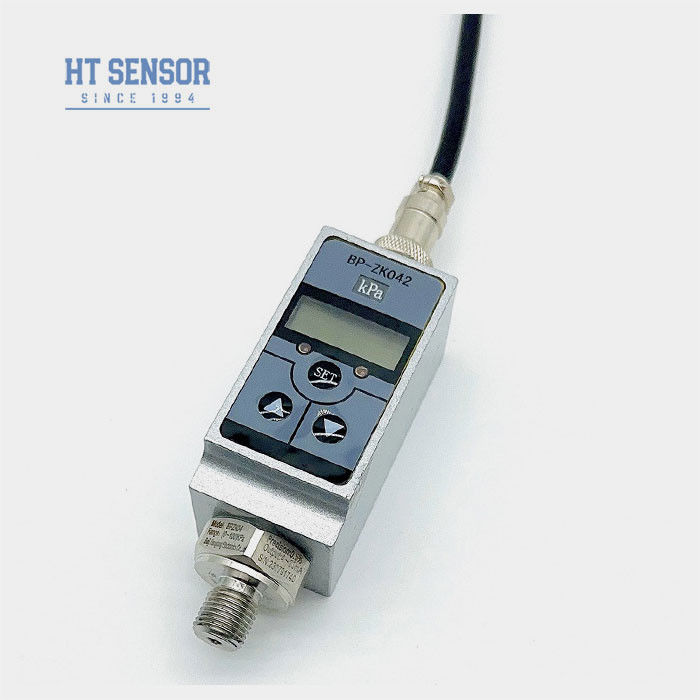

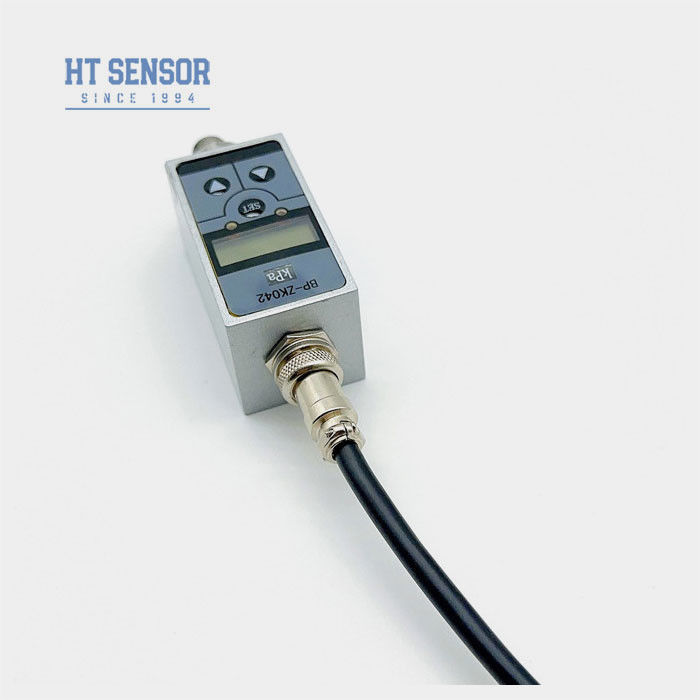

BPZK04 Electronic Pressure Switch
Introduction of electronic pressure switch:
BPZK04 differential electronic pressure switch is a fully digital measurement and control product that integrates pressure measurement, point control display, and transmission output. It can be directly installed at the pressure measurement point in the field or on the control screen of the test bench. It allows on-site setting of parameters such as zero value, full-scale value,
Product Features:
1. Can provide up to two control relay outputs, with the ability to set arbitrary relay values and states for precise and reliable control.2. Can be used to protect the system from too high or too low pressure damage. When the pressure exceeds or falls below a set threshold, the controller triggers the appropriate action, such as closing the valve or stopping the pump.
3. Can be used to regulate the pressure in the system to ensure that it remains within the set range. When the pressure deviates from the set value, the controller will adjust the working state of the actuator to bring the pressure back to the set range.
4. can be used to achieve precise control of the pressure in the system. In conjunction with other control devices, such as flow regulating valves, precise regulation and control of pressure in complex industrial processes can be achieved.
5. plays an important role in the safety system. For example, in steam boiler systems, pressure controllers can be used to monitor and control steam pressure to ensure safe and stable system operation.
| Performance Parameters | |
| Measurement Range | 0-10KPa~2MPa(Differential Pressure) |
| Pressure Type | Differential Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability | ±0.3%F.S/year |
| Zero Point Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Relay Control | 1-2 channels of control or electronic switch quantity control |
| Contact Life | Exceeds 100,000 cycles |
| Display Range | -1999~9999 |
| Installation Method | vertical axis installation |
| Explosion-proof Rating | Intrinsically Safe |
| Protection Rating | IP65 |
| Weight | ~0.65kg |

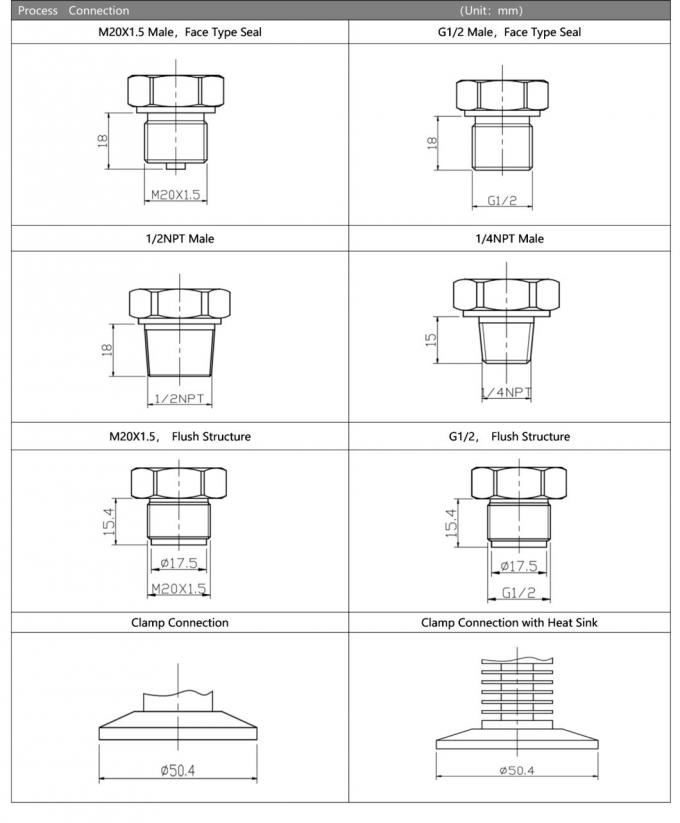

| Outline Construction | |

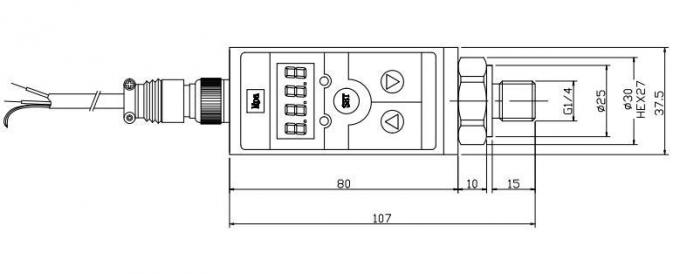

| Dimension |  |
Ordering tips
Ordering tips:
1. When selecting the product, please ensure that the measured medium is compatible with the contacting parts of the product.
2. When placing an order, please specify the power supply, accuracy grade, number of control points, and whether it comes with an RS485 interface.
3. The measurement range of the flat diaphragm pressure controller is 0~35KPa...20MPa.
4. For users selecting differential pressure measurement, pay attention to the relationship between the differential pressure range and the allowable overpressure and maximum pressure of the high and low pressure chambers, and ensure it aligns with the requirements of the field application. To ensure the safe and reliable operation of the product, it is recommended to install a three-valve manifold between the measuring point and the transmitter.
5. To ensure the reliable operation of the product, it is recommended to install lightning protection devices at the site and ensure that the product and power supply are reliably grounded. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic interference, and radio frequency interference, please inform our company and specify them in the order.
