BPZK01 Electronic Pressure Switch Electronic Differential Pressure Transmitter With Switch

Basic Information
Place of Origin: Baoji,China
Brand Name: HT sensor
Certification: CE,RoHs,ISO9001
Model Number: BPZK01-D
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 5-8 work days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000PCS/Month
Detail Information
Model NO.: BPZK01-D Contact: Normally Open
Contact Type: Type C Contact Detection Method: Correlation Type
Transport Package: Carton Origin: China
HS Code: 80328100 Supply Ability: 5000PCS/Year
Type: Electronic Presure Switch Structure: Amplifier Built-in Type
Usage: Control Switch Application: Commercial, Industrial, Vehicles
Explosion-proof Type: Intrinsically Safe
High Light:

BPZK01 Electronic Pressure Switch

,

BPZK01 Electronic Differential Pressure Transmitter

,

Electronic Differential Pressure Transmitter With Switch


Product Description

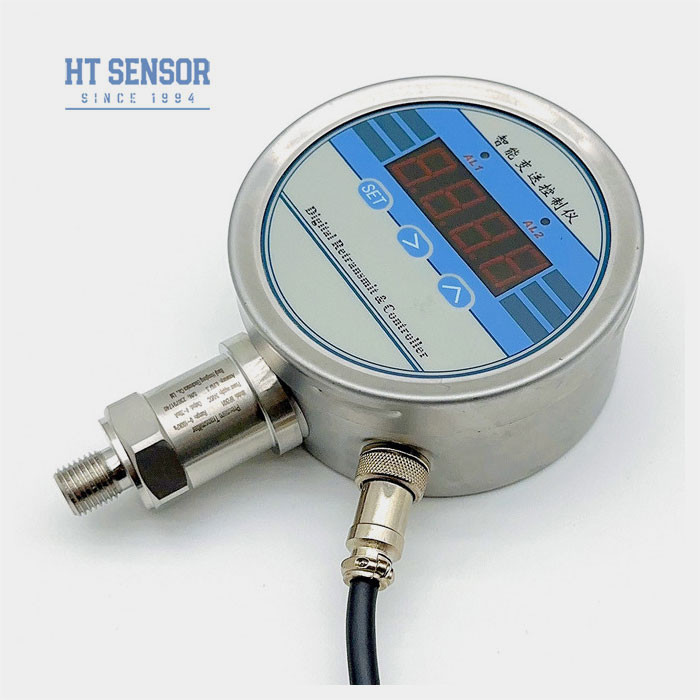

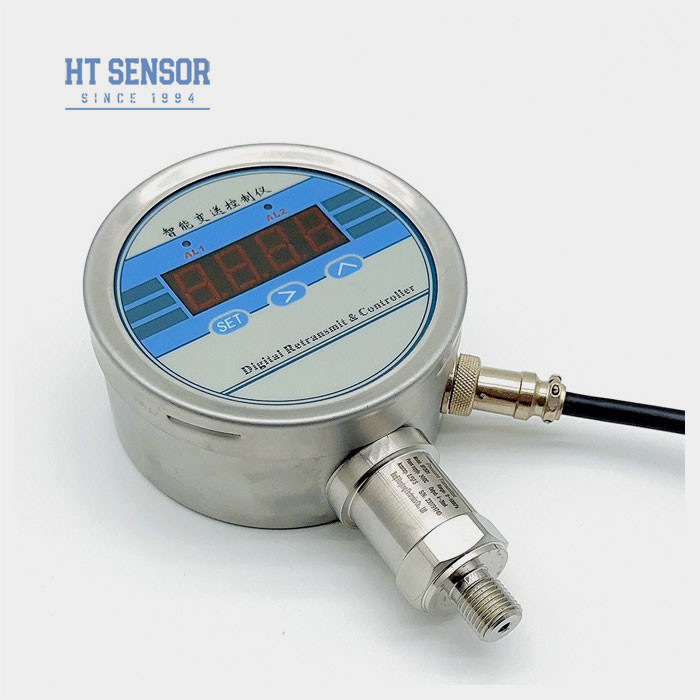

Electronic Differential Pressure Transmitter with Presure Switch

BPZK01 Electronic Differential Pressure Transmitter with Presure Switch

Introduction of Electronic Pressure Switch:



BPK-ZK01-D digital differential pressure gauge is an all-digital measurement and control product that integrates pressure/differential pressure measurement, display, point control, and transmission output. It can be directly installed at the pressure measurement point on the site or mounted on the control panel of a test bench. It allows on-site setting of various parameters such as zero value, full scale value, and contact pressure value using the keypad.
Product  Features:
  1. Stainless steel structural design with versatile pressure interface options.
  2.  with high-brightness LED pressure display.
  3. Powered  24VDC and 220VAC
  4. Can provide up to two control relay outputs, with the ability to set arbitrary relay values and states for precise and reliable control.
  5. High accuracy.

Applications:


Measurement and control of pressure/differential pressure of fluid media in industries such as hydropower, metallurgy, and chemical engineering, for automatic control applications.


Performance Parameters
Measurement Range 0-10KPa~2MPa(Differential Pressure)
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure,Differential Pressure
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Long-Term Stability ±0.3%F.S/year
Zero Point Temperature Drift ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa)
Compensation Temperature 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC
Operating Temperature -20ºC~80ºC
Storage Temperature -40ºC~120ºC
Housing Material 1Cr18Ni9Ti
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Relay Control 1-4 channels of control or electronic switch quantity control
Contact Life Exceeds 100,000 cycles
Display Range -1999~9999
Installation Method vertical axis installation
Explosion-proof Rating Intrinsically Safe
Protection Rating IP65
Weight ~0.8kg





Signal output Supply Voltage Output Type
4~20mA 15~30VDC Two/Three Wire
4~20mA with Hart Two Wire
RS485 Communication Protocol Four Wire





Ordering tips:

1. When selecting the product, please ensure that the measured medium is compatible with the contacting parts of the product.
2. When placing an order, please specify the power supply, accuracy grade, number of control points.
3. The measurement range of the flat diaphragm pressure controller is 0~35KPa...20MPa.
4. For users selecting differential pressure measurement, pay attention to the relationship between the differential pressure range and the allowable overpressure and maximum pressure of the high and low pressure chambers, and ensure it aligns with the requirements of the field application. To ensure the safe and reliable operation of the product, it is recommended to install a three-valve manifold between the measuring point and the transmitter.
5. To ensure the reliable operation of the product, it is recommended to install lightning protection devices at the site and ensure that the product and power supply are reliably grounded. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic interference, and radio frequency interference, please inform our company and specify them in the order.


company
Electronic Differential Pressure Transmitter with Presure Switch
Q&A
1.Q: What are the features of your pressure sensor transmitters?
   A: High precision, durability, and excellent performance. Customization available.

2.Q: Can I customize special specifications?
   A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service

3.Q: What is your production capacity?
    A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling
.
4.Q: What's the typical delivery period?
    A: 5~8 working day for standard models. Customized products may vary.

5.Q: How are the products priced? Any discounts?
    A: Competitive pricing with discounts for bulk orders or long-term partners
.
6.Q: What is the warranty of your products? And after-sales service?
    A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote          instruction by PC network is always available.
