Mirco Gas Differential Pressure Tranmitter For Dry Air Flow Transmitter 4 20ma
Product Details
| Model NO.: | BP93420DI | Protection Rating: | IP65 |
|---|---|---|---|
| Weight: | ~0.25kg | Housing Material: | Aluminium Casting |
| Transport Package: | Standard Export Packing With Carton | Origin: | Baoji, China |
| HS Code: | 9026201090 | Type: | Micro Differential Pressure Transmitter |
| Structure Type: | Diffused Silicon Pressure Transmitter | Measuring Medium: | Gas |
| Accuracy Grade: | 0.5%,1% | Pressure Range: | 0-500PA, 0-1kpa,0-2kpa, 0-5kpa, 0-7kpa, 0-10kpa,0~ |
| IP Rating: | IP65 | ||
| Highlight |
Mirco Gas Differential Pressure Tranmitter,Differential Pressure Tranmitter For Dry Air,Dry Air Flow Transmitter 4 20ma |
||
Product Description

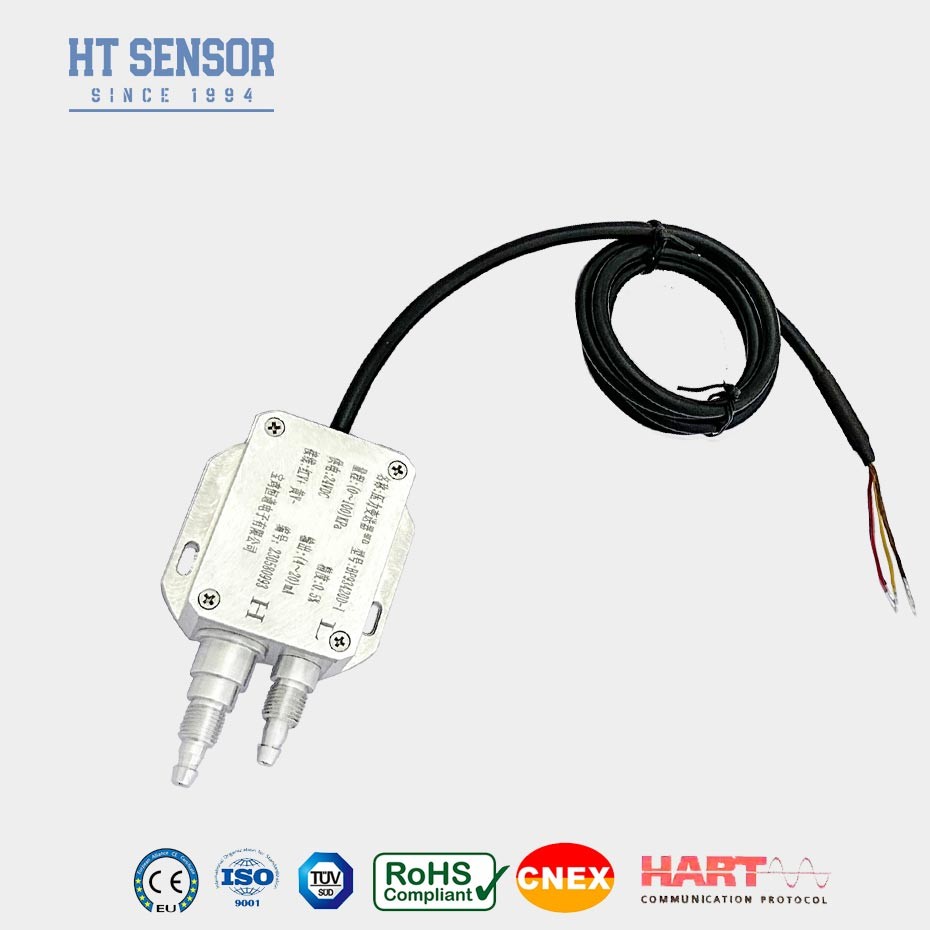

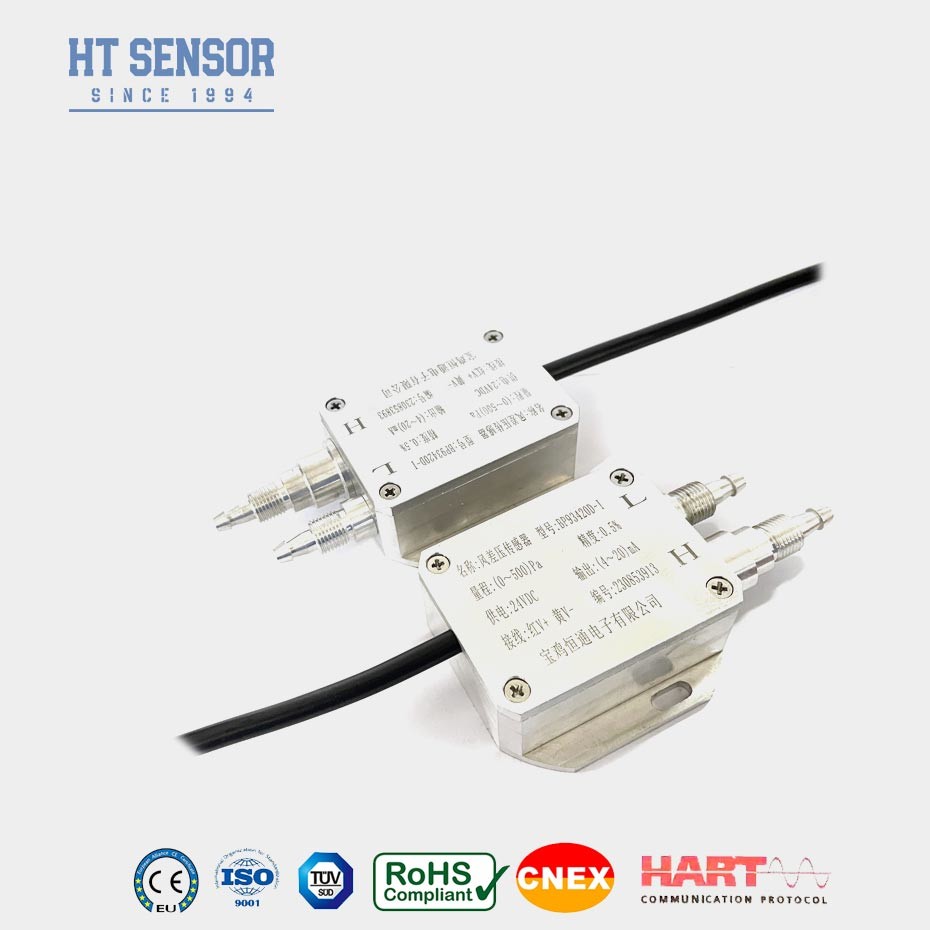

Mirco Gas Differential Pressure Tranmitter For Dry Air
BP93420DI Differential Pressure Transmitter
Introduction of differential pressure transmitter:
BP93420DI is a Micro-differential pressure transmitter.It is mainly used for measuring small differential pressures of non-corrosive dry gases, suitable for applications in industries such as boiler air supply, underground ventilation in the power and mining industries, and pressure automatic detection in ultra-clean workshops for process control.
Product Features of differential pressure transmitter
1.Choice of aluminum or plastic casing design
2.Lightweight and easy to install
3.Undergone rigorous high and low-temperature testing to ensure wide temperature range usability
4.High accuracy
Applications of differential pressure transmitter:
1.Suitable for applications in boiler and mining industries
2.Brewing and power industries
3.Designed for detecting small differential pressures of non-corrosive gases
| Performance Parameters | |
| Measurement Range | 0-500Pa, 0-1KPa,0-2KPa, 0-5KPa, 0-7kPa, 0-10KPa,0~~~200KPa |
| Pressure Type | Differential Pressure |
| Static pressure | 2 times of the rated range |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.5% (Typical), ±1% (Maximum) |
| Zero Temperature Drift | ±2.5%F.S/ºC(Typical) ±3%F.S/ºC(Maximum) |
| Span Temperature Drift | ±2.5%F.S/ºC(Typical) ±3%F.S/ºC(Maximum) |
| Compensation Temperature | 0-50ºC |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~100ºC |
| Housing Material | Aluminum alloy,Plastic |
| Relative humidity | 0-80% |
| Pressure connection | φ6 air nozzle or customizable |
| Protection Rating | IP65 |
| Cable material | Polyethylene |
| Weight | ~0.25kg |

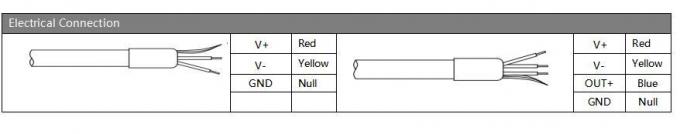

| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Ordering tips: |
1. When selecting the product, please ensure that the medium to be measured is compatible with the product parts in contact.
2. To ensure reliable operation, ensure that the measured medium is slowly and evenly pressurized on both the positive and negative pressure chambers of the transmitter.
3. During installation, it is recommended to position the pressure interfaces at both ends horizontally to minimize the impact on the product due to the installation position.
4. Ensure that the measured medium is a dry gas.

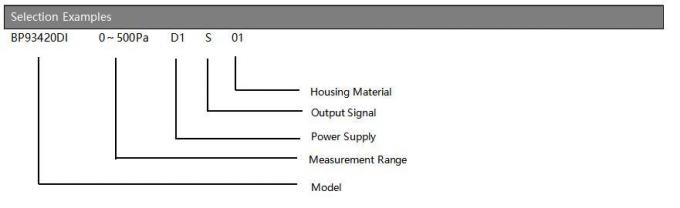

| Order Guide | ||||||||
| BP93420D | Pressure Transmitter | |||||||

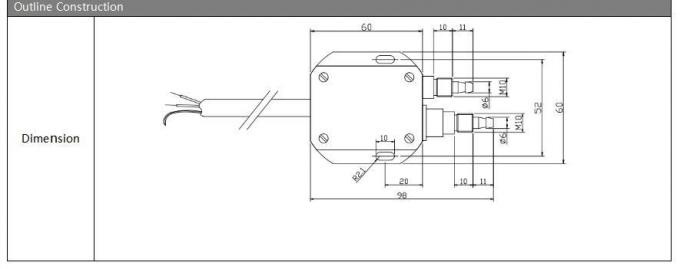

| Code | Outline Construction | |||||||
| I | Differential Pressure Transmitter | |||||||
| Measurement Range | 0-500Pa, 0-1KPa,0-2KPa, 0-5KPa, 0-7kPa, 0-10KPa,0~~~200KPa | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Type | |||||||
| D | Differential Pressure | |||||||
| Code | Housing Material | |||||||
| 01 | Aluminum alloy | |||||||
| 02 | Plastic | |||||||
| Q&A |
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
