Diaphragm Pressure Transmitter Flange Type Capacitive Differential Pressure Transducer
Product Details
| Model NO.: | HT3351 | Accuracy Grade: | 0.075%F.S |
|---|---|---|---|
| Power Supply: | 12.5~45VDC | Weight: | 3.6kg |
| Stability: | +-0.1%F.S/Year | Pressure Type: | Differential Pressure |
| Specification: | 500pa~200kpa | Trademark: | HengTong |
| Installation Method: | Flange Installation | HS Code: | 9026201090 |
| Supply Ability: | 20000PCS/Year | Package Size: | 30.00cm * 10.50cm * 20.00cm |
| Package Gross Weight: | 3.500kg | Shipping Cost: | To Be Negotiated |
| Measuring Medium: | Gas Or Liquid | Samples: | US$ 260/Piece 1 Piece(Min.Order) | |
| Highlight |
Diaphragm Pressure Transmitter Flange Type,Pressure Transmitter Flange Type Capacitive,Flange Capacitive Differential Pressure Transducer |
||
Product Description

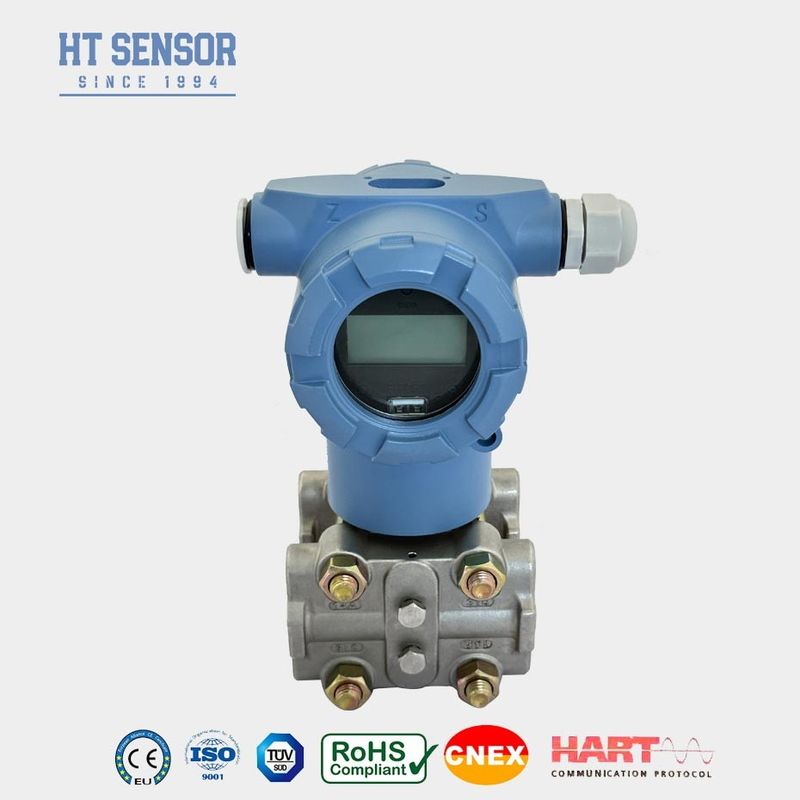

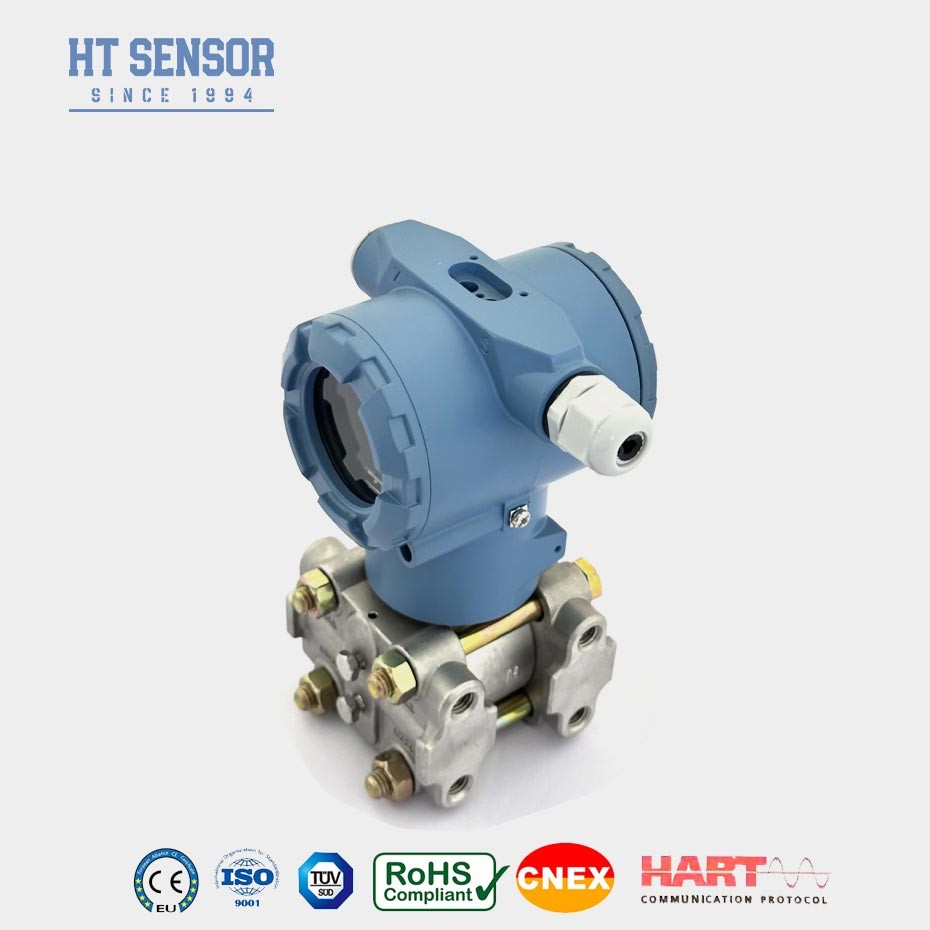

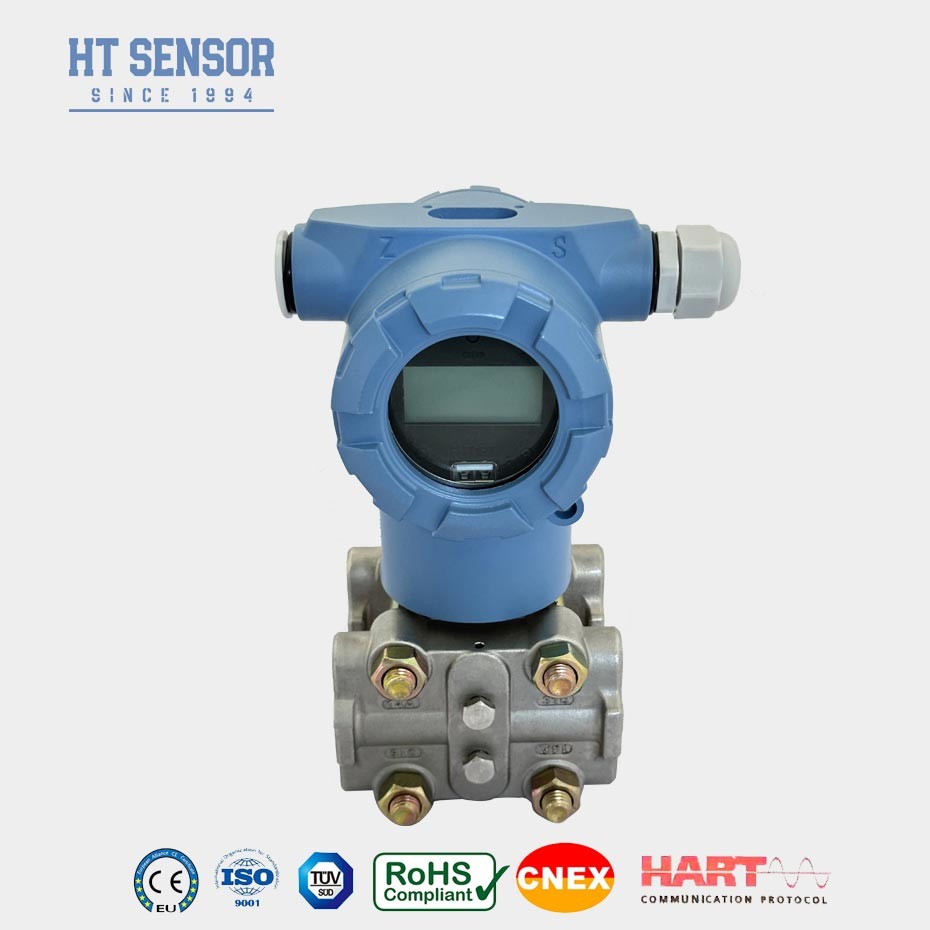

HT3351 Flange Diaphragm Capacitive Differential Pressure Transmitter Pressure Transducer
Introduction of differential pressure transmitter:
Capacitive differetial pressure transmitters have a sensing component with variable capacitance. The sensor is a completely closed assembly during which the pressure and differential pressure are transferred to the sensing diaphragm through the isolation diaphragm and the filling liquid silicone oil causing displacement. The capacitance difference between the sensing diaphragm and the two capacitive plates is converted by the electronics into a (4-20)mA two-wire output electrical signal.
ST3351 series digitalized Intelligent Pressure/ Differential Pressure User’s Manual for ST3351 Digital•Intelligent Pressure / Differential Pressure Transmitter has the optional HART module. After the transmitter is added the HART module, it has HART communication capacity, with the conventional operation being controlled with the general manual operator. The special communication equipment and software provided by our company can operate the marking and temperature supplementation actions.
Product Features:
1. The precision of capacitive differential pressure transmitter the is very high, and it can realize the connection adjustment of the range and the outside of the zero point
2. The capacitive pressure transmitter uses a two-wire system, the stability performance is relatively good, and the use of a solid sensor, the design is very good
3. Hart agreement + 4-20mA output signal
Applications:
1. Applied in industrial on-site processes such as petroleum, chemica,metallurgy, power generation, and hydrology
2. Pressure measurement for pipelines and furnace chambers
| Q&A |
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 12 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
