Name: Bp93420-Iq Flush Diaphragm Pressure Transmitter 50.4mm Clamp Pressure Transmitter
Brand: Baoji Hengtong Electronics Co., LTD
SKU: BP93420-IQ
Price: 21.00 USD
Availability: InStock

Detail Information

Model NO.:	BP93420-IQ	Protection Rating:	IP65
Weight:	~0.3kg	Housing Material:	304 S.S
Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure	Transport Package:	Standard Export Packing With Carton
Specification:	Silicon Pressure Sensor	CLAMP:	Φ50.4mm
Origin:	Baoji, China	HS Code:	9026201090
Supply Ability:	50000PCS/Year	Structure Type:	Diffused Silicon Pressure Transmitter
Measuring Medium:	Air And Liquid	Accuracy Grade:	0.25%, 0.5%,0.3%
Pressure Range:	-100kpa...0kpa ~10kpa...100MPa	IP Rating:	IP65
Customization:	Available \| Customized Request
Highlight:	Bp93420-Iq Flush Diaphragm Pressure Transmitter , Flush Diaphragm Pressure Transmitter 50.4mm , 50.4mm Clamp Pressure Transmitter

Product Description

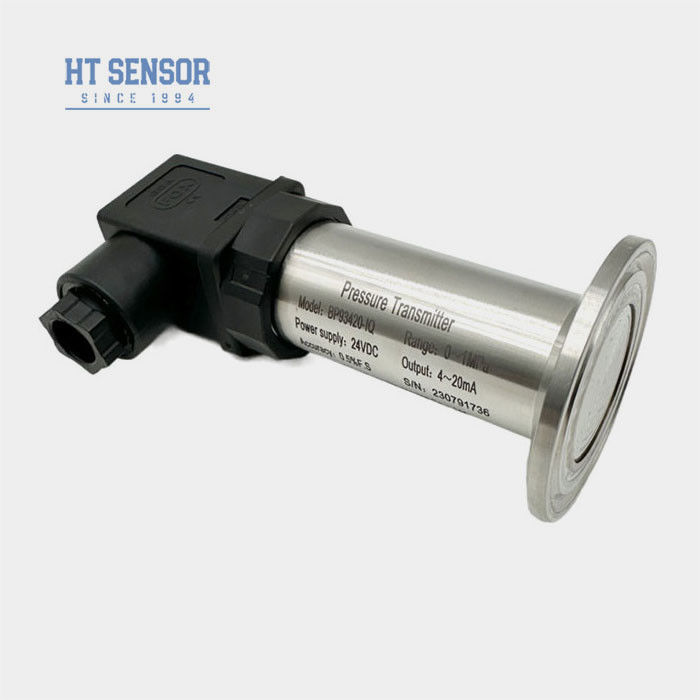

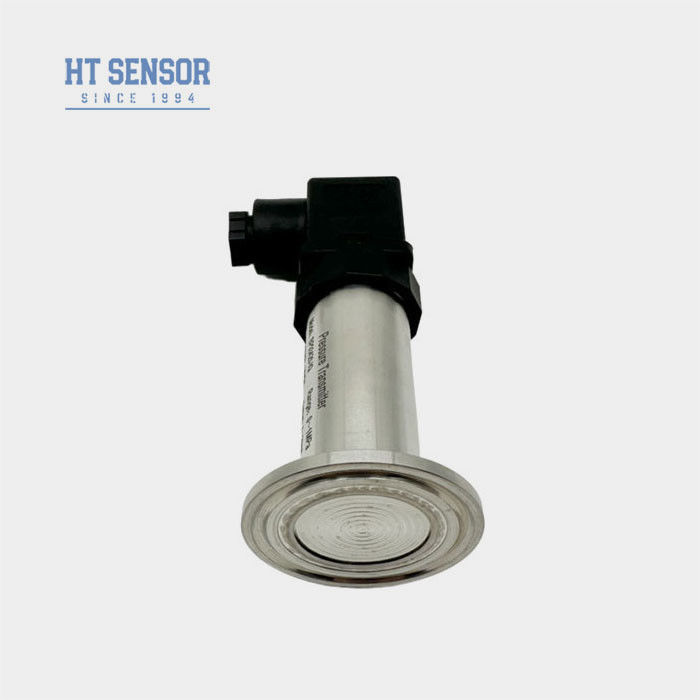

Φ50.4MM CLAMP FLUSH DIAPHRAGM PRESSURE SENSOR TRANSMITTER

BP93420-IQ Pressure Transmitter

Introduction of flush Diaphragm Pressure Sensor:

BP93420-IQ pressure transmitter The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. This pressure transmitter is primarily used in places where high sanitary conditions are required, ensuring reliable and accurate pressure measurements in hygienic environments.

Product Features:

Various pressure interface options
Designed for hygienic applications to prevent medium scaling
High accuracy with a fully stainless steel structure
Easy to clean.

Applications:

Suitable for measuring non-corrosive gases and liquids with 316L
Ideal for environmental protection and chemical industries
Used in the marine and aviation industries
Well-suited for use in the medical, biopharmaceutical, and food hygiene industries.

Performance Parameters:

Measurement Range	-100kPa…0kPa ～ 35kPa…3.5MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25℃	±0.25% (Typical) ±0.5% (Maximum)
Repeatability& Hysteresis	0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability	±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift	±0.02%F.S/℃(≤100KPa) ±0.01%F.S/℃(＞100KPa)
Full Scale Temperature Drift	±0.02%F.S/℃(≤100KPa) ±0.01%F.S/℃(＞100KPa)
Frequency Response	2.4Khz
Compensation Temperature	0-70℃(≤10mpa,customizable)
Operating Temperature	-20℃~80℃
Storage Temperature	-40℃~120℃
Vibration	10g,55Hz ～ 2kHz
Housing Material	304,316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex db IIC T6 Gb
Protection Rating	IP65
O-Ring Seal	Fluoro rubber
Weight	~0.2kg

Output Signal	Supply Voltage	Output Type
4～20mA	12～30VDC	2/3/4 wire
0～10/20mA		3 wire
0/1～5V
0/1～10V
0.5～4.5V	5VDC
RS485 Communication Protocol	3.6～30V / Battery	4 wire

Bp93420-Iq Flush Diaphragm Pressure Transmitter 50.4mm Clamp Pressure Transmitter 0

Bp93420-Iq Flush Diaphragm Pressure Transmitter 50.4mm Clamp Pressure Transmitter 1

Order Guide
BP93420XX	Pressure Transmitter

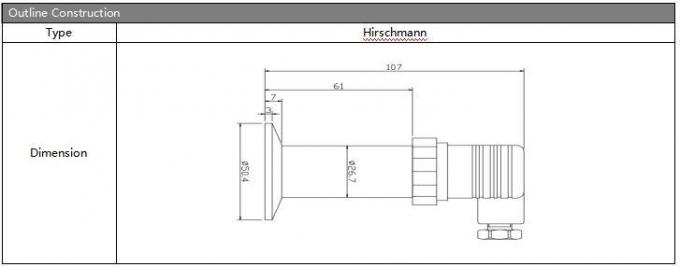

	Code	Outline Construction
	IB	General Pressure Transmitter			IX	Display Pressure Transmitter
	IE	Shock-resistant Aviation Pressure Transmitter			IIC/III	Industrial General/ Display Pressure Transmitter
	IF	Moisture-proof Pressure Transmitter			IIE/IIIE	General/Display Pressure Transmitter
	IN	Air Conditioning Dedicated Pressure Transmitter			IC	High-temperature Pressure Transmitter
	IQ/IQT	Large Diaphragm /High-temperature Pressure Transmitter
		Measurement Range	-100kPa…0kPa ~ 35kPa…3.5MPa
		(0-X)Kpa or MPa	X: Indicates the Actual Measuring Range
			Code	Power Supply
			D1	24VDC
			D2	5VDC
			D3	Other
				Code	Output Signal
				S1	4~20mADC	S5	0~20mADC
				S2	1~5VDC	S6	0~10VDC
				S3	0~5VDC	S7	0.5~4.5VDC
				S4	0~10mADC

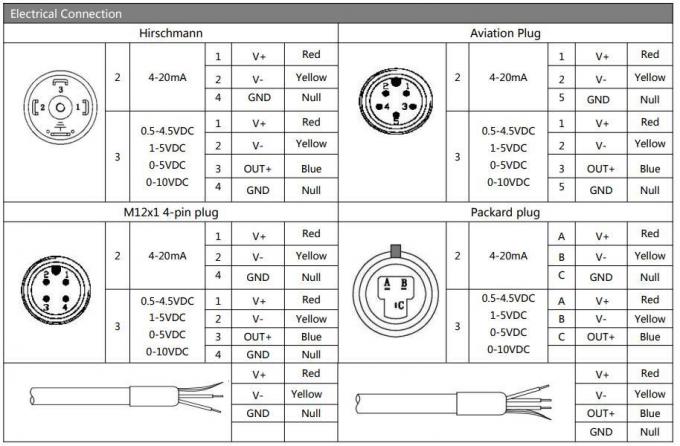

						Code	Electrical Connection
						B1	Hirschmann
						B2	PG7 Plug
						B3	Sealed Cable Output
						B4	2088 Industrial Casing
						B5	2088 Industrial Casing with Display
						B6	Other
							Code	Pressure Type
							G	Gauge Pressure
							A	Absolute Pressure
							S	Sealed Reference Pressure

Q&A:

1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.

Tag:

Place of Origin:	Baoji，China
Brand Name:	HT sensor
Certification:	CE,RoHs,ISO9001
Model Number:	BP93420-IQ

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Package
Delivery Time:	5-8 work days
Payment Terms:	Western Union, L/C, T/T
Supply Ability:	5000PCS/Month
