4-20mA Sanitary Flush Diaphragm Pressure Sensor BP93420-IQT For Air Water Oil Test
Product Details
| Model NO.: | BP93420-IQT Pressure Transmitter | Accuracy Grade: | 0.5%F.S |
|---|---|---|---|
| Pressure Range: | -100kPa...0kPa ~35kPa...3.5MPa | Housing Material: | Stainless Steel |
| Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure | Structure Type: | Diffused Silicon Pressure Transmitter |
| Measuring Medium: | Air/Water/Oil | IP Rating: | IP65 |
| Customization: | Available | Customized Request | Operating Temp.: | -20~80℃ |
| Highlight |
Sanitary Flush Diaphragm Pressure Sensor,4-20mA Flush Diaphragm Pressure Sensor,Air Flush Diaphragm Pressure Transmitter |
||
Product Description

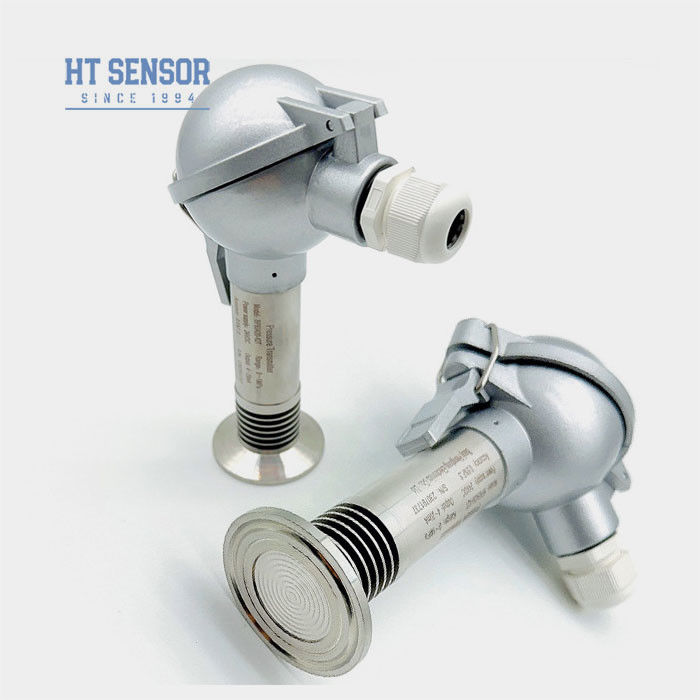

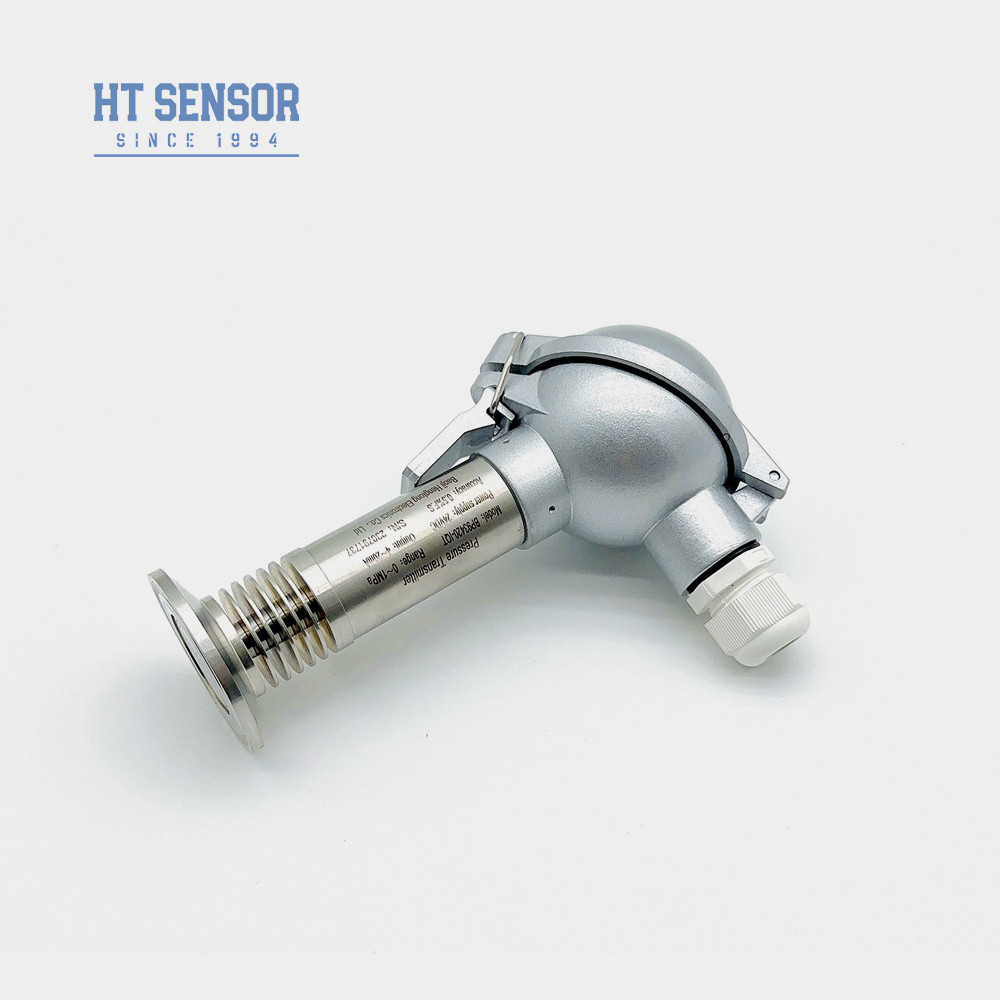

High temperature Sanitary Flush Diaphragm Pressure Sensor BP93420-IQT For Air Water Oil Test
BP93420-IQT Pressure Transmitter
Introduction of flush diaphragm pressure sensor:

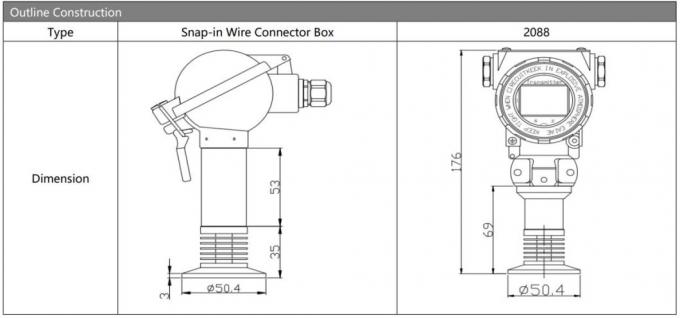

BP93420-IQT 50.4mm clamp to install large diaphragm high temperature transmitter The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. This pressure transmitter is primarily used in places where high sanitary conditions are required, ensuring reliable and accurate pressure measurements in hygienic environments.With various output options, including analog and digital signals, it offers flexibility to suit different system requirements.
Product Features of flush diaphragm pressure sensor:
1.Various pressure interface options
2.Designed for hygienic applications to prevent medium scaling
3.High accuracy with a fully stainless steel structure
4.Easy to clean.
Applications of flush diaphragm pressure sensor:
1.Suitable for measuring non-corrosive gases and liquids with 316L
2.Ideal for environmental protection and chemical industries
3.Used in the marine and aviation industries
4.Well-suited for use in the medical, biopharmaceutical, and food hygiene industries.

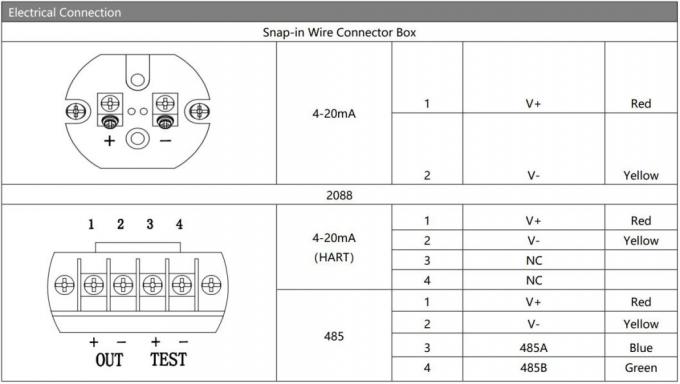

| Performance Parameters | |
| Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | SS304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.5kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |

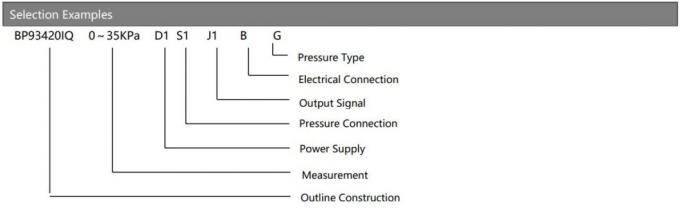

| Order Guide | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
| IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
| IN | Air Conditioning Dedicated Pressure Transmitter | IC | High-temperature Pressure Transmitter | |||||
| IQ/IQT | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
| Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
| Ordering tips |
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
4. The rated working temperature range of the Fluoro rubber O-ring is -20ºC to 250ºC. When the product's operating temperature is below -20ºC, it is necessary to choose an EPDM O-ring seal.
5. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
6. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
