| Model NO.: | BP93420-IQT Industrial Pressure Sensor | Weight: | ~0.3kg |
|---|---|---|---|
| Housing Material: | 304S.S | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Measuring Medium: | Liquid,Gas,Oil | Accuracy Grade: | 0.5%F.S |
| Pressure Range: | -100kPa...0kPa ~35kPa...3.5MPa | IP Rating: | IP65 |
| Customization: | Available | Customized Request | Warranty: | 2 Years |
| High Light: | Liquid OEM Sanitary Pressure Transmitter,Sanitary Pressure Transmitter 4-20mA,20mA Water Level High Pressure Sensor |
||

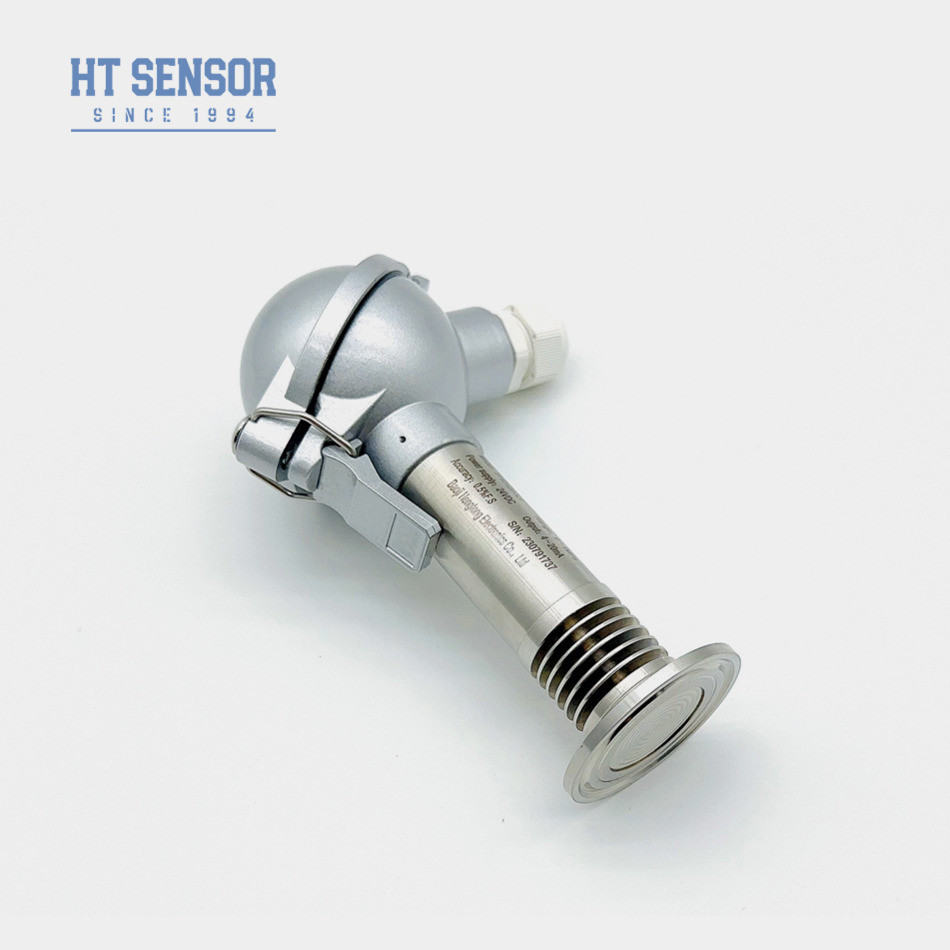

BP93420-IQ Pressure Transmitter
Introduction of industrial pressure sensor:
The BP93420-IQT is designed for installing large diaphragm high-temperature transmitters. The signal processing circuit is enclosed within a durable stainless steel housing, effectively converting sensor signals into standard output signals. This pressure transmitter is primarily used in applications where high sanitary standards are required, ensuring reliable and accurate pressure measurements,It is widely used in food industry, medical treatment, brewing industry and other sanitary field or special medium which may be sticky or scaling material.
Designed for hygienic applications to prevent medium scaling
High accuracy
Easy to clean
stainless steel structure
Suitable for measuring non-corrosive gases and liquids with 316L
Ideal for environmental protection and chemical industries
Used in the marine and aviation industries
Well-suited for use in the medical, biopharmaceutical, and food hygiene industries.
| Performance Parameters | |
| Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | SS304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.5kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Order Guide | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
| IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
| IN | Air Conditioning Dedicated Pressure Transmitter | IC | High-temperature Pressure Transmitter | |||||
| IQ/IQT | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
| Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
| Ordering tips |
| Q&A |
To recommend you the most suitable sensor, please tell us below information.
1. Working temperature: -40~125 °C ?
2. Test range?
3. Output: 4-20mA , RS485 or others?
4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5?
5. Electrical connection: Hirschmann, Packard, Direct lead?
6. Order quantity: ?
