ODM Flush Diaphragm Pressure Sensor 0~35Kpa~35MPa Diffused Silicon Pressure Transmitter
Product Details
| Model NO.: | BPHT24-IX | Protection Rating: | IP65 |
|---|---|---|---|
| Weight: | ~0.3kg | Housing Material: | 304s.S |
| Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure | Transport Package: | Standard Export Packing With Carton |
| Origin: | Baoji, China | HS Code: | 9026201090 |
| Type: | Normal Pressure Transmitter | Structure Type: | Diffused Silicon Pressure Transmitter |
| Measuring Medium: | Air And Liquid | Accuracy Grade: | 0.5% |
| Pressure Range: | -100kpa...0kpa ~10kpa...100MPa | Samples: | US$ 65/Piece 1 Piece(Min.Order) | Request Sample |
| Highlight |
ODM Flush Diaphragm Pressure Sensor,Flush Diaphragm Pressure Sensor 35Kpa,35MPa Diffused Silicon Pressure Transmitter |
||
Product Description

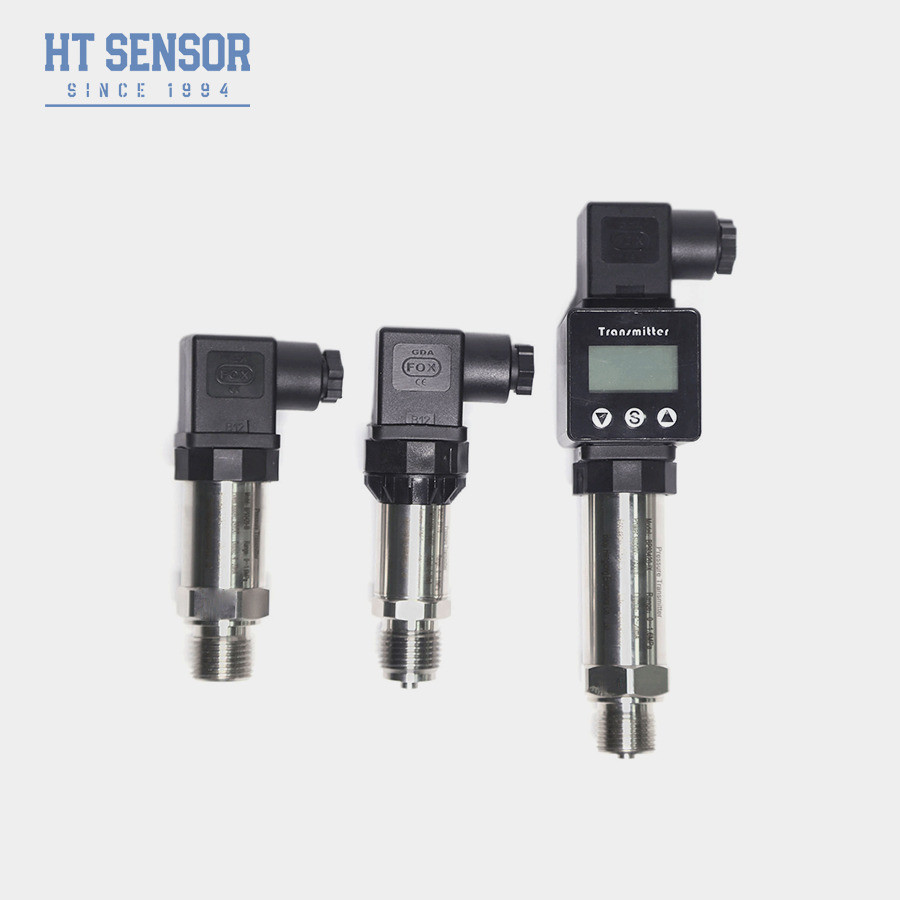

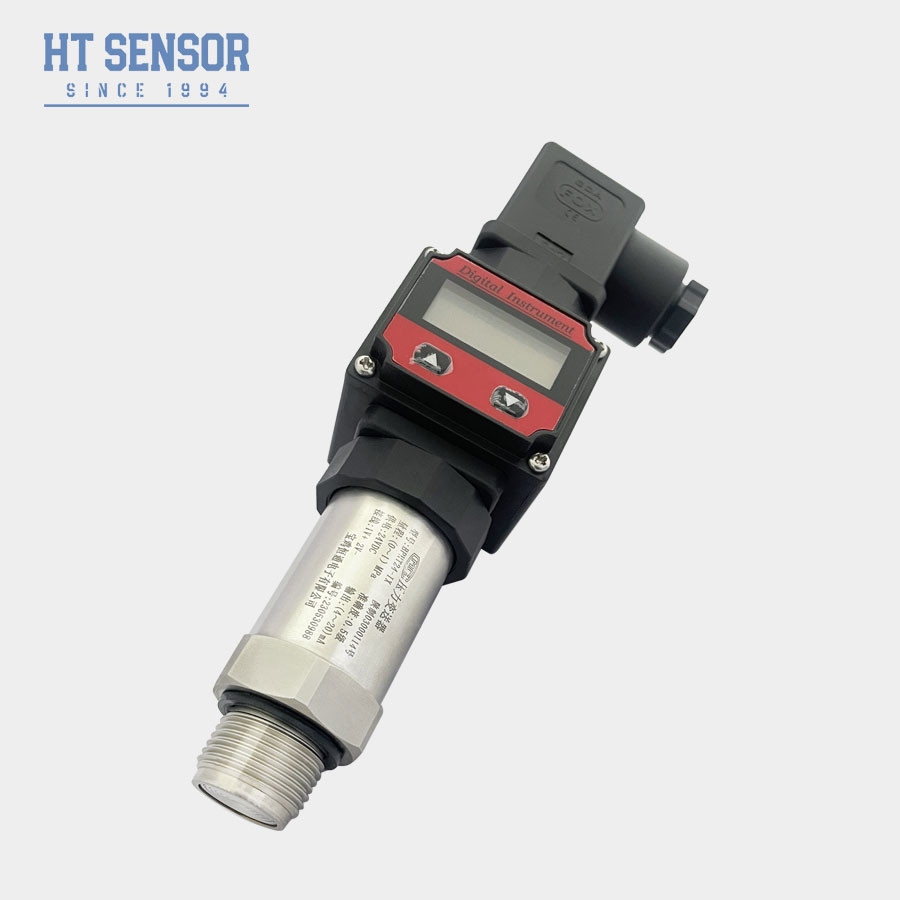

BPHT24-IXFlush Diaphragm Pressure Sensor Pressure Transmitter
Introduction:
BPHT24-IX flush diaphragm pressure sensor uses diffused silicon technology to convert the pressure signal into an electrical output by measuring the concentration gradient change inside the thin film on the pressure sensor. This principle makes the diffused silicon flat film pressure transmitter with high precision, stability and reliability, suitable for various industrial applications for pressure measurement and control occasions
Product Features:
- Various pressure interface options
- Designed for hygienic applications to prevent medium scaling
- High accuracy with a fully stainless steel structure
- Easy to clean.
- Suitable for measuring non-corrosive gases and liquids with 316L
- Ideal for environmental protection and chemical industries
- Used in the marine and aviation industries
- Well-suited for use in the medical, biopharmaceutical, and food hygiene industries.
| Performance Parameters | |
| Measurement Range | 0~35Kpa…~35MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | -20-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0/1~5V | ||
| 0/1~10V |

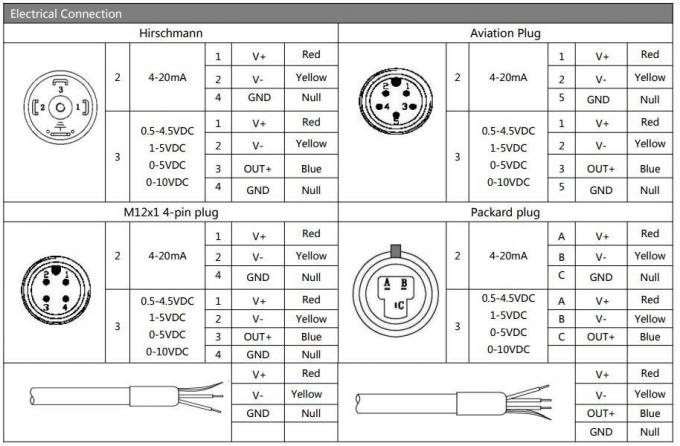

| Type | Hirschmann |

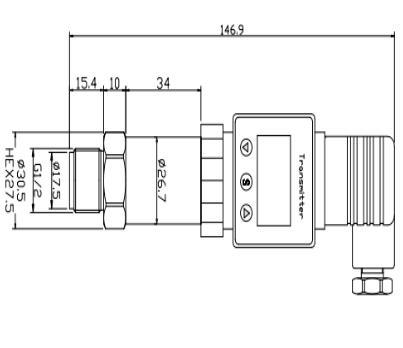

| Dimension |  |
| Selection Examples |

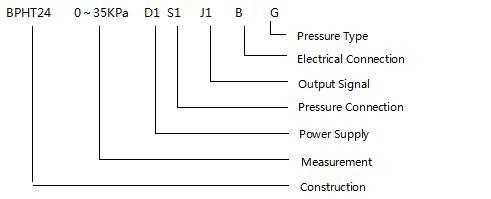

| Order Guide | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IX | Display Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| Measurement Range | 0~35Kpa…~20MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | |||||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | 1/2NPT | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
Product Highlights
BPHT24-IXFlush Diaphragm Pressure Sensor Pressure Transmitter Introduction: BPHT24-IX flush diaphragm pressure sensor uses diffused silicon technology to convert the pressure signal into an electrical output by measuring the concentration gradient change inside the thin film on the pressure sensor. ...
19mm Oil Filled Pressure Transmitter Diffused Sillcon Pressure Transmitter Water Oil Test
Oil Filled Diffused Sillcon Pressure Transmitter Sensor For Water And Oil Test 19mm Silicon Piezoresistive Pressure Sensor Introduction of Pressure Transmitter Sensor: HT19F functions as a silicon piezoresistive pressure sensor ,with a core consisting of a highly stable diffused silicon element,. It effectively measures the pressure of liquids and gases by transmitting the pressure of the tested medium to the silicon diaphragm through an isolation diaphragm and silicon oil
OEM Water Oil Flush Diaphragm Pressure Transmitter Beverage Digital Level Pressure Sensor
BP93420-IIIQT1 OEM water oil Beverage glue Flush Diaphragm Pressure Sensor Transmitter BP93420-IIIQT1 Pressure Transmitter Introduction of flush diaphragm pressure sensor: BP93420-IIIQT1 flush-diaphragm pressure sensor transmitter is an analog pressure transmitter with a flat membrane structure, which increases the contact area with the medium. Wide temperature range, overload capacity, strong corrosion resistance, wide application. In order to ensure that this series of
BPHT24-III Digital Pressure Transmitter Flush Diaphragm Digital Pressure Sensor
Hengtong BPHT24-III Digital Flush diaphragm pressure sensor Transmitter China BPHT24-III Pressure Transmitter Introduction of flush diaphragm pressure sensor transmitter: BPHT24-III pressure transmitter is mainly used in the pressure measurement of viscous liquid mud anti-scaling and anti-crystallization oil shield machine. The whole adopts integrated stainless steel structure, and the two kinds of flat film structure with or without cavity can choose the material in contact
BPZK04-2 Pressure Switch Electrical 24VDC 4-20mA Digital Pressure Switch LCD Display Electronic Pressure Switch
24Vdc 4-20MA 2-Point Electronic Pressure Switch Digital Pressure Switch With LCD Display BPZK04-2 Electronic Pressure Switch Introduction: BPK-ZK04-2 electronic pressure switch is a set of pressure measurement, control display, transmission output as one of the full digital control products. It can be used as a signal device when the pressure of non-corrosive gases and liquids reaches a limit value, or as a circuit contact switch for a pressure regulator. The controller is
