BPHT24-IX Flush Diaphragm Pressure Sensor OEM Sanitary Liquid Pressure Sensor
Product Details
| Model NO.: | BPHT24-IX | Customized: | Customized |
|---|---|---|---|
| Protection Rating: | IP65 | Weight: | ~0.3kg |
| Housing Material: | 304s.S | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Transport Package: | Standard Export Packing With Carton | Specification: | Silicon Pressure Sensor |
| Trademark: | HTsensor | Origin: | Baoji, China |
| HS Code: | 9026201090 | Supply Ability: | 50000PCS/Year |
| Type: | Normal Pressure Transmitter | Structure Type: | Diffused Silicon Pressure Transmitter |
| Measuring Medium: | Air And Liquid | Accuracy Grade: | 0.5% |
| Pressure Range: | -100kpa...0kpa ~10kpa...100MPa | IP Rating: | IP65 |
| Samples: | US$ 65/Piece 1 Piece(Min.Order) | Request Sample | Customization: | Available | Customized Request |
| Model: | 1 | ||
| Highlight |
BPHT24-IX Flush Diaphragm Pressure Sensor,Flush Diaphragm Pressure Sensor OEM,OEM Sanitary Liquid Pressure Sensor |
||
Product Description
BPHT24-IX OEM Sanitary Viscous Liquid Test Flush Diaphragm Pressure Sensor
BPHT24-IX Pressure Transmitter
Introduction:
BPHT24-IX diffused silicon flush diaphragm pressure transmitter adopts advanced microcomputer technology and has automatic temperature compensation and linear correction functions. This means that it can automatically compensate the temperature according to changes in the ambient temperature, improving the accuracy of the measurement. At the same time, through the linear correction function, the output signal can be corrected to further improve the accuracy and stability of the measurement. In addition, the diffused silicon flat film pressure transmitter has the characteristics of high protection level, corrosion resistance, vibration resistance, etc., which is suitable for various harsh environments. It usually has IP65 or higher protection grade, which can effectively prevent dust, moisture and other external substances from affecting it. At the same time, its structural design makes it have strong corrosion resistance and can work stably in corrosive media such as acid and alkali for a long time. In addition, it also has good vibration resistance and can maintain stable measurement in environments with large vibrations.
Product Features:

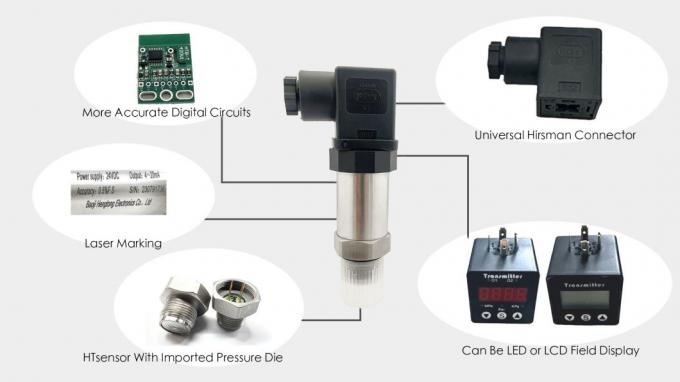

- Various pressure interface options
- Designed for hygienic applications to prevent medium scaling
- High accuracy with a fully stainless steel structure
- Easy to clean.
- Suitable for measuring non-corrosive gases and liquids with 316L
- Ideal for environmental protection and chemical industries
- Used in the marine and aviation industries
- Well-suited for use in the medical, biopharmaceutical, and food hygiene industries.
| Performance Parameters | |
| Measurement Range | 0~35Kpa…~35MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | -20-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0/1~5V | ||
| 0/1~10V |
| Selection Examples |
| Ordering tips |
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring is -20ºC to 250ºC. When the product's operating temperature is below -20ºC, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
7. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
| Order Guide | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IX | Display Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| Measurement Range | 0~35Kpa…~20MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | |||||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | 1/2NPT | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
| Q&A |
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
