| Place of Origin: | Baoji，China |
|---|---|
| Brand Name: | HT SENSOR |
| Certification: | CE,RoHs,ISO9001 |
| Model Number: | BP93420-IQ |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Model NO.: | BP93420-IQ | Pressure Range: | -100kpa...0kpa ~35kpa...3.5MPa |
|---|---|---|---|
| Accuracy Grade: | 0.5%F.S | Customized: | Customized |
| Protection Rating: | IP65 | Housing Material: | 316L |
| Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure | Specification: | Piezoresistive |
| Structure Type: | Diffused Silicon Pressure Transmitter | Measuring Medium: | Steam/Liquid |

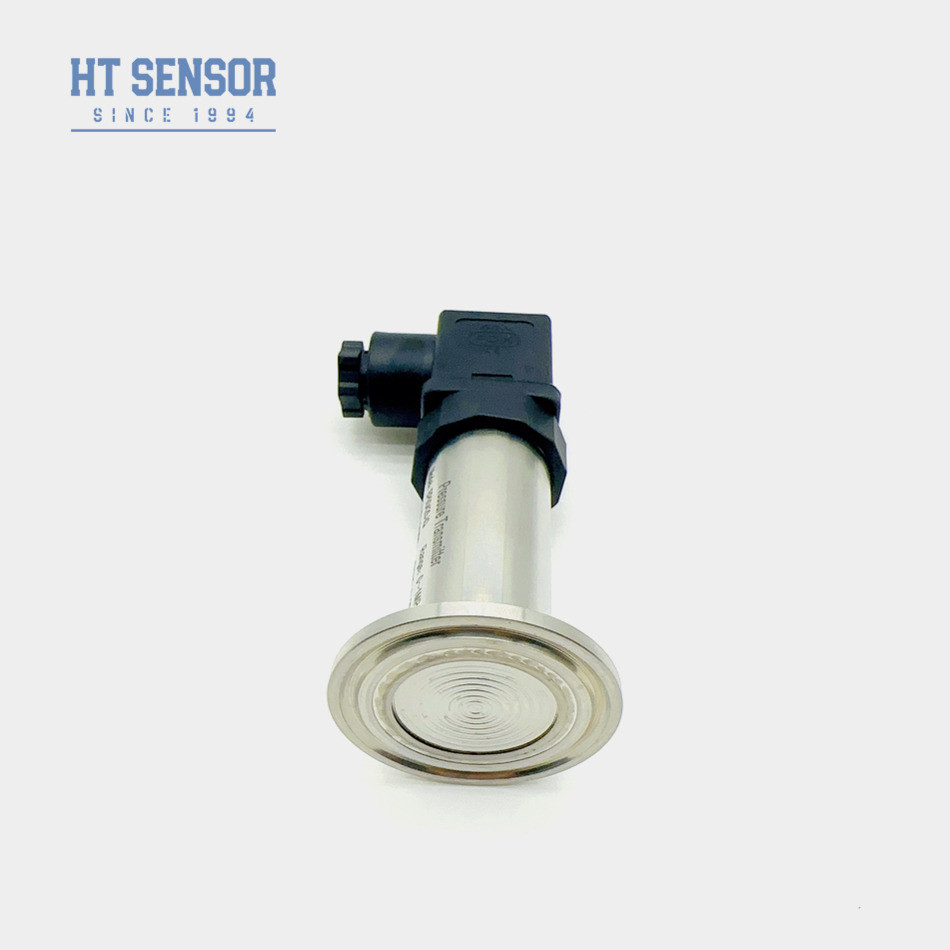

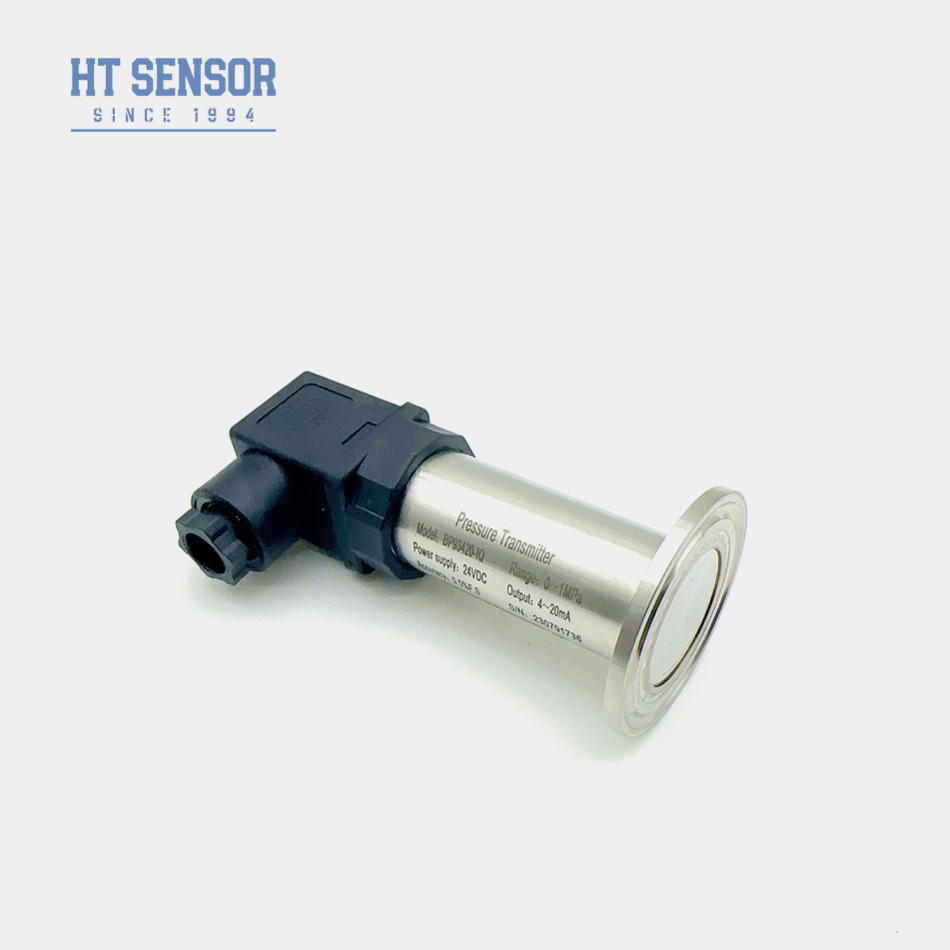

| High Light: | 3.5mpa Industrial Pressure Sensor,Industrial Pressure Sensor OEM,OEM Clamp Flat Diaphragm Pressure Transmitter |
||
| Performance Parameters | |
| Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ≤0.1%FS |
| Hysteresis | ≤0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.2kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Ordering tips |
| Order Guide | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
| IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
| IN | Air Conditioning Dedicated Pressure Transmitter | |||||||
| IC | High-temperature Pressure Transmitter | |||||||
| IQ1/IQ2 | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
| Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 7/16-20UNF | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
