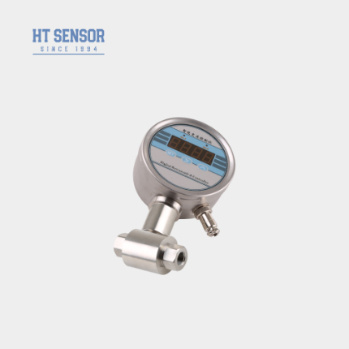

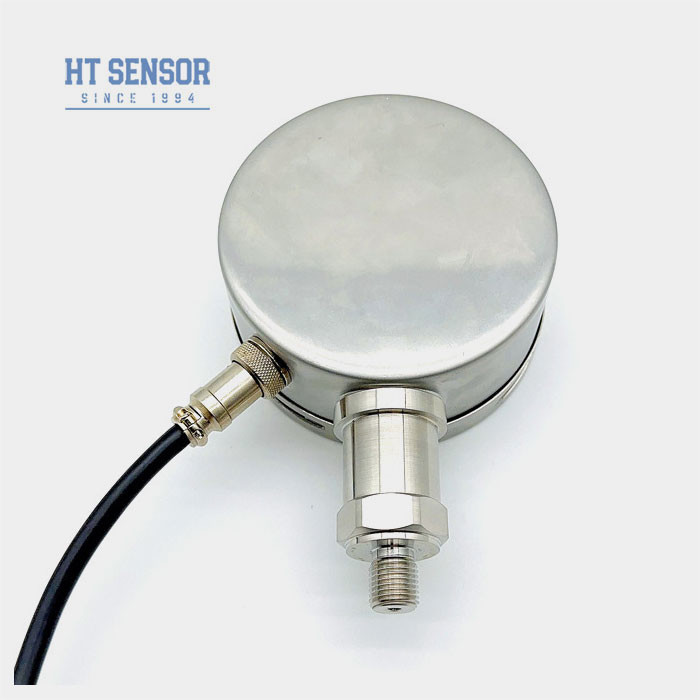

100mm BPZK01 Differential Pressure Transmitter Digital Pressure Switch Industrial
Product Details
| Model NO.: | BPZK01-D Electronic Pressure Switch | Specification: | -10kpa...0~10kpa...100mpa |
|---|---|---|---|
| Pressure Connection: | Thread | Pressure Type: | Gauge/Absolute/Sealed |
| Number Of Switch: | Double Control Switch | IP Rating: | IP65 |
| Usage: | Control Switch | Application: | Commercial, Industrial, Vehicles |
| Explosion-proof Type: | Intrinsically Safe | Output: | Analog/Digital |
| Highlight |
BPZK01 Differential Pressure Transmitter,BPZK01 Digital Pressure Switch,100mm Digital Pressure Switch Industrial |
||
Product Description
100mm BPZK01 differntial pressure switch for two pressure test
Introduction of BPZK01 Electronic Pressure Switch:

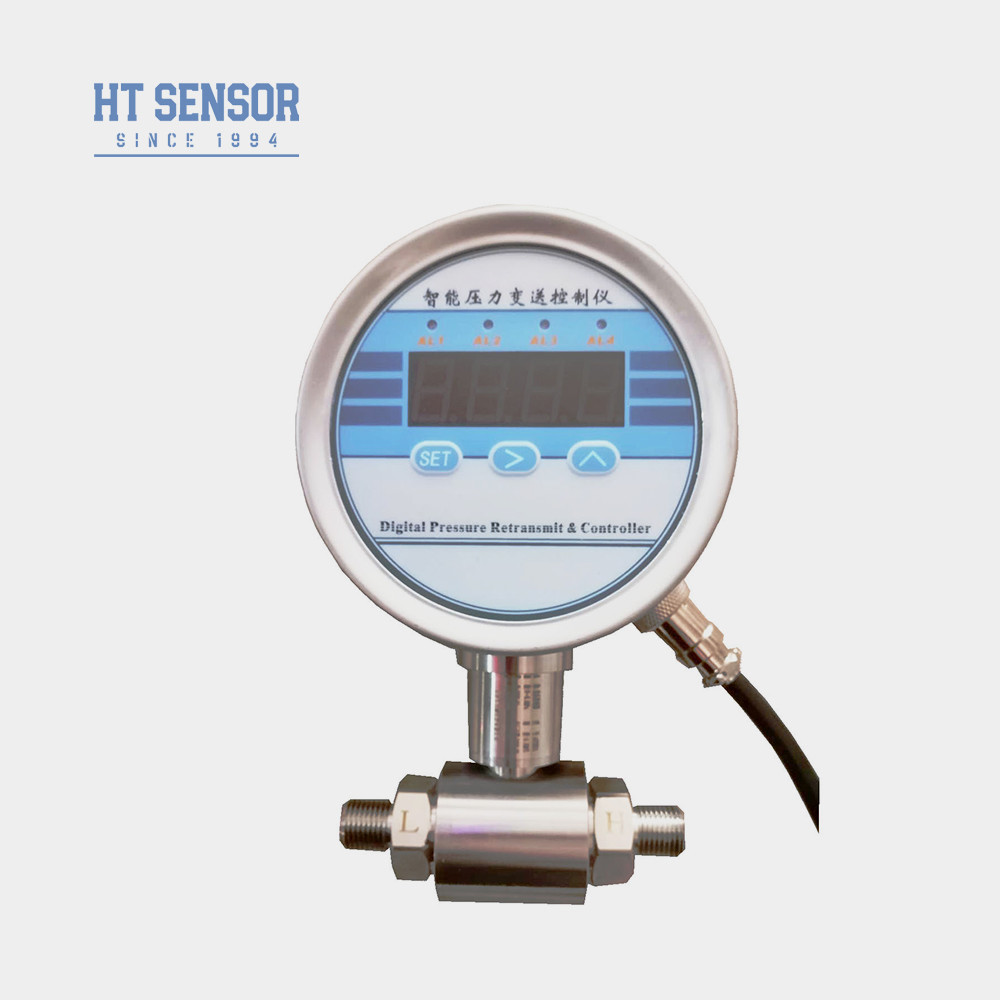

BPK-ZK01-D digital differential pressure gauge is an all-digital
measurement and control product that integrates pressure/differential pressure measurement, display, point control, and transmission output. It can be directly installed at the pressure measurement point on the site or mounted on the control panel of a test bench. It allows on-site setting of various parameters such as zero value, full scale value, and contact pressure value using the keypad.
Product Features of BPZK01 Electronic Pressure Switch:
- Stainless steel structural design with versatile pressure interface options.
- with high-brightness LED pressure display.
- Power 24VDC and 220VAC
- Can provide up to two control relay outputs, with the ability to set arbitrary relay values and states for precise and reliable control.
- High accuracy.
Applications of BPZK01 Electronic Pressure Switch:
Measurement and control of pressure/differential pressure of fluid media in industries such as hydropower, metallurgy, and chemical engineering, for automatic control applications.
| Performance Parameters | |
| Measurement Range | 0-10KPa~2MPa(Differential Pressure) |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure,Differential Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability | ±0.3%F.S/year |
| Zero Point Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Relay Control | 1-4 channels of control or electronic switch quantity control |
| Contact Life | Exceeds 100,000 cycles |
| Display Range | -1999~9999 |
| Installation Method | vertical axis installation |
| Explosion-proof Rating | Intrinsically Safe |
| Protection Rating | IP65 |
| Weight | ~0.8kg |
| Outline Construction | |

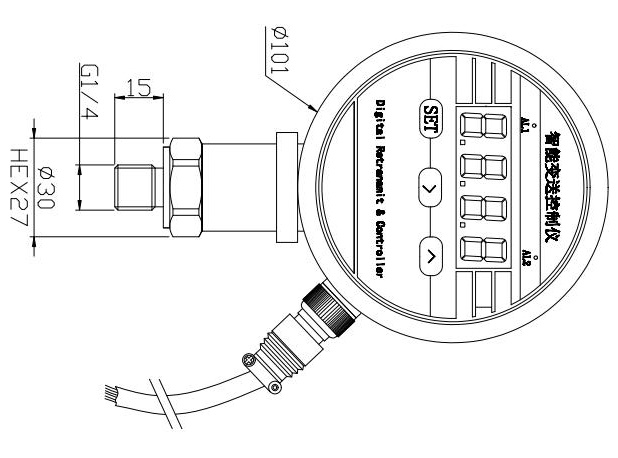

| Dimension | |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA / 0-20mA | 24VDC or 220VAC | 3 wire |
| 1-5VDC /0-5VDC | 24VDC or 220VAC | 3 wire |
| Ordering tips |
2. When placing an order, please specify the power supply, accuracy grade, number of control points.
3. The measurement range of the flat diaphragm pressure controller is 0~35KPa...20MPa.
4. For users selecting differential pressure measurement, pay attention to the relationship between the differential pressure range and the allowable overpressure and maximum pressure of the high and low pressure chambers, and ensure it aligns with the requirements of the field application. To ensure the safe and reliable operation of the product, it is recommended to install a three-valve manifold between the measuring point and the transmitter.
5. To ensure the reliable operation of the product, it is recommended to install lightning protection devices at the site and ensure that the product and power supply are reliably grounded. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic interference, and radio frequency interference, please inform our company and specify them in the order.
