BPZ2008 Digital Pressure Gauges 5-Digit LCD Differential Pressure Gauge 9V Supply
Product Details
| Model NO.: | BPZ2008 | Supply: | 9VDC |
|---|---|---|---|
| Output: | Display | Housing Material: | 316L |
| Pressure Type: | Differential Pressure | Origin: | Baoji, China |
| Type: | Differential Pressure Transmitter | Accuracy Grade: | 0.5%F.S 0.25%F.S |
| Pressure Range: | 0kpa~10kpa...2MPa | Customization: | Available OEM And ODM |
| Highlight |
BPZ2008 Digital Pressure Gauges,Digital Pressure Gauges 5-Digit,LCD Differential Pressure Gauge 9V Supply |
||
Product Description

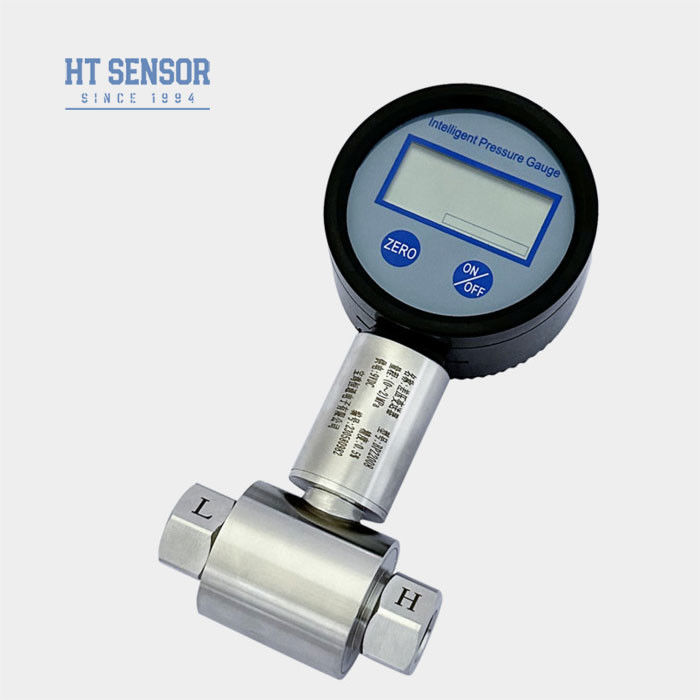

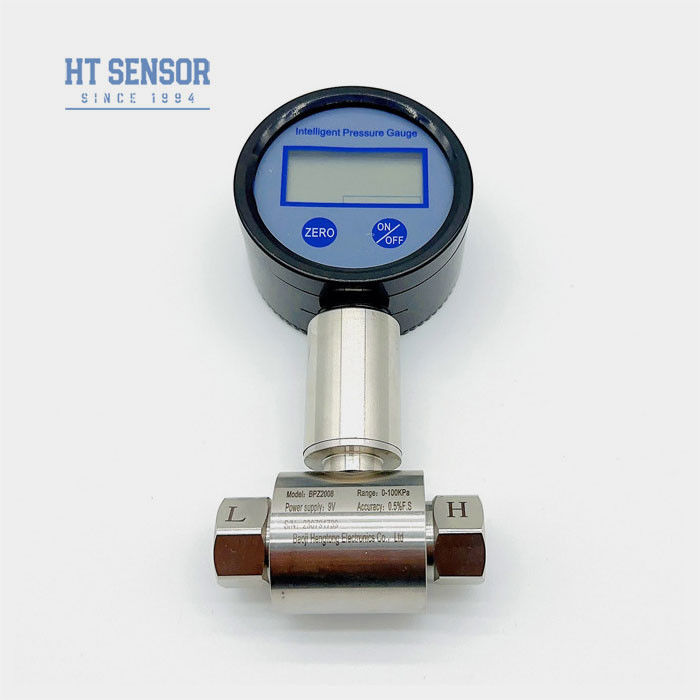

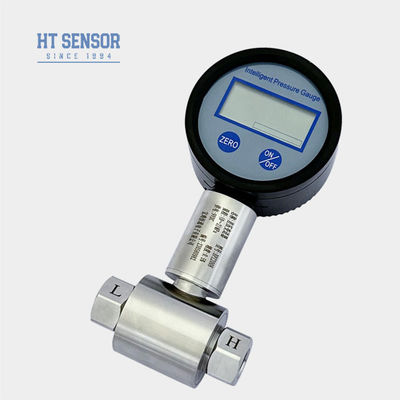

BPZ2008 5-Digit LCD Differential Digital Pressure Gauges 9V Supply
BPZ2008 Pressure Gauge/Switch
Introduction of digital differential pressure Gauges:
BPZ2008 digital differential pressure table is a dielectric isolation moisture gauges, specially designed for measuring the corrosive gas and liquid.
It uses a piezoresistive diffused silicon sensor and integrated circuit design and is housed in a black plastic housing. Powered by a 9V lithium battery, no additional power supply is required, the meter has a 5-bit LCD display and provides high reliability and stability.
Product Features of digital differential pressure Gauges:
1. 5-digit LCD display
2. Powered by a 9V battery
3. Selectable units of measurement: bar, psi, kg/cm2, KPa, MPa
4. Peak hold and continuous reading functions
Applications of digital differential pressure Gauges:
1. Suitable for measuring non-corrosive gases and liquids with 316L
2. Ideal for environmental protection and chemical industries
3. Differential pressure measurement for various gases and liquids in industries such as petroleum, chemical, power, and hydrology for pipeline applications.
Performance Parameters of digital differential pressure Gauges:
|
Performance Parameters of digital differential pressure Gauges: |
|
|---|---|
| Measurement Range | 0-10KPa...~4MPa |
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static pressure | The minimum value between 5 times the rated range or 7 MPa |
| Power Supply | 9V alkaline battery. |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa) |
| Zero Point Temperature Drift | ±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -1ºC~49ºC |
| Storage Temperature | -40ºC~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | ABS,1Cr18Ni9Ti |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Protection Rating | IP65 |
| Weight | ~0.45kg |
2. To ensure reliable operation, it is recommended to install a three-valve manifold between the measuring point and the transmitter to ensure slow and even pressure in the positive and negative pressure chambers of the transmitter.
3. When installing, the pressure interfaces at both ends should be placed horizontally to reduce the impact of the installation position on the product.
4. Because the air parts can not carry batteries, 9V alkaline batteries are not included in the product packaging. If you need to bring batteries, please specify.
5. In case of special requirements such as strong vibration, instantaneous impact force, strong electromagnetic interference or radio frequency interference, please inform us and indicate in the order.
Q1:Areyou manufactrade company?
A1:We are manufactrader with more than 29 years of experience.
Q2:Customized Product
A2:We provide OEM and Custom-Design services.
Q3:Quality Quarantee
A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
Q4:Shipment&packing
A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
Q5:Contact US
A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
