| Place of Origin: | Baoji，China |
|---|---|
| Brand Name: | HT sensor |
| Certification: | CE,RoHs,ISO9001 |
| Model Number: | BT93420-I |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Model NO.: | BT93420-I | IP Rating: | IP65 |
|---|---|---|---|
| Customized: | Customized | Long-Term Stability: | ±0.2%F.S/Year |
| Storage Temp.: | -40~100℃ | Transport Package: | Carton |
| Trademark: | HengTong | Origin: | China |
| HS Code: | 9032100000 | Supply Ability: | 2000PCS/Month |
| Output Signal Type: | Analog Type | Measuring Medium: | Liquid |
| High Light: | HT Explosion Proof Temperature Transmitter,Explosion Proof Temperature Transmitter PT100,PT100 Temperature Transmitter Sensor Industrial |
||

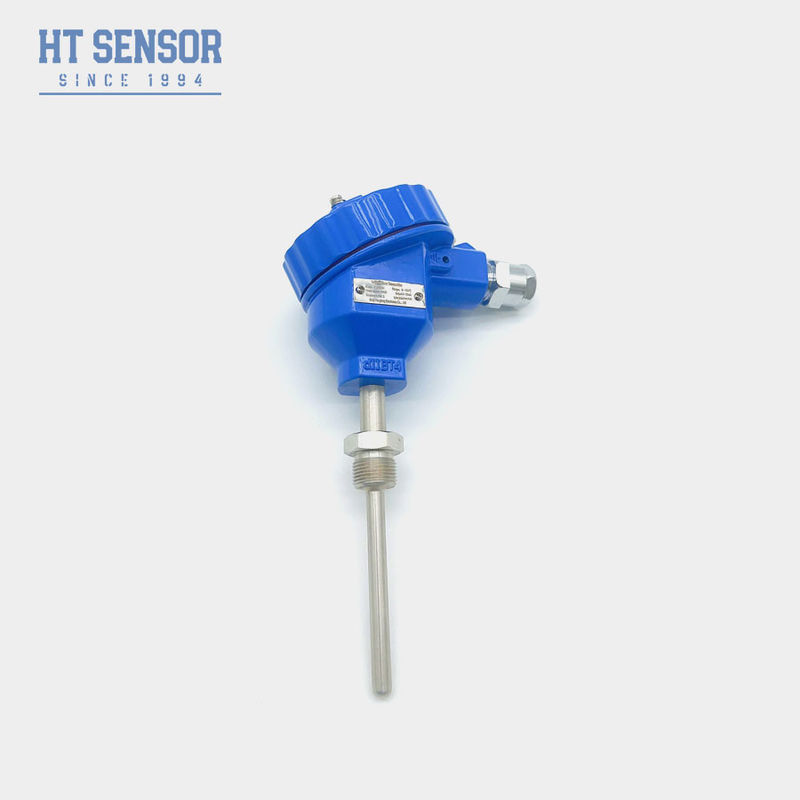

BT93420 Temperature Indicator Transmitter
Introduction of temperature indicator transmitter:
The PT100 temperature module transmitter is widely used in a variety of situations requiring temperature measurement and control, the following are some of the common applications:
Aplication:
1. Industrial automation:
In the field of industrial automation, PT100 temperature module transmitters are commonly used to monitor and control the temperature in the production process. For example, in chemical production, the transmitter can be used to monitor the temperature inside the reactor to ensure the safety and efficiency of the production process.
2. HVAC Systems:
PT100 temperature module transmitters are widely used in HVAC systems. They can measure indoor and outdoor temperatures and transmit signals to the controller to adjust the operating state and temperature of the air conditioning system.
3. Food processing:
In the food processing industry, PT100 temperature module transmitters can be used to monitor and control the temperature during food processing. For example, when baking food, the transmitter can be used to monitor the temperature inside the oven to ensure the quality and safety of the food baking.
4. Medical equipment:
The PT100 temperature module transmitter is also widely used in medical equipment. For example, in a thermometer, this transmitter can be used to measure the body temperature and transmit the signal to the display.
5. Aerospace:
PT100 temperature module transmitters are also widely used in the aerospace field. For example, in space vehicles and aircraft systems, the transmitter can be used to measure and control the temperature of critical components to ensure the safety and reliability of the system.
In short, the PT100 temperature module transmitter is a very useful temperature measurement and control device for a variety of different applications.
| Performance Parameters | |
| Measurement Range | -55~1200ºC |
| Accuracy @ 25ºC | ±0.5% (Typ.) ±1% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -30~80ºC |
| Storage Temperature | -40~100ºC |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Maximum temperature | 120% of the rated temperature range |
| Protection Rating | IP65 |
| Weight | ~0.5Kg |
| Outline Construction | |
| Terminal Box |  |
| Order Guide | |||||||
| BT93420 | Temperature Indicator Transmitter | ||||||
| Code | Outline Construction | ||||||
| I | Blue Terminal Box | ||||||
| II | 2088 housing | ||||||
| III | 2088+LED | ||||||
| IIIA | 3051+LED | ||||||
| Measurement Range | -55~1200ºC | ||||||
| Code | Power Supply | ||||||
| D1 | 24VDC | ||||||
| D2 | Other | ||||||
| Code | Output Signal | ||||||
| S1 | 4~20mADC | S4 | 0~10mADC | ||||
| S2 | 1~5VDC | S5 | 0~20mADC | ||||
| S3 | 0~5VDC | S6 | 0~10VDC | ||||
| Code | Pressure Connection | ||||||
| J1 | M27X2 Male | ||||||
| J2 | Other | ||||||
| Code | Insertion depth | ||||||
| L | Actual insertion depth | ||||||
