| Place of Origin: | Baoji，China |
|---|---|
| Brand Name: | HT sensor |
| Certification: | CE,RoHs,ISO9001 |
| Model Number: | BT93420-I |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Model NO.: | BT93420-I | IP Rating: | IP65 |
|---|---|---|---|
| Long-Term Stability: | ±0.2%F.S/Year | Range: | -55~1200℃ |
| Storage Temp.: | -40~100℃ | Temperature: | Customized |
| Transport Package: | Carton | Trademark: | HengTong |
| Origin: | Baoji, China | HS Code: | 9032100000 |
| Supply Ability: | 2000PCS/Month | Sensing Type: | Resistive |
| Contact: | Contact | Output Signal Type: | Analog Type |
| Material: | Alumina | ||
| High Light: | BT93420 Temperature Indicator Transmitter,Temperature Indicator Transmitter Stainess Steel RoHs,Stainess Steel Rtd Temperature Transmitter |
||
BT93420 Temperature Indicator Transmitter
Introduction of temperature indicator transmitter:
BT93420 temperature indicator transmitter adopts a dedicated temperature module, which can perform linear correction on various types of thermocouples and resistance temperature detectors (RTDs) and output standard analog signals. It features high accuracy, good stability, strong anti-interference capability, water resistance, explosion-proof design, high temperature resistance, and shock resistance. It can be integrated with control systems to enable automated temperature control and monitoring.
The working principle is based on the resistance variation characteristics of the PT100 temperature sensor. The PT100 is a temperature sensor based on a Platinum resistance material, and its resistance value changes with temperature. In general, the resistance value of PT100 increases with the increase of temperature and decreases with the decrease of temperature.
Product Features:
| Performance Parameters | |
| Measurement Range | -55~1200ºC |
| Accuracy @ 25ºC | ±0.5% (Typ.) ±1% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -30~80ºC |
| Storage Temperature | -40~100ºC |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Maximum temperature | 120% of the rated temperature range |
| Protection Rating | IP65 |
| Weight | ~0.5Kg |
| Outline Construction | |
| Terminal Box |  |
| Order Guide | |||||||
| BT93420 | Temperature Indicator Transmitter | ||||||
| Code | Outline Construction | ||||||

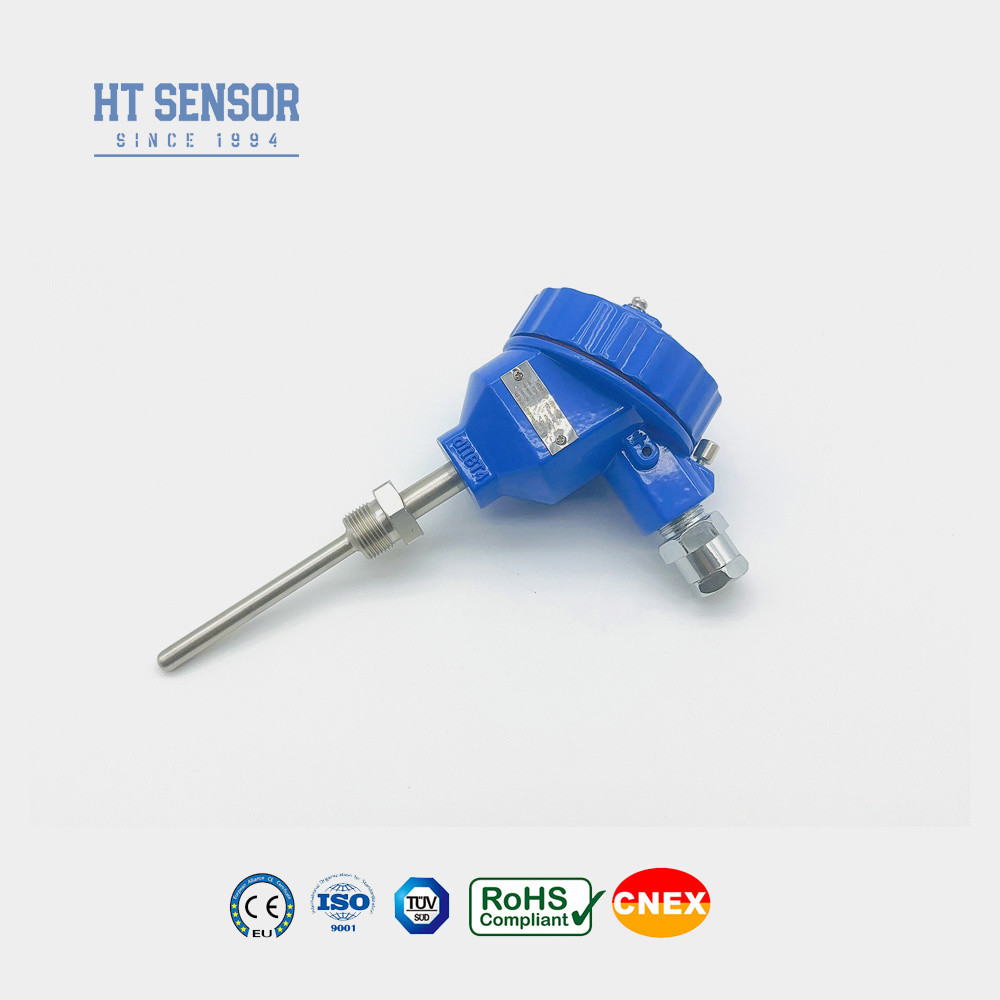

| I | Blue Terminal Box | ||||||
| II | 2088 housing | ||||||

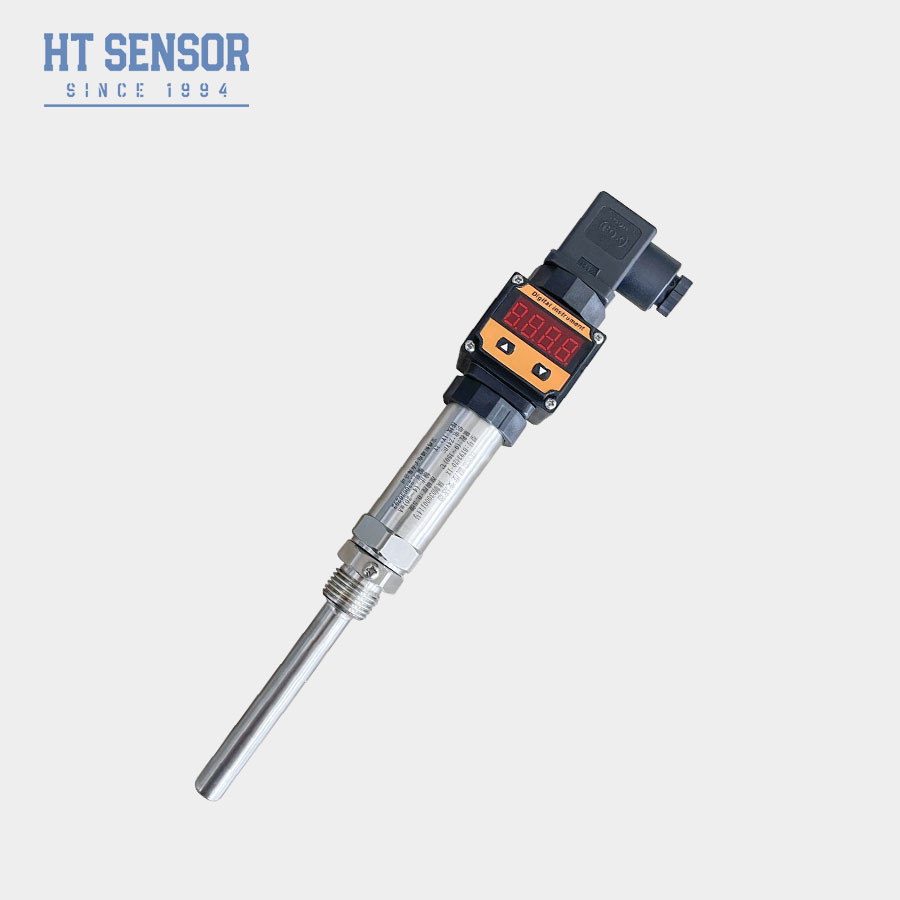

| III | 2088+LED | ||||||
| IIIA | 3051+LED | ||||||
| Measurement Range | -55~1200ºC | ||||||
| Code | Power Supply | ||||||
| D1 | 24VDC | ||||||
| D2 | Other | ||||||
| Code | Output Signal | ||||||
| S1 | 4~20mADC | S4 | 0~10mADC | ||||
| S2 | 1~5VDC | S5 | 0~20mADC | ||||
| S3 | 0~5VDC | S6 | 0~10VDC | ||||
| Code | Pressure Connection | ||||||
| J1 | M27X2 Male | ||||||
| J2 | Other | ||||||
| Code | Insertion depth | ||||||
| L | Actual insertion depth | ||||||
