4-20mA Liquid Level Transmitter Measurement OEM Fuel Tank Level Sensor Pressure Transmitter
Product Details
| Model NO.: | BH93420-IIK | Range: | 0-0.5m....3m |
|---|---|---|---|
| Output: | 4-20mA With LED Or LCD Display | Operating Temperature: | -10~80 Degree |
| Diaphragm Material: | 316L Stainess Steel | Transport Package: | Carton |
| Type: | Silicon Piezoresistive Liquid Level Transmitter | Power: | 12-32VDC |
| ACC: | 0.5% 1%FS | Customization: | Available OEM And ODM |
| Highlight |
4-20mA Liquid Level Transmitter,Liquid Level Transmitter Measurement OEM,OEM Fuel Tank Level Sensor |
||
Product Description

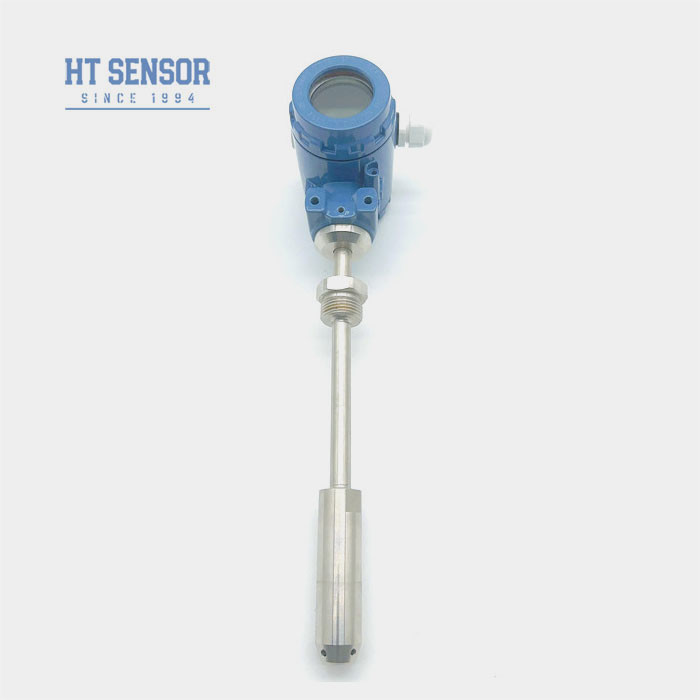

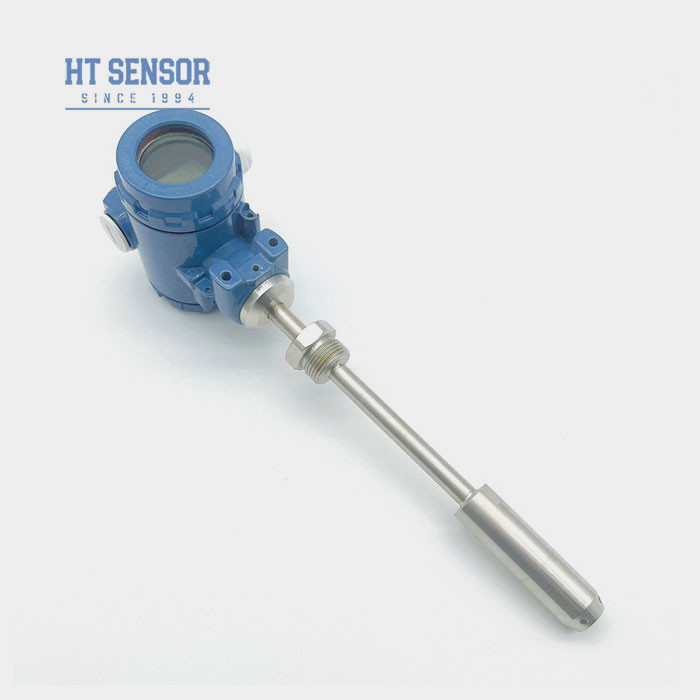

BH93420-IIK 4-20mA liquid level transmitter measurement with silicon pressure sensor
BH93420 IIIK Water level Transmitter
Introduction of liquid level transmitter sensor:
BH93420-IIK armoured level transmitter is a piezoresistive diffusion silicon pressure sensor as the main component, the pressure information into a detectable standard signal. The liquid contact part is all stainless steel. This armored structure ensures the durability and reliability of the liquid level transmitter. It is good to test for slightly corrosive media or oil with strong permeability.Another important application of the sensor is oil testing. With its accuracy and ability to withstand harsh conditions, it is an excellent choice for monitoring oil pressure in heavy machinery equipment. This helps ensure the safety and efficiency of the machine, minimising the risk of failure and expensive repairs.
Product Features of liquid level transmitter sensor:
- Armored insertion design, suitable for liquid level measurement in open containers
- LED or LCD display options available
- Explosion-proof rating: ExiaIICT6
- Zero and span externally adjustable
- Made of corrosion-resistant stainless steel material, suitable for various industrial fields
| Performance Parameters of liquid level transmitter sensor: | |
|---|---|
| Measurement Range | 0~0.50m…10m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2 X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m. 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Stainless steel 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.1Kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 15~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| RS485 Communication Protocol | 4 wire |
Applications of liquid level transmitter sensor:
- Compatible with 316LSS,noncorrosive liquids
- Monitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etc
- Measuring fuel levels in diesel and fuel tanks.
| Outline Construction of liquid level transmitter sensor: |
| Electrical Connection |
| Selection Examples |
|---|
| Ordering tips of water level transmitter |
2. The density of the measured medium should be specified.
3. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic interference, or radio frequency interference, please inform our company and specify in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.
5. When equipped with an LED or LCD display head, the transmitter power supply voltage should not be lower than 15VDC
| Order Guide of water level transmitter | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| BH93420 | Code | Outline Construction | ||||||||
| II/III | Armored water level transmitter | |||||||||
| Measurement Range | 0~10m…4m | |||||||||
| Code | Power Supply | |||||||||
| D1 | 24VDC | |||||||||
| Code | Output Signal | |||||||||
| S1 | 4~20mADC | |||||||||
| Code | Flange or interface size | |||||||||
| F1 | Stainless steel DN25 | |||||||||
| F2 | Stainless steel DN32 | |||||||||
| F3 | Stainless steel DN40 | |||||||||
| F4 | Stainless steel DN50 | |||||||||
| M1 | M27X2 | |||||||||
| M2 | M30X2 | |||||||||
| M3 | Other special threads | |||||||||
| Code | Electrical Connection | |||||||||
| B4 | 2088 industrial housing | |||||||||
| B5 | 2088 with display | |||||||||
| B6 | 3051A housing | |||||||||
| Code | Pressure Type | |||||||||
| G | Gauge Pressure | |||||||||
| A | Absolute Pressure | |||||||||
| S | Sealed Reference Pressure | |||||||||
| Code | Material | |||||||||
| 01 | 304 Stainless Steel | |||||||||
| 02 | 316L Stainless Steel | |||||||||
| Code | Steel pipe length | |||||||||
| L | X m | |||||||||
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
