BP93420D-I Plastic Housing Differential Pressure Transmitter Sensor 24VDC Transmitter
Product Details
| Model NO.: | BP93420D-IS | Power: | 24VDC |
|---|---|---|---|
| OUTPUT: | 0-5vdc/0-10VDC /4-20mA | Specification: | Plastic Housing |
| Thread: | ￠3 Air Cock Or Customize | Type: | Mini Differential Pressure Transmitter Sensor |
| Measuring Medium: | Dry Air | Accuracy: | 1.0% FS |
| Pressure Range: | 0-500pa~200kpa | Customization: | Available OEM And ODM |
| Highlight |
Mini Differential Pressure Transmitter,Plastic Differential Pressure Transmitter,Differential Pressure Sensor 24VDC |
||
Product Description

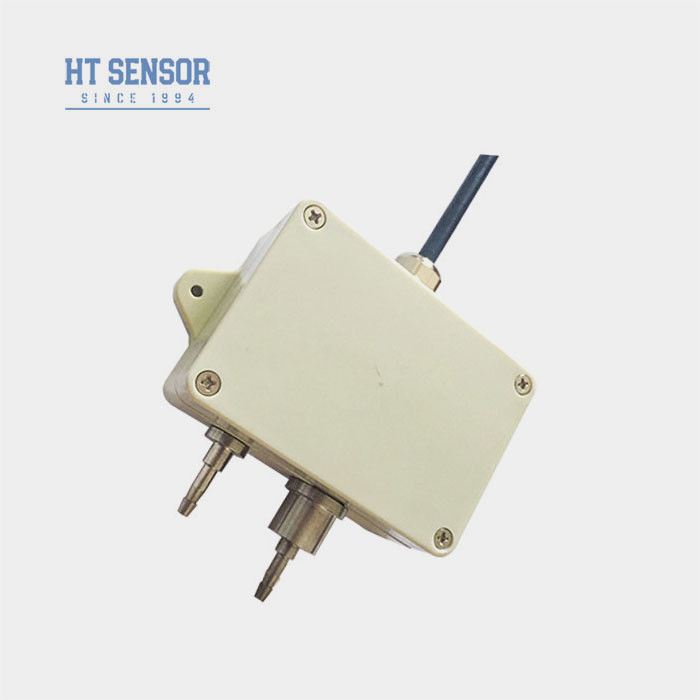

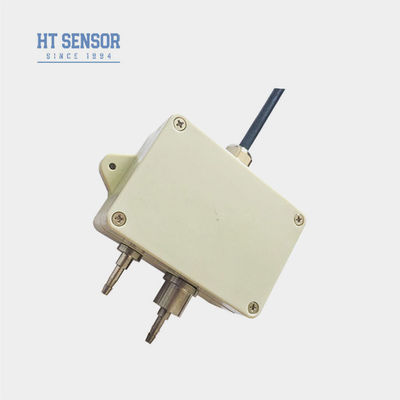

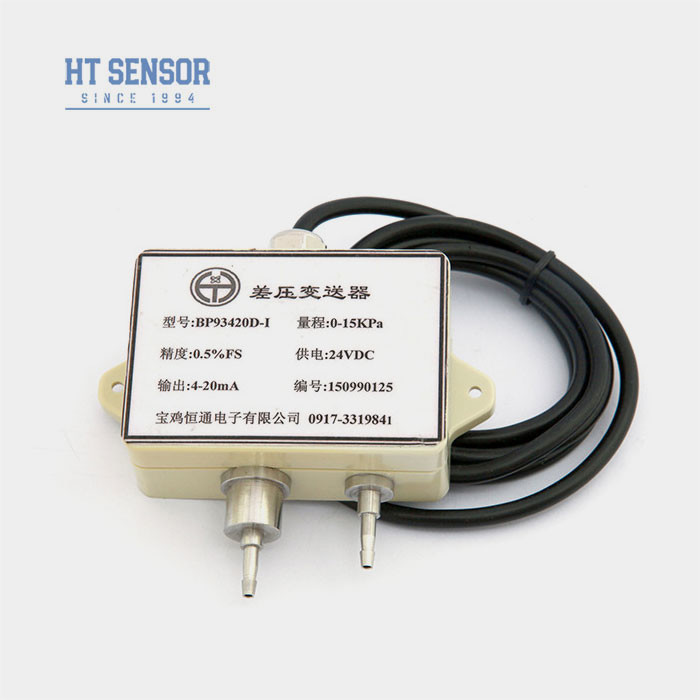

BP93420D-Is Plastic Housing Differential Pressure Transmitter Sensor
Introduction of mini differential pressure transmitter :
BP93420D-Is plastic differential pressure is a differential pressure transmitter sensor, mainly used to measure the differential pressure of non-corrosive dry gas. The minimum measuring range reaches 500pa, and the small wind pressure is monitored and output as a standard electrical signal.
| Performance Parameters of mini Differential Pressure Transmitter | |
| Measurement Range | 0-500Pa, 0-1KPa,0-2KPa, 0-5KPa, 0-7kPa, 0-10KPa,0~~~200KPa |
| Pressure Type | Differential Pressure |
| Static pressure | 2 times of the rated range |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.5% (Typical) ±1% (Maximum) |
| Zero Point Temperature Drift | ±2.5%F.S/ºC(Typical) ±3%F.S/ºC(Maximum) |
| Full Scale Temperature Drift | ±2.5%F.S/ºC(Typical) ±3%F.S/ºC(Maximum) |
| Compensation Temperature | 0-50ºC |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~100ºC |
| Housing Material | Plastic |
| Relative humidity | 0-80% |
| Pressure connection | φ6 air nozzle or customizable |
| Protection Rating | IP65 |
| Cable material | Polyethylene |
| Weight | about 0.2kg |
Product Features of mini differential pressure transmitter :
- Plastic casing
- Lightweight and easy to install
- Undergone rigorous high and low-temperature testing to ensure wide temperature range usability.
- High accuracy.
Applications of mini differential pressure transmitter :
- Suitable for applications in boiler and mining industries.
- Brewing and power industries.
- Designed for detecting small differential pressures of non-corrosive gases.
Ordering note
- Media must compatible with wetted parts.
- To ensure the products can working reliable, we suggest that customer install three valve group between measure point and transmitter that can assure media flow to positive & negative cavity slowly and uniformly.
- Suggest to put two pressure port as the same level when install so as to minimize the position influence.
- Special requirement ,such as strong shock, moment vibration, strong electromagnetism, radio frequency interference ,please consult us.
Warranty:
Pressure transmitters have a limited one-year warranty to the original purchaser. Hengtong will replace or repair defective products free of charge. This warranty does not apply to any units have been modified, misused, neglected.
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
