| Place of Origin: | Baoji China |
|---|---|
| Brand Name: | HT sensor |
| Certification: | RoHs ISO9001 |
| Model Number: | BP93420-IB |
| Minimum Order Quantity: | 1 |
| Packaging Details: | carton |
| Delivery Time: | 5-8 workday |
| Connection Type: | Thread | Output Signal: | 4-20mA 0-10vdc |
|---|---|---|---|
| Pressure Range: | 0-0.1 Bar~100bar | OEM: | OEM And ODM |
| Modle: | BP93420-IB | Housing Material: | Stainless Steel |
| Accuracy: | ±0.25%,0.5%FS | Product Name: | Industrial Pressure Sensor |
| High Light: | High Performance Industrial Pressure Sensor,Industrial Pressure Sensor Stainless Steel ODM,Stainless Steel Vacuum Pressure Transmitter ODM |
||

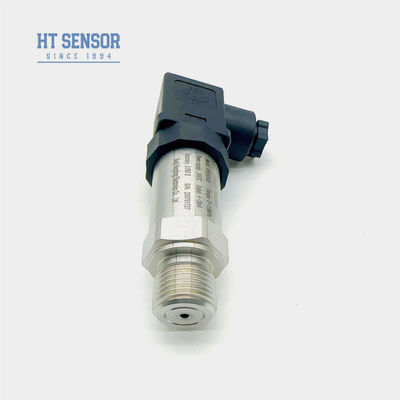

Industrial Pressure Sensor is a versatile and reliable pressure transmitter that is specially designed for industrial applications. It is suitable for measuring the pressure of various liquids and gases in a wide pressure range of 0-0.1 Bar~100bar, making it an ideal choice for a variety of
industries.The sensor is equipped with advanced technology and high precision components, ensuring accurate and reliable measurements with
an accuracy of ±0.25% or ±0.5%FS. This makes it a highly precise instrument for monitoring and controlling pressure levels in industrial processes.The Industrial Pressure Sensor is designed with a rugged and durable stainless steel housing, making it suitable for use in harsh and demanding environments. Whether it is exposed to extreme temperatures, corrosive substances, or high pressure, this sensor can withstand it all,
providing accurate readings in all conditions.
Product Features of industrial pressure sensor:
Applications of industrial pressure sensor:
| Performance Parameters of industrial pressure sensor | |
|---|---|
| Measurement Range | -100kPa…0kPa ～ 10kPa…100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25℃ | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/℃(≤100KPa) ±0.01%F.S/℃(＞100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/℃(≤100KPa) ±0.01%F.S/℃(＞100KPa) |
| Compensation Temperature | 0-70℃(≤10mpa,customizable) |
| Operating Temperature | -20℃~80℃ |
| Storage Temperature | -40℃~120℃ |
| Vibration | 10g,55Hz ～ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.15kg |
| Ordering tips |
1. When selecting the product, please ensure that the medium to be measured is compatible with the contact parts of the product.
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring is -20℃ to 250℃. When the product's operating temperature is below -20℃, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
7. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
