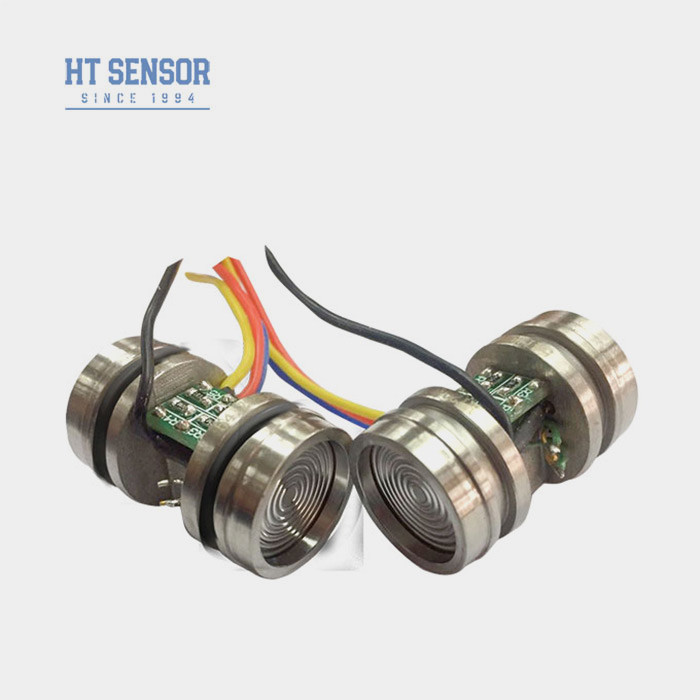

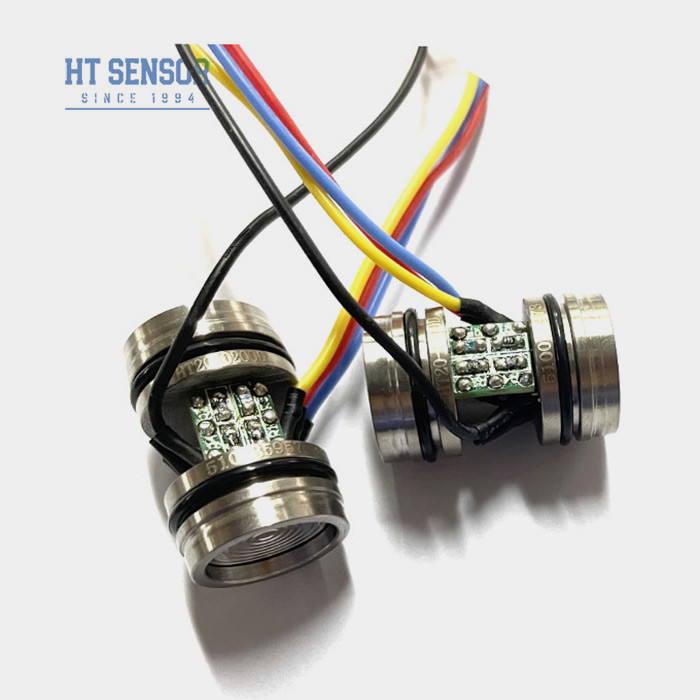

HT20V Diffused Silicon Pressure Sensor 10VDC Piezoresistive Differential Pressure Sensor

HT20V Diffused Silicon Pressure Sensor 10VDC Piezoresistive Differential Pressure Sensor
HT20V Diffused Silicon Pressure Sensor 10VDC Piezoresistive Differential Pressure Sensor
HT20V Diffused Silicon Pressure Sensor 10VDC Piezoresistive Differential Pressure Sensor HT20V Diffused Silicon Pressure Sensor 10VDC Piezoresistive Differential Pressure Sensor
Basic Information
Place of Origin: Baoji，China
Brand Name: HT SENSOR
Certification: CE,RoHs,ISO9001
Model Number: HT20V
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 5-8 work days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000PCS/Month
Get Best Price Contact Now
Detail Information
Model NO.: HT20V Wiring Type: Four-Wire
Measuring Medium: Gas And Liquid Customized: Customized
Power: 10VDC Transport Package: Carton
Type: Differential Piezoresistive Pressure Sensor Output Signal Type: Analog Type
Material: Stainless Steel Customization: Available | Customized Request
Highlight:

HT20V Diffused Silicon Pressure Sensor

,

Diffused Silicon Pressure Sensor 10VDC

,

10VDC Piezoresistive Differential Pressure Sensor

Product Description

HT20V 10VDC Differential Diffused Silicon Pressure Sensor for differential pressure test



Introduction of differential diffused silicon pressure sensor:


HT20V is a differential pressure sensoris a differential pressure sensitive device isolated by stainless steel double corrugated diaphragm. Precise measurements are achieved by isolating the diaphragm and filling the silicone oil to the silicon pressure sensitive element. The sensor adopts the international advanced silicon pressure chip with high stability and high precision, and adopts the sintered base designed by stress optimization. The production process of the sensor includes: patch, gold wire bonding, film welding, high vacuum oil injection, pressure circulation stress relief, high temperature aging, temperature compensation, etc. The shape, size and sealing method of the general products are consistent with the international mainstream products of the same kind, and the interchangeability is good. They are widely used for differential pressure and level measurement in 316L stainless steel compatible media.



Product  Features of differential diffused silicon pressure sensor:

  1. Stable and reliable performance
  2. High resistance to static pressure
  3. Cost-effective
Applications of differential diffused silicon pressure sensor:
  1. Differential pressure detectiony
  2. Pressure calibration instruments
  3. Liquid level measurement
Electrical performance of differential diffused silicon pressure sensor:
  1. Power Supply: ≤10VDC
  2. Common Mode Voltage Output: 50% of the input (typical)
  3. Input Impedance:4KΩ~20KΩ
  4. Output Impedance:2.5KΩ~6KΩ
  5. Electrical Connection:100mm high-temperature wire.
Performance Parameters of differential diffused silicon pressure sensor:
Measurement Range 10KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
  Typ Max Unit
Linearity   ±0.15 ±0.3 %F.S
Repeatability  0.05 0.1 %F.S
Hysteresis    0.05 0.1 %F.S
Zero Offset Output   0±1 0±2 mV
Full Scale Output   ≤20KPa 50±1 50±2 mV
≥35kPa 100±1 100±2 mV
Zero Offset Temp. Drift ≤20KPa ±1 ±2.5 %F.S
≥35kPa ±0.8 ±1.5 %F.S
Full Scale Temp. Drift ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.8 ±1.5 %F.S
Compensated Temp. ≤20KPa 0~50 ºC
≥35kPa 0~70 ºC
Operating Temperature   -20~80 ºC
Storage Temperature  -40~125 ºC
Allowable Overload Take the smaller value between 3 times the full scale or 4MPa
Burst Pressure 5X the full scale
Long-term Stability 0.2 %   F.S/Year
Diaphragm Material 316L
Insulation Resistance ≥200MΩ 100VDC
Vibration No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock 100g,11ms
Response Time ≤1ms
O-ring Seal Nitrile rubber or Fluoro rubber
Filling Medium Silicon Oil
Weight ~45g
The parameters are tested under the following conditions: Constant voltage of 10V and ambient temperature of 25ºC


Outline Construction of differential diffused silicon pressure sensor
Dimension Baoji Hengtong Ht20V Differential Piezoresistive Diffused Silicon Pressure Sensor
Notes:The outgoing end is the positive terminal. If there are any changes in the wire colors, please refer to the label attached to the sensor  for accurate information
 HT20V Diffused Silicon Pressure Sensor 10VDC Piezoresistive Differential Pressure Sensor 1HT20V Diffused Silicon Pressure Sensor 10VDC Piezoresistive Differential Pressure Sensor 2
Electrical connection and compensation of differential diffused silicon pressure sensor

Baoji Hengtong Ht20V Differential Piezoresistive Diffused Silicon Pressure Sensor


Selection Examples
Baoji Hengtong Ht20V Differential Piezoresistive Diffused Silicon Pressure Sensor
Ordering tips
1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the
     required airtightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when      placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into          the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.

company


Baoji Hengtong Ht20V Differential Piezoresistive Diffused Silicon Pressure Sensor
Q&A

1.Q: What are the features of your pressure sensor transmitters?
   A: High precision, durability, and excellent performance. Customization available.

2.Q: Can I customize special specifications?
   A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service

3.Q: What is your production capacity?
    A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling
.
4.Q: What's the typical delivery period?
    A: 5~8 working day for standard models. Customized products may vary.

5.Q: How are the products priced? Any discounts?
    A: Competitive pricing with discounts for bulk orders or long-term partners
.
6.Q: What is the warranty of your products? And after-sales service?
    A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote          instruction by PC network is always available.
