BP93420D-III Differential Pressure Transmitter Sensor For Water And Oil Differential Level Transmitter
Product Details
| Modle: | BP93420D-II | Range: | 0-10kpa~2Mpa |
|---|---|---|---|
| Power: | 5VDC 24VDC | Output: | 0.5-4.5V 4-20mA 0-10v AND So On |
| Material: | Stainless Steel | Thread: | Male And Female |
| Pressure Type: | Differential Pressure | Protection Class: | IP65 |
| Working Temperature: | 0-60℃ | Connector: | Big DIN Or OEM |
| Highlight |
water differential pressure transmitter,oil level differential transmitter,BP93420D-III pressure sensor |
||
Product Description

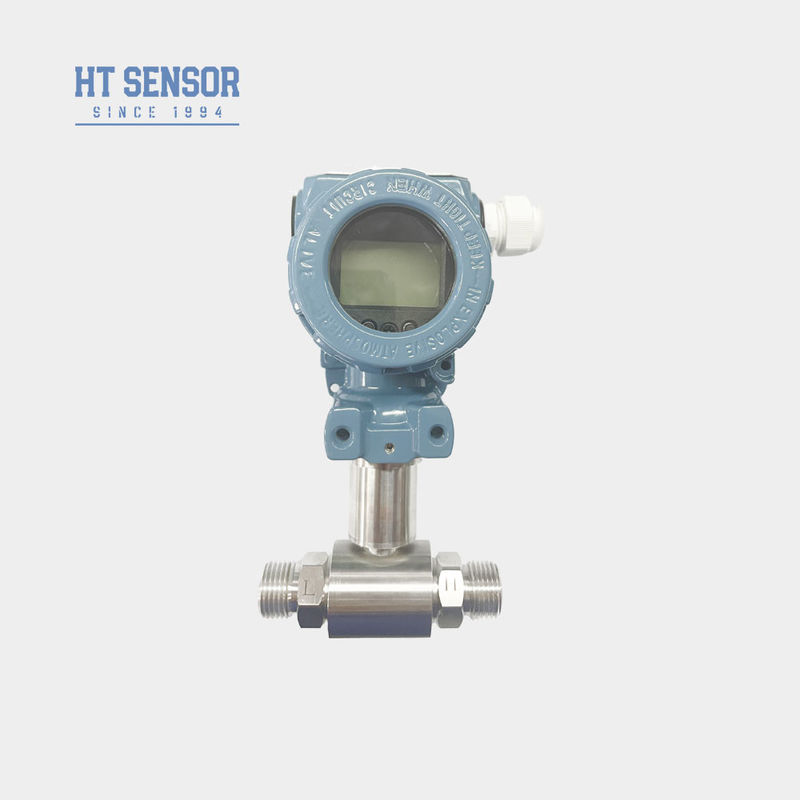

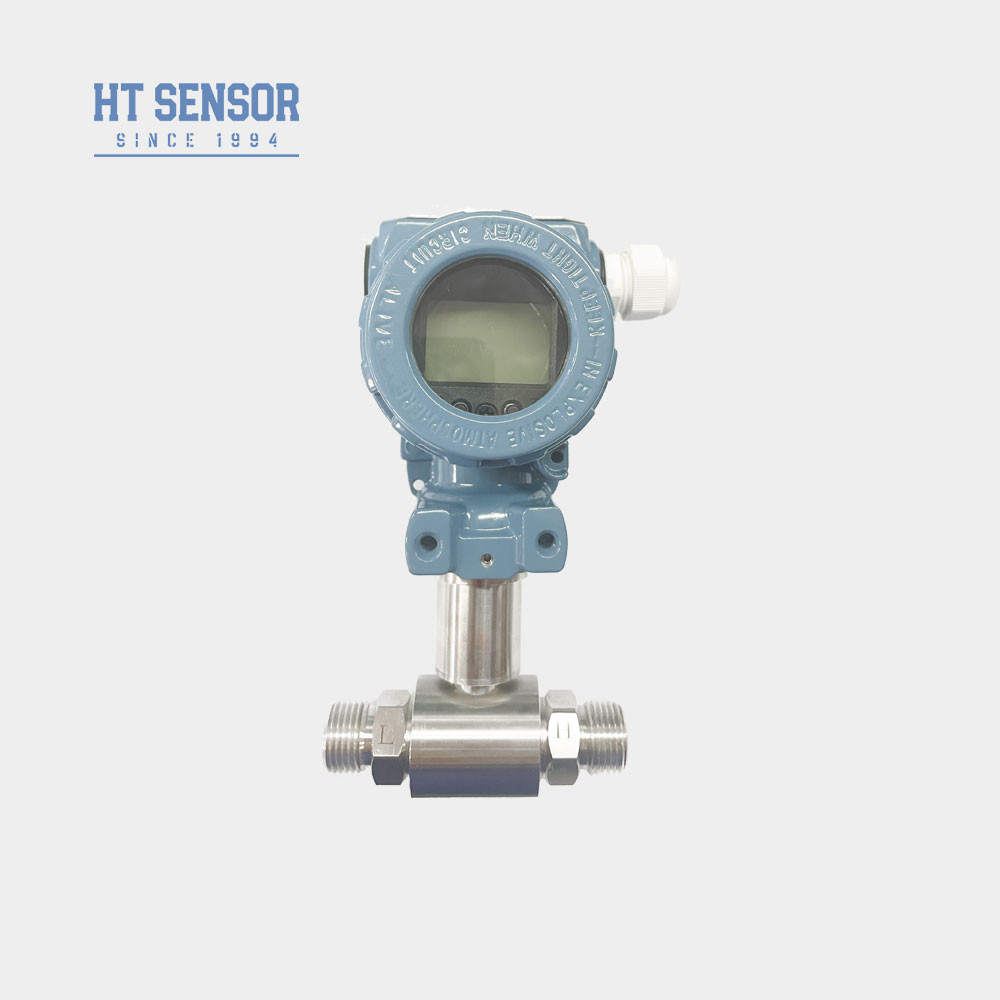

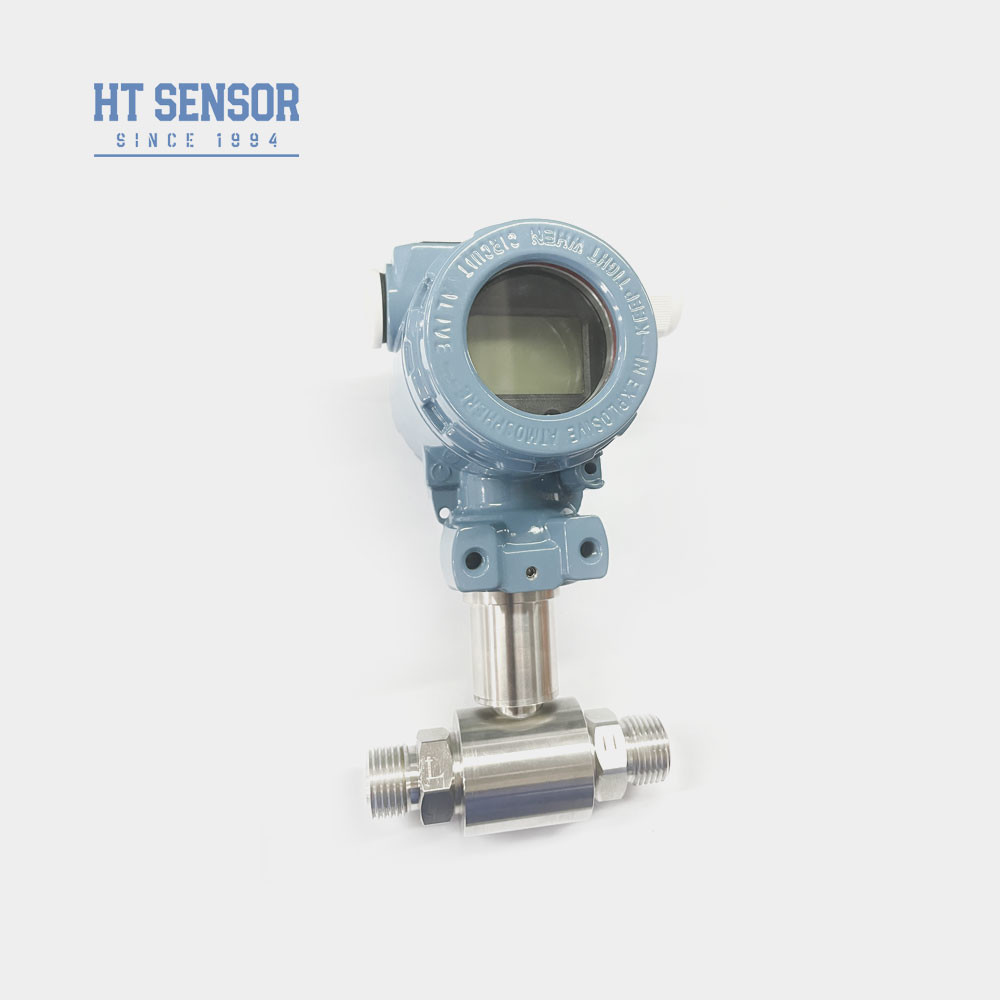

BP93420D-III Differential Pressure Transmitter Sensor For Water And Oil
BP93420DIII Differential Pressure Transmitter
Introduction of differential pressure transmitter sensor:
BP93420D-III 2088 Differential pressure transmitter sensor with diffused silicon pressure sensor. When the pressure difference of the measured medium is located on the corrugated diaphragm on both sides of the sensor, the output signal of the sensor chip Wheatstone bridge has a good linear relationship with the pressure difference, and the pressure difference can be accurately measured. It is suitable for the pressure difference measurement of various gases and liquids in pipelines in petroleum, chemical, electric power, hydrology and other industries. 2088 Structural pressure transmitter adopts imported pressure sensor. Computer temperature compensation for laser resistor trimming, integrated junction box design. Equipped with a dedicated terminal and digital display, easy installation, calibration and maintenance. To achieve the measurement of fluid pressure, and suitable for a variety of occasions all-weather environment and a variety of fluids.
Product Features of differential pressure transmitter sensor:
- The transmitter features a stainless steel structural design, making it compact and easy to install
- It undergoes strict temperature compensation and aging screening, ensuring stable and reliable performances
- The electrical interface can be selected as a plug-in or direct wiring option.
Applications of differential pressure transmitter sensor:
- Suitable for measuring differential pressure of various gases or liquids in pipelines of industries such as petroleum, chemical, power, and hydrology.
- Applied in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology
- Pressure measurement for pipelines and furnace chambers
| Performance Parameters of differential pressure transmitter sensor | |
|---|---|
| Measurement Range | 0-10KPa……~2MPa |
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static pressure | The minimum value between 5 times the rated range or 7 MPa |
| Accuracy @ 25℃ | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(＞200KPa) |
| Zero Temperature Drift | ±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa) |
| Compensation Temperature | 0-50℃(0-10KPa, 0-20KPa) ,0-70℃ ,-10-70℃ |
| Operating Temperature | -30℃~80℃ |
| Storage Temperature | -40℃~100℃ |
| Vibration | 10g,55Hz ～ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Intrinsically safe and explosion-proof |
| Protection Rating | IP65 |
| Weight | ~0.45kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4～20mA | 12～30VDC | 2/3/4 wire |
| 0～10/20mA |
3 wire |
|
| 0/1～5V | ||
| 0.5～4.5V | 5VDC |
| Ordering tips of differential pressure transmitter sensor |
1. When selecting the product, please ensure that the measured medium is compatible with the product's contacting parts.
2. To ensure reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter, ensuring a slow and uniform pressure application to the positive and negative pressure chambers of the transmitter.
3. During installation, it is advisable to position the pressure interfaces at both ends horizontally to minimize the impact of the installation location on the product.
4. For special requirements such as strong vibration, instant impact force, strong electromagnetic interference, or radio frequency interference, please inform our company and specify these requirements in the order
| Order Guide of differential pressure transmitter sensor | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| DII | Differential Pressure Transmitter | |||||||
| Measurement Range | 0-10KPa……~2MPa | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4～20mADC | S5 | 0～20mADC | |||||
| S2 | 1～5VDC | S6 | 0～10VDC | |||||
| S3 | 0～5VDC | S7 | 0.5～4.5VDC | |||||
| S4 | 0～10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 Male | |||||||
| J2 | G1/2 Male | |||||||
| J3 | G1/4 Male | |||||||
| J4 | 1/2 NPT Male | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | Other | |||||||
| Code | Pressure Type | |||||||
| D | Differential Pressure | |||||||
