Micro Differential Pressure Tranmitter Air Furnace Pressure Transmitter
Product Details
| Model NO.: | BP93420DI | Customized: | Customized |
|---|---|---|---|
| Min. Pressure Rangerange: | 500Pa | Max, Pressure Range: | 200KPa |
| Origin: | Baoji, China | Supply Ability: | 2000PCS/Year |
| Type: | Differential Pressure Transmitter | Measuring Medium: | Dry GAS |
| Accuracy Grade: | 0.5G | IP Rating: | IP65 |
| Highlight |
Micro Differential Pressure Tranmitter,Differential Pressure Tranmitter Air,Micro Furnace Pressure Transmitter |
||
Product Description

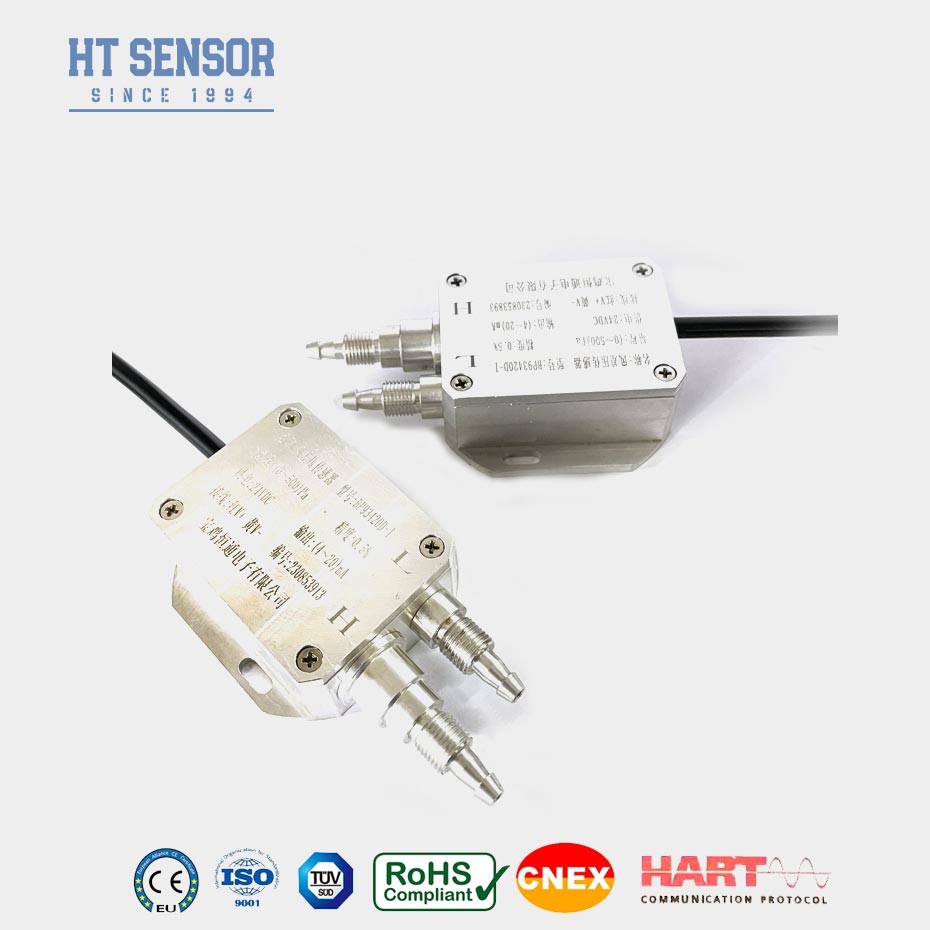

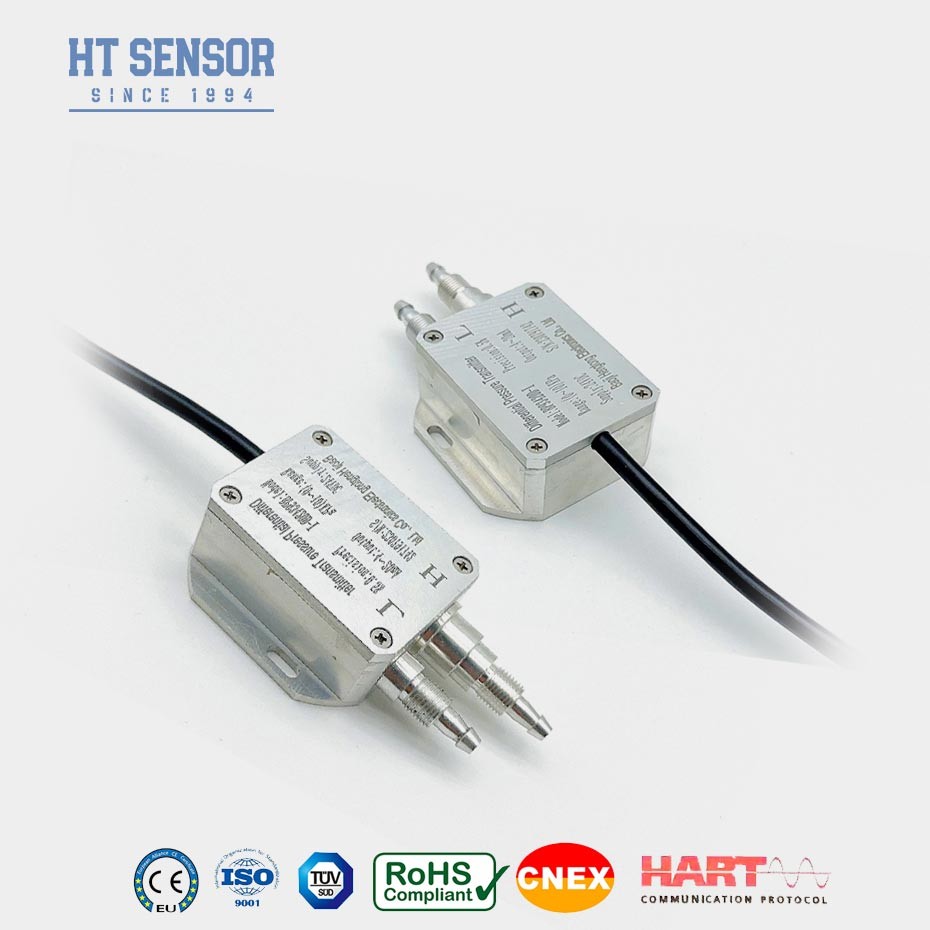

Aluminum-Housing Air Micro Differential Pressure tranmitter
BP93420DI Differential Pressure Transmitter
Introduction of Differential pressure transmitter:
BP93420DI ismicro differential pressure air pressure transmitter is composed of OEM silicon piezoresistive differential pressure core.The shell is made of aluminium alloy. The two pressure interfaces are M8 threaded and cock structures,which can be directly installed in the measuring pipeline or connected through the booster pipe,and can accurately measure the pressure and differential pressure of the gas.It is widely used in the field of pressure process control in power and coal industry,such as boiler air supply and underground ventilation.The long tube is the high pressure input port and the short tube is the low pressure input port. Measuring Pressure:Only Long tube Measuring differential pressure:high pressure to long tube,low pressure to short tube
Product Features:
- Choice of aluminum or plastic casing design
- Lightweight and easy to install
- Undergone rigorous high and low-temperature testing to ensure wide temperature range usability
- High accuracy
- Suitable for applications in boiler and mining industries
- Brewing and power industries
- Designed for detecting small differential pressures of non-corrosive gases
| Performance Parameters | |
| Measurement Range | 0-500Pa, 0-1KPa,0-2KPa, 0-5KPa, 0-7kPa, 0-10KPa,0~~~200KPa |
| Pressure Type | Differential Pressure |
| Static pressure | 2 times of the rated range |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.5% (Typical), ±1% (Maximum) |
| Zero Temperature Drift | ±2.5%F.S/ºC(Typical) ±3%F.S/ºC(Maximum) |
| Span Temperature Drift | ±2.5%F.S/ºC(Typical) ±3%F.S/ºC(Maximum) |
| Compensation Temperature | 0-50ºC |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~100ºC |
| Housing Material | Aluminum alloy,Plastic |
| Relative humidity | 0-80% |
| Pressure connection | φ6 air nozzle or customizable |
| Protection Rating | IP65 |
| Cable material | Polyethylene |
| Weight | ~0.15kg |

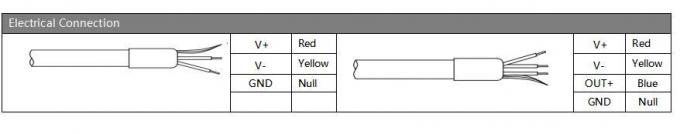

| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Ordering tips |
1. When selecting the product, please ensure that the medium to be measured is compatible with the product parts in contact.
2. To ensure reliable operation, ensure that the measured medium is slowly and evenly pressurized on both the positive and negative pressure chambers of the transmitter.
3. During installation, it is recommended to position the pressure interfaces at both ends horizontally to minimize the impact on the product due to the installation position.
4. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic interference, and radio frequency interference, please inform the company and specify them in the order.

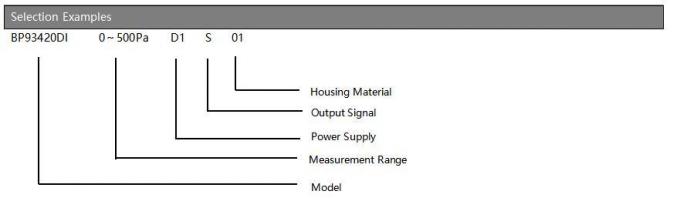

| Order Guide | ||||||||
| BP93420D | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| I | Differential Pressure Transmitter | |||||||
| Measurement Range | 0-500Pa, 0-1KPa,0-2KPa, 0-5KPa, 0-7kPa, 0-10KPa,0~~~200KPa | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Type | |||||||
| D | Differential Pressure | |||||||
| Code | Housing Material | |||||||
| 01 | Aluminum alloy | |||||||
| 02 | Plastic | |||||||
FAQ:
1.What kind of products do you offer ?
HT company develops and manufactures reliable, high quality standard pressure sensors, pressure transmitters, differential pressure transmitters, pressure switches Pressure Control,temperature control Devices offering innovative solutions and components able to outfit at best machines and production systems and give a single answer to any requirements in pressure control systems.
2.Are you manufacturer ?
Yes, We are a manufacturer based on 29 years of production experience.
3. How can I get the quotation?
Send your inquiry to us by the inquiry from on the right-side or the bottom of this page or send e-mail.
4.Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
5. Can you make customized products ?
Yes, customized is accept, please contact us for specific requirements.
6.Can I to be your distributor ?
yes, you can let us know your wishes and we can negotiate
