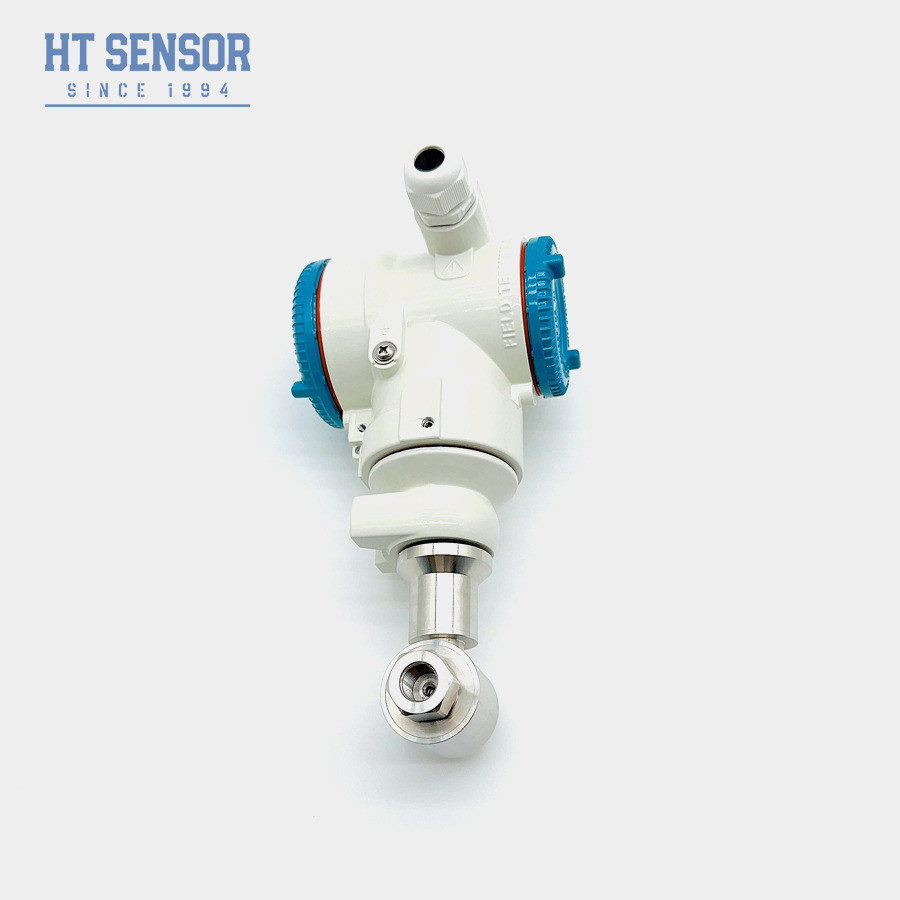

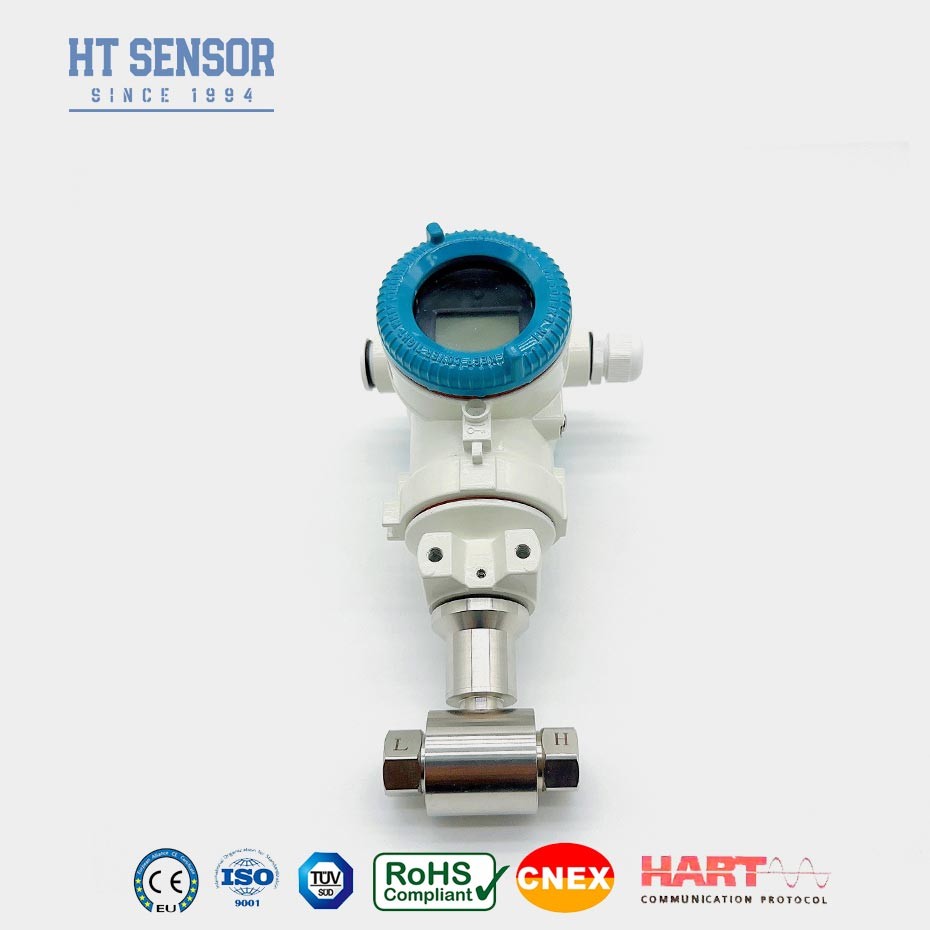

BP93420DII 316L Stailness Steel Diaphragm Differential Pressure Transmitter
BP93420DII Differential Pressure Transmitter
Introduction of differential pressure transmitter:
BP93420DII Differential Pressure Transmitter is 316L Stailness Steel Diaphragm Differential Pressure Transmitter, and the full stainless steel structure. Differential Pressure Transmitter is moisture-proof, waterproof, and corrosion-resistant. It can work in harsh environments and outdoor conditions. The transmitter has a small volume and light weight, which can be installed on the process pipeline and supported. Compared with transmitters that require a base or bracket, it greatly reduces installation and maintenance costs or connected through the press-leading tube.
Product Features:
1. SS316L diaphragm structure
2. Easy to install
3. The zero point and full span of the product can be adjusted externally
4. With the short circuit protection and reverse polarity protection
5. Shock resistance, anti-vibration,anti-electromagnetic compatibility
Applications:
1.Industrial Process testing and control
2.Level measurement and control
3.Available to Oxygen, CO2, Nitrogen,gas steam
4.Pipeline pressure testing
Performance Parameters | |
Measurement Range | 0-10KPa...~2MPa |
Pressure Type | Differential Pressure |
Single-side Overload | ≤3 times of the rated range |
Static pressure | The minimum value between 5 times the rated range or 7 MPa |
Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa) |
Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
Operating Temperature | -30ºC~80ºC |
Storage Temperature | -40ºC~100ºC |
Vibration | 10g,55Hz ~ 2kHz |
Housing Material | 304,316L |
Diaphragm Material | 316L |
Insulation Resistance | 100MΩ 100VDC |
Explosion-proof Rating | Intrinsically safe and explosion-proof |
Protection Rating | IP65 |
Weight | ~0.45kg |
Output Signal | Supply Voltage | Output Type |
4~20mA | 12~30VDC | 2/3/4 wire |
0~10/20mA | 3 wire |
|
0/1~5V | ||
0.5~4.5V | 5VDC |
Ordering tips |
1. When selecting the product, please ensure that the measured medium is compatible with the product's contacting parts.
2. To ensure reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter, ensuring a slow and uniform pressure application to the positive and negative pressure chambers of the transmitter.
3. During installation, it is advisable to position the pressure interfaces at both ends horizontally to minimize the impact of the installation location on the product.
4. For special requirements such as electronic coonecton, thread, output signal , please note clearly.
Order Guide | ||||||||
BP93420XX | Pressure Transmitter | |||||||
Code | Outline Construction | |||||||
DII | Differential Pressure Transmitter | |||||||
Measurement Range | 0-10KPa...~2MPa | |||||||
Code | Power Supply | |||||||
D1 | 24VDC | |||||||
D2 | 5VDC | |||||||
D3 | Other | |||||||
Code | Output Signal | |||||||
S1 | 4~20mADC | S5 | 0~20mADC | |||||
S2 | 1~5VDC | S6 | 0~10VDC | |||||
S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
S4 | 0~10mADC | |||||||
Code | Pressure Connection | |||||||
J1 | M20×1.5 Male | |||||||
J2 | G1/2 Male | |||||||
J3 | G1/4 Male | |||||||
J4 | 1/2 NPT Male | |||||||
J5 | Other | |||||||
Code | Electrical Connection | |||||||
B1 | Hirschmann | |||||||
B2 | PG7 Plug | |||||||
B3 | Sealed Cable Output | |||||||
B4 | Other | |||||||
Code | Pressure Type | |||||||
D | Differential Pressure |
