| Place of Origin: | Baoji，China |
|---|---|
| Brand Name: | HT sensor |
| Certification: | CE,RoHs,ISO9001 |
| Model Number: | BPZ2008 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Model NO.: | BPZ2008 | Power: | 9V Battery |
|---|---|---|---|
| Housing Material: | 304 S.S | Display: | Pressure Value |
| Indicator: | 5 Bit LCD | Weight: | 0.45kg |
| HS Code: | 9026209090 | Type: | Differential Pressure Sensor |
| Measuring Medium: | Gas Or Liquid | Pressure Range: | 0kpa~10kpa...4MPa |
| High Light: | BPZ2008 Digital Pressure Gauges,Digital Pressure Gauges 9V LCD Display,LCD Display Digital Water Pressure Gauge |
||

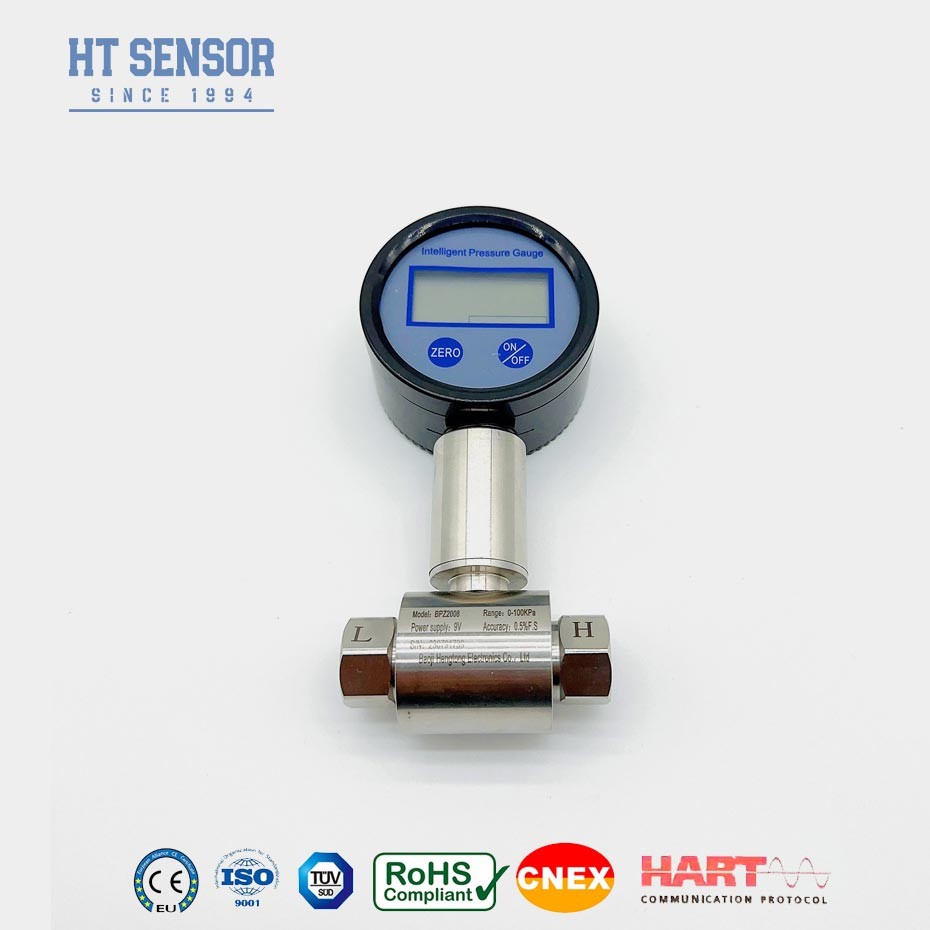

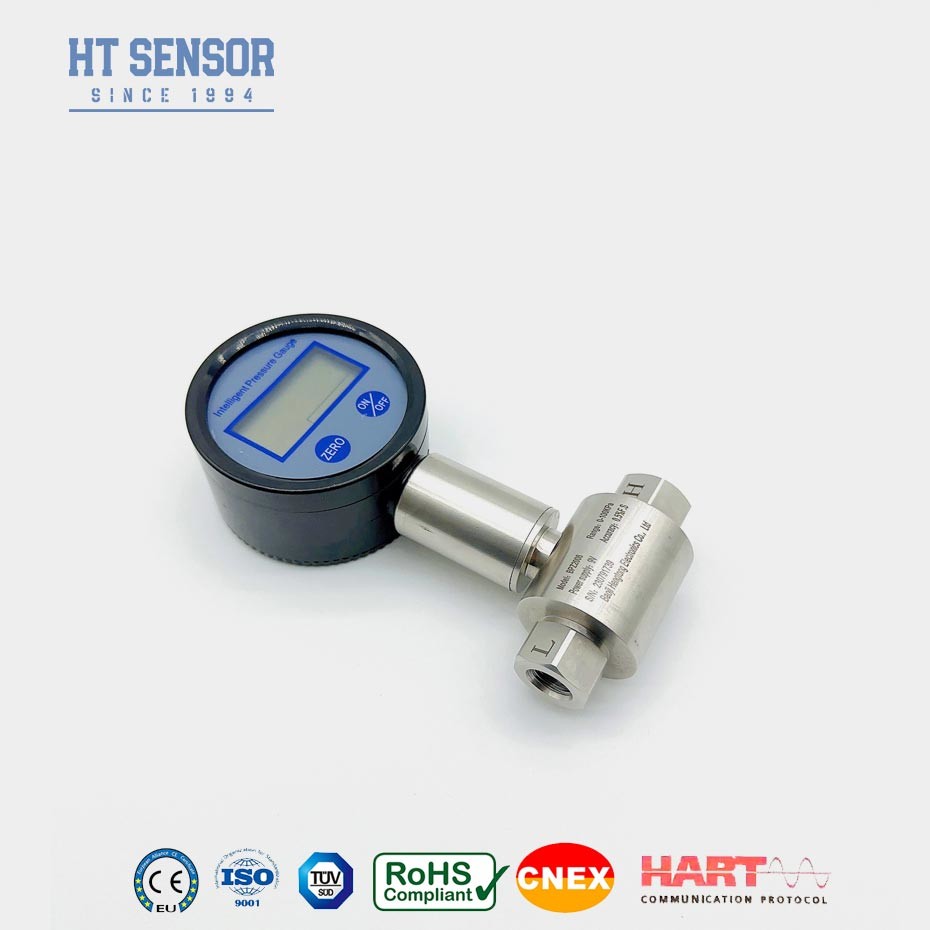

BPZ2008 Pressure Gauge/Switch
Introduction of digital pressure gauge:
The BPZ2008 is a digital gauge specifically designed for measuring corrosive gases and liquids. It utilizes a solid-state sensor with exceptional accuracy, thanks to its proprietary ASIC design, while maintaining an affordable price. The gauge's solid-state construction incorporates a micro-machined silicon pressure sensor (MEMS) and is built without any moving parts, ensuring a long lifespan. Pressure is transferred from stainless steel diaphragms to the sensor through the use of silicone oil.
Product Features of digital pressure gauge:
1. 5-digit LCD display
2. Powered by a 9V battery
3. Selectable units of measurement: bar, psi, kg/cm2, KPa, MPa
4. Peak hold and continuous reading functions
Applications of digital pressure gauge:
1.Designed for measuring non-corrosive gases and liquids using 316L material.
2.Well-suited for industries focused on environmental protection and chemicals.
3.Enables differential pressure measurement in various industries like petroleum, chemical, power, and hydrology for pipeline applications.
| Performance Parameters | |
| Measurement Range | 0-10KPa...~4MPa |
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static pressure | The minimum value between 5 times the rated range or 7 MPa |
| Power Supply | 9V alkaline battery. |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa) |
| Zero Point Temperature Drift | ±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -1ºC~49ºC |
| Storage Temperature | -40ºC~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | ABS,1Cr18Ni9Ti |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Protection Rating | IP65 |
| Weight | ~0.45kg |
Q: What are the key features of your pressure sensor transmitters?
A: Our pressure sensor transmitters are known for their high precision, excellent performance, and durability. We also offer customization options to meet specific needs.
Q: Can I request special specifications for the transmitters?
A: Yes, our team of engineers can customize our products to meet your unique requirements. We offer both OEM and ODM services.
Q: What is your production capacity?
A: We have the capacity to produce up to 30,000 pressure sensor transmitters per month. This ensures that we can handle large-scale orders. However, we recommend contacting our sales team in advance to ensure smooth production and delivery scheduling.
Q: What is the typical delivery period?
A: For standard models, the delivery period is usually 5-8 working days. However, custom-made products may have varying delivery times.
Q: How are your products priced? Do you offer discounts?
A: Our products are competitively priced, and we do offer discounts for bulk orders or long-term partnerships.
Q: What is the warranty for your products? And what about after-sales service?
A: Our products come with a warranty of 24 months after shipment. Our after-sales service team is available to respond to inquiries within 24 hours, and we also offer remote instruction via PC network when needed.
