SS304 Digital Pressure Gauges -100kPa~20MPa Digital Differential Pressure Meter
Product Details
| Model NO.: | BPZ2008 | Power: | 9V Battery |
|---|---|---|---|
| Housing Material: | 304 S.S | Display: | Pressure Value |
| Indicator: | 5 Bit LCD | Weight: | 0.45kg |
| HS Code: | 9026209090 | Type: | Differential Pressure Sensor |
| Measuring Medium: | Gas Or Liquid | Pressure Range: | 0kpa~10kpa...2MPa |
| Highlight |
BPZ2008 Digital Pressure Gauges,Digital Pressure Gauges 20MPa,20MPa Digital Differential Pressure Meter |
||
Product Description

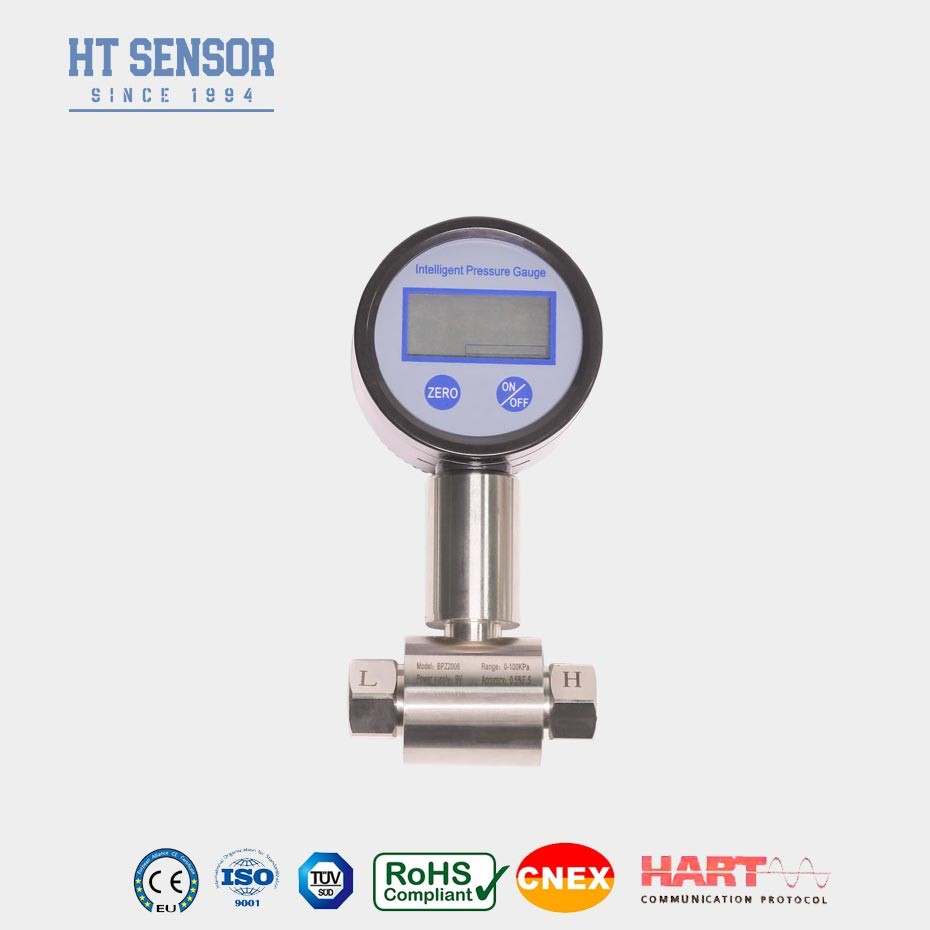

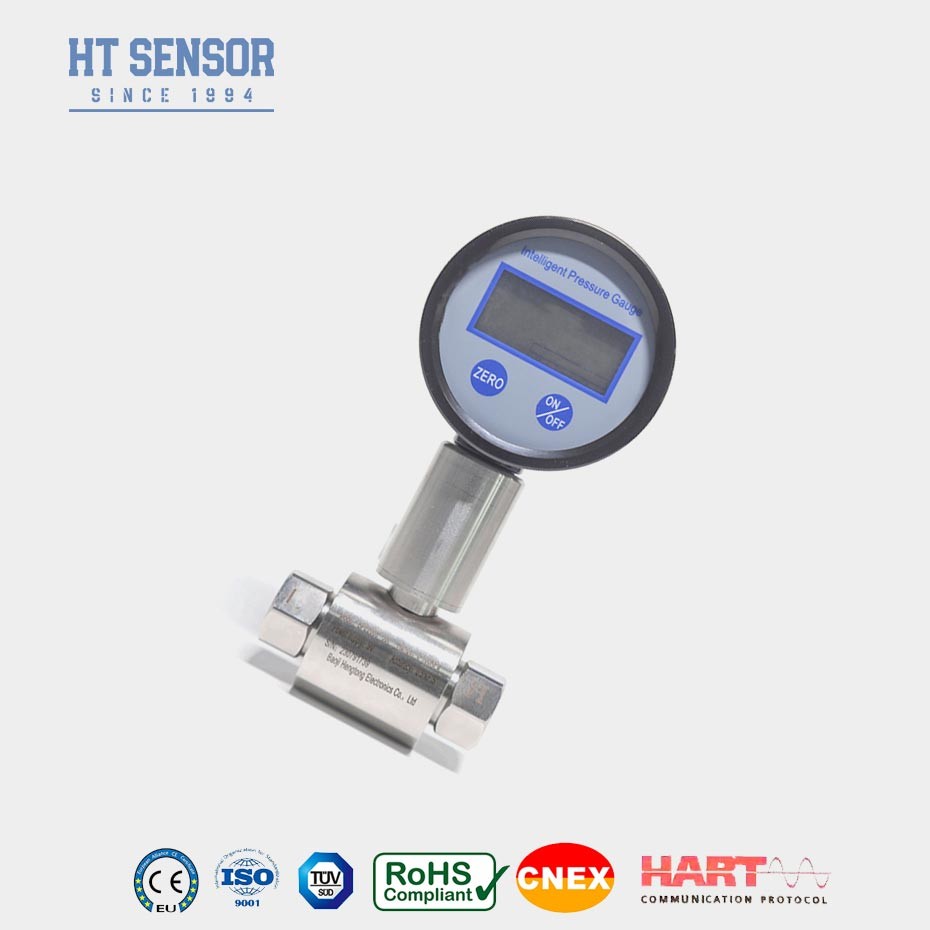

-100kPa~20MPa LCD display Differential Digital Pressure Gauge
BPZ2008 Pressure Gauge/Switch
Introduction of digital pressure gauge:
The BPZ2008 is a digital gauge that has been specifically designed to measure corrosive gases and liquids. Unlike traditional gauges, it features a solid-state sensor that utilizes micro-machined silicon pressure sensor (MEMS) technology, which provides accurate readings and a long lifespan due to its lack of moving parts. The pressure is transferred to the sensor through stainless steel diaphragms and silicone oil, ensuring reliable performance. Additionally, the BPZ2008's proprietary ASIC design allows it to offer the accuracy of a solid-state sensor at a lower cost than traditional gauges.
Product Features of digital pressure gauge:
1. 5-digit LCD display
2. Operating Temperature Range: 0 to 50℃
3. Proof Pressure: 200%FS
4. Burst Pressure: 300%FS
5. Pressure Connection: 1/4-18NPT male or customizable
6. Over static pressure≤5X rated range or 4Mpa
(which is lower)
7. Battery: 9V alkaline(included)
8. Over static pressure≤5X rated range or 4Mpa
(which is lower)
9. Battery Life: 2 years in power-saving mode
10. Case Dimensions: 67mm Dia.
11. Case Material: ABS
12. Wetted Parts: 316L stainless steel
13. Media Compatibility: All corrosive media
compatible with 316L SS
Applications of digital pressure gauge:
1. Suitable for measuring non-corrosive gases and liquids with 316L
2. Ideal for environmental protection and chemical industries
3. Differential pressure measurement for various gases and liquids in industries such as petroleum, chemical, power, and hydrology for pipeline applications
| Performance Parameters | |
| Measurement Range | 0-10KPa...~4MPa |
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static pressure | The minimum value between 5 times the rated range or 7 MPa |
| Power Supply | 9V alkaline battery. |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa) |
| Zero Point Temperature Drift | ±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -1ºC~49ºC |
| Storage Temperature | -40ºC~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | ABS,1Cr18Ni9Ti |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Protection Rating | IP65 |
| Weight | ~0.45kg |
Ordering Trips:
1. Liquid, gases which compatible with 316LSS.
2. without 9V battery.
3. Differential pressure digital gauge, To ensure the products can working reliable, we suggest that customer
install three valve group between measure point and transmitter that can assure media flow to positive &
negative cavity slowly and uniformly.
4. if you have special requirement: strong shock, instantaneous wallop, strong electromagnetism, frequency
interference and so on , please consult the supplier.
FAQ:
Q: What features do your pressure sensor transmitters offer?
A: Our pressure sensor transmitters are known for their high precision, durability, and exceptional performance. We also offer customization options to meet specific requirements.
Q: Can I request special specifications for the transmitters?
A: Absolutely! Our team of engineers can customize our products to fit your unique needs. We provide both OEM and ODM services.
Q: What is your production capacity?
A: Our manufacturing facilities have the capacity to produce up to 30,000 pressure sensor transmitters per month. This ensures that we can handle large-scale orders. To ensure smooth production and delivery scheduling, we recommend contacting our sales team in advance.
Q: How long does it typically take for delivery?
A: For standard models, the delivery period is usually 5-8 working days. However, custom-made products may have varying delivery times.
Q: How are your products priced? Do you offer any discounts?
A: Our products are competitively priced, and we do offer discounts for bulk orders or long-term partnerships.
Q: What is the warranty for your products? And what about after-sales service?
A: We provide a warranty of 24 months after shipment for our products. Our after-sales service team is available to respond to your inquiries within 24 hours, and we also offer remote instruction via PC network when needed.
