Gas Stainless Steel Pressure Gauges Diaphragm LCD Pressure Gauges Differential
Product Details
| Model NO.: | BPZ2008 | Power: | 9V Battery |
|---|---|---|---|
| Housing Material: | 304 S.S | Display: | Pressure Value |
| Indicator: | 5 Bit LCD | Weight: | 0.45kg |
| HS Code: | 9026209090 | Type: | Differential Pressure Sensor |
| Measuring Medium: | Gas Or Liquid | Pressure Range: | 0kpa~10kpa...2MPa |
| Highlight |
BPZ2008 Stainless Steel Pressure Gauges,RoHs Stainless Steel Pressure Gauges Diaphragms,RoHs LCD Pressure Gauge Differential |
||
Product Description

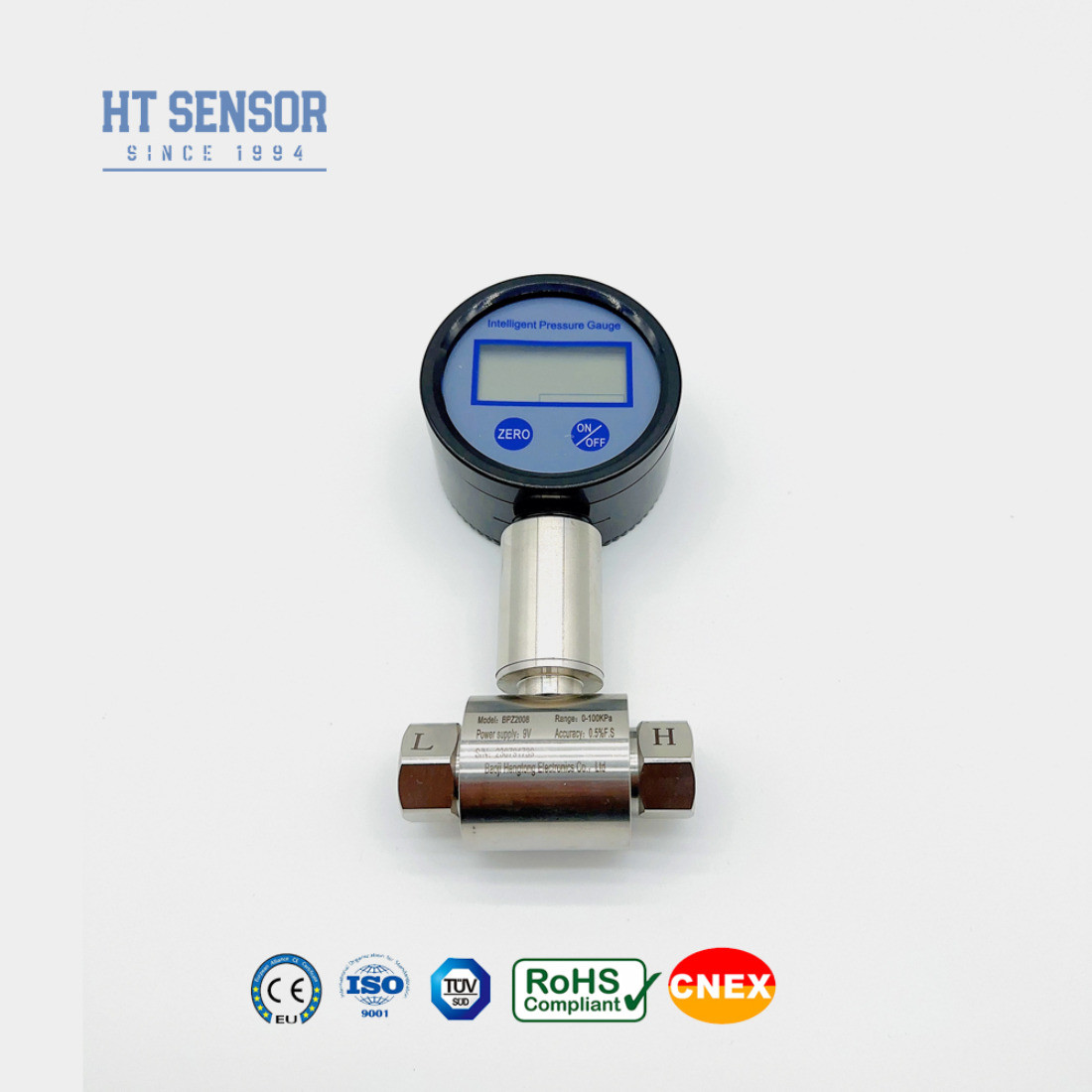

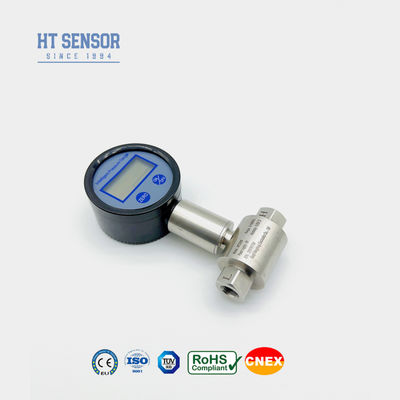

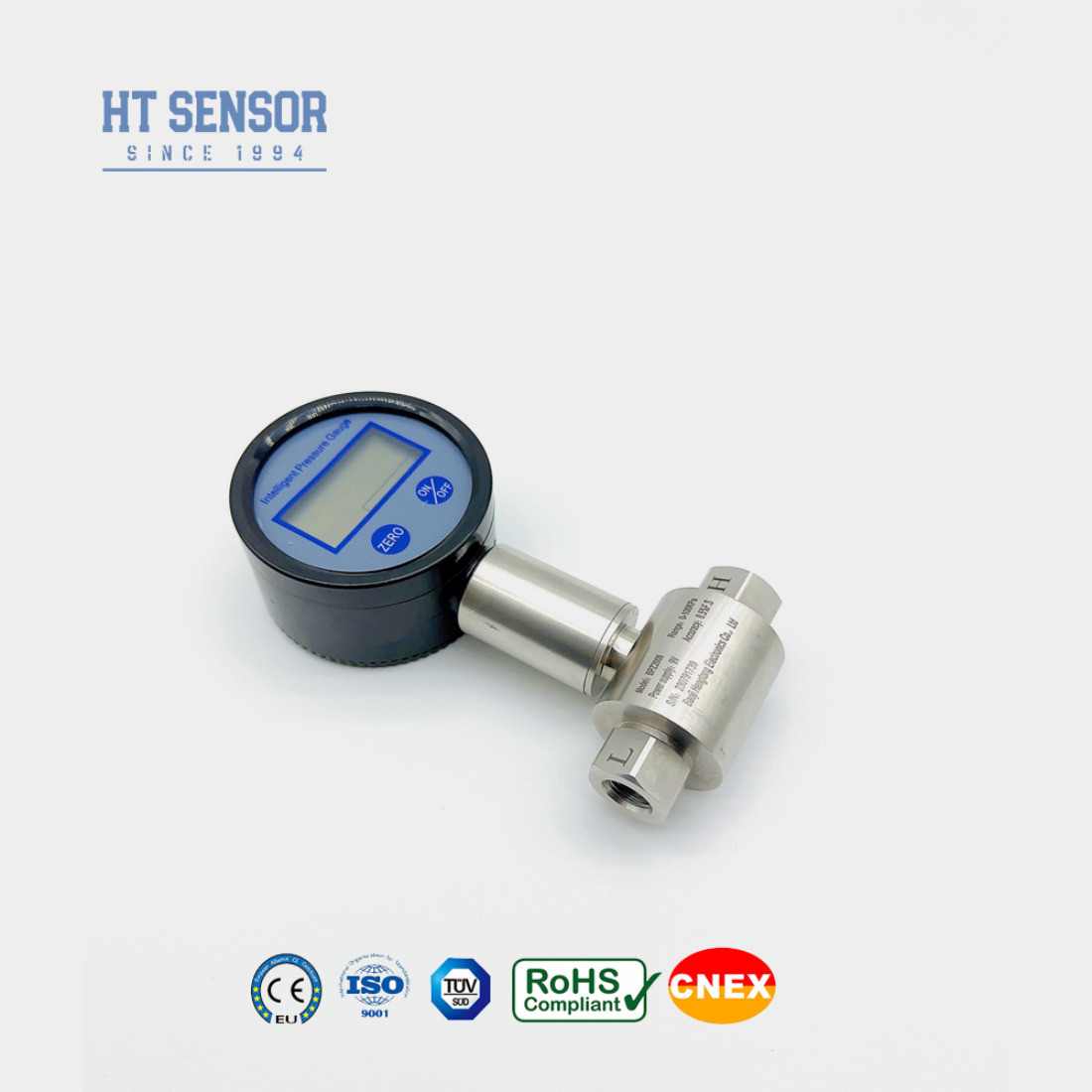

Stainless Steel diaphragms LCD display Differential Digital Pressure Gauge
BPZ2008 Pressure Gauge/Switch
Introduction of digital pressure gauge:
BPZ2008 is a cost-effective digital gauge specifically designed for measuring corrosive gases and liquids. It utilizes a solid-state sensor, which guarantees accuracy and longevity due to its micro-machined silicon pressure sensor (MEMS) and absence of moving parts. The pressure is transferred to the sensor via stainless steel diaphragms and silicone oil, ensuring reliable performance. This gauge's unique ASIC design enables it to offer exceptional value without compromising on quality.
The device features a large LCD digital display with an 18mm (0.71") height, which eliminates the need for guesswork when taking readings compared to an analog dial gauge. Zeroing the display can be easily done with the push of a button. Additionally, to conserve battery life, the unit has an auto-off function that can display pressure readings for 1-15 minutes (optional) before automatically shutting off.
Product Features of digital pressure gauge:
1. 5-digit LCD display
2. Operating Temperature Range: 0 to 50℃
3. Proof Pressure: 200%FS
4. Burst Pressure: 300%FS
5. Pressure Connection: 1/4-18NPT male or customizable
6. Over static pressure≤5X rated range or 4Mpa
(which is lower)
7. Battery: 9V alkaline(included)
8. Over static pressure≤5X rated range or 4Mpa
(which is lower)
9. Battery Life: 2 years in power-saving mode
10. Case Dimensions: 67mm Dia.
11. Case Material: ABS
12. Wetted Parts: 316L stainless steel
13. Media Compatibility: All corrosive media
compatible with 316L SS
Applications of digital pressure gauge:
1. Suitable for measuring non-corrosive gases and liquids with 316L
2. Ideal for environmental protection and chemical industries
3. Differential pressure measurement for various gases and liquids in industries such as petroleum, chemical, power, and hydrology for pipeline applications
| Performance Parameters | |
| Measurement Range | 0-10KPa...~4MPa |
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static pressure | The minimum value between 5 times the rated range or 7 MPa |
| Power Supply | 9V alkaline battery. |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa) |
| Zero Point Temperature Drift | ±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -1ºC~49ºC |
| Storage Temperature | -40ºC~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | ABS,1Cr18Ni9Ti |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Protection Rating | IP65 |
| Weight | ~0.45kg |
Ordering Trips:
1. Liquid, gases which compatible with 316LSS.
2. without 9V battery.
3. Differential pressure digital gauge, To ensure the products can working reliable, we suggest that customer
install three valve group between measure point and transmitter that can assure media flow to positive &
negative cavity slowly and uniformly.
4. if you have special requirement: strong shock, instantaneous wallop, strong electromagnetism, frequency
interference and so on , please consult the supplier.
To recommend you the most suitable sensor, please tell us below information.
1. Working temperature: -40~125 °C ?
2. Test range?
3. Output: 4-20mA , RS485 or others?
4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5?
5. Electrical connection: Hirschmann, Packard, Direct lead?
6. Order quantity: ?
