24VDC Differential Pressure Type Level Transmitter Hart LCD Dp Type Transmitter
Product Details
| Model NO.: | BP93420D-III | Customized: | Customized |
|---|---|---|---|
| Max Range: | 2MPa | Output: | 4-20mA |
| Min Range: | 10kpa | Pressure Type: | Differential Pressure |
| Transport Package: | Standard Export Packing With Carton | Specification: | 10kpa~2Mpa |
| HS Code: | 9026201090 | Type: | Differential Pressure Transmitter |
| Measuring Medium: | Gas Or Liquid | Accuracy Grade: | 0.25%, 0.5%,0.3% |
| Highlight |
24VDC Differential Pressure Type Level Transmitter,Differential Pressure Type Level Transmitter Hart,Hart LCD Dp Type Transmitter |
||
Product Description

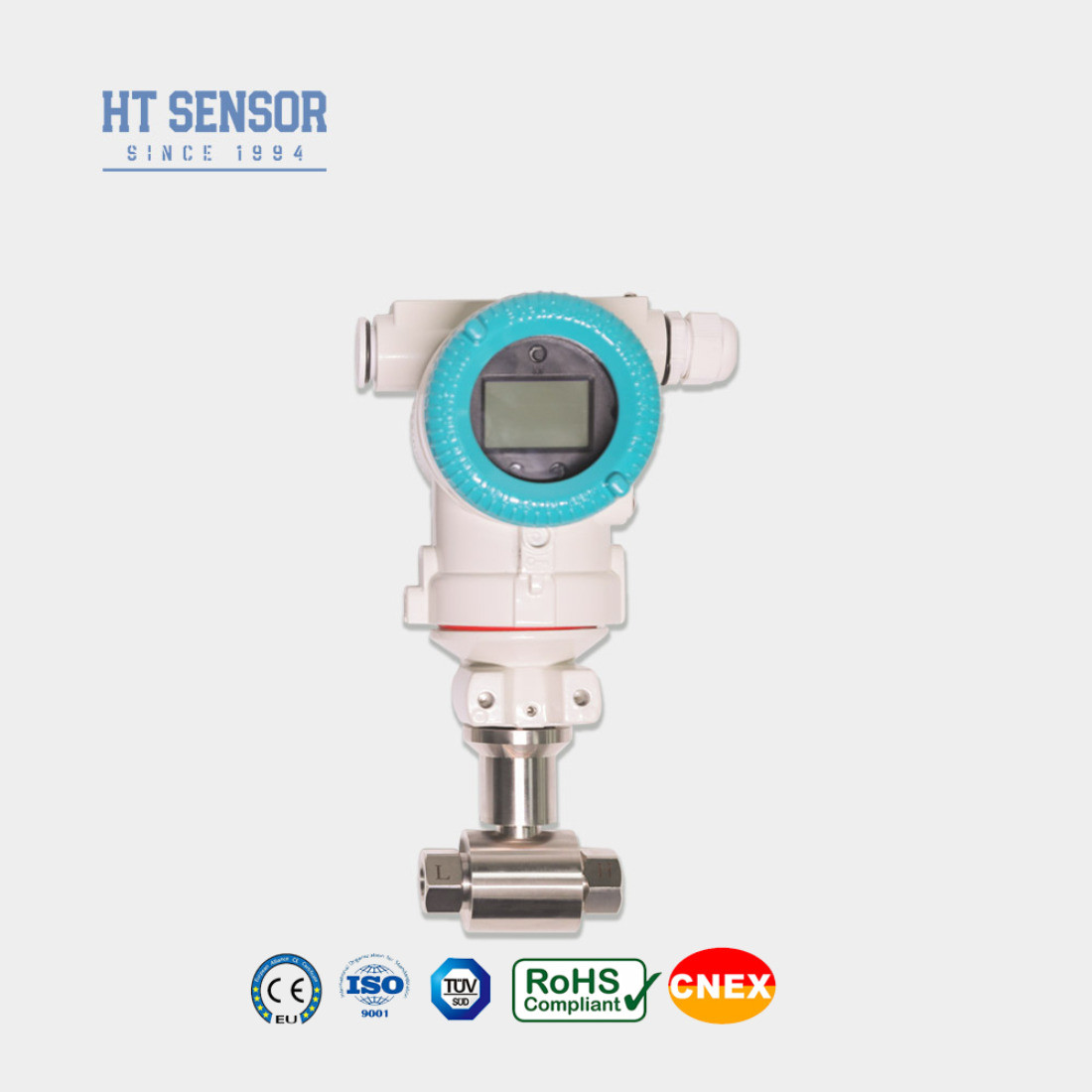

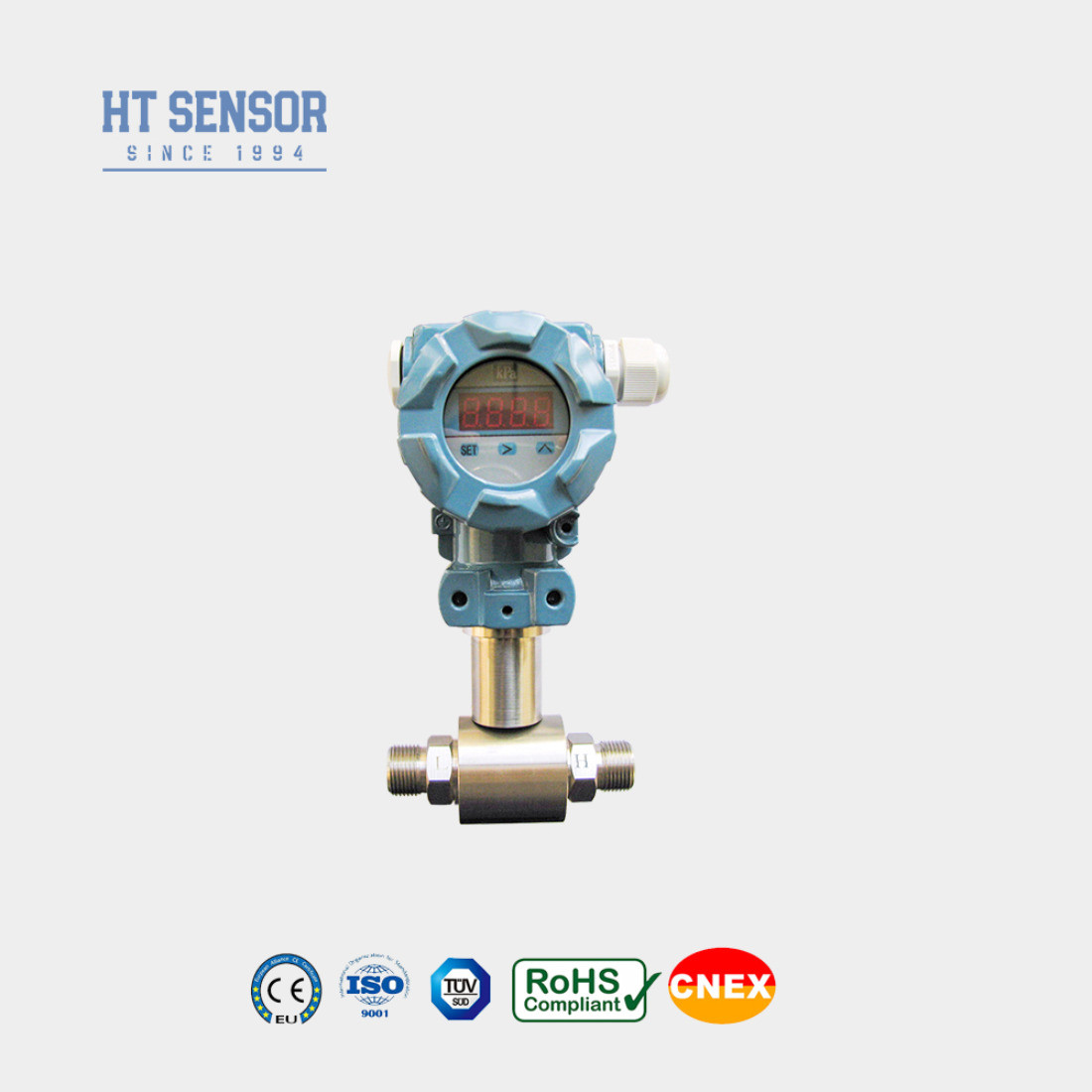

BP93420DIII differential pressure transmitter employs a piezoresistive silicon sensor.Differential Pressure (DP) transmitters measure the difference between two pressures. They use a reference point called the low-side pressure and compare it to the high-side pressure. Ports in the instrument are marked high-side and low-side. The transmitter is ideal for conducting differential pressure measurements in diverse gas and liquid applications, particularly in industries like petroleum, chemical for pipeline installations.
1.Stainless steel structural design, making it compact and easy to install
2. It undergoes strict temperature compensation and aging screening,
Applied pressure readings are acquired by the diaphragms, which register pressure as surface deformation and translate that value into an electronic signal. This signal is transferred to the differential pressure module, which compares the two values and expresses the pressure difference as a value of pounds per square inch (psi), bar, or kilopascals (kPa). These diaphragms are all-welded to maintain the container integrity in vacuum conditions applications,.
| Measurement Range | 0-10KPa……~2MPa |
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static pressure | The minimum value between 5 times the rated range or 7 MPa |
| Accuracy @ 25℃ | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(＞200KPa) |
| Zero Temperature Drift | ±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa) |
| Compensation Temperature | 0-50℃(0-10KPa, 0-20KPa) ,0-70℃ ,-10-70℃ |
| Operating Temperature | -30℃~80℃ |
| Storage Temperature | -40℃~100℃ |
| Vibration | 10g,55Hz ～ 2kHz |
| Housing Material | 304 Stainless steel ,Cast aluminum |
| Diaphragm Material | 316L Stainless steel |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Intrinsically safe and explosion-proof |
| Protection Rating | IP65 |
| Weight | ~1.4kg |
| Output Signal | Supply Voltage | Output Type |
| 4～20mA | 15～30VDC | Two/Three/Four Wire |
| 4～20mA with Hart | Two wire | |
| RS485 Communication Protocol | Four wire |
Ordering tips:
1. When selecting the product, please ensure that the medium to be measured is compatible with the contact parts of the product.
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring is -20℃ to 250℃. When the product's operating temperature is below -20℃, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
7. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order
Order Guide:
| BP93420 | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| DIII | Differential Pressure Transmitter | |||||||
| Measurement Range | 0-10KPa……~2MPa | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4～20mADC | S2 | 4～20mADC with Hart | |||||
| S3 | RS485 | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 Male | |||||||
| J2 | G1/2 Male | |||||||
| J3 | G1/4 Male | |||||||
| J4 | 1/2 NPT Male | |||||||
| J5 | Other | |||||||
| Code | Pressure Type | |||||||
| D | Differential Pressure | |||||||
