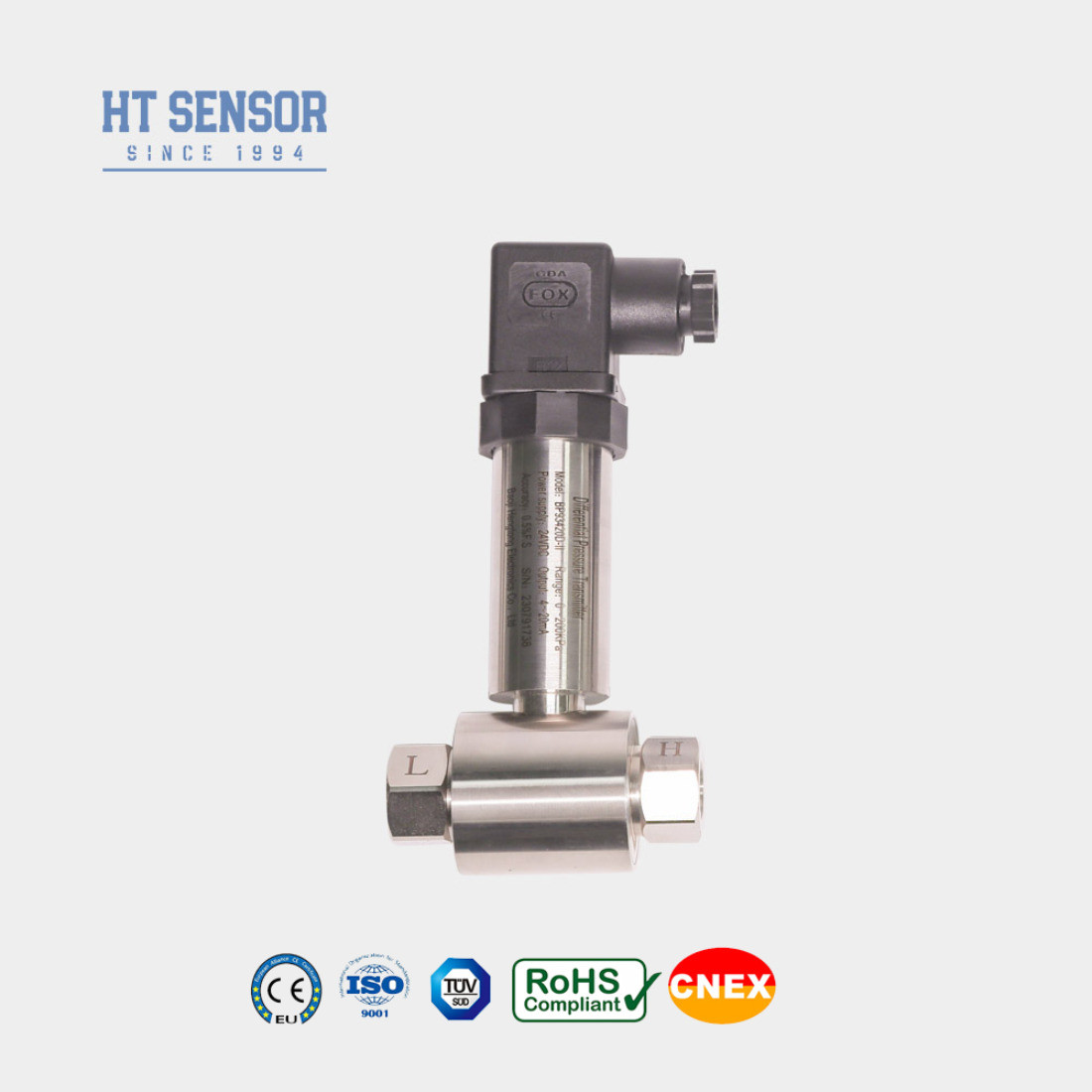

RS485 Modbus Differential Pressure Tranmitter Sensor Dpt Transmitter For Gas Liquid
Product Details
| Model NO.: | BP93420D-III | Customized: | Customized |
|---|---|---|---|
| Max Range: | 2MPa | Output: | 4-20mA |
| Min Range: | 10kpa | Pressure Type: | Differential Pressure |
| Transport Package: | Standard Export Packing With Carton | Specification: | 10kpa~2Mpa |
| HS Code: | 9026201090 | Type: | Differential Pressure Transmitter |
| Measuring Medium: | Gas Or Liquid | Accuracy Grade: | 0.25%, 0.5%,0.3% |
| Highlight |
RS485 Modbus Differential Pressure Tranmitter,Differential Pressure Tranmitter Sensor For Gas,ISO9001 Dpt Transmitter For Liquid |
||
Product Description

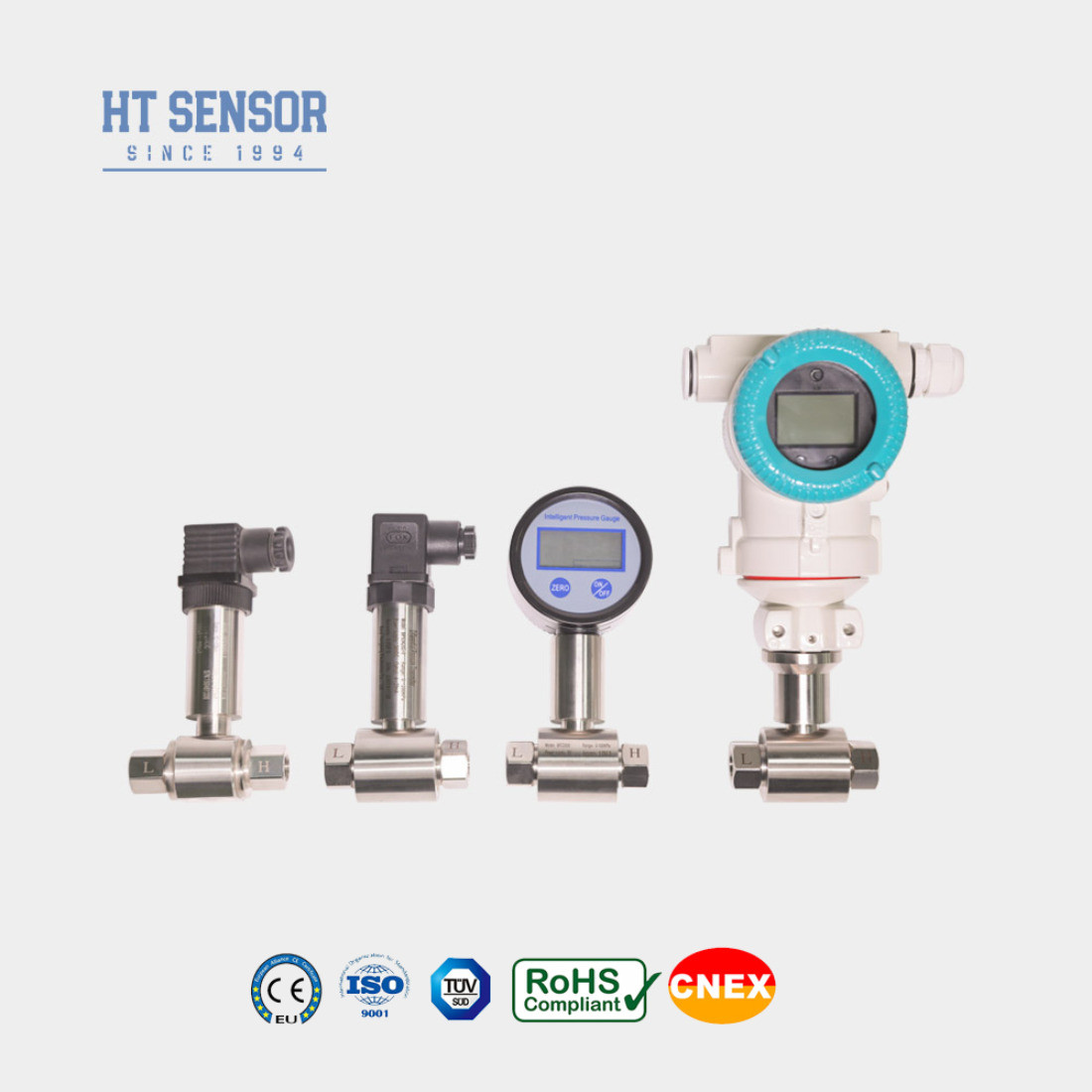

BP93420DIII differential pressure transmitter employs a piezoresistive silicon sensor. As the measured medium's differential pressure affects the corrugated diaphragms on both ends of the sensor, the Wheatstone bridge on the sensor chip produces an output signal that shows excellent linearity with the differential pressure. This allows for precise measurement of the differential pressure. The transmitter is ideal for conducting differential pressure measurements in diverse gas and liquid applications, particularly in industries like petroleum, chemical for pipeline installations.
1.Stainless steel structural design, making it compact and easy to install
2. It undergoes strict temperature compensation and aging screening,
1.Suitable for measuring differential pressure of various gases or liquids in
pipelines of industries such as petroleum, chemical, power, and hydrology.
2.Applied in industrial on-site processes such as petroleum, chemical,
metallurgy, power generation, and hydrology
3.Pressure measurement for pipelines and furnace chambers
| Measurement Range | 0-10KPa……~2MPa |
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static pressure | The minimum value between 5 times the rated range or 7 MPa |
| Accuracy @ 25℃ | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(＞200KPa) |
| Zero Temperature Drift | ±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa) |
| Compensation Temperature | 0-50℃(0-10KPa, 0-20KPa) ,0-70℃ ,-10-70℃ |
| Operating Temperature | -30℃~80℃ |
| Storage Temperature | -40℃~100℃ |
| Vibration | 10g,55Hz ～ 2kHz |
| Housing Material | 304 Stainless steel ,Cast aluminum |
| Diaphragm Material | 316L Stainless steel |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Intrinsically safe and explosion-proof |
| Protection Rating | IP65 |
| Weight | ~1.4kg |
| Output Signal | Supply Voltage | Output Type |
| 4～20mA | 15～30VDC | Two/Three/Four Wire |
| 4～20mA with Hart | Two wire | |
| RS485 Communication Protocol | Four wire |
Ordering tips
1. When selecting the product, please ensure that the medium to be measured is compatible with the contact parts of the product.
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring is -20℃ to 250℃. When the product's operating temperature is below -20℃, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
7. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order
Order Guide
| BP93420 | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| DIII | Differential Pressure Transmitter | |||||||
| Measurement Range | 0-10KPa……~2MPa | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4～20mADC | S2 | 4～20mADC with Hart | |||||
| S3 | RS485 | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 Male | |||||||
| J2 | G1/2 Male | |||||||
| J3 | G1/4 Male | |||||||
| J4 | 1/2 NPT Male | |||||||
| J5 | Other | |||||||
| Code | Pressure Type | |||||||
| D | Differential Pressure | |||||||
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
