| Place of Origin: | Baoji,China |
|---|---|
| Brand Name: | HT SENSOR |
| Certification: | CE,RoHs,ISO9001 |
| Model Number: | BH93420-III |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Model NO.: | BH93420-III Level Transmitter | Range: | 0-1m~400m |
|---|---|---|---|
| Diaphragm Material: | 316L Stainess Steel | Output: | 0.5-4.5V /4-20mA |
| Warranty: | 2 Years | Accuracy Grade: | 0.25%F.S,0.5%F.S |
| IP Rating: | IP68 | Operating Temp.: | -20~80℃ |
| Power Supply: | 12~36V, Standard 24V | Measuring Medium: | Liquid,Water,Oil |
| High Light: | Water Liquid Level Transmitter 400m,Liquid Level Transmitter Digital,400m Submersible Water Level Transmitter |
||

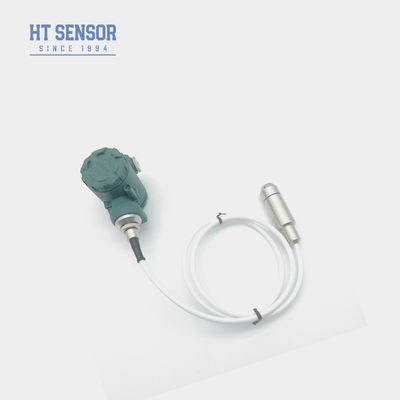

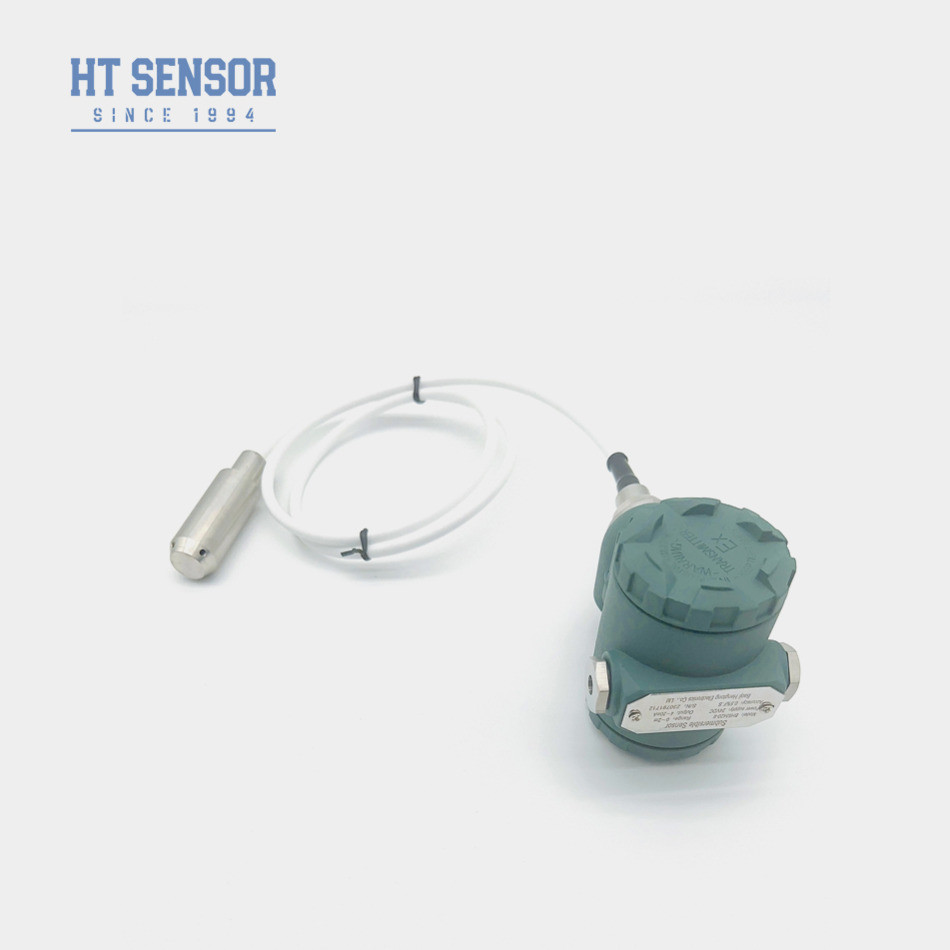

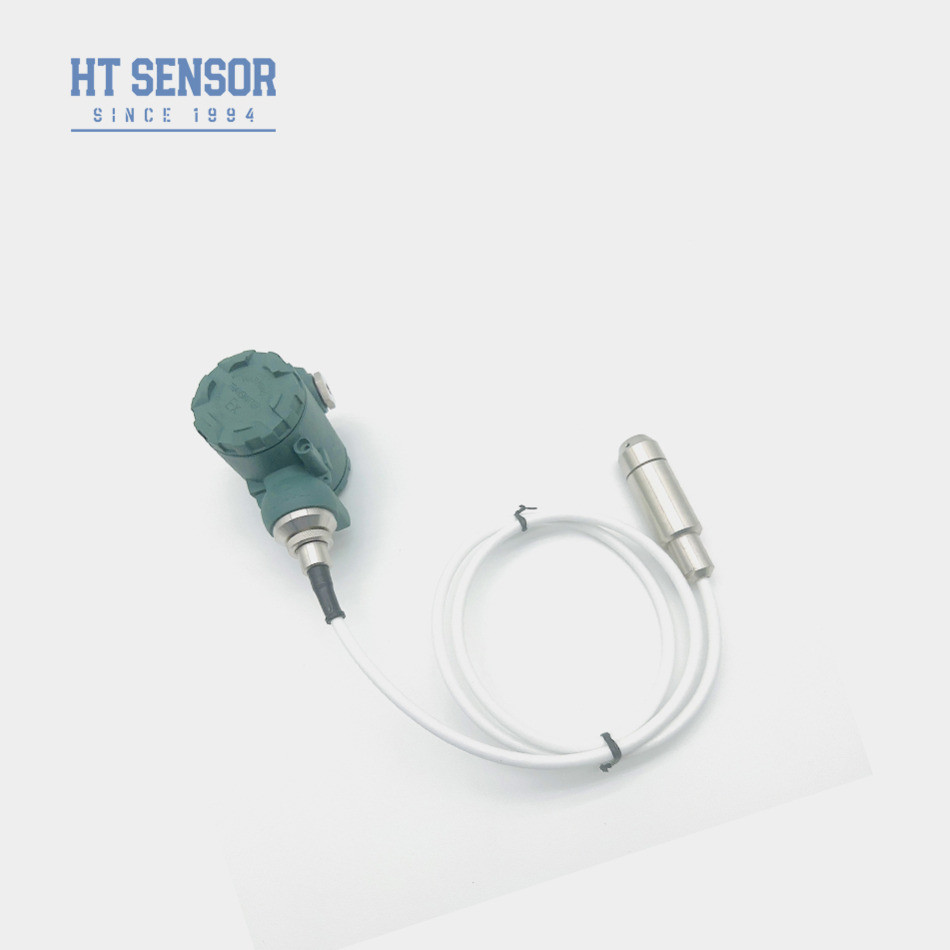

BH93420 II Sumersible liquid level transmitter
Introduction of Liquid Level Transmiter:
The BP93420-II submersible fuel level sensor is a device that is utilized to gauge the fuel level in a storage tank, commonly found in vehicles, boats, or industrial machinery. This sensor is specifically designed to be fully immersed in the fuel, ensuring precise readings even when the tank is almost empty. A notable advantage of the BP93420-II submersible fuel level sensors is their capability to provide accurate and dependable measurements, even in challenging conditions. These sensors are typically resistant to fuel and other chemicals, and can function effectively within a broad range of temperatures and pressures.
Product Features of liquid Level Transmiter:
1. All stainless steel shell, suitable for all kinds of testing environment.
2. Immersion probe measurement, easy installation.
3. A variety of output signal selection.
4. Explosion-proof marks: ExiaIICT6.
5. IP68.
6. PE or PU cable.
Applications of Liquid Level Transmiter:
1. Compatible with 316LSS,noncorrosive liquids
2. Monitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etc
3. Measuring fuel levels in diesel and fuel tanks
| Performance Parameters | |
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.1% (Typ.) ±0.2% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, Stainless steel 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.6Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA with Hart | 15~30VDC | 2 wire |
| Electrical Connection | ||||
 |
4-20mA (HART) |
1 | V+ | Red |
| 2 | V- | Yellow | ||
| 3 | NC | |||
| 4 | NC | |||
 |
4-20mA (HART) |
1 | V+ | Red |
| 2 | V- | Yellow | ||
| 3 | NC | |||
| 4 | NC | |||
 |
4-20mA (HART) |
1 | V+ | Red |
| 2 | V- | Yellow | ||
| 3 | GND | |||
| 4 | NC | |||
| Order Guide | ||||||||||
| BHZ93420 | Code | Outline Construction | ||||||||
| III | Intelligent liquid level transmitter | |||||||||
| Measurement Range | 0~10m…400m | |||||||||
| Code | Power Supply | |||||||||
| D1 | 24VDC | |||||||||
| Code | Output Signal | |||||||||
| S1 | 4~20mADC | S2 | 4~20mADC with Hart | |||||||
| Code | Electrical Connection | |||||||||
| B4 | 2088 with display | |||||||||
| B5 | 3051 | |||||||||
| B6 | 3051A | |||||||||
| Code | Pressure Type | |||||||||
| G | Gauge Pressure | |||||||||
| A | Absolute Pressure | |||||||||
| S | Sealed Reference Pressure | |||||||||
| Code | Cable Material | |||||||||
| C1 | PE | |||||||||
| C2 | PU | |||||||||
| C3 | PTFE | |||||||||
