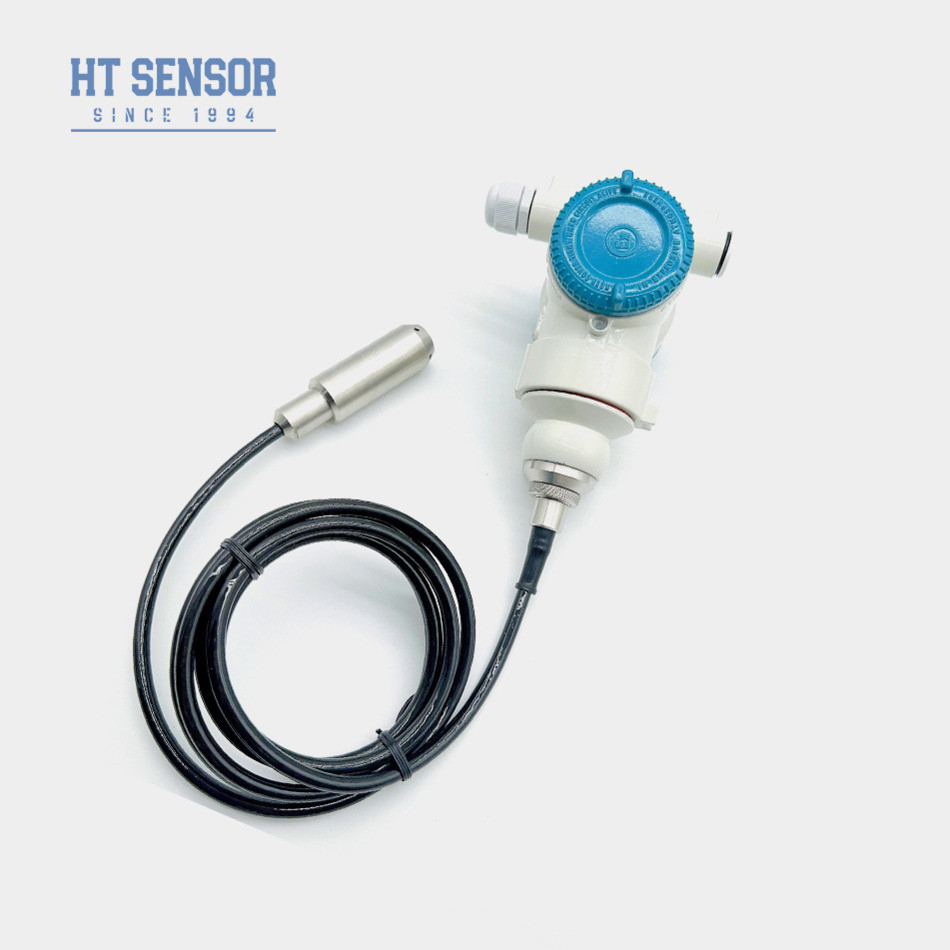

BH93420-III Submersible Fuel Tank Level Sensor Water Tank Level Sensor 4-20mA
Product Details
| Model NO.: | BH93420-III Level Transmitter | Range: | 0-1m~400m |
|---|---|---|---|
| Diaphragm Material: | 316L Stainess Steel | Output: | 0.5-4.5V /4-20mA |
| Warranty: | 2 Years | Accuracy Grade: | 0.25%F.S,0.5%F.S |
| IP Rating: | IP68 | Operating Temp.: | -20~80℃ |
| Power Supply: | 12~36V, Standard 24V | Measuring Medium: | Liquid,Water,Oil |
| Highlight |
4-20mA Submersible Fuel Tank Level Sensor,Submersible Fuel Tank Level Sensor 4.5V,BH93420-III Fuel Water Tank Level Sensor |
||
Product Description
BH93420-III Submersible Liquid Level Transmitter Water Fuel Tank Level Sensor
BH93420 III Sumersible liquid level transmitter
Introduction of Liquid level Transmiter:
BH93420-III submersible level transmitter is a liquid level measurement device that utilizes high-quality imported pressure sensor components. It is widely utilized in various applications such as urban water supply and drainage, water treatment plants, reservoirs, rivers, oceans, oil storage tanks, as well as petroleum, chemical, and electric power industries.
Product Features of Liquid level Transmiter:
1. Analog or Digital Signal.
2. A variety of output signal selection.
3. PE or PU cable is optional.
Applications of Liquid level Transmiter:
1. Compatible with 316LSS,noncorrosive liquids
2. Monitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etc
3. Measuring fuel levels in diesel and fuel tanks
| Performance Parameters | |
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.1% (Typ.) ±0.2% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, Stainless steel 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.6Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA with Hart | 15~30VDC | 2 wire |
| Electrical Connection | ||||
|
4-20mA (HART) |
1 | V+ | Red |
| 2 | V- | Yellow | ||
| 3 | NC | |||
| 4 | NC | |||
|
4-20mA (HART) |
1 | V+ | Red |
| 2 | V- | Yellow | ||
| 3 | NC | |||
| 4 | NC | |||
|
4-20mA (HART) |
1 | V+ | Red |
| 2 | V- | Yellow | ||
| 3 | GND | |||
| 4 | NC | |||
| Order Guide | ||||||||||
| BHZ93420 | Code | Outline Construction | ||||||||
| III | Intelligent liquid level transmitter | |||||||||
| Measurement Range | 0~10m…400m | |||||||||
| Code | Power Supply | |||||||||
| D1 | 24VDC | |||||||||
| Code | Output Signal | |||||||||
| S1 | 4~20mADC | S2 | 4~20mADC with Hart | |||||||
| Code | Electrical Connection | |||||||||
| B4 | 2088 with display | |||||||||
| B5 | 3051 | |||||||||
| B6 | 3051A | |||||||||
| Code | Pressure Type | |||||||||
| G | Gauge Pressure | |||||||||
| A | Absolute Pressure | |||||||||
| S | Sealed Reference Pressure | |||||||||
| Code | Cable Material | |||||||||
| C1 | PE | |||||||||
| C2 | PU | |||||||||
| C3 | PTFE | |||||||||
