BHZ93420-III Smart Water Pressure Sensor For Water Level Measurement Digital RS485
Product Details
| Model NO.: | BHZ93420-III | Accuracy: | ≤0.5%F.S |
|---|---|---|---|
| Pressure Range: | 0-1m-400 H2O | Customization: | OEM/ODM |
| Cable: | PE,PU,PTFE | Diaphragm Material: | 316L Stainess Steel |
| Net Weignt: | 1.6kg | Type: | Silicon Piezoresistive Type |
| Structure Design: | Input Type | IP Rating: | IP68 |
| Highlight |
BHZ93420-III Smart Water Pressure Sensor,RS485 Pressure Sensor For Water Level Measurement,Pressure Sensor For Water Level Measurement Digital |
||
Product Description

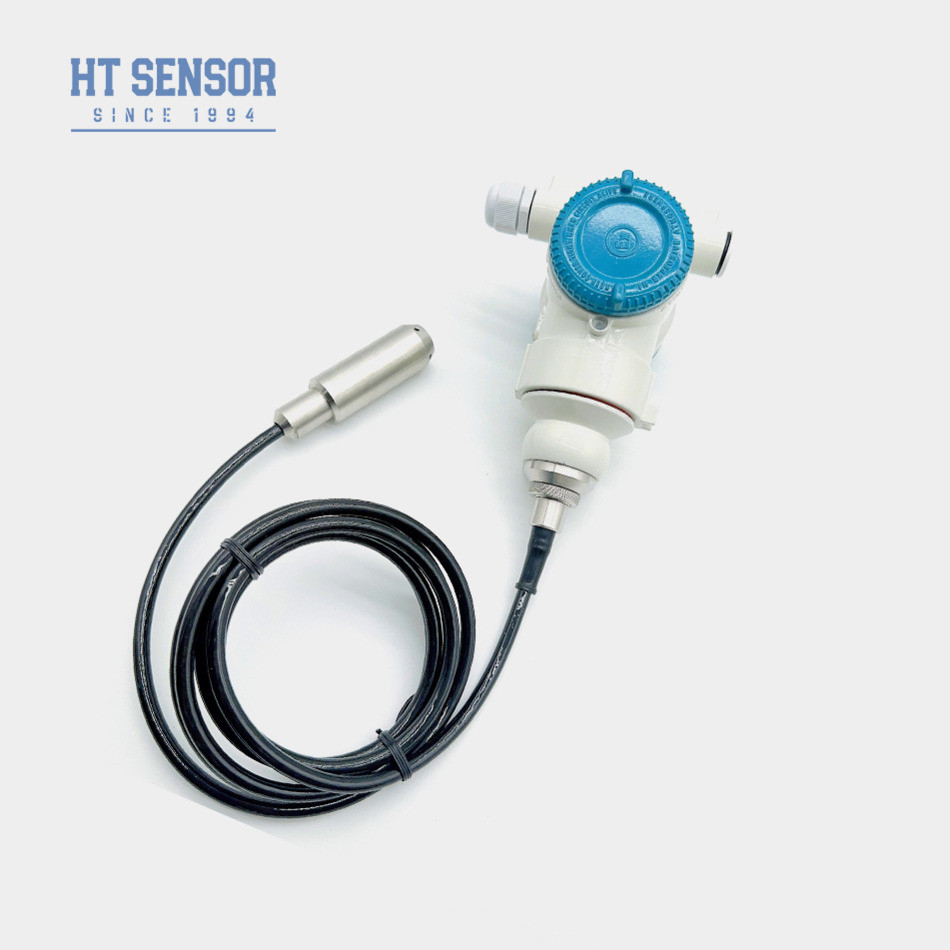

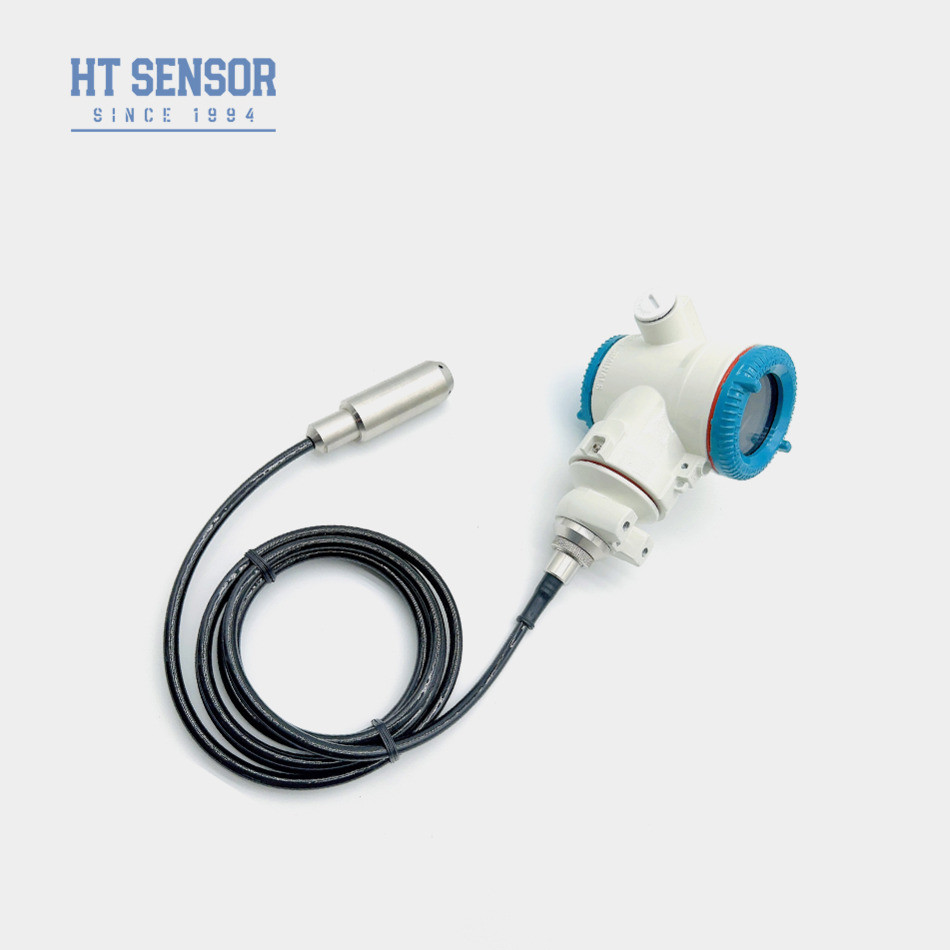

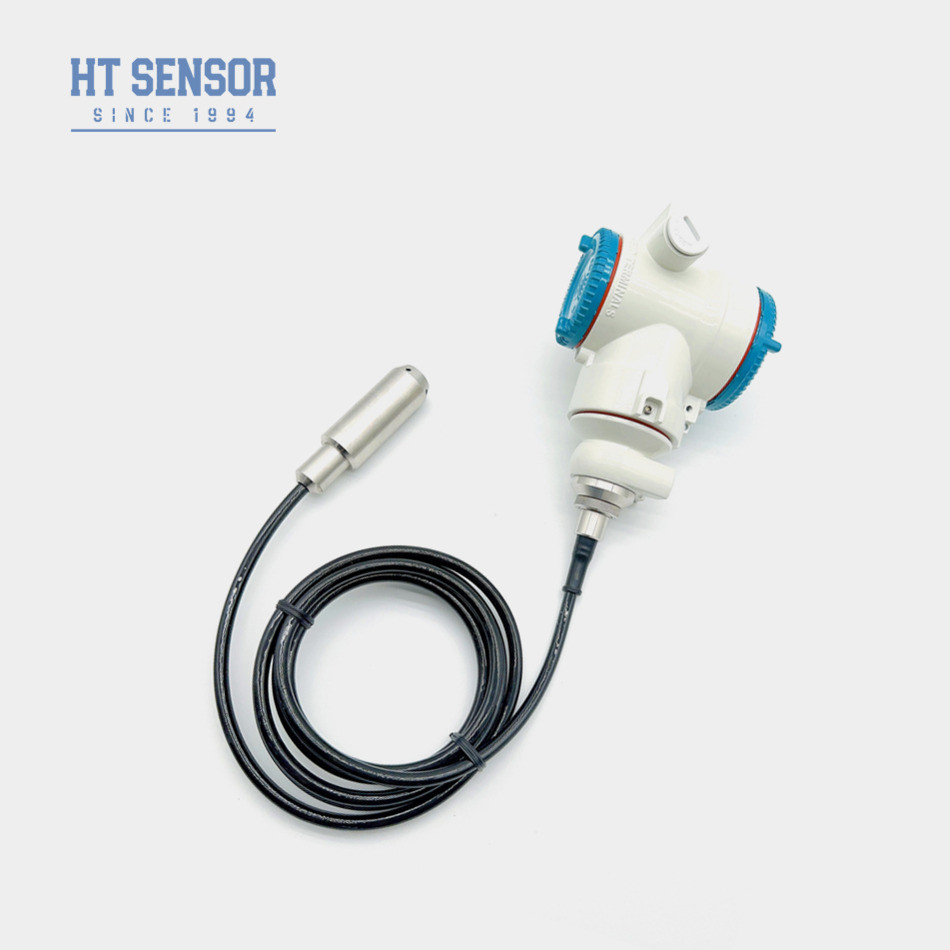

BHZ93420-III 3051 Cast Aluminum Alloy RS485 Digital Water Level Transmitter
BHZ93420 III Liquid level Transmitter
Introduction of water level transmitter:
The BHZ93420-III insertion-type intelligent liquid level transmitter is designed with a high-precision piezoresistive silicon pressure sensor as its signal measuring element. The sensor measures the static pressure, which is proportional to the liquid level. With the HART communication protocol, it achieves digital signal transmission and two-way communication. This transmitter offers multiple output options, including analog and digital signals, making it highly versatile and adaptable to different system requirements.
Product Features of water level transmitter:
1.HART communication protocol output, with display capability
2.High accuracy and excellent stability
3.Explosion-proof rating : ExiaIICT6
4.High protection level, IP68
5.PE, PTFT, PU cables available
Applications of water level transmitter:
1.Compatible with 316LSS,noncorrosive liquids
2.Monitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etc
3.Diesel, fuel, and other oil tank level monitoring
Performance Parameters:
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.1% (Typ.) ±0.2% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, Stainless steel 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.6Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | Supply Voltage | Output Type |
| 4～20mA with Hart | 15～30VDC | 2 wire |

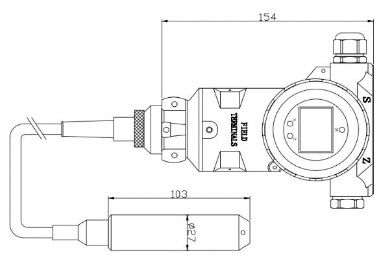

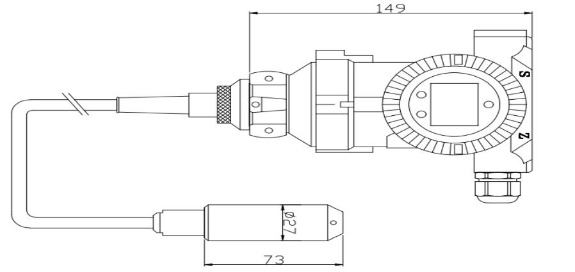

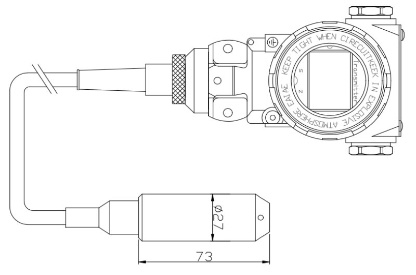

| Outline Construction | |
|
2088 |
|
| 3051A | |
| 3051 | |
| Electrical Connection | ||||
|
4-20mA (HART) |
1 | V+ | Red |
| 2 | V- | Yellow | ||
| 3 | NC | |||
| 4 | NC | |||
|
4-20mA (HART) |
1 | V+ | Red |
| 2 | V- | Yellow | ||
| 3 | NC | |||
| 4 | NC | |||
|
4-20mA (HART) |
1 | V+ | Red |
| 2 | V- | Yellow | ||
| 3 | GND | |||
| 4 | NC | |||
| Selection Examples |
Ordering tips:
1. Please ensure that the measured medium is compatible with the product components in contact with it during selection.
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.
Order Guide:

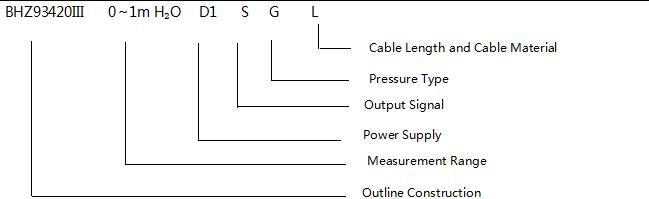

| BHZ93420 | Code | Outline Construction | ||||||||
| III | Intelligent liquid level transmitter | |||||||||
| Measurement Range | 0~10m…400m | |||||||||
| Code | Power Supply | |||||||||
| D1 | 24VDC | |||||||||
| Code | Output Signal | |||||||||
| S1 | 4~20mADC | S2 | 4~20mADC with Hart | |||||||
| Code | Electrical Connection | |||||||||
| B4 | 2088 with display | |||||||||
| B5 | 3051 | |||||||||
| B6 | 3051A | |||||||||
| Code | Pressure Type | |||||||||
| G | Gauge Pressure | |||||||||
| A | Absolute Pressure | |||||||||
| S | Sealed Reference Pressure | |||||||||
| Code | Cable Material | |||||||||
| C1 | PE | |||||||||
| C2 | PU | |||||||||
| C3 | PTFE | |||||||||
To recommend you the most suitable sensor, please tell us below information.
1. Working temperature: -40~125 °C ?
2. Test range?
3. Output: 4-20mA , RS485 or others?
4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5?
5. Electrical connection: Hirschmann, Packard, Direct lead?
6. Order quantity: ?
