Level Sensors Water And Oil Test With I2C Output Silicon Pressure Sensor Manufacturer
Product Details
| Modle: | HT19F-I2C | Thread Type: | Customized |
|---|---|---|---|
| Range: | 0-10kpa~40Mpa | Compensation Temperature: | -10~70℃ |
| Power: | 5-10vdc | Port: | Xi'an |
| Specification: | 19mm*15mm | Stability: | ±0.1%F.S/Year |
| Hs Code: | 9026209090 | Accuray: | 0.5% |
| Highlight |
silicon Pressure Level Sensors,I2C Silicon Pressure Sensor,Water And Oil Test Level Sensors |
||
Product Description
I2C Output Silicon Pressure Sensor For Water And Oil Industrial Stainless Steel Level Sensors
pressure sensor oil sensor for water and Oil test with I2C output

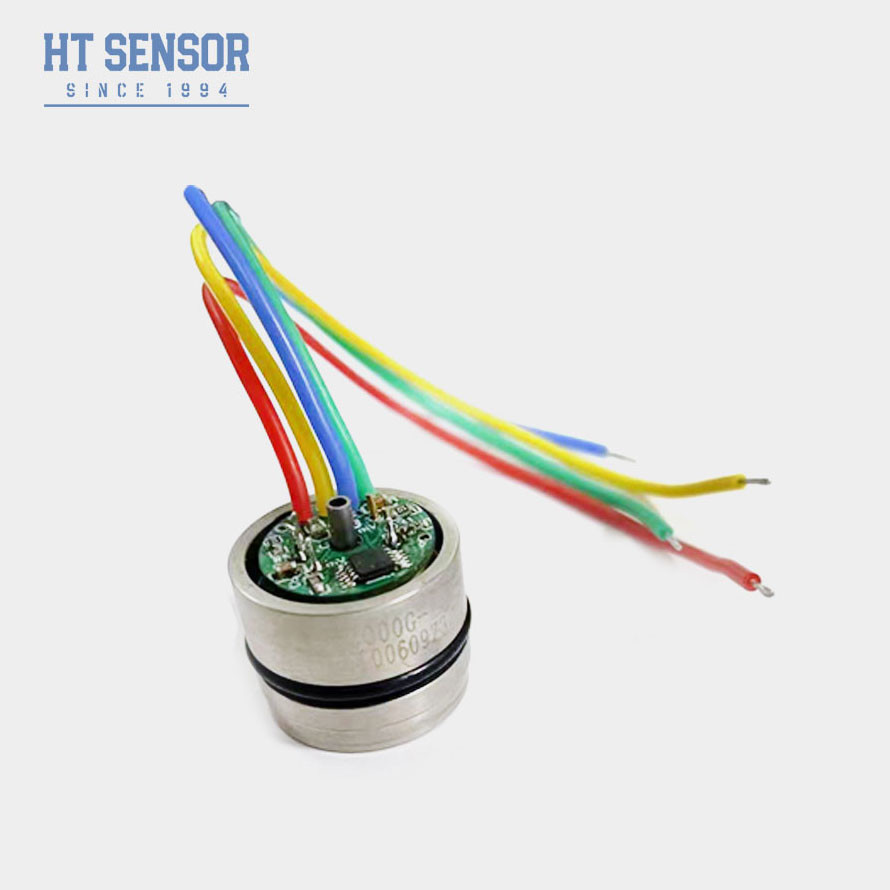

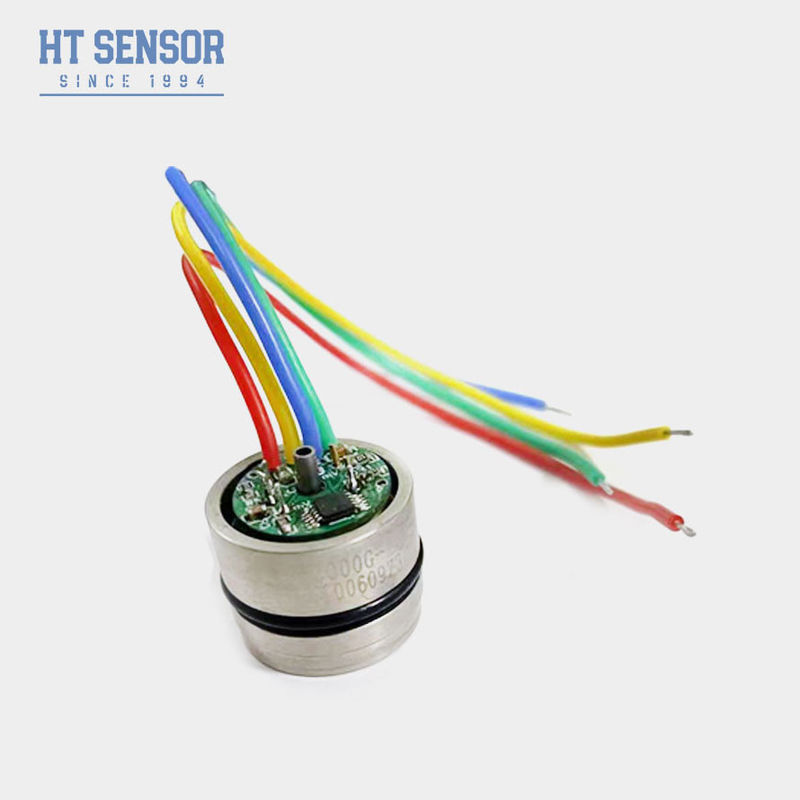

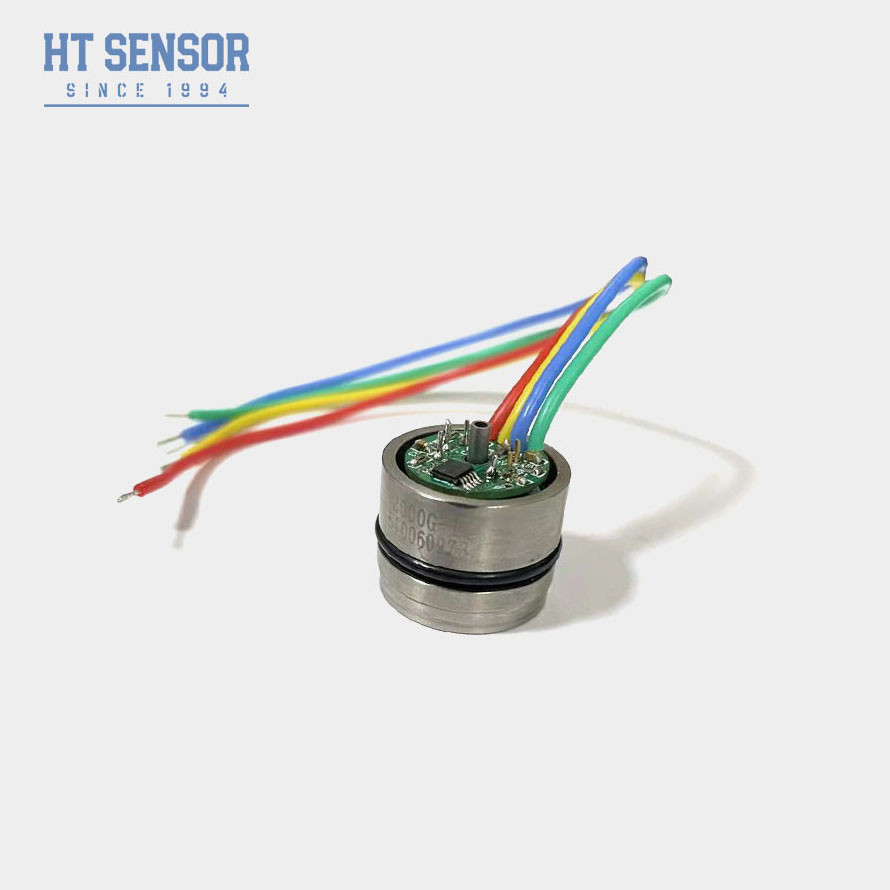

HT19F-I2C silicon pressure sensor
Introduction:
HT19F-I2C pressure sensor adopts the HT series silicon piezoresistive oil core developed by our company as the signal measurement element. The sensor signal is converted into a standard output IIC signal using an amplifying circuit. The product has the advantages of small volume, short production cycle and strong reliability, and is widely used in various industrial fields.
Product Features:
• Economical and small size
• Gauge pressure type, absolute pressure type
• Dual 24-bit ADCs for pressure and temperature acquisition, respectively
• Standard I2C communication protocol
• All stainless steel 316L material
Applications:
- Industrial process control.
- Liquid level measurement.
- Intelligent pressure measuring instrument.
- Gas and liquid pressure measurement.
- Medical equipment.
- Internet of Things.
Electrical performance:
- Power Supply: 3.0-3.6VDC
- Output: I2C (Pressure ,Temperature)
| Performance Parameters: | |||
| Measurement Range | Gauge(G) | 10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa | |
| Absolute(A) | 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA | ||
| Sealed(S) | 3500KPaS,7MPaS,10MPaS,20MPaS,40MPaS | ||
| Performance Parameters | Unit | ||
| Power supply: | 3.0 to 3.6 | V DC | |
| Output signal: | digital I2C (pressure, temperature) | ||
| Continuous working current: | <3 | mA DC | |
| Temperature accuracy: | ±2 (no temperature output by default, temperature output needs to be customized) | ºC | |
| Pressure accuracy: | ±0.2 (±0.5 @35kPa) | %FS | |
| Insulation resistance: | 50MΩ@50V DC | ||
| Insulation strength: | 50Hz, 500V AC | ||
| Operating temperature: | -30 ~ 80 | ºC | |
| Storage temperature: | -40 ~ 80 | ºC | |
| Overload: | 1.5 times full scale pressure or 110MPa is the minimum value | ||
| Ordering tips |
6. If there is any change in the pin, please refer to the label on the actual core wire.
| company |
| Q&A |
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
