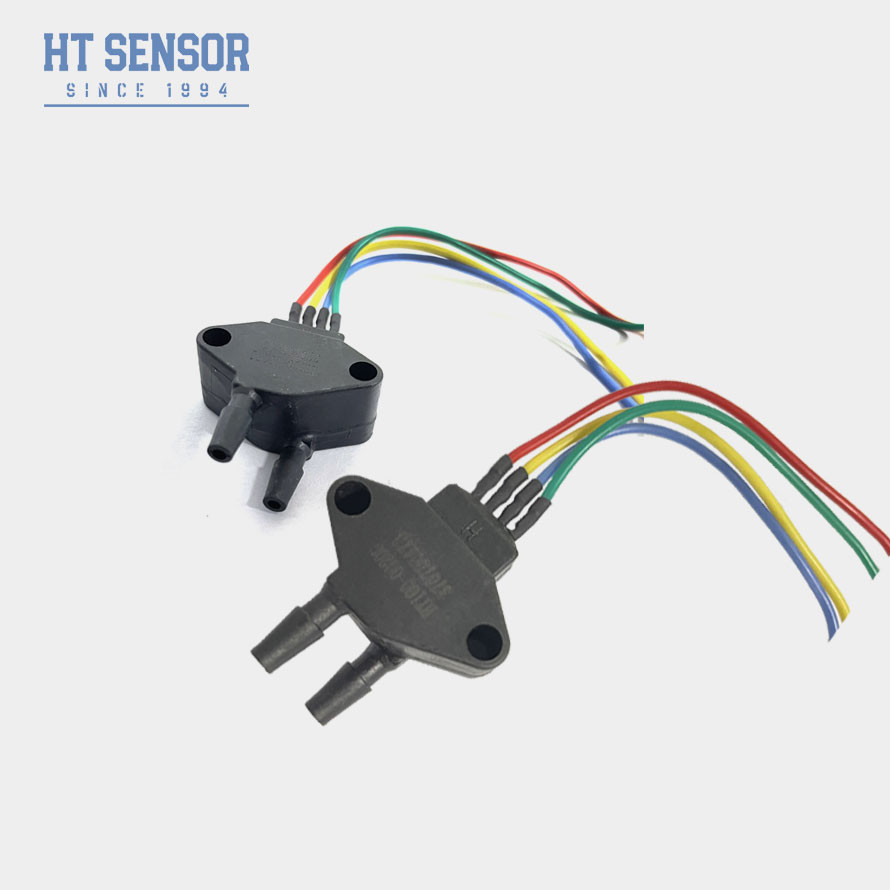

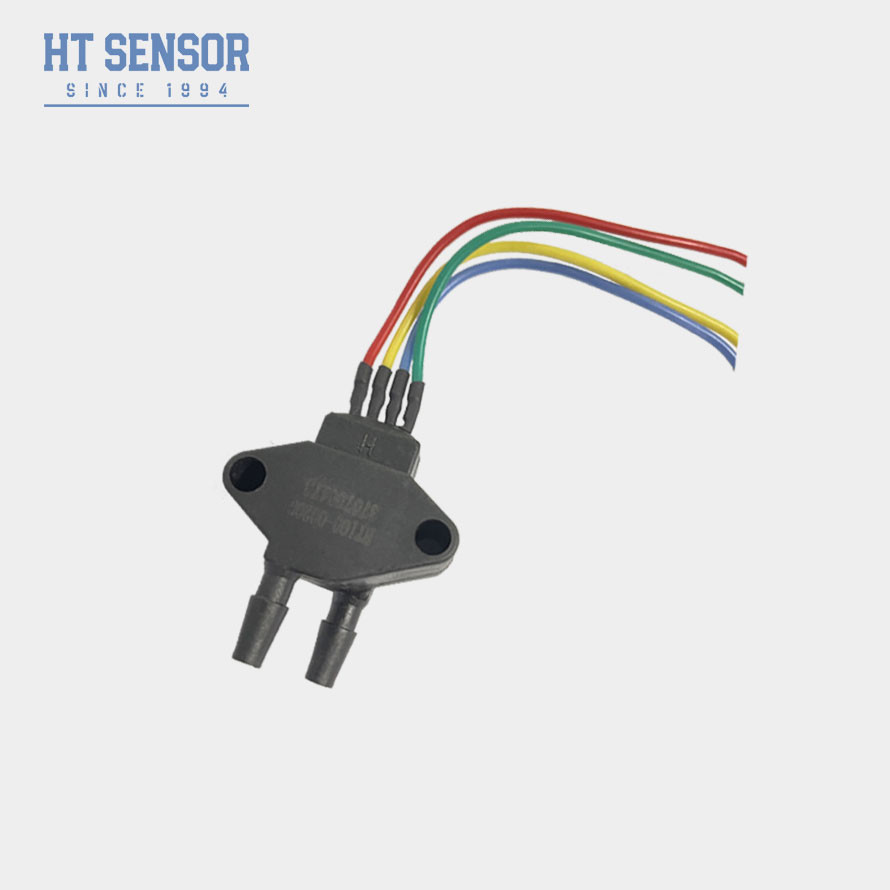

BP101 Silicon Piezoresistive Pressure Sensor

Introduction of Differential Pressure Transmitter :

BP101 silicon piezoresistive differential pressure sensor is a kind of diffused silicon element with high stability. It is a compact differential pressure sensor specially designed for small range differential pressure, which has a remarkable effect on small gas pressure measurement.It is known for its excellent reliability, repeatability and stability, making it ideal for accurate gas pressure measurement.

Product Features of Differential Pressure Transmitter :

• Wide measurement range, 0~10KPa~200kpa.
• High reliability and excellent stability.
• Aerospace applications.

Applications of Differential Pressure Transmitter :

• Measurement of dry, non-corrosive gas pressures.
• Pneumatic control systems.
• Biomedical engineering for medical applications.
• HVAC (Heating, Ventilation, and Air Conditioning) contro.
• Aerospace testing for aviation-related purposes.

Electrical performance of Differential Pressure Transmitter :

• Power Supply: 5V DC
• Output:0.5-4.5VDC

• Performance Parameters
  Measurement Range	0-10KPa,0~~~200KPa
  Pressure Type	Differential Pressure
  Static pressure	2 times of the rated range
  Overload	≤ 1.5 times of the rated range
  Accuracy @ 25℃	±0.5% (Typical), ±1% (Maximum)
  Zero Temperature Drift	±2.5%F.S/℃(Typical) ±3%F.S/℃(Maximum)
  Span Temperature Drift	±2.5%F.S/℃(Typical) ±3%F.S/℃(Maximum)
  Compensation Temperature	0-50℃
  Operating Temperature	-20℃~80℃
  Storage Temperature	-40℃~100℃
  Housing Material	Plastic
  Pressure connection	φ5 air nozzle or customizable
  Protection Rating	IP65

Ordering tips of Differential Pressure Transmitter
1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the required airtightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
