BP157 High Accuracy 4-20mA Pressure Transmitter Sensor Industrial Pressure Sensor
Product Details
| Model NO.: | BP157 | Compensation Temperature: | -10~70℃ |
|---|---|---|---|
| Housing Material: | 304 S.S | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| HS Code: | 9026201090 | Measuring Medium: | Gas Or Liquid |
| Accuracy Grade: | 0.25%, 0.5% | Pressure Range: | 0kpa~10kpa...20MPa |
| IP Rating: | IP65 | ||
| Highlight |
High Accuracy BP157 Pressure Transmitter Sensor,BP157 Industrial Pressure Sensor,4-20mA BP157 Pressure Transmitter Sensor |
||
Product Description
BP157 Pressure Transmitter
Introduction of pressure transmitter sensor :
The BP157 pressure transmitter sensor employs an HT series silicon pressure-resistant isolation membrane oil-filled core as its signal measuring element. The principle pressure sensor revolves around the utilization of diffused silicon technology to measure pressure variations. This type of sensor typically comprises a thin diaphragm made of silicon, which undergoes deformation when subjected to pressure changes. As the pressure exerted on the diaphragm varies, its resistance also alters accordingly.
The mechanism operates based on the piezoresistive effect, where the electrical resistance of the silicon diaphragm changes proportionally with the applied mechanical stress or pressure. When pressure is applied, the silicon diaphragm deforms, causing strain on the material. This strain, in turn, alters the resistance of the silicon, leading to a change in the electrical signal produced by the sensor.
Product Features of pressure transmitter sensor :
1. Wide measuring range, stainless steel structure,
2. Diverse pressure interface forms
3. IP65 protection rating stainless steel structure
4. High precision, all stainless steel structure
Applications of pressure transmitter sensor :
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
2. Applied in the marine and aviation industries
3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology
4. Utilized in hydraulic and pneumatic control systems
| Performance Parameters: | |
|---|---|
| Measurement Range | 0kPa ~ 10kPa…5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.05kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Selection Examples: |
| Ordering tips: |
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring is -20ºC to 250ºC. When the product's operating temperature is below -20ºC, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
7. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
| Order Guide: | |||||||||
| BP15X | Analog Pressure Transmitter | ||||||||
| Code | Outline Construction | ||||||||
| 5 | Packard plug | 6 | Sealed Direct Output Cable 1.5 meters | ||||||
| 7 | Mini Hirschmann Connector | 8 | Large Hirschmann Connector | ||||||
| Measurement Range | 0kPa ~ 10kPa…5MPa | ||||||||
| (0-X)Kpa or MPa |
X: Indicates the Actual Measuring Range | ||||||||
| Code | Power Supply | ||||||||
| D1 | 24VDC | ||||||||
| D2 | 5VDC | ||||||||
| D3 | Other | ||||||||
| Code | Output Signal | ||||||||
| S1 | 4~20mADC | S5 | 0~20mADC | ||||||
| S2 | 1~5VDC | S6 | 0~10VDC | ||||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | ||||||
| S4 | 0~10mADC | ||||||||

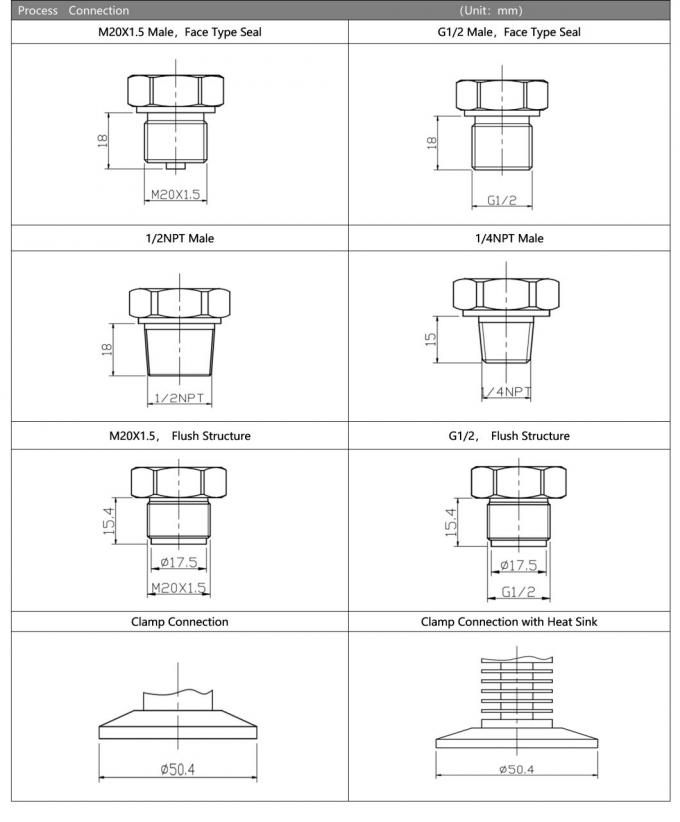

| Code | Pressure Connection | ||||||||
| J1 | M20×1.5 | ||||||||
| J2 | G1/2 | ||||||||
| J3 | G1/4 | ||||||||
| J4 | 7/16-20UNF | ||||||||
| J5 | Others(¢50.4 Flange) | ||||||||
| Code | Electrical Connection | ||||||||
| B1 | Hirschmann | ||||||||
| B2 | PG7 | ||||||||
| B3 | Cable Sealed Outlet 1.5 meters | ||||||||
| B4 | Other | ||||||||
| Code | Pressure Type | ||||||||
| G | Gauge Pressure | ||||||||
| A | Absolute Pressure | ||||||||
| S | Sealed Reference Pressure | ||||||||
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
