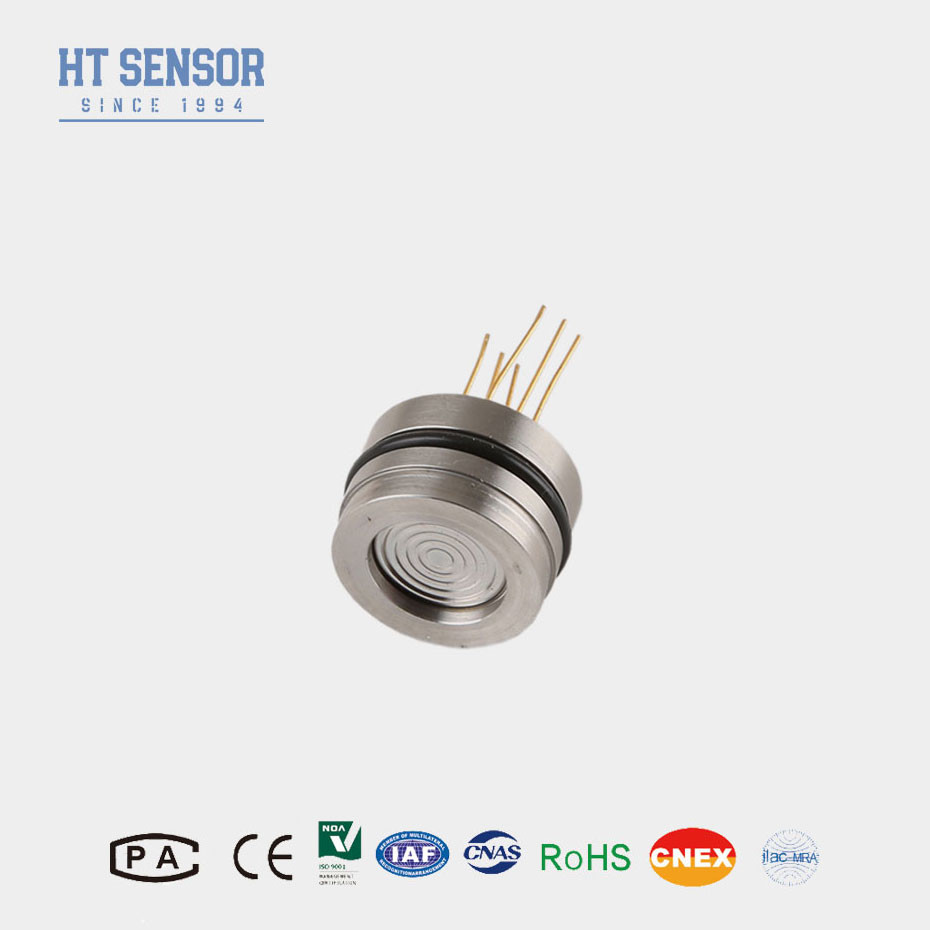

Oil Filled Diffused Sillcon Pressure Transmitter Sensor For Water And Oil Test
HT19F Silicon Piezoresistive Pressure Sensor
Introduction of Pressure Transmitter Sensor:
1.Utilizing advanced technology and 316L stainless steel housing, along with materials such as titanium and Hastelloy for the diaphragm
2.Employing thick-film circuits for temperature compensation and zero-point correction
3.outstanding reliability, repeatability, and stability
Applications of Pressure Transmitter Sensor:
1.Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility
2.Applied in various industrial process sites, including petroleum, chemical, metallurgy, power, and hydrology
3.Used in marine and aviation industries
4.Suitable for hydraulic and pneumatic control systems
5.Utilized in process control applications
Electrical performance of Pressure Transmitter Sensor:
1.Power Supply: ≤2mA DC (Typical 1.5mA DC)
2.Input Impedance:3KΩ~6KΩ
3.Output Impedance:2.5KΩ~6KΩ

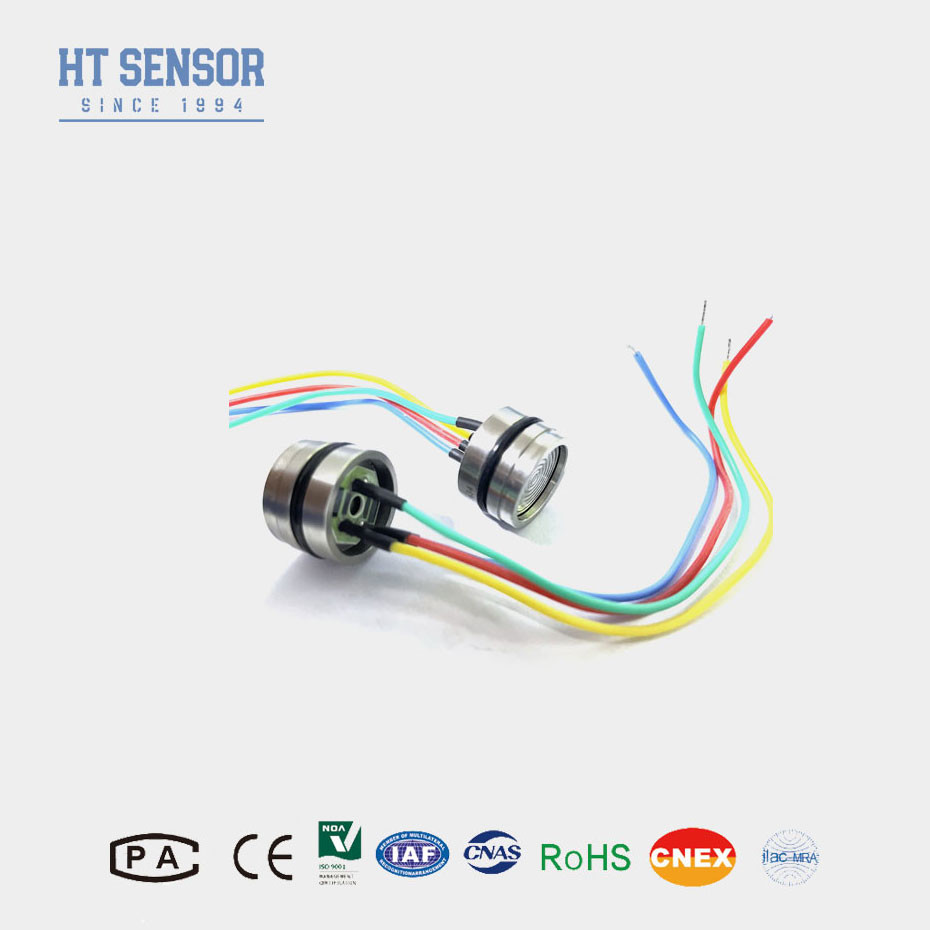

4.Electrical Connection:Gold-plated Kovar pins or 100mm high-temperature wires.
| Performance Parameters: | |||||
| Range | Gauge(G) | 10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa | |||
| Absolute(A) | 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA | ||||
| Sealed(S) | 3500KPaS,7MPaS,10MPaS,20MPaS.40MPaS.60MPaS.100MPaS | ||||
| Typ | Max | Unit | |||
| Nonlinearity | ±0.15 | ±0.3 | %F.S | ||
| Repeatability | 0.05 | 0.1 | %F.S | ||
| Hysteresis | 0.05 | 0.1 | %F.S | ||
| Zero Output | 0±1 | 0±2 | mV | ||
| Span Output | ≤20KPa | 50±10 | 50±30 | mV | |
| ≥35kPa | 100±10 | 100±30 | mV | ||
| Temperature Error-Zero | ≤20KPa | ±1 | ±2 | %F.S | |
| ≥35kPa | ±0.5 | ±1 | %F.S | ||
| Temperature Error-Span | ≤20KPa | ±1 | ±2 | %F.S | |
| ≥35kPa | ±0.5 | ±1 | %F.S | ||
| Compensated Temp. | ≤20KPa | 0~50 | ºC | ||
| ≥35kPa | 0~70 | ºC | |||
| Operating Temperature | -20~80 | ºC | |||
| Storage Temperature | -40~125 | ºC | |||
| Allowable Overload | Take the smaller value between 3 times the full scale or 120MPa | ||||
| Burst Pressure | 5X the full scale | ||||
| Long-term Stability | 0.2 % | F.S/Year | |||
| Diaphragm Material | 316L | ||||
| Insulation Resistance | ≥200MΩ 100VDC | ||||
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | ||||
| Shock | 100g,11ms | ||||
| Response Time | ≤1ms | ||||
| O-ring Seal | Nitrile ring or Fluoro ring | ||||
| Filling Medium | Silicon Oil | ||||
| Weight | ~ 28g | ||||
| The parameters are tested under the following conditions: 1.5mA @ 25°C | |||||

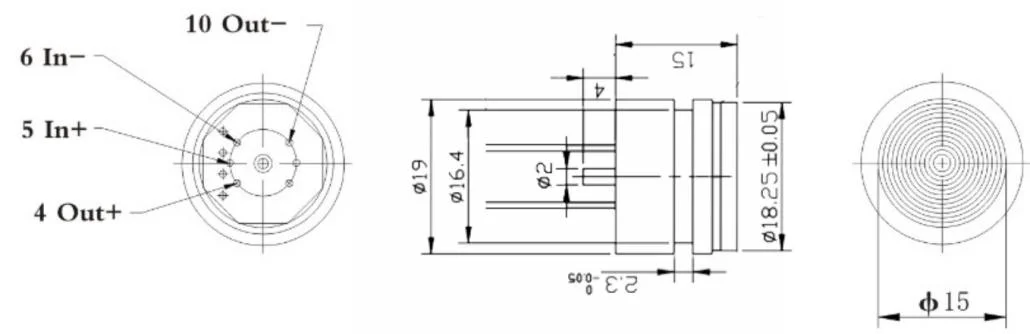

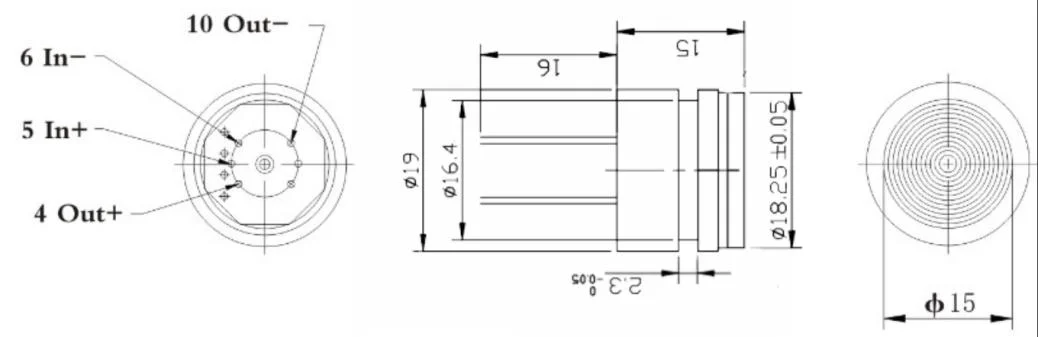

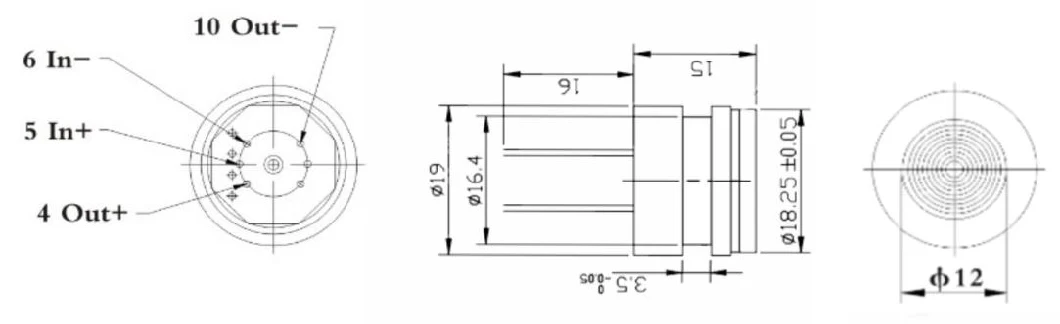

| Outline Construction | |
| <3.5MPaS |  |
| ≥3.5MPaS <40MPaS |
|
| ≥40MPaS | |

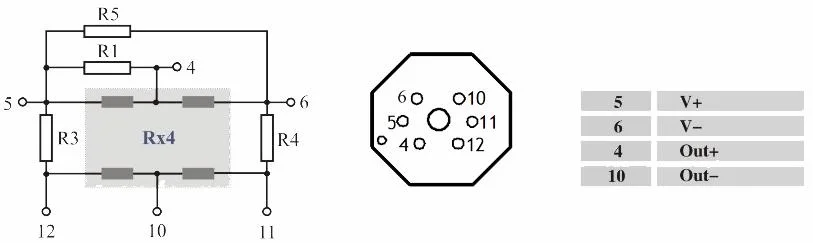

| Electrical connection and compensation |
|
|

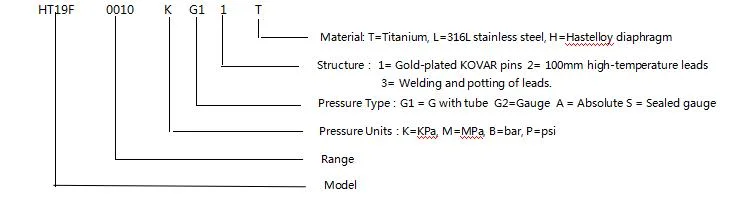

| Selection Examples |
| Ordering tips |
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.
