| Model NO.: | BPK-IV | Application: | Industrial |
|---|---|---|---|
| Structure: | Display Gauge | Transport Package: | Standard Export Packing With Carton |
| Origin: | Baoji, China | Warranty: | 2years |
| Measuring Range: | Medium-pressure Industrument | Switch: | 2 Switch |
| High Light: | Digital Industrial Pressure Gauge,Digital Pressure Gauges with Display,Industrial Digital Pressure Gauges |
||
Input Digital Pressure Gauges Industrial Pressure Gauge Measurement And Display Equipment

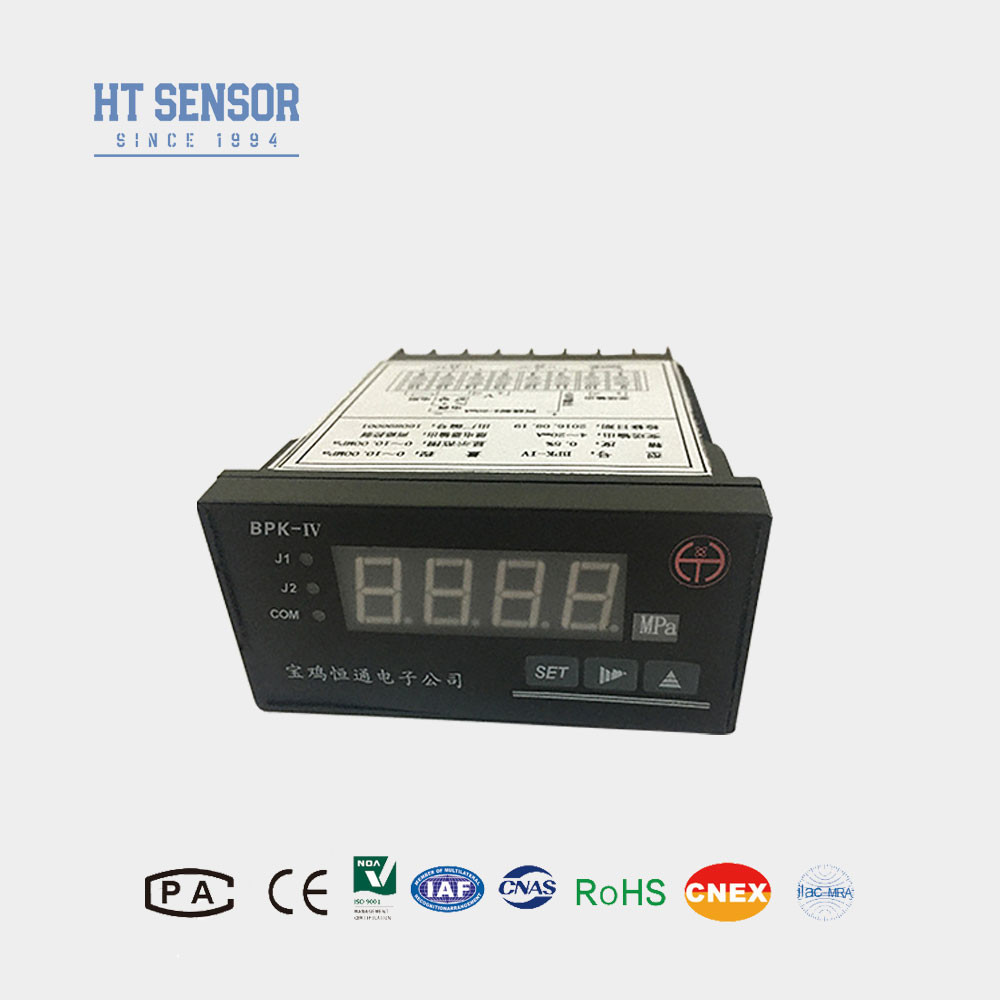

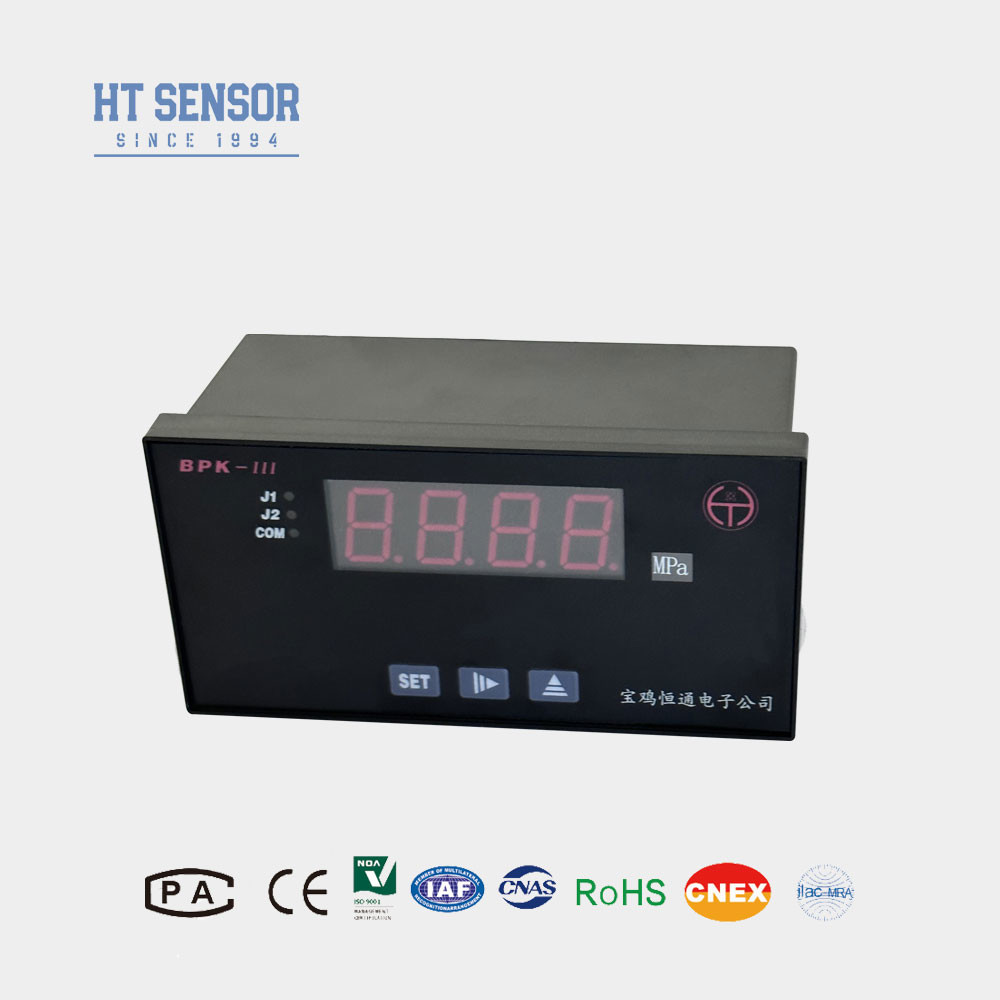

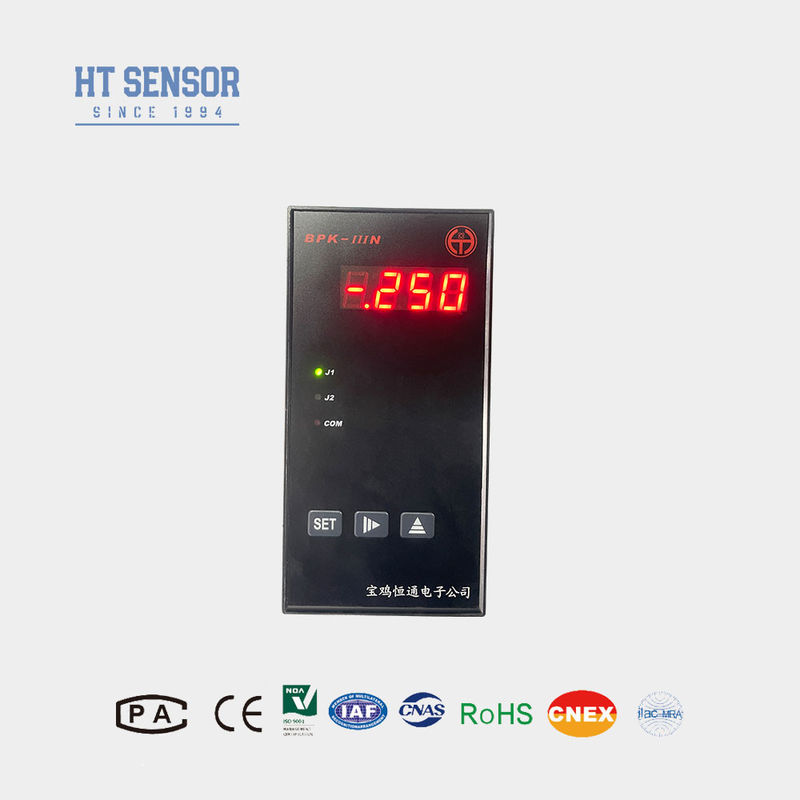

BPK-IV Pressure Gauge/Switch
Introduction:
Specification
1. Supply voltage:220VAC /24VDC(±10%);
2. Ambient temperature:0~50ºC; relative humidity:≤85%Non corrosive gas;
3. Input signal , display scope and relevant parameters:(see Table1)
Table 1
| Input signal code | Input signal | Display scope | Resolution | Precision | Input impedance |
| 00 | T TC | 0~400ºC | 1ºC | 0.2% | 100K |
| 01 | R TC | 0~1600ºC | 1ºC | 0.2% | 100K |
| 02 | J TC | 0~1200ºC | 1ºC | 0.2% | 100K |
| 03 | WRe3-WRe25 TC | 0~2300ºC | 1ºC | 0.2% | 100K |
| 04 | B TC | 350~1800ºC | 1ºC | 0.2% | 100K |
| 05 | S TC | 0~1600ºC | 1ºC | 0.2% | 100K |
| 06 | K TC | 0~1300ºC | 1ºC | 0.2% | 100K |
| 07 | E TC | 0~900ºC | 1ºC | 0.2% | 100K |
| 08 | Pt100 RTD | -200.~600.0ºC | 0.1ºC | 0.2% | (0.2mA) |
| 09 | Cu50 RTD | -50.0~150.0ºC | 0.1ºC | 0.2% | (0.2mA) |
| 10 | 0~375Ω remote pressure | Low and high limit of scope can be set from -1999 to 9999 | Display scope is continuous from -1999 to 9999 using 16bit A/D sample | 0.2% | (0.2mA) |
| 11 | 0~75mVcurrent divider | 0.1% | 100K | ||
| 12 | 0~30mV | 0.1% | 100K | ||
| 13 | 0~5Vstandard signal | 0.1% | 100K | ||
| 14 | 1~5Vstandard signal | 0.1% | 100K | ||
| 15 | 0~10Vstandard signal | 0.1% | 100K | ||
| 16 | 0~10 mA standard signal | 0.1% | 20Ω | ||
| 17 | 0~20 mA standard signal | 0.1% | 20Ω | ||
| 18 | 4~20 mA standard signal | 0.1% | 20Ω |
| Transmitting output signal | Current output | Transmitting scope | Isolated voltage | Max. resolution |
Precision | Load capacity | Open- circuit voltage |
| 00 | 4~20 mA | Transmit data within scope to standard current signal | 1500V | 12bits | 0.3% | ≤500Ω | 15V |
| 01 | 0~20mA |
This product is only manufactured into 4 ~ 20mA or 0 ~ 20mA output current signals. If the user needs the voltage output signal transmission output, it can be customized from the manufacturer or self-connected 250 or 500 ohm resistance for 1 ~ 5V or 0 ~ 5V, 0 ~ 10V voltage and resistance (note: the accuracy of the resistance directly affects the accuracy of the transmission output voltage).
5.Relay output contact capacity:(see Table 3)
Table3
| 250V/120V | 120V/48V | <48V | Relay life | ||||
| AC | DC | AC | DC | AC | DC | >100000 times |
|
| Max. current (Resistive load) | 3A | 2A | 4A | 3A | 5A | 4A | |
| Max .current (Inductive load) | 0.3A | 0.2A | 0.4A | 0.3A | 0.5A | 0.4A | |
| Model | Outline dimension | Panel output dimension(mm) | Note |
| BPK-IIIS1 | 160×80×80(Horizontal ) | 152+0.8×76+0.7 | |
| BPK-IV | 96×48×112(horizontal) | 92+0.7×44+0.5 | |
| BPK-IIIN1 | 80×160×80(vertical) | 76+0.7×152+0.8 | |
| BPK-IIIN2 | 48×96×112(vertical) | 44+0.5×92+0.7 | |
| BPK-IIIF1 | 96×96×112(square) | 92+0.7×92+0.7 | |
| BPK-IIIF2 | 48×48×108(square) | 44+0.5×44+0.5 | With J2alarm lamp without J2 relay |
| BPK-IIIF3 | 72×72×112 | 67+0.7×67+0.7 |
