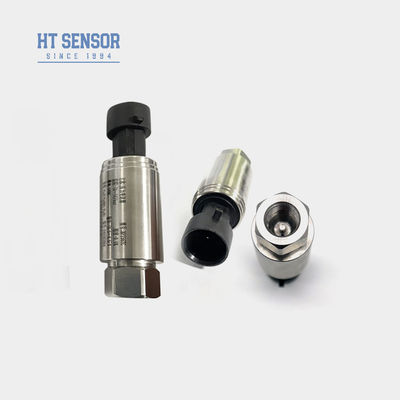

BP155 Pressure SensorTransmitter
Introduction of Industrial pressure sensor transmitter :
BP155 small size industrial pressure sensor transmitter is a cost-effective pressure transmitter launched by our company, using a flat film structure sensor core and specially customized amplifier circuit, linear correction and temperature compensation, can meet the pressure measurement and control needs under a variety of environmental conditions. Mass production by automatic production line, all parameters are strictly controlled. The whole product has gone through the strict testing and aging screening of components, semi-finished products and finished products, and the product has good consistency, anti-interference, anti-overload ability and high stability.
BP155 pressure transmitter has reverse polarity protection, can work stably and reliably for a long time, and is widely used in air conditioning, refrigeration, compressor, automatic production line, pneumatic hydraulic control and other fields.
Product Features of Industrial pressure sensor transmitter:
1. Wide measuring range, stainless steel structure, diverse pressure interface forms.
2. Compact and lightweight design.
Applications of Industrial pressure sensor transmitter:
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel.
2. Applied in the marine and aviation industries.
3. Utilized in hydraulic and pneumatic control systems.
| Performance Parameters of Industrial pressure sensor transmitter: |
| Measurement Range |
0kPa ~ 10kPa…20MPa |
| Pressure Type |
Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload |
≤ 1.5 times of the rated range |
| Accuracy @ 25ºC |
±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis |
0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability |
±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response |
2.4Khz |
| Compensation Temperature |
0-70ºC(≤10mpa,customizable) |
| Operating Temperature |
-20ºC~80ºC |
| Storage Temperature |
-40ºC~120ºC |
| Vibration |
10g,55Hz ~ 2kHz |
| Housing Material |
304,316L |
| Diaphragm Material |
316L |
| Insulation Resistance |
100MΩ 100VDC |
| Protection Rating |
IP65 |
| Weight |
~0.25kg |
| Output Signal |
Supply Voltage |
Output Type |
| 4~20mA |
12~30VDC |
2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0/1~10V |
| 0.5~4.5V |
5VDC |
1. When selecting a product, ensure that the media is compatible with the process fluid in contact with the product under test.
2. When placing an order, please note that explosion-proof products do not come with digital displays.
3. When ordering a transmitter with an LCD or LED display head, ensure that the power supply of the transmitter is at least 20VDC.
4. To ensure reliable operation of the product, it is recommended to install lightning protection devices on site and ensure proper grounding of the product with the power supply.
5. The rated operating temperature range of fluorine rubber O-rings is -20℃~ 250℃. If the operating temperature of the product is below -20℃, EPDM O-rings should be selected instead.
6. By default, cables are provided without plugs and cable lines, with a length of 1.5 meters and three material options available for selection. Unless specified otherwise, polyethylene cable material will be used. If a different cable material is required, please specify it in the order form.
7.In case of special requirements such as strong vibration, sudden shock or intense electromagnetic or RF interference,please inform us and indicate in your order form.
| Order Guide |
| BP15X |
Analog Pressure Transmitter |
| |
Code |
Outline Construction |
| 5 |
Packard plug |
6 |
Sealed Direct Output Cable 1.5 meters |
| 7 |
Mini Hirschmann Connector |
8 |
Large Hirschmann Connector |
| |
Measurement Range |
0kPa ~ 10kPa…5MPa |
(0-X)Kpa
or MPa |
X: Indicates the Actual Measuring Range |
| |
Code |
Power Supply |
| D1 |
24VDC |
| D2 |
5VDC |
| D3 |
Other |
| |
Code |
Output Signal |
|
| S1 |
4~20mADC |
S5 |
0~20mADC |
| S2 |
1~5VDC |
S6 |
0~10VDC |
| S3 |
0~5VDC |
S7 |
0.5~4.5VDC |
| S4 |
0~10mADC |
|
|
| |
Code |
Pressure Connection |
| J1 |
M20×1.5 |
| J2 |
G1/2 |
| J3 |
G1/4 |
| J4 |
7/16-20UNF |
| J5 |
Others(¢50.4 Flange) |
| |
Code |
Electrical Connection |
| B1 |
Hirschmann |
| B2 |
PG7 |
| B3 |
Cable Sealed Outlet 1.5 meters |
| B4 |
Other |
| |
Code |
Pressure Type |
| G |
Gauge Pressure |
| A |
Absolute Pressure |
| S |
Sealed Reference Pressure |
