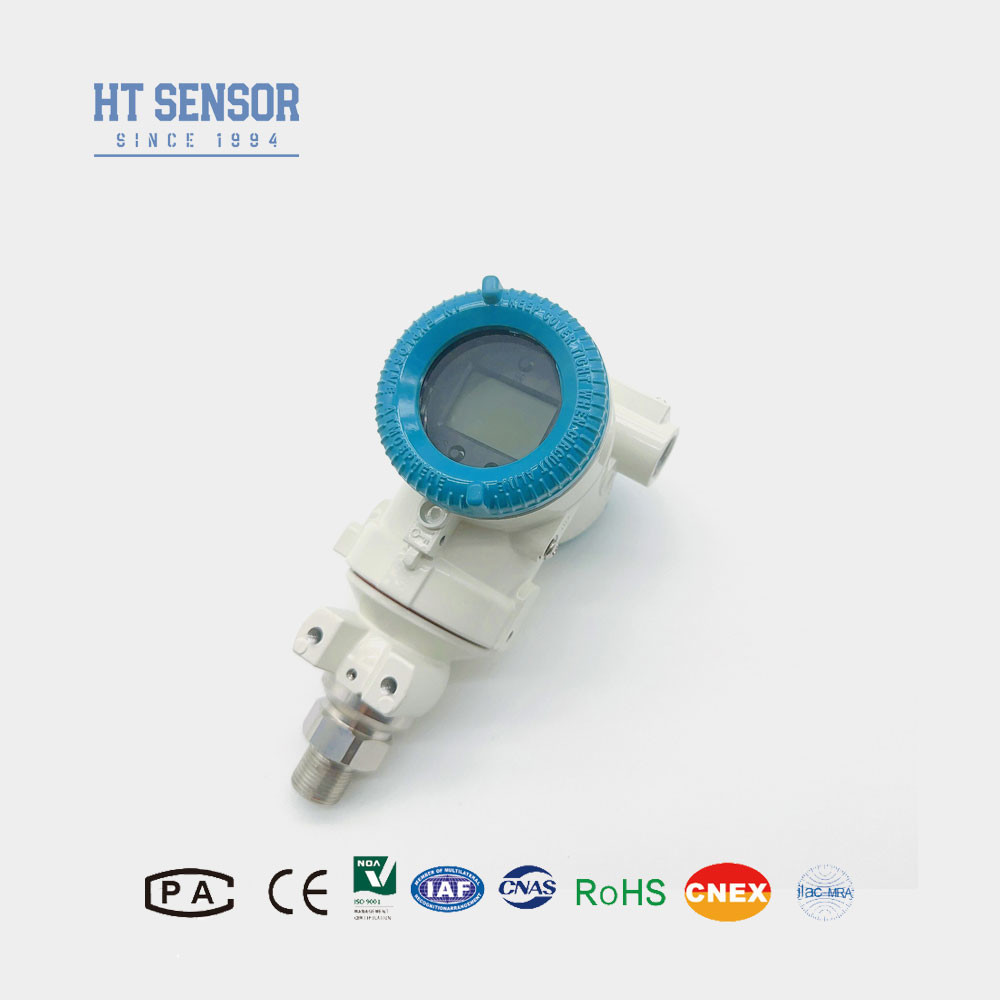

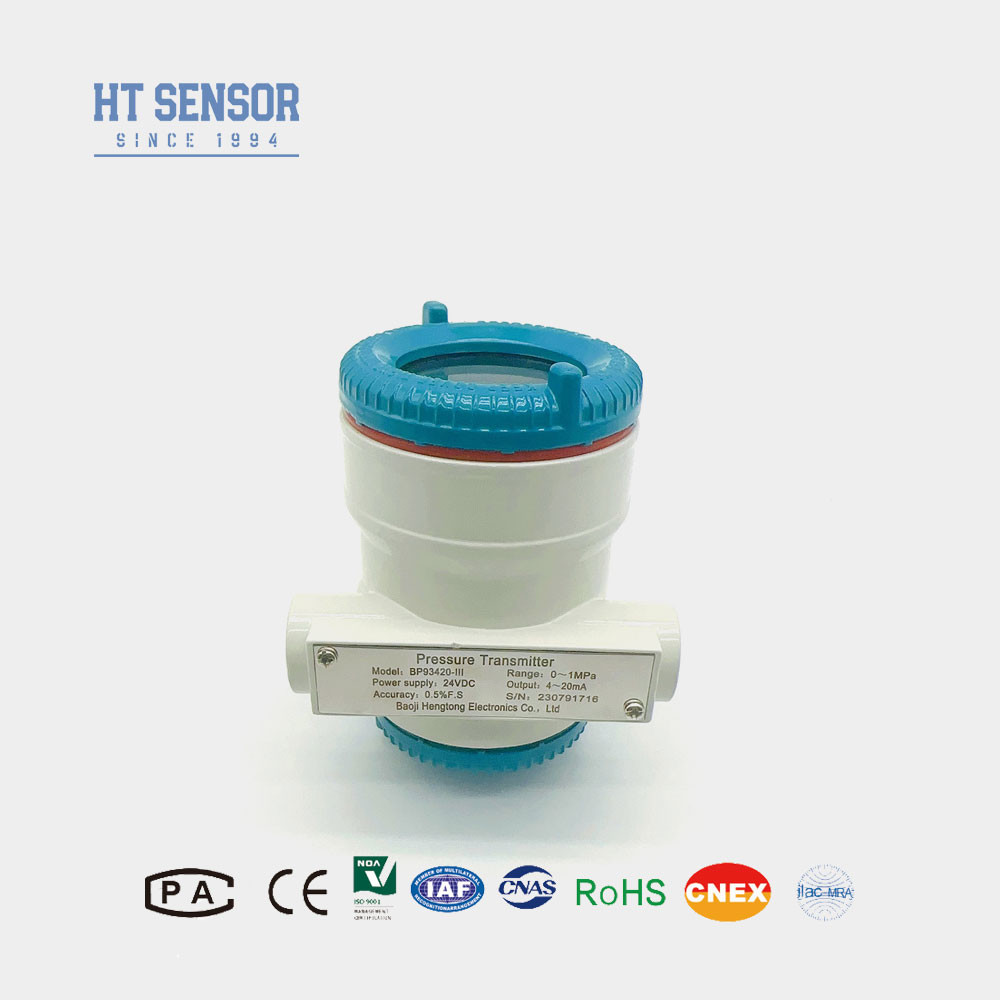

BP93420-IIIA Industrial Pressure Sensor
Introduction of Industrial Pressure Sensor transducer:
The BP93420-IIIA Industrial pressure sensor transmitter comprises a pressure sensor module and an intelligent circuit board. The smart sensor component includes a silicon pressure sensor, measuring diaphragm detection circuit, temperature sensor, and temperature compensation circuit. The intelligent circuit board consists of a microcomputer controller and peripheral circuits to accomplish the conversion of pressure signals into electrical signals. It is utilized in industrial settings for measuring the pressure of liquids, gases, or vapors.
Product Features of Industrial Pressure Sensor transducer:
1. Wide measuring range, diverse pressure interface forms, and IP65 protection level.
2. Various output signal forms, adjustable and displayable.
3. Adjustable zero point and full scale.
4. Core utilizes high-precision and high-performance diffused silicon piezoresistive pressure sensors.
Applications of Industrial Pressure Sensor transducer:
1. Suitable for measuring the pressure of non-corrosive gases and liquids in 316L stainless steel.
2. Petroleum, chemical, metallurgy, power, and hydrology.
3. Pressure measurement and control in harsh outdoor industrial environments.
4. Used in hydraulic and pneumatic control systems.
| Performance Parameters of Industrial Pressure Sensor transducer | |
| Measurement Range | -100kPa…0kPa ~10kPa…60MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ≤±0.1%FS |
| Hysteresis | ≤±0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | Aluminum Alloy |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Protection Rating | IP65 |
| Weight | ~0.8kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Ordering tips |
1. When selecting a product, please ensure that the medium under test is compatible with the contact part of the product.
2. When placing an order, please note that explosion-proof products do not include a digital display.
3. When ordering a transmitter with an LCD or LED display head, the power supply of the transmitter should not be lower than 20VDC.
4. In order to ensure the reliable operation of the product, it is recommended that users install lightning protection devices on the site and ensure that the product and the power supply are reliably grounded.
5. Fluorine rubber o-rings rated operating temperature range for - 20 ℃ ~ 250 ℃. When operating temperatures fall below -20 ° C, EPDM O-type sealing rings should be selected.
6. The cable does not come with default cable attached. If you require cable, there are three materials to choose from. If no specific instructions are given, polyethylene cable materials will be used by default.If different cable materials are required, please indicate in your order form.
7.In case of special requirements such as strong vibration, instantaneous impact,strong electromagnetic or radio frequency interference ,please inform us and indicate in your order.
| Order Guide | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
| IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
| IN | Air Conditioning Dedicated Pressure Transmitter | |||||||
| IC | High-temperature Pressure Transmitter | |||||||
| IQ/IQT | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
| Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 7/16-20UNF | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
FAQ:
1. Q: What are the characteristics of your pressure sensor transmitters?
A: High precision, durable, excellent performance. Customization is available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can customize products to meet specific needs. We offer OEM and ODM services.
3. What is your production capacity?
A: Our production facility can produce up to 30,000 pressure sensor transmitters per month, so we are well equipped to meet the needs of large-scale orders. However, it is recommended that you contact our sales team in advance to ensure a smooth production and delivery schedule.
4. Q: What is the general lead time?
A: Standard model 5~8 working days. Custom products may vary.
5.Q:Shipment&packing
A:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
