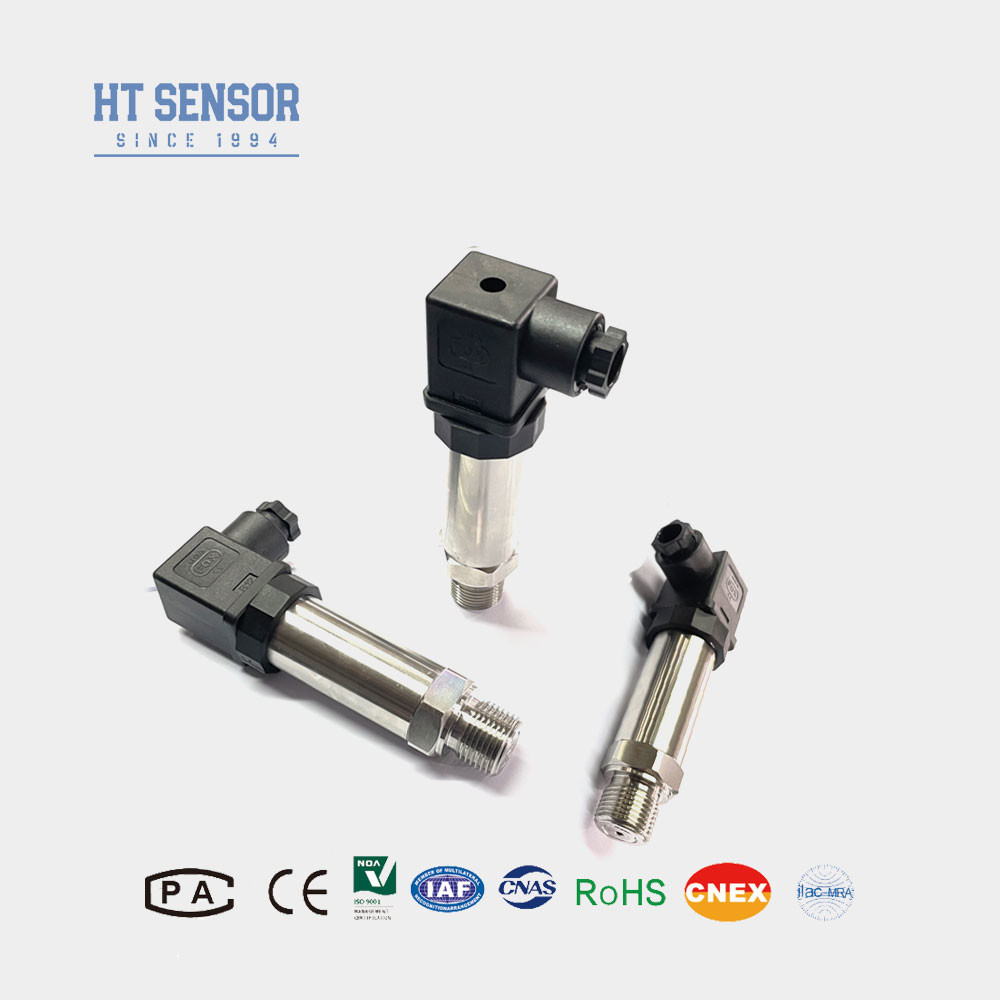

BP93420IB Pressure Transmitter
Introduction of industrial pressure sensor transducer:
The welded BP93420IB industrial pressure sensor is designed for measuring non-corrosive gases and liquids. It utilizes the HT series diffused silicon isolated oil-filled core as the signal measurement element. The stainless steel sensor is sealed with a gas-tight weld, and the signal processing circuit PCB is housed within the stainless steel casing to convert the sensor signal into a standard output signal. Our products undergo rigorous component testing and aging screening, ensuring reliable performance in various industrial applications.
Product Features of industrial pressure sensor transducer:
1. Wide measuring range, stainless steel structure, diverse pressure interface forms.
2. Compact and lightweight design.
3. High precision, all stainless steel structure.
Applications of industrial pressure sensor transducer:
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel.
2. Applied in the marine and aviation industries.
3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology.
4. Utilized in hydraulic and pneumatic control systems.
| Performance Parameters of industrial pressure sensor transducer |
| Measurement Range |
-100kPa…0kPa ~ 10kPa…20MPa |
| Pressure Type |
Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload |
≤ 1.5 times of the rated range |
| Accuracy @ 25ºC |
±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability |
0.1%FS |
| Hysteresis |
0.1%FS |
| Long-Term Stability |
±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift |
±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift |
±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature |
0-70ºC(≤10mpa,customizable) |
| Operating Temperature |
-20ºC~80ºC |
| Storage Temperature |
-40ºC~120ºC |
| Vibration |
10g,55Hz ~ 2kHz |
| Housing Material |
304,316L |
| Diaphragm Material |
316L |
| Insulation Resistance |
100MΩ 100VDC |
| Explosion-proof Rating |
Ex ia IIC T6 Ga |
| Protection Rating |
IP65 |
| Weight |
~0.25kg |
| Output Signal |
Supply Voltage |
Output Type |
| 4~20mA |
12~30VDC |
2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0/1~10V |
| 0.5~4.5V |
5VDC |
- When selecting the product, ensure the medium to be measured is compatible with the contact parts.
- Note that explosion-proof type products do not include digital display heads when placing an order.
- For transmitters with an LCD or LED display, the power supply should not be lower than 20VDC.
- To ensure reliable operation, install lightning protection devices on-site and ensure proper grounding of the product and power supply.
- The Fluoro rubber O-ring has a rated working temperature range of -20ºC to 250ºC. If the operating temperature is below -20ºC, an EPDM O-ring seal is necessary.
- The default with] no cable, available in three materials. If not specified, polyethylene cable will be provided. Specify the required cable material in the order if different.
- For special requirements like strong vibration, impact force, electromagnetic or radio frequency interference, inform our company and specify them in the order.
| Order Guide |
| BP93420XX |
Pressure Transmitter |
| |
Code |
Outline Construction |
| IB |
General Pressure Transmitter |
IX |
Display Pressure Transmitter |
| IE |
Shock-resistant Aviation Pressure Transmitter |
IIC/III |
Industrial General/ Display Pressure Transmitter |
| IF |
Moisture-proof Pressure Transmitter |
IIE/IIIE |
General/Display Pressure Transmitter |
| IN |
Air Conditioning Dedicated Pressure Transmitter |
|
|
| IC |
High-temperature Pressure Transmitter |
|
|
| IQ1/IQ2 |
Large Diaphragm /High-temperature Pressure Transmitter |
|
|
| |
Measurement Range |
-0.1. . .0~0.01...100MPa |
| (0-X)Kpa or MPa |
X: Indicates the Actual Measuring Range |
| |
Code |
Power Supply |
| D1 |
24VDC |
| D2 |
5VDC |
| D3 |
Other |
| |
Code |
Output Signal |
| S1 |
4~20mADC |
S5 |
0~20mADC |
| S2 |
1~5VDC |
S6 |
0~10VDC |
| S3 |
0~5VDC |
S7 |
0.5~4.5VDC |
| S4 |
0~10mADC |
|
|
| |
Code |
Pressure Connection |
| J1 |
M20×1.5 |
| J2 |
G1/2 |
| J3 |
G1/4 |
| J4 |
7/16-20UNF |
| J5 |
Other |
| |
Code |
Electrical Connection |
| B1 |
Hirschmann |
| B2 |
PG7 Plug |
| B3 |
Sealed Cable Output |
| B4 |
2088 Industrial Casing |
| B5 |
2088 Industrial Casing with Display |
| B6 |
Other |
| |
Code |
Pressure Type |
| G |
Gauge Pressure |
| A |
Absolute Pressure |
| S |
Sealed Reference Pressure |
