Wide Measuring Range Industrial Pressure Sensor with Diverse Pressure Interface Forms

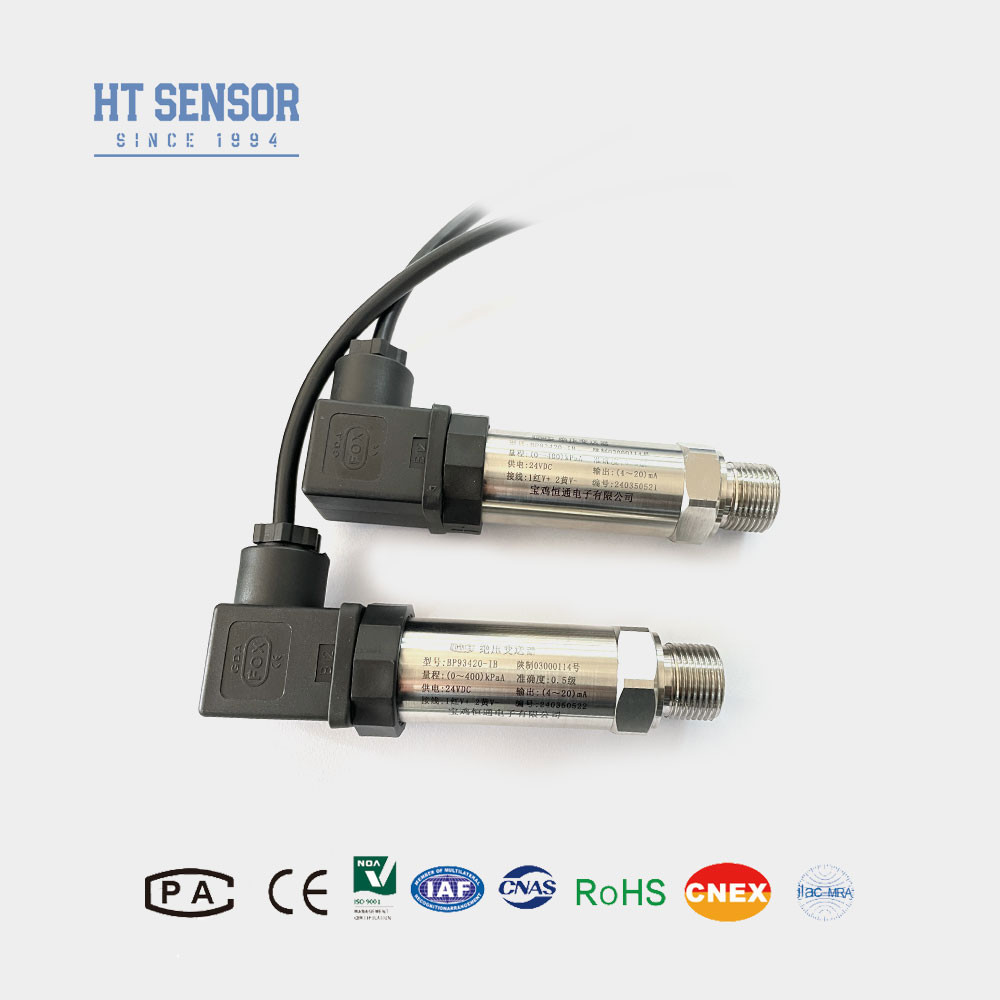

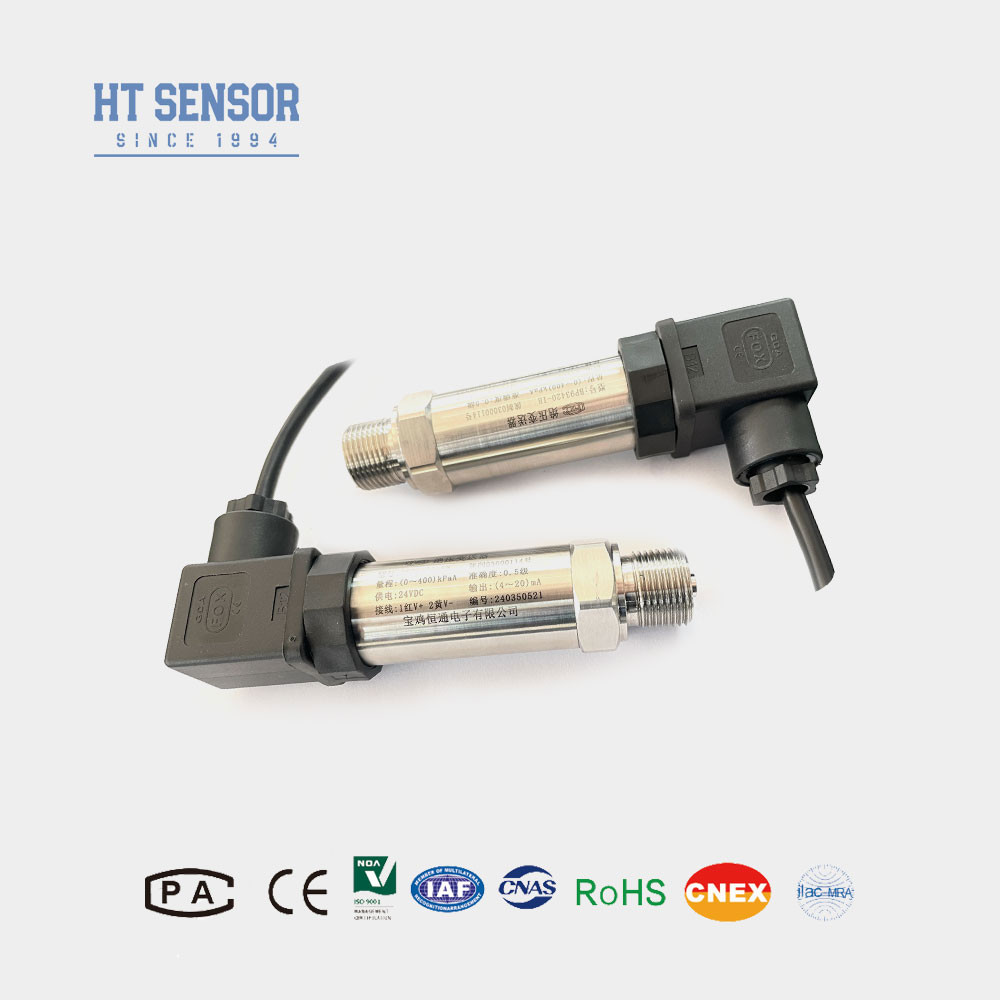

BP93420IB Pressure Transmitter
Introduction of industrial pressure sensor transducer:
The BP93420IB industrial pressure sensor features a welded design, making it suitable for measuring non-corrosive gases and liquids. Its core component is the HT series diffused silicon isolated oil-filled element that serves as the signal measurement device. The sensor is encased in stainless steel and sealed with a gas-tight weld, containing an integrated signal processing circuit PCB that converts the sensor's output into a standard signal. Our products undergo extensive component testing and aging procedures to ensure reliable operation in a wide range of industrial environments.
Product Features of industrial pressure sensor transducer:
1. Wide measuring range, stainless steel structure, diverse pressure interface forms.
2. Compact and lightweight design.
3. High precision, all stainless steel structure.
Applications of industrial pressure sensor transducer:
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel.
2. Applied in the marine and aviation industries.
3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology.
4. Utilized in hydraulic and pneumatic control systems.
| Performance Parameters of industrial pressure sensor transducer | |
|---|---|
| Measurement Range | -100kPa…0kPa ~ 10kPa…20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| Weight | ~0.25kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Ordering tips |
- 1.When selecting the product, customers must verify the compatibility between the measured medium and the product's contact parts.
- 2.Please note that explosion-proof type products do not include digital display heads when placing an order.
- 3.For transmitters ordered with an LCD or LED display head, the power supply should be no less than 20VDC.
- 4.To guarantee the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure proper grounding of both the product and the power supply.
- 5.The Fluoro rubber O-ring has a rated working temperature range of -20ºC to 250ºC. If the product's operating temperature is below -20ºC, an EPDM O-ring seal must be chosen.
- 6.The default cable length is 0m, available in three material options. If no cable material is specified, polyethylene will be provided. Please indicate the required cable material in the order if different from the default.
- 7.For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
| Order Guide | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
| IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
| IN | Air Conditioning Dedicated Pressure Transmitter | |||||||
| IC | High-temperature Pressure Transmitter | |||||||
| IQ1/IQ2 | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
| Measurement Range | -0.1. . .0~0.01...100MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 7/16-20UNF | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
