BP9325-I2C Industrial Pressure Sensor Transmitter With Silicon Piezoresistive Isolation Membrane

BP9325-I2C Industrial Pressure Sensor Transmitter with Silicon Piezoresistive Isolation Membrane

BP9325-I2C Silicon Piezoresistive Pressure Sensor

Product Introduction of industrial pressure sensor

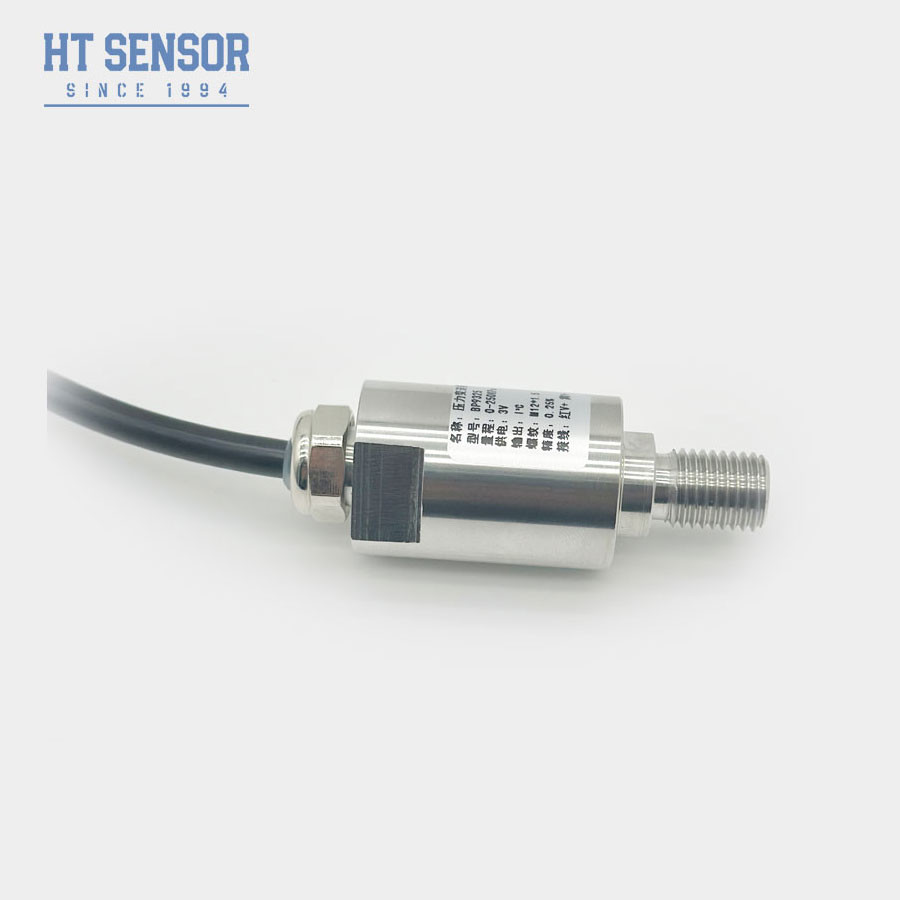

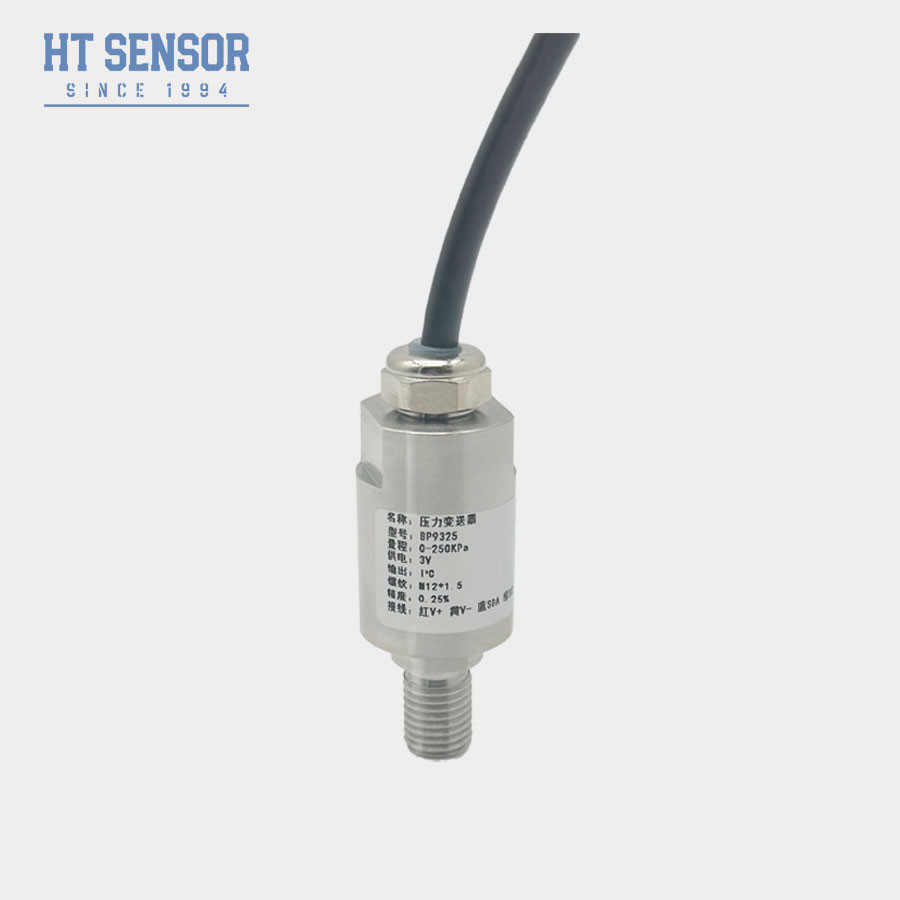

The BP9325-I2C pressure sensor adopts our self-developed HT series silicon piezoresistive isolation membrane oil-filled core as the signal measurement element. The signal processing circuit is located inside the stainless steel housing, converting the sensor signal to a standard I2C output signal. The product has undergone rigorous testing and aging screening for components, semi-finished products, and finished products, ensuring stable and reliable performance.

Product Features of industrial pressure sensor

• Economical and compact
• Dual 24-bit ADCs for pressure and temperature acquisition
• Standard I2C communication protocol
• All stainless steel 316L material

Applications and Industry of industrial pressure sensor

• Pressure measurement for non-corrosive media to 316L stainless steel.
• Industrial process sites such as petroleum, chemical, metallurgy, etc.
• Shipbuilding and aerospace industries.
• Hydraulic and pneumatic control systems.
• Internet of Things (IoT).

Communication Protocol

BP-I2C uses the I2C bus protocol for communication with external devices. All data communication starts from MSB, with the default 7-bit I2C device address being 0x78. BP-IIC acts as an I2C slave device, and the master device can communicate with it using the following command formats::

When BP-I2C is set to digital output (using I2C 0xAC command), B[23:0] will be output in three bytes respectively. Users can easily convert to percentage using the following formula::

When using the 0xAC I2C command to read out the calibrated 5-byte data, the temperature information is provided by the last two bytes of 16-bit data. Users can easily convert the T value to actual temperature using the following formula:

Note: The bridge default is 10%~90%, the sensor bridge zero point corresponds to 10%, the full point corresponds to 90%. The sensor default does not output temperature values. Temperature output requires customization.

1.Ensure the core size matches the transmitter housing during assembly to achieve the required airtightness.

2.Assemble vertically and press evenly to prevent jamming or damaging the compensation board.

3.The measured medium must be compatible with the core diaphragm housing (316L) material. Otherwise, specify special requirements when ordering.

4.Do not press the sensor diaphragm with sharp objects to avoid deformation or perforation causing core damage.

5.Keep the vent tube of the gauge core open to the atmosphere.

6.If there are changes to the pin leads, refer to the label attached to the core.

FAQ:

1. Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

2. Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.

3. Q: What is your production capacity?

A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.

4. Q: What's the typical delivery period?

A: 5~8 working day for standard models. Customized products may vary.

5. Q: How are the products priced? Any discounts?

A: Competitive pricing with discounts for bulk orders or long-term partners.

6. Q: What is the warranty of your products? And after-sales service?

A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
