High-Performance Liquid Level Transmitter For Accurate And Stable Measurement Pressure Sensor Transmitter

BH93420 I Water level sensor

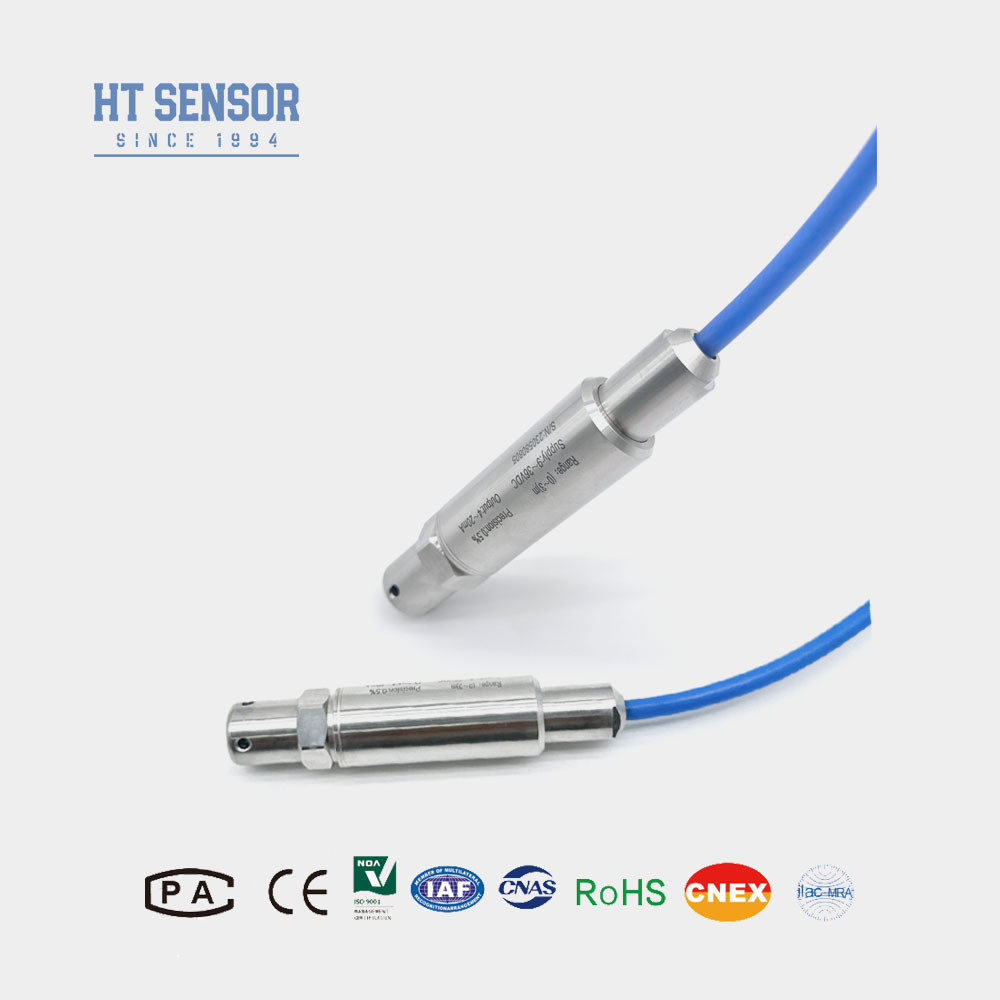

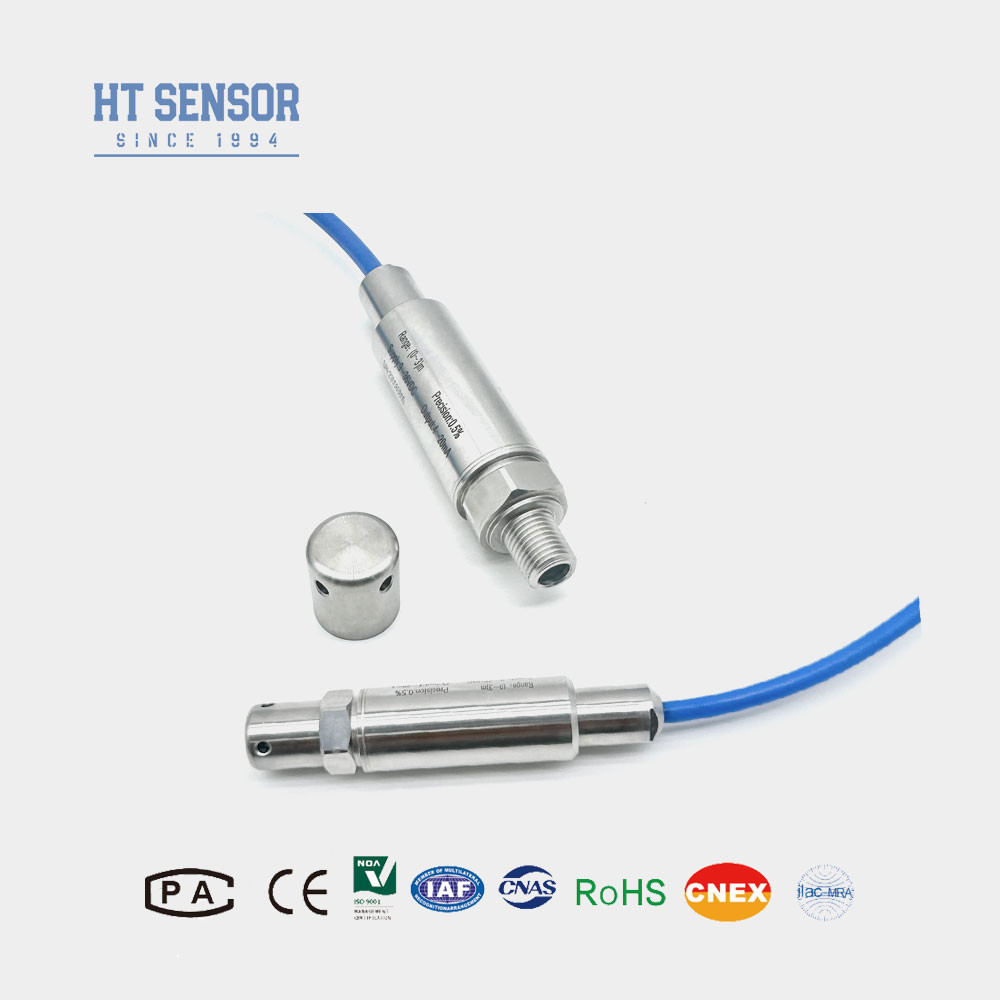

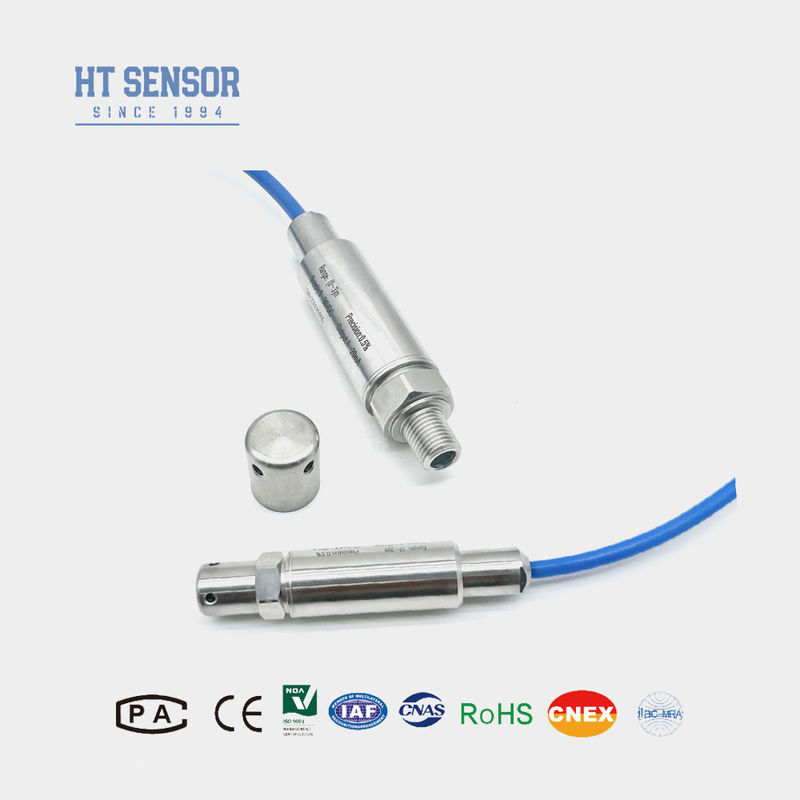

Introduction of water level transmitter sensor:

The BH934520-IT is an exceptional liquid level transmitter engineered to excel in the measurement of liquid or gas height, even in the most challenging conditions. Its all-welded structure and PTFE cable provide unparalleled protection against the rigors of high temperatures, corrosive media, and highly permeable substances. This remarkable resilience positions the BH934520-IT as a reliable choice for the monitoring and control of liquid or gas levels in a wide array of industrial applications, from tanks and containers to pipelines and beyond, making it a versatile solution across diverse industries, including industrial, chemical, pharmaceutical, and environmental protection.
Product  Features of water level transmitter sensor:
1. Full stainless steel housing, suitable for various testing environments.
2. Immersion-type probe measurement, easy installation.
3. Diverse output signal options.
4. Explosion-proof marking: ExiaIICT6.
5. High protection rate: IP68.
6. PE or PU or PTFE cable.
Applications of water level transmitter sensor:

• Material Compatibility with 316L Stainless Steel and Noncorrosive Liquids:
• The BH934520-IT water level transmitter is constructed with 316L stainless steel, making it compatible with a wide range of noncorrosive liquids. This material selection ensures the transmitter can reliably operate in diverse industrial applications without risk of corrosion or degradation.
• Monitoring Water Levels in Various Applications:
• The BH934520-IT is well-suited for monitoring water levels in a variety of applications, including sewage treatment, industrial and municipal water systems, water tanks, wells, rivers, seawater, lakes, and other aquatic environments. Its robust design and versatility make it a dependable choice for these critical water level measurement tasks.
• Measuring Fuel Levels in Diesel and Fuel Tanks:
• In addition to water level applications, the BH934520-IT can also be used to accurately measure fuel levels in diesel and other fuel storage tanks. This expanded functionality allows the transmitter to be deployed across a broader range of industrial and commercial settings where reliable level monitoring is essential.

1. When selecting a product, please ensure that the medium under test is compatible with the contact part of the product.

2. When placing an order, please note that explosion-proof products do not include a digital display.

3. When ordering a transmitter with an LCD or LED display head, the power supply of the transmitter should not be lower than 20VDC.

4. In order to ensure the reliable operation of the product, it is recommended that users install lightning protection devices on the site and ensure that the product and the power supply are reliably grounded.

5. Fluorine rubber o-rings rated operating temperature range for - 20 ℃ ~ 250 ℃. When operating temperatures fall below -20 ° C, EPDM O-type sealing rings should be selected.

6. The cable does not come with default cable attached. If you require cable, there are three materials to choose from. If no specific instructions are given, polyethylene cable materials will be used by default.If different cable materials are required, please indicate in your order form.

7.In case of special requirements such as strong vibration, instantaneous impact,strong electromagnetic or radio frequency interference , please inform us and indicate in your order.

FAQ:

Q1:Are you manufactrade company?

A1:We are manufactrader with more than 29 years of experience.

Q2:Customized Product

A2:We provide OEM and Custom-Design services.

Q3:Quality Quarantee

A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.

Q4:Shipment&packing

A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.

Q5:Contact US

A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
