Explosion-Proof Water Level Transmitter For Hazardous Environments Liquid Sensor Pressure Sensor
Product Details
| Model NO.: | BH93420-I | Housing Material: | 304S.S Or 316L S.S |
|---|---|---|---|
| Power: | (12-32)24VDC / (3.0-6.5)5VDC | Output: | 4-20mA /0.5-4.5VDC And So On |
| Diaphragm Material: | 316L Stainess Steel | Structure Design: | Input Type Level Sensor |
| Pressure Range: | 0-1m-400 MH2O | Display Type: | Cable Connection |
| Accuracy Grade: | 0.5% | IP Rating: | IP68 |
| Highlight |
Explosion-Proof Water Level Transmitter,Liquid Sensor Water Level Transmitter,Hazardous Environments Water Level Transmitter |
||
Product Description

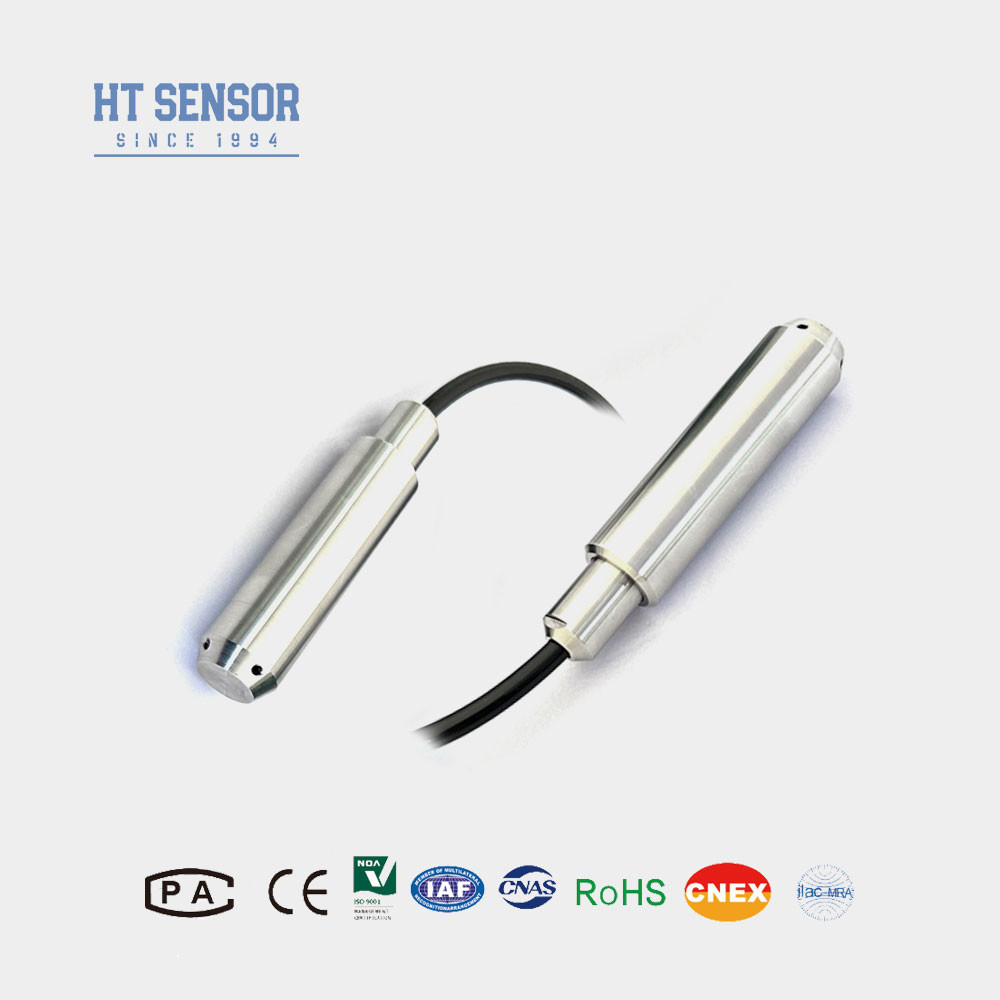

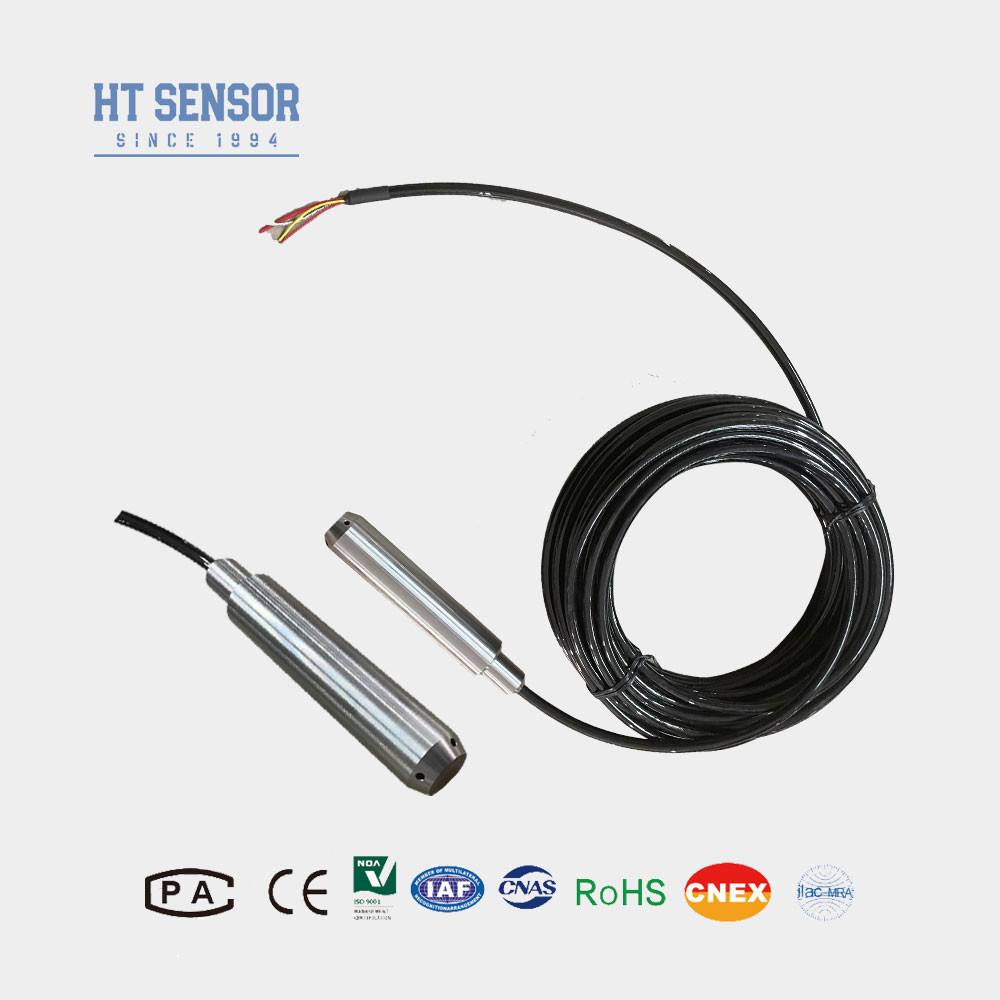

Explosion-Proof Water Level Transmitter For Hazardous Environments Liquid Sensor
Introduction of water level transmitter:
Product Features of water level transmitter:
1. Full stainless steel housing, suitable for various testing environments.
2. Immersion-type probe measurement, easy installation.
3. Diverse output signal options.
4. Explosion-proof marking: ExiaIICT6.
5. High protection rate: IP68.
6. PE or PU or PTFE cable.
Applications of water level transmitter:
1. Non-corrosive liquid compatible with 316LSS
2. Monitor water levels in various applications such as sewage, industrial and municipal water, tanks, Wells, rivers, sea water, lakes, etc
3. Measure the fuel level of diesel and tank.
| Performance Parameters of water level transmitter | |
| Measurement Range | 0~10m…400m H2O |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m. 0-2m ); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol |
| Ordering tips |
During product selection, make sure to:
- Confirm the measured medium is compatible with the parts of the product that will be in direct contact with it.
- Specify the density of the measured medium.
- If there is strong electromagnetic or radio frequency interference, provide the details to the company and note it in the order.
- To guarantee the reliable operation of the product, it is recommended that users:
- Install lightning protection devices on-site.
- Ensure the product and power supply are reliably grounded.
| Order Guide | ||||||||
|---|---|---|---|---|---|---|---|---|
| BH93420 | Code | Outline Construction | ||||||
| I | Pressure Transmitter | |||||||
| Measurement Range | 0~10m…400m H2O | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | S8 | RS485 | |||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
| Code | Material | |||||||
| 01 | 304 Stainless Steel | |||||||
| 02 | 316L Stainless Steel | |||||||
| Code | Cable Material | |||||||
| C1 | PE | |||||||
| C2 | PU | |||||||
FAQ:
Q1:Are you manufactrade company?
A1:We are manufactrader with more than 29 years of experience.
Q2:Customized Product
A2:We provide OEM and Custom-Design services.
Q3:Quality Quarantee
A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
Q4:Shipment&packing
A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
Q5:Contact US
A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
