PE/PU/PTFE Cable Options Available Liquid Level Transmitter for Various Testing Environments Pressure Sensor

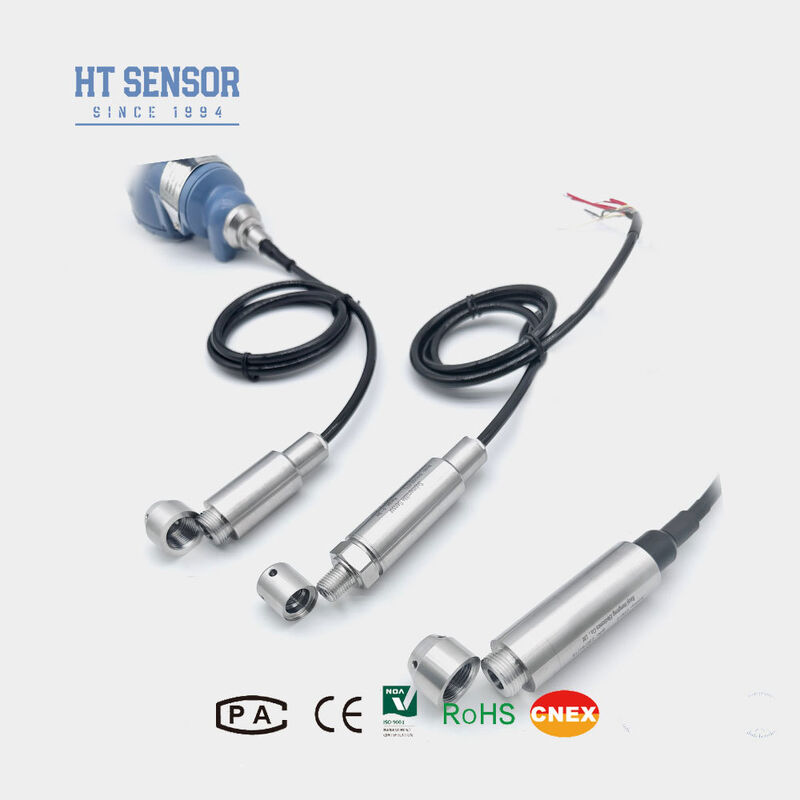

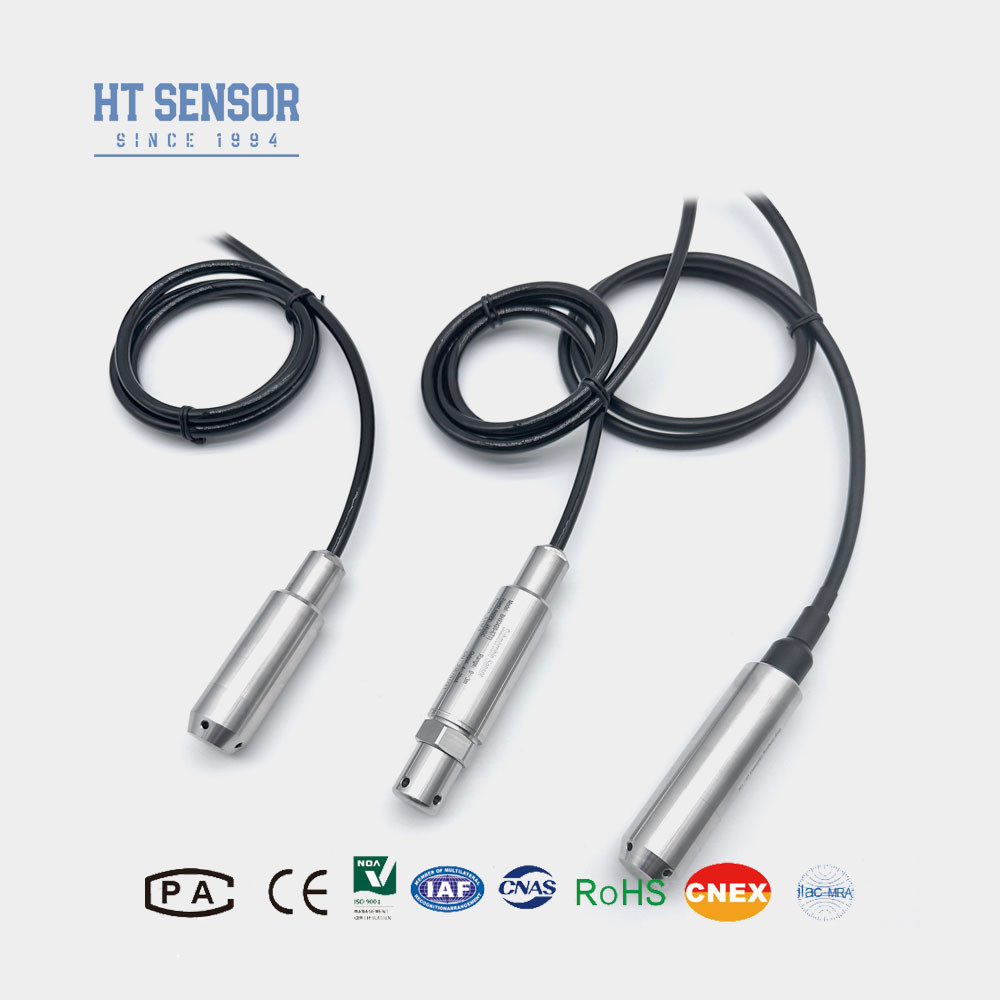

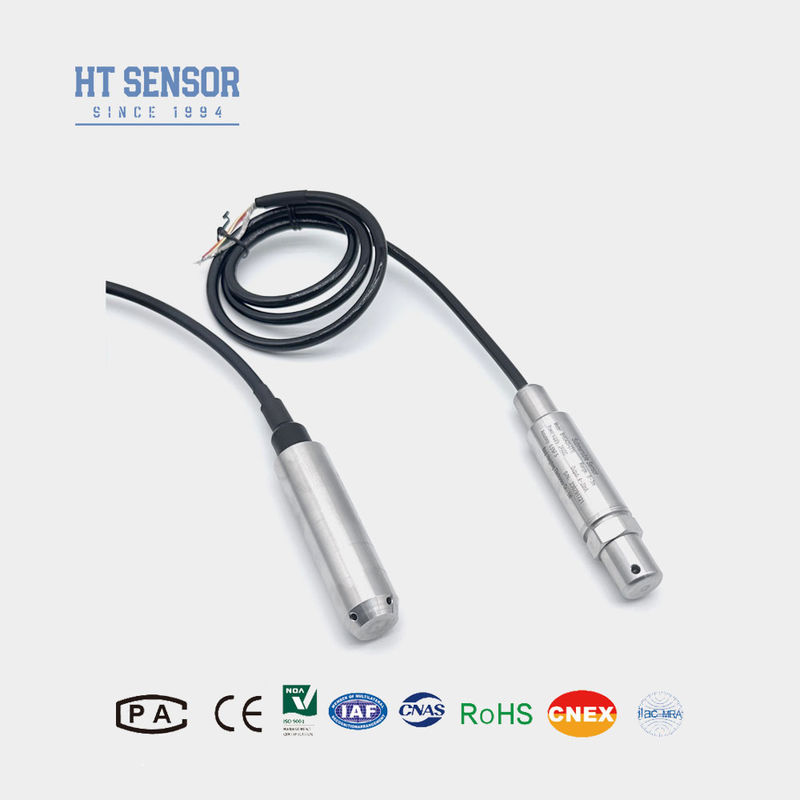

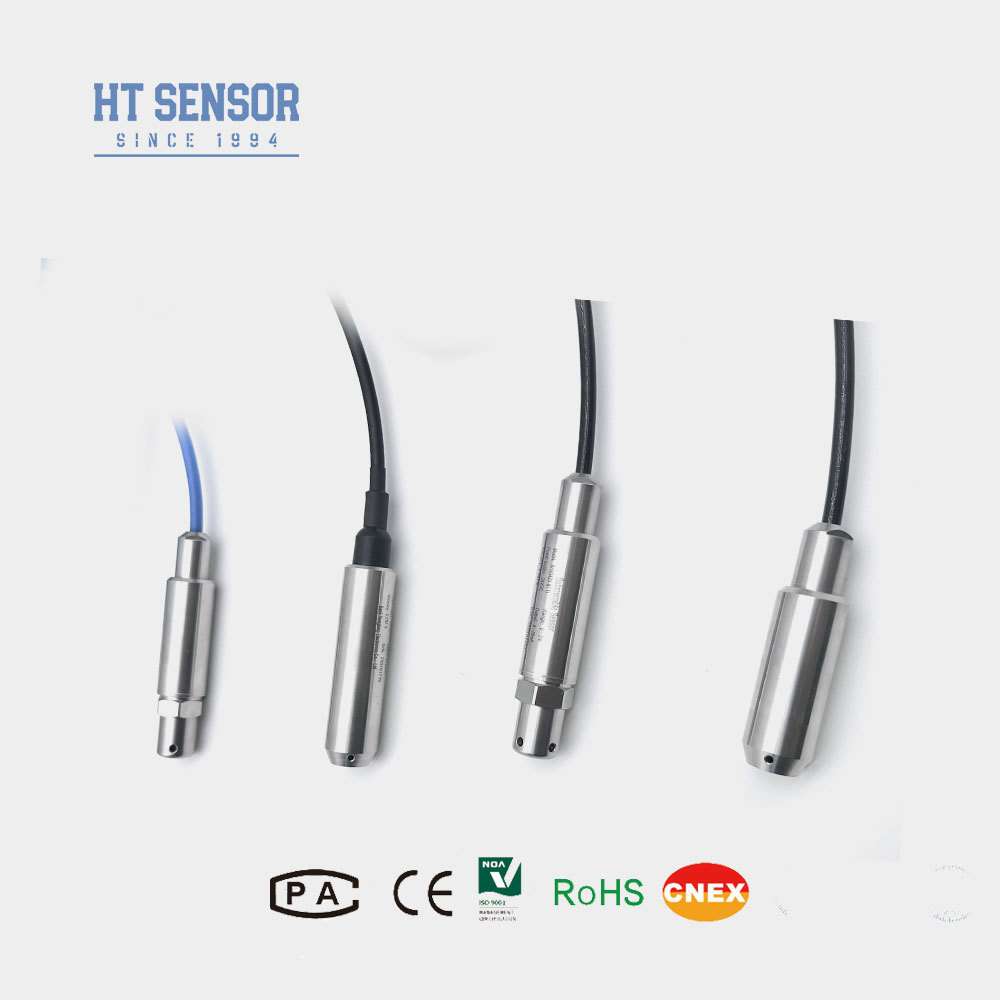

 The BH93420 - I oil water level transmitter features a sturdy all-stainless steel construction and a compact, unified body design. The portion of the sensor that is immersed in water is completely encased in stainless steel, providing superior waterproofing capabilities. The diffused silicon pressure sensor is robust and able to withstand extreme temperatures and harsh working conditions, rendering it ideal for use in oil well drilling equipment.

Product  Features of liquid level transmitter:
1. Full stainless steel housing, suitable for various testing environments.
2. Immersion-type probe measurement, easy installation.
3. Diverse output signal options.

4. Explosion-proof marking: ExiaIICT6.
5. High protection rate: IP68.
6. PE or PU  or PTFE cable.
Applications of liquid level transmitter:
1. Non-corrosive liquid compatible with 316LSS
2. Monitor water levels in various applications such as sewage, industrial and municipal water, tanks, Wells, rivers, sea water, lakes, etc
3. Measure the fuel level of diesel and tank.

NOTE:

• 1. When selecting a product, please ensure that the medium under test is compatible with the contact part of the product.
• 2. When placing an order, please note that explosion-proof products do not include a digital display.
• 3. When ordering a transmitter with an LCD or LED display head, the power supply of the transmitter should not be lower than 20VDC.
• 4. In order to ensure the reliable operation of the product, it is recommended that users install lightning protection devices on the site and ensure that the product and the power supply are reliably grounded.
• 5. Fluorine rubber o-rings rated operating temperature range for - 20 ℃ ~ 250 ℃. When operating temperatures fall below -20 ° C, EPDM O-type sealing rings should be selected.
• 6. The cable does not come with default cable attached. If you require cable, there are three materials to choose from. If no specific instructions are given, polyethylene cable materials will be used by default.If different cable materials are required, please indicate in your order form.
• 7.In case of special requirements such as strong vibration, instantaneous impact,strong electromagnetic or radio frequency interference ,please inform us and indicate in your order.

FAQ:

1. Q: What are the features of your pressure sensor transmitters?

A: Our pressure sensor transmitters are characterized by high precision, durability, and excellent performance, with the option for customization.

2. Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs through our OEM and ODM services.

3. Q: What is your production capacity?

A: Our manufacturing facilities have the capability to produce up to 30,000 pressure sensor transmitters per month, ensuring that we can fulfill large-scale orders. However, it is advisable to contact our sales team in advance for smooth production and delivery scheduling.

4. Q: What's the typical delivery period?

A: Standard models typically have a delivery period of 5~8 working days, while customized products may vary.

5. Q: How are the products priced? Any discounts?

A: We offer competitive pricing with discounts available for bulk orders or long-term partnerships.

6. Q: What is the warranty of your products? And after-sales service?

A: Our products come with a 24-month warranty from shipment date, and our after-sales service ensures prompt responses within 24 hours along with remote instruction support via PC network.
