High-Pressure Environments Liquid Level Transmitter Sensor With Pressure Range Of 0-1m 200m
Product Details
| Model NO.: | BH93420-III | Proble Material: | 304S.S Or 316L |
|---|---|---|---|
| Power: | 24VDC（12-32VDC） | Output: | 4-20mA / RS485 /HART And So On |
| Diaphragm Material: | 316L Stainess Steel | Specification: | With LED/LCD Display |
| Structure Design: | Input Type Can Be With Display | Pressure Range: | 0-1m--200 MH2O |
| Accuracy Grade: | 0.5%F.S 0.25%F.S | IP Rating: | IP68 |
| Highlight |
200m Liquid Level Transmitter,0-1m Liquid Level Transmitter,High Pressure Liquid Level Transmitter |
||
Product Description
Used In High-Pressure Environments Liquid Level Transmitter Sensor With Pressure Range Of 0-1m---200m

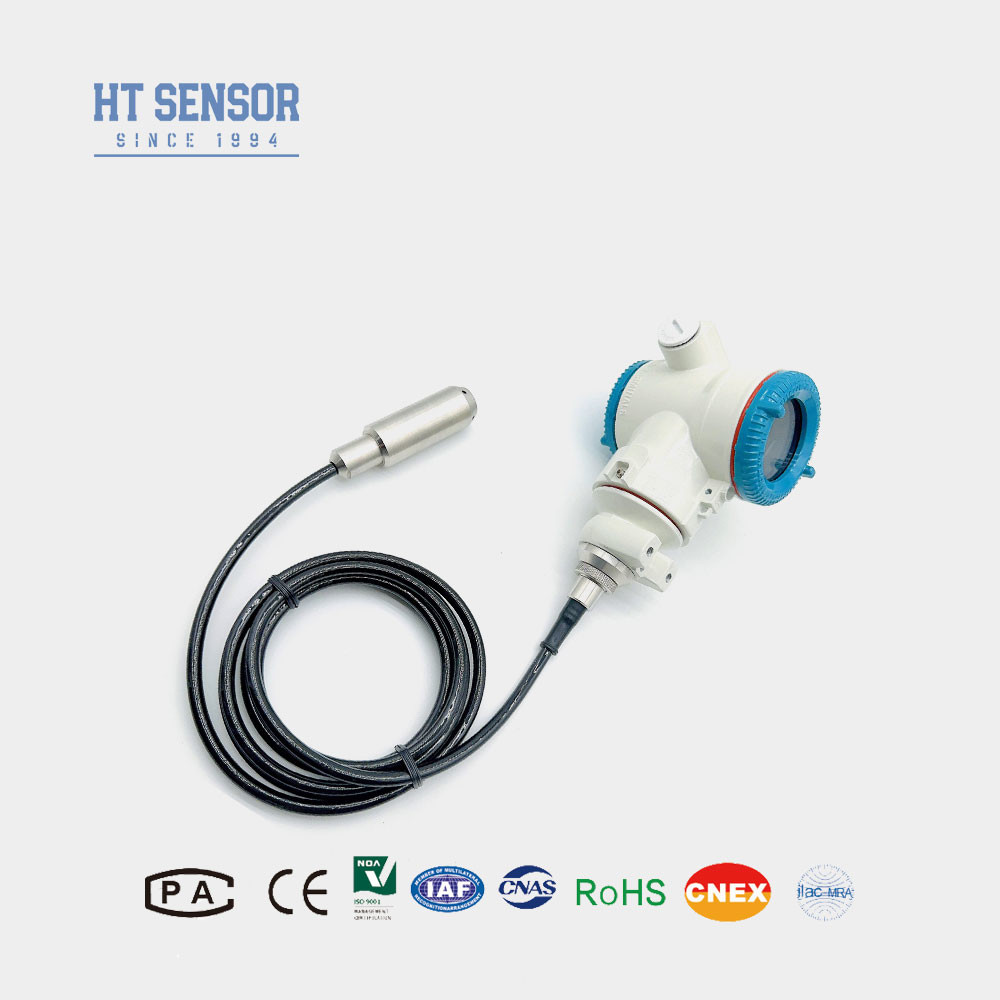

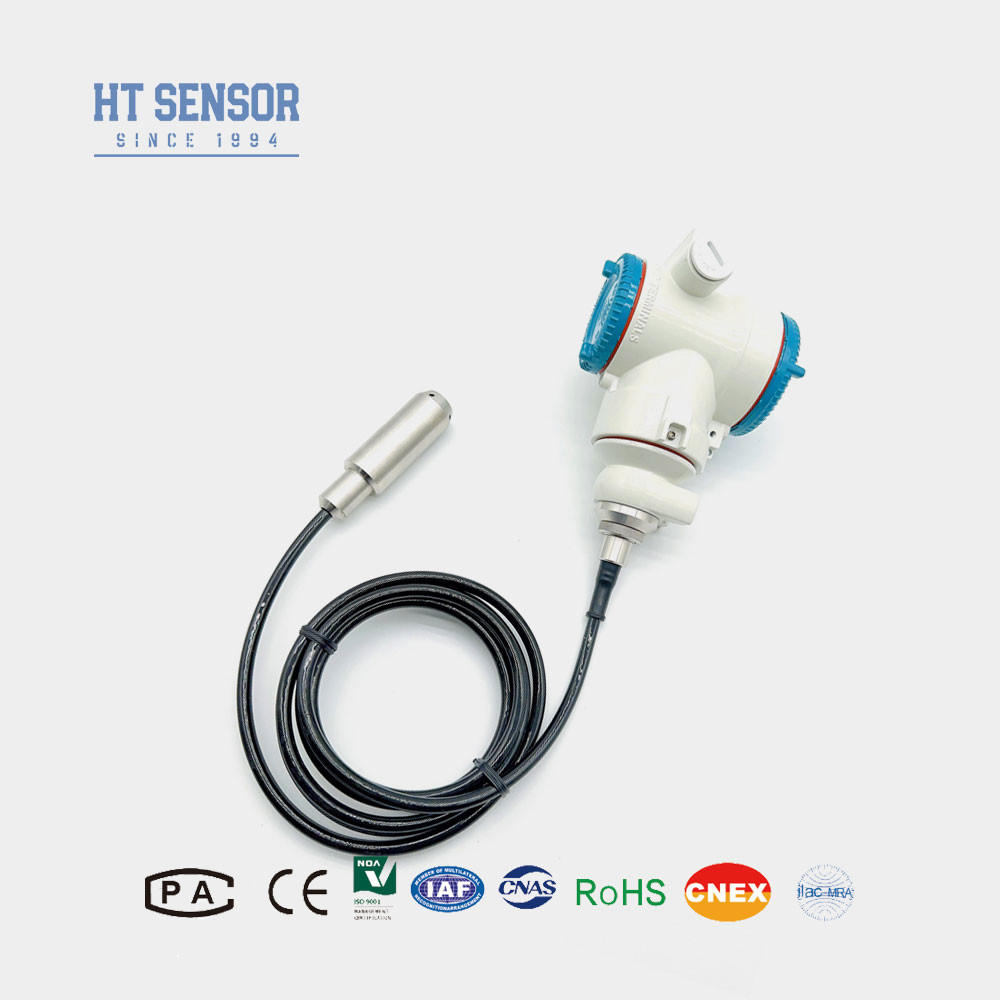

BH93420 IB Sumersible liquid level transmitter
Introduction of liquid level transmitter sensor:
The BH93420-I is a robust and dependable water level transmitter that employs an HT series pressure and oil-filled sensor as its signal measurement component. The sensor's sensing portion, which is submerged in the liquid, is completely encased in stainless steel, providing exceptional IP68 waterproof performance. Featuring a junction box as a protective outlet, this transmitter is user-friendly and easy to install in the field, making it suitable for a wide array of liquid level measurement applications across various industries, such as petrochemical, metallurgy, power, pharmaceutical, water supply and drainage, and environmental protection.
Product Features of liquid level transmitter sensor:
- Full stainless steel housing for suitability in diverse testing environments.
- Immersion-type probe measurement for easy installation.
- Diverse output signal options to meet application requirements.
- Explosion-proof marking: ExiaIICT6, ensuring safe operation in hazardous areas.
- High protection rating: IP68, providing robust waterproof performance.
- PE or PU, PTFE cable options for enhanced durability and chemical resistance.
Applications of liquid level transmitter sensor:.
1. Compatible with 316LSS,noncorrosive liquids.
2. Monitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etc.
3. Measuring fuel levels in diesel and fuel tanks.
| Performance Parameters of liquid level transmitter sensor | |
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m. 0-2m ); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol |
| Ordering tips |
- To ensure reliable operation, it is recommended that users install lightning protection devices on-site.
- Proper grounding of the product and power supply is essential for reliable performance.
- For applications with strong electromagnetic or radio frequency interference, provide details to the company and indicate it in the order.
| Order Guide | ||||||||
| BH93420 | Code | Outline Construction | ||||||
| I | Pressure Transmitter | |||||||
| Measurement Range | 0~10m…400m | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | S8 | RS485 | |||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
| Code | Material | |||||||
| 01 | 304 Stainless Steel | |||||||
| 02 | 316L Stainless Steel | |||||||
| Code | Cable Material | |||||||
| C1 | PE | |||||||
| C2 | PU | |||||||
Q&A
Q1:Areyou manufactrade company?
A1:We are manufactrader with more than 29 years of experience.
Q2:Customized Product
A2:We provide OEM and Custom-Design services.
Q3:Quality Quarantee
A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
Q4:Shipment&packing
A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
Q5:Contact US
A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
