HT12 Silicon Pressure Sensor With Wide Measurement Range From 0 To 200kpa Sensor For Dry Air
Product Details
| Model NO.: | HT12 | Thread Type: | TO8 |
|---|---|---|---|
| Wiring Type: | Gold-plated Kovar Pins Or Silicon Wire | Measuring Medium: | Dry Gas Air |
| Range: | 0-10kpa~200kpaG 100kpaA,200kpaA | Output: | MV Analog Signal |
| Power: | 1.5mA | HS Code: | 9026209090 |
| For: | Pressure Sensor | Customization: | OEM And ODM |
| Highlight |
0 to 2Mpa Silicon Pressure Sensor,Wide Measurement Range Silicon Pressure Sensor,HT12 Silicon Pressure Sensor |
||
Product Description

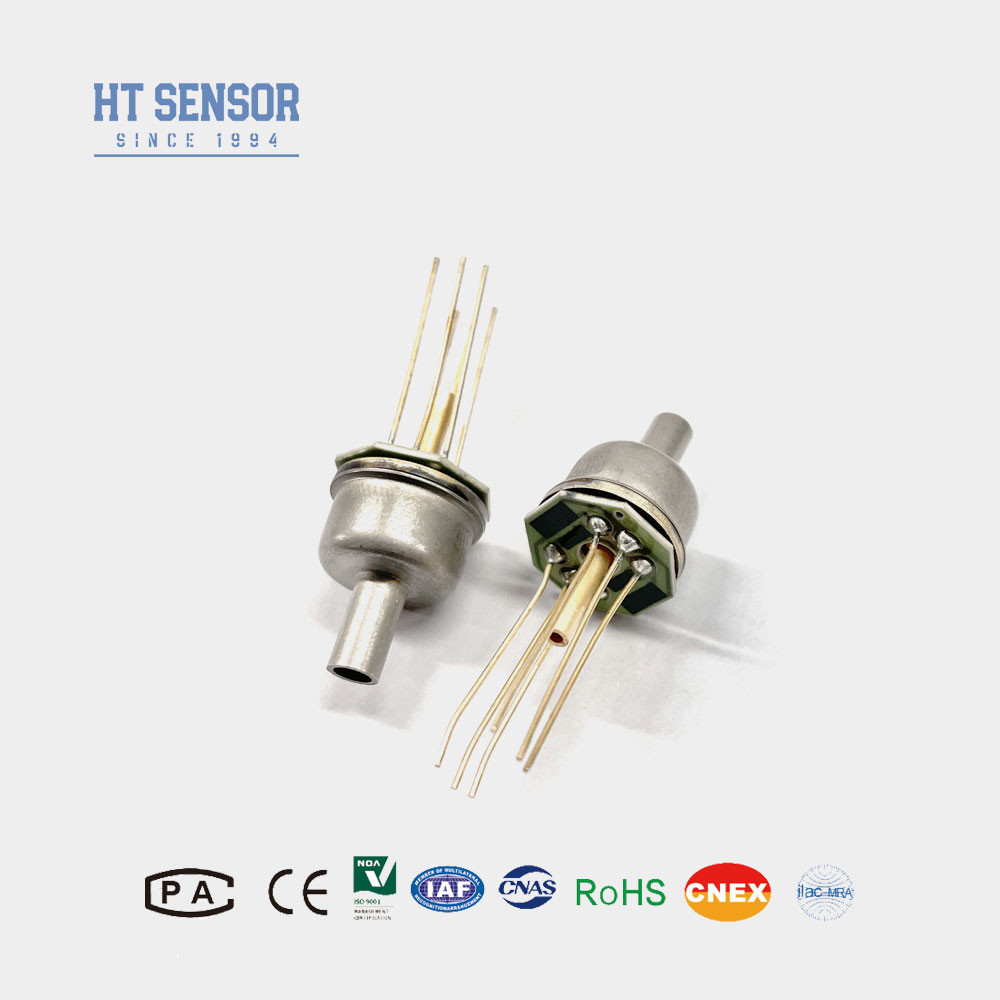

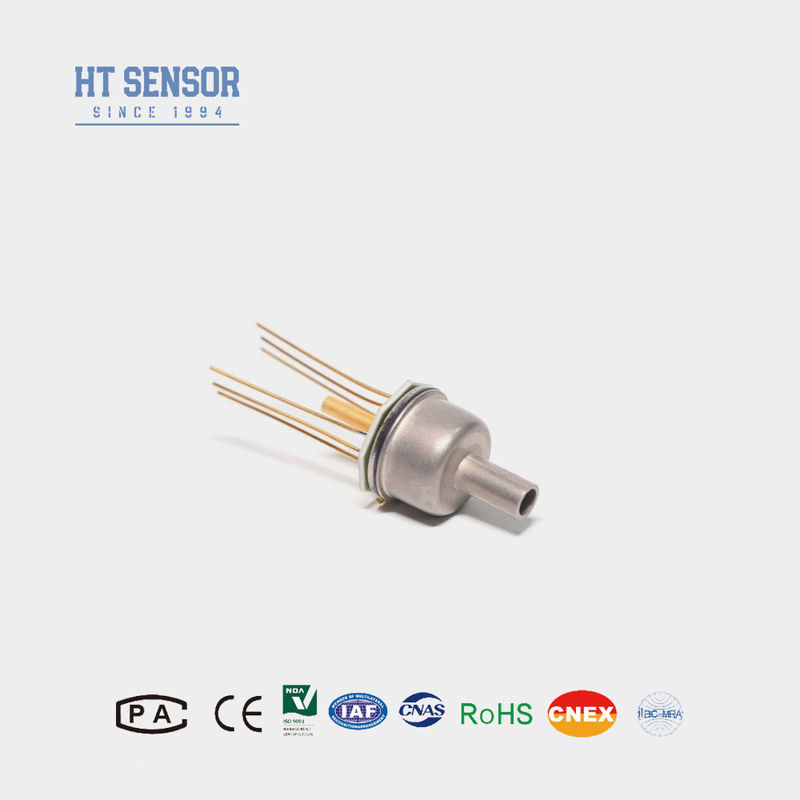

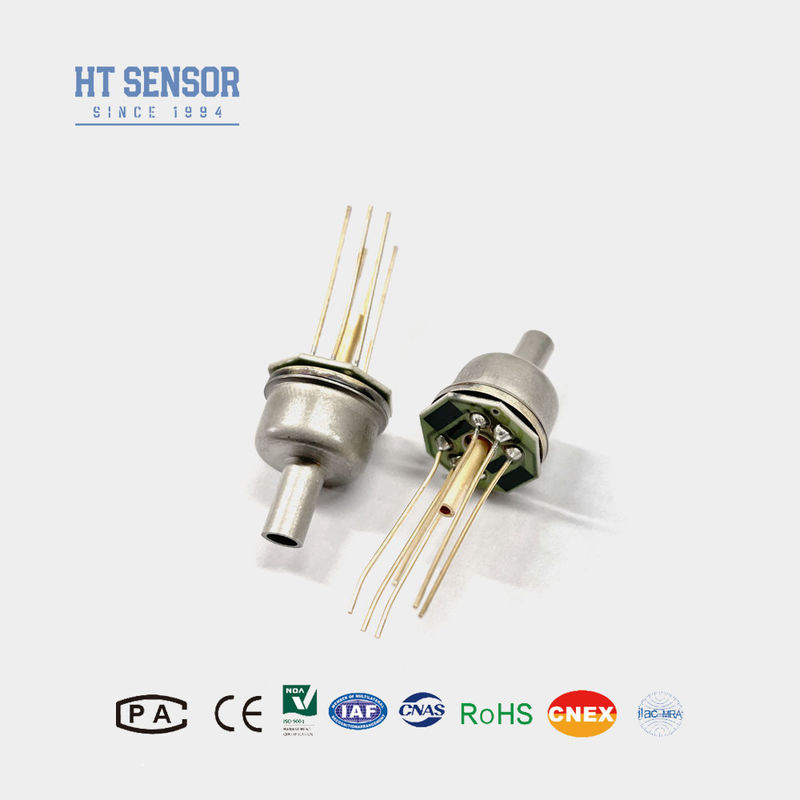

HT12 Silicon Pressure Sensor with Wide Measurement Range from 0 to 2Mpa
The HT12 silicon piezoresistive pressure sensor is a highly stable diffusion silicon element encapsulated using advanced TO8 packaging technology. The absence of an oil-filled core eliminates profile errors and significantly improves the stability of the small range, rendering it particularly suitable for measuring dry, non-corrosive gas pressure.
Product Features of silicon pressure sensor:- The measurement range is wide from 0 to 10KPa to 2Mpa.
- High reliability, good stability.
- TO8 encapsulation technology.
- Aerospace applications.
Applications of silicon pressure sensor:
- Dry, non-corrosive gas pressure was measured.
- The pneumatic control systemMedical applications of biomedical engineering.
- Hvac (HVAC) controls.
- Aerospace aviation related to the purpose of experiment.
- Power Supply: ≤2mA DC (Typical 1.5mA DC)
- Input Impedance:3KΩ~6KΩ
- Output Impedance:2.5KΩ~6KΩ
- Electrical Connection:Gold-plated Kovar pins or 100mm high-temperature wires
| Performance Parameters of silicon pressure sensor: | ||||||
| Measurement Range | Gauge(G) | 10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa | ||||
| Absolute(A) | 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA | |||||
| Range with TO8 | Min:7kpa Max:200kpa | |||||
| Typ | Max | Unit | ||||
| Linearity | ±0.15 | ±0.3 | %F.S | |||
| Repeatability | 0.05 | 0.1 | %F.S | |||
| Hysteresis | 0.05 | 0.1 | %F.S | |||
| Zero Offset Output | 0±1 | 0±2 | mV | |||
| Full Scale Output | ≤20KPa | 50±10 | 50±30 | mV | ||
| ≥35kPa | 100±10 | 100±30 | mV | |||
| Zero Offset Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | ||
| ≥35kPa | ±0.5 | ±1 | %F.S | |||
| Full Scale Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | ||
| ≥35kPa | ±0.5 | ±1 | %F.S | |||
| Compensated Temp. | ≤20KPa | 0~50 | ºC | |||
| ≥35kPa | 0~70 | ºC | ||||
| Operating Temperature | -20~80 | ºC | ||||
| Storage Temperature | -40~125 | ºC | ||||
| Allowable Overload | Take the smaller value between 3 times the full scale or 4MPa | |||||
| Burst Pressure | 5X the full scale | |||||
| Long-term Stability | 0.2 % | F.S/Year | ||||
| Diaphragm Material | 316L | |||||
| Insulation Resistance | ≥200MΩ 100VDC | |||||
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | |||||
| Shock | 100g,11ms | |||||
| Response Time | ≤1ms | |||||
| Weight | ~12.5g | |||||
| The parameters are tested under the following conditions: Constant current of 1.5mA and ambient temperature of 25°C | ||||||
| Outline Construction | |
| Dimension | |
| Electrical connection and compensation |
|
|
| Ordering tips |
- Ensure a precise fit between the sensor core and the housing during assembly to achieve the required air-tight seal.
- Carefully align the components vertically and apply uniform pressure when assembling to avoid jamming or damaging the compensation plate.
- Maintain an open connection between the pressure sensor core's air duct and the atmosphere, preventing water, vapor, or corrosive substances from entering the positive and negative pressure chambers.
- If any changes are made to the pin leads, refer to the label attached to the sensor core to identify them accurately.
