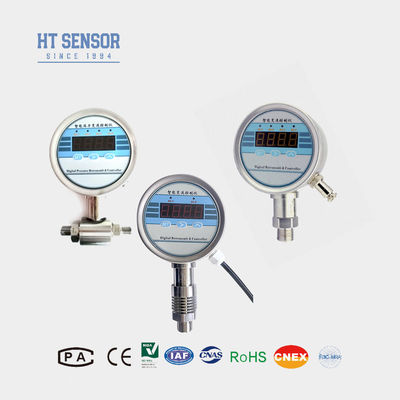

BPZK01-IC Electronic Pressure Switchs
Introduction of high temperature Electronic Pressure Switch:
The BPK-ZK01-IC electronic pressure switch with LED display is a fully digital control product that integrates pressure measurement, pressure point control, alarm, display, transmission, and output. It features a 100mm diameter high-light digital tube display and allows for the setting of field parameters such as zero value, full-scale value, and pressure control point adjustment. This device offers unique advantages in field control and includes a heat dissipation device for effective operation with high-temperature liquids and gases.
Product Features of high temperature Electronic Pressure Switch:
- Stainless steel structure design, with a variety of pressure interface options.
- Equipped with high brightness LED pressure display.
- Power supply 24VDC and 220VAC
- Up to two control relay outputs are available with the ability to set arbitrary relay values and states for precise and reliable control.
- High precision.
Applications of high temperature Electronic Pressure Switch:
Measurement and control of fluid medium pressure/differential pressure in hydraulic, metallurgical, chemical and other industries for automatic control applications.
| Performance Parameters of high temperature Electronic Pressure Switch |
| Measurement Range |
-100kPa…0kPa ~ 10kPa…100MPa |
| 0-10KPa~2MPa(Differential Pressure) |
| Pressure Type |
Gauge Pressure, Absolute Pressure, Sealed Pressure,Differential Pressure |
| Overload |
≤ 1.5 times of the rated range |
| Accuracy @ 25ºC |
±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability |
±0.3%F.S/year |
| Zero Point Temperature Drift |
±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift |
±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature |
0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature |
-20ºC~80ºC |
| Storage Temperature |
-40ºC~120ºC |
| Housing Material |
1Cr18Ni9Ti |
| Diaphragm Material |
316L |
| Insulation Resistance |
100MΩ 100VDC |
| Relay Control |
1-4 channels of control or electronic switch quantity control |
| Contact Life |
Exceeds 100,000 cycles |
| Display Range |
-1999~9999 |
| Installation Method |
vertical axis installation |
| Explosion-proof Rating |
Intrinsically Safe |
| Protection Rating |
IP65 |
| Weight |
~0.5kg |
| Output Signal |
Supply Voltage |
Output Type |
| 4~20mA / 0-20mA |
24VDC or 220VAC |
3 wire |
| 1-5VDC /0-5VDC |
24VDC or 220VAC |
3 wire |
| Ordering tips of Electronic Pressure Switch |
1. When selecting the product, please ensure that the measured medium is compatible with the contact material of the product.
2. Please specify the power supply, accuracy level, and number of control points when placing an order.
3. The measuring range of the plate diaphragm pressure controller is from 0~10KPa to 20MPa.
4. To ensure reliable operation of the product, it is recommended to install lightning protection devices on site and ensure proper grounding for both the product and power supply. If there are special requirements such as strong vibration, instantaneous impact force, strong electromagnetic interference, RF interference or others, please inform our company and indicate in your order.
| FQA of Electronic Pressure Switch |
1.Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2.Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3.Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling
.
4.Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5.Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners
.
6.Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
