0-20mA Output Industrial Digital Pressure Gauges with High Precision Measurement Gauge
Product Details
| Model NO.: | BPK-IIIN | Application: | Industrial |
|---|---|---|---|
| Structure: | Display Gauge | Transport Package: | Standard Export Packing With Carton |
| Origin: | Baoji, China | Warranty: | 2years |
| Measuring Range: | Medium-pressure Industrument | Switch: | 2 Switch |
| Input: | 4-20mA/0-10VDC/pt100 And So On | Output: | 0-20mA,4-20mA,0-5V And So On |
| Highlight |
Industrial Digital Pressure Gauges,High Precision Measurement Digital Pressure Gauges,0-20mA Output Digital Pressure Gauges |
||
Product Description
Industrial Digital Pressure Gauges with High Precision Measurement

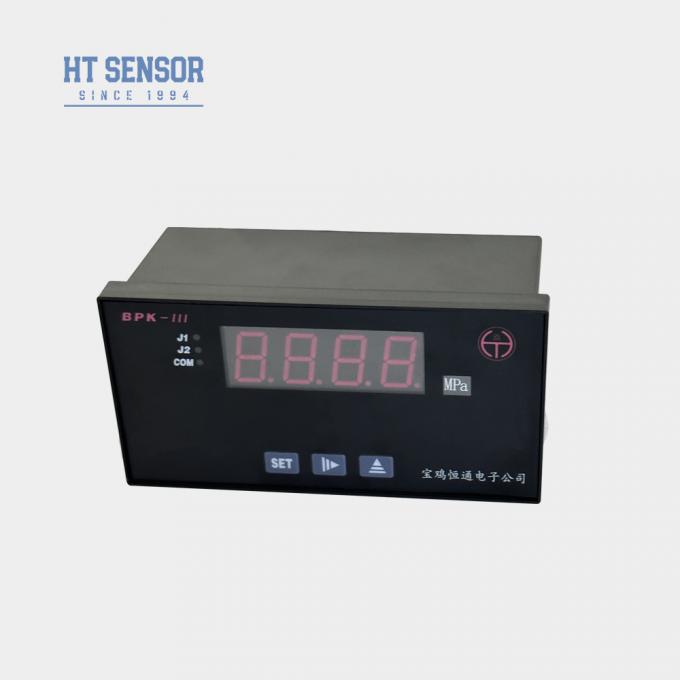

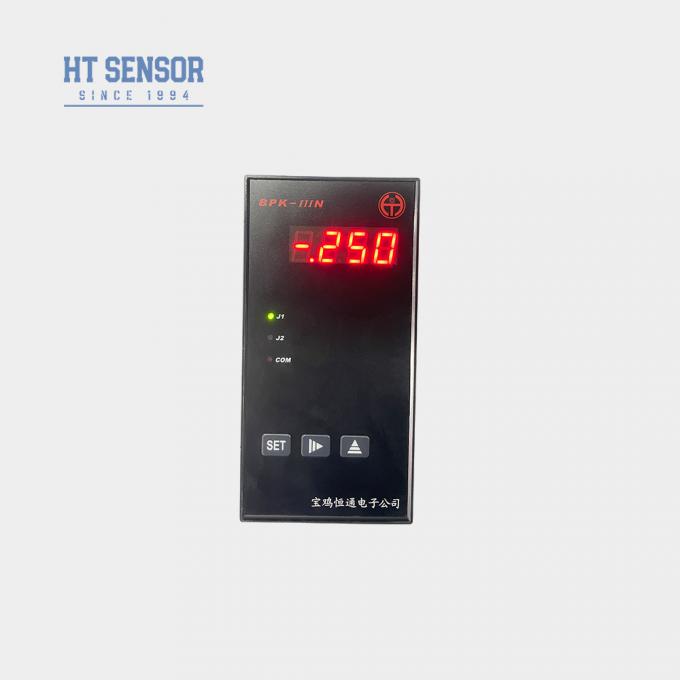

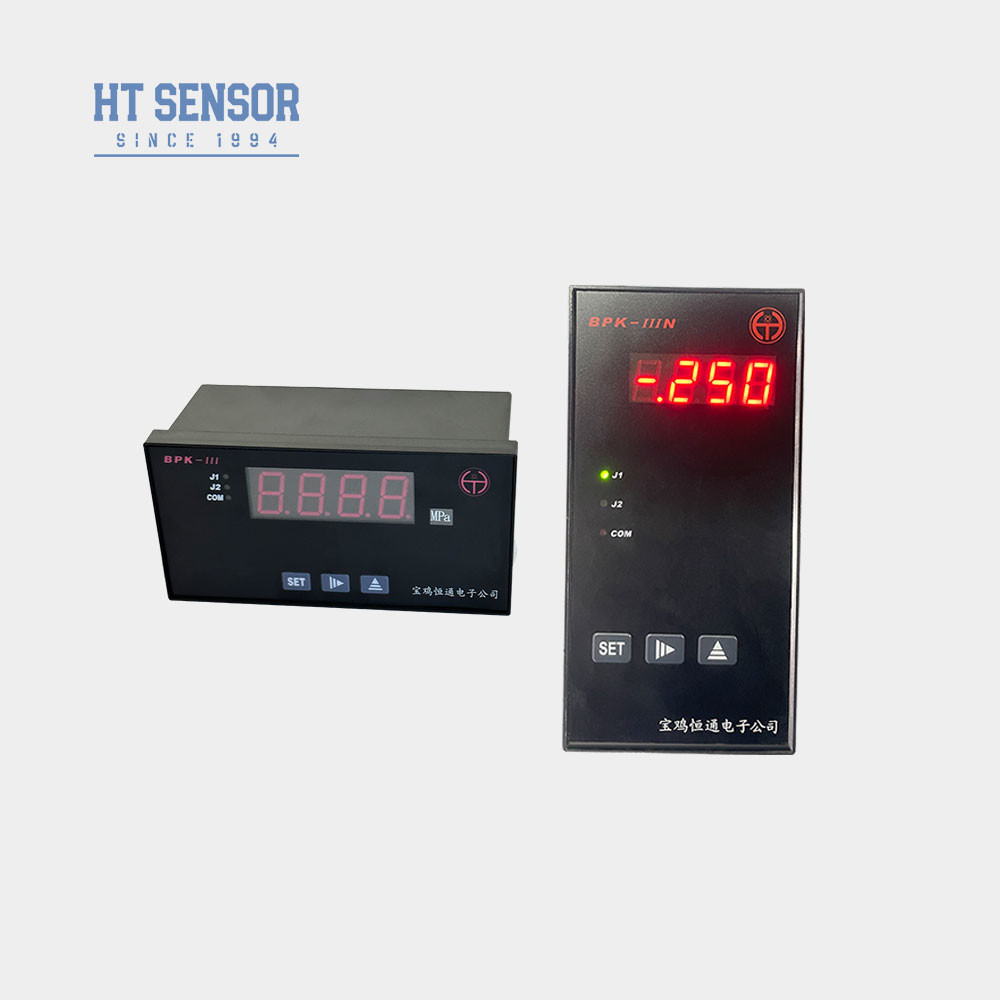

BPK-IIIN Pressure Gauge/Switch
Introduction:
The BPK-III series controllers are equipped with display, control, and transmission functions, and have been widely utilized in various automatic control applications. Their key features include:
1. Support for a wide range of input signals such as RTDS, thermocouples, or standard signals (refer to the table). The display range can be calibrated for nonlinear signals or set for linear signals.
2. Isolated transmission output with 12-bit resolution that allows for customizable scope settings.
3. Two relay outputs that support high/low, high/high-high, or low/low-low alarm action types.
Specification
1. Supply voltage:220VAC (±10%);
2. Ambient temperature:0~50ºC; relative humidity:≤85%Non corrosive gas;
3. Input signal , display scope and relevant parameters:(see Table1)
Table 1
| Input signal code | Input signal | Display scope | Resolution | Precision | Input impedance |
| 00 | T TC | 0~400ºC | 1ºC | 0.2% | 100K |
| 01 | R TC | 0~1600ºC | 1ºC | 0.2% | 100K |
| 02 | J TC | 0~1200ºC | 1ºC | 0.2% | 100K |
| 03 | WRe3-WRe25 TC | 0~2300ºC | 1ºC | 0.2% | 100K |
| 04 | B TC | 350~1800ºC | 1ºC | 0.2% | 100K |
| 05 | S TC | 0~1600ºC | 1ºC | 0.2% | 100K |
| 06 | K TC | 0~1300ºC | 1ºC | 0.2% | 100K |
| 07 | E TC | 0~900ºC | 1ºC | 0.2% | 100K |
| 08 | Pt100 RTD | -200.~600.0ºC | 0.1ºC | 0.2% | (0.2mA) |
| 09 | Cu50 RTD | -50.0~150.0ºC | 0.1ºC | 0.2% | (0.2mA) |
| 10 | 0~375Ω remote pressure | Low and high limit of scope can be set from -1999 to 9999 | Display scope is continuous from -1999 to 9999 using 16bit A/D sample | 0.2% | (0.2mA) |
| 11 | 0~75mVcurrent divider | 0.1% | 100K | ||
| 12 | 0~30mV | 0.1% | 100K | ||
| 13 | 0~5Vstandard signal | 0.1% | 100K | ||
| 14 | 1~5Vstandard signal | 0.1% | 100K | ||
| 15 | 0~10Vstandard signal | 0.1% | 100K | ||
| 16 | 0~10 mA standard signal | 0.1% | 20Ω | ||
| 17 | 0~20 mA standard signal | 0.1% | 20Ω | ||
| 18 | 4~20 mA standard signal | 0.1% | 20Ω |
Table 2
| Transmitting output signal | Current output | Transmitting scope | Isolated voltage | Max. resolution |
Precision | Load capacity | Open- circuit voltage |
| 00 | 4~20 mA | Transmit data within scope to standard current signal | 1500V | 12bits | 0.3% | ≤500Ω | 15V |
| 01 | 0~20mA |
This product is only manufactured into 4 ~ 20mA or 0 ~ 20mA output current signals. If the user needs the voltage output signal transmission output, it can be customized from the manufacturer or self-connected 250 or 500 ohm resistance for 1 ~ 5V or 0 ~ 5V, 0 ~ 10V voltage and resistance (note: the accuracy of the resistance directly affects the accuracy of the transmission output voltage).
5.Relay output contact capacity:(see Table 3)
Table3
| 250V/120V | 120V/48V | <48V | Relay life | ||||
| AC | DC | AC | DC | AC | DC | >100000 times |
|
| Max. current (Resistive load) | 3A | 2A | 4A | 3A | 5A | 4A | |
| Max .current (Inductive load) | 0.3A | 0.2A | 0.4A | 0.3A | 0.5A | 0.4A | |
6. External DC24V/30mA power. It can supply power to transmitter.
7. With automatic temperature compensation function for thermocouple sensor.
8. With disconnection protection function.
| Model | Outline dimension | Panel output dimension(mm) | Note |
| BPK-IIIS | 160×80×80(Horizontal ) | 152+0.8×76+0.7 | |

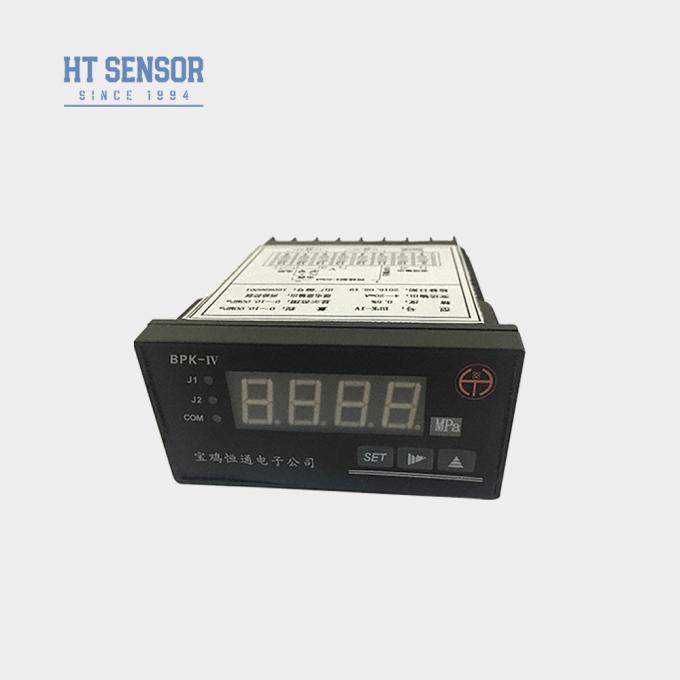

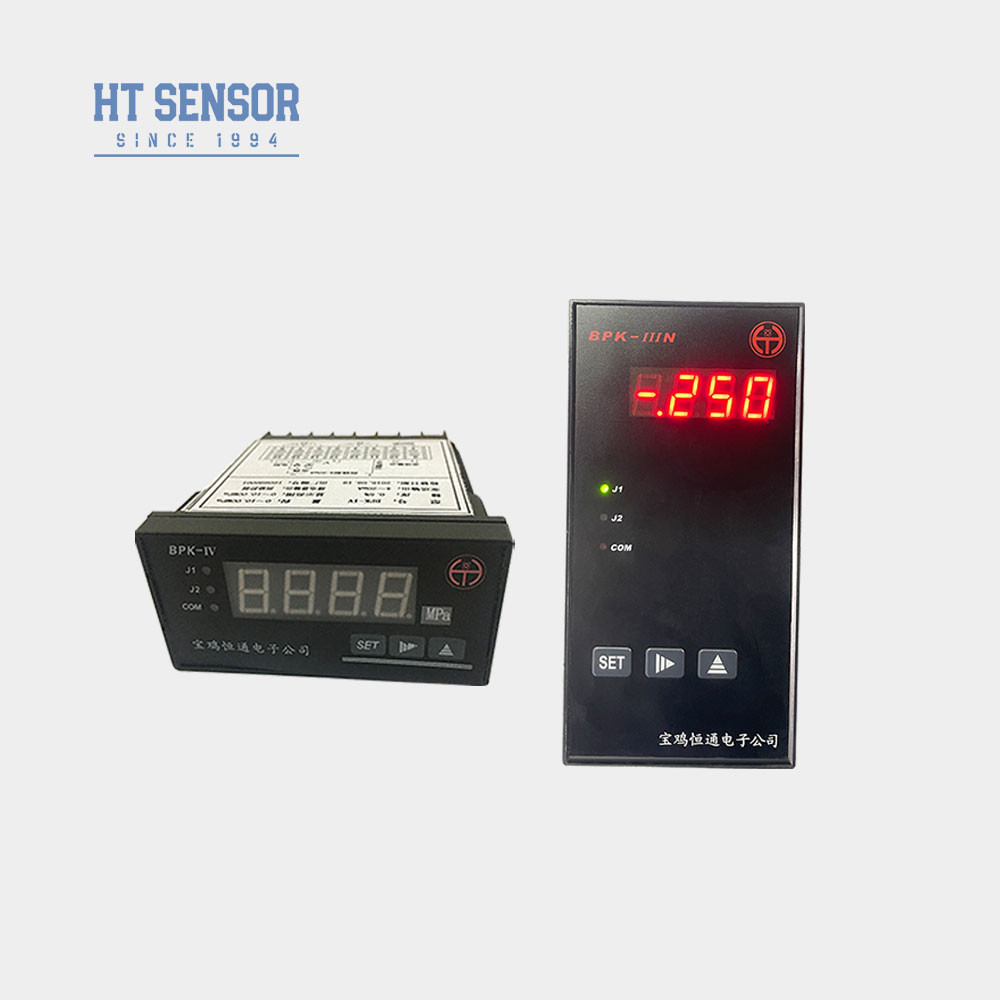

| BPK-IV | 96×48×112(horizontal) | 92+0.7×44+0.5 | |
| BPK-IIIN | 80×160×80(vertical) | 76+0.7×152+0.8 | |
| BPK-IIIN2 | 48×96×112(vertical) | 44+0.5×92+0.7 | |
| BPK-IIIF1 | 96×96×112(square) | 92+0.7×92+0.7 | |
| BPK-IIIF2 | 48×48×108(square) | 44+0.5×44+0.5 | With J2alarm lamp without J2 relay |
| BPK-IIIF3 | 72×72×112 | 67+0.7×67+0.7 |
