Pointer Mechanical Pressure Gauge Passive Pressure Display With Water And Oil Test
Product Details
| Model: | Y | Material: | Stainless Steel |
|---|---|---|---|
| Accuracy: | 1.6% | Display: | Pointer Pressure Gauge |
| Range: | -100-10kpa~100Mpa | Output: | Display |
| Power: | NO | Thread: | G1/4 M20*1.5 Or OEM |
| Highlight |
Pointer Mechanical Pressure Gauge,Passive Pressure Display Mechanical Pressure Gauge,Oil Test Mechanical Pressure Gauge |
||
Product Description

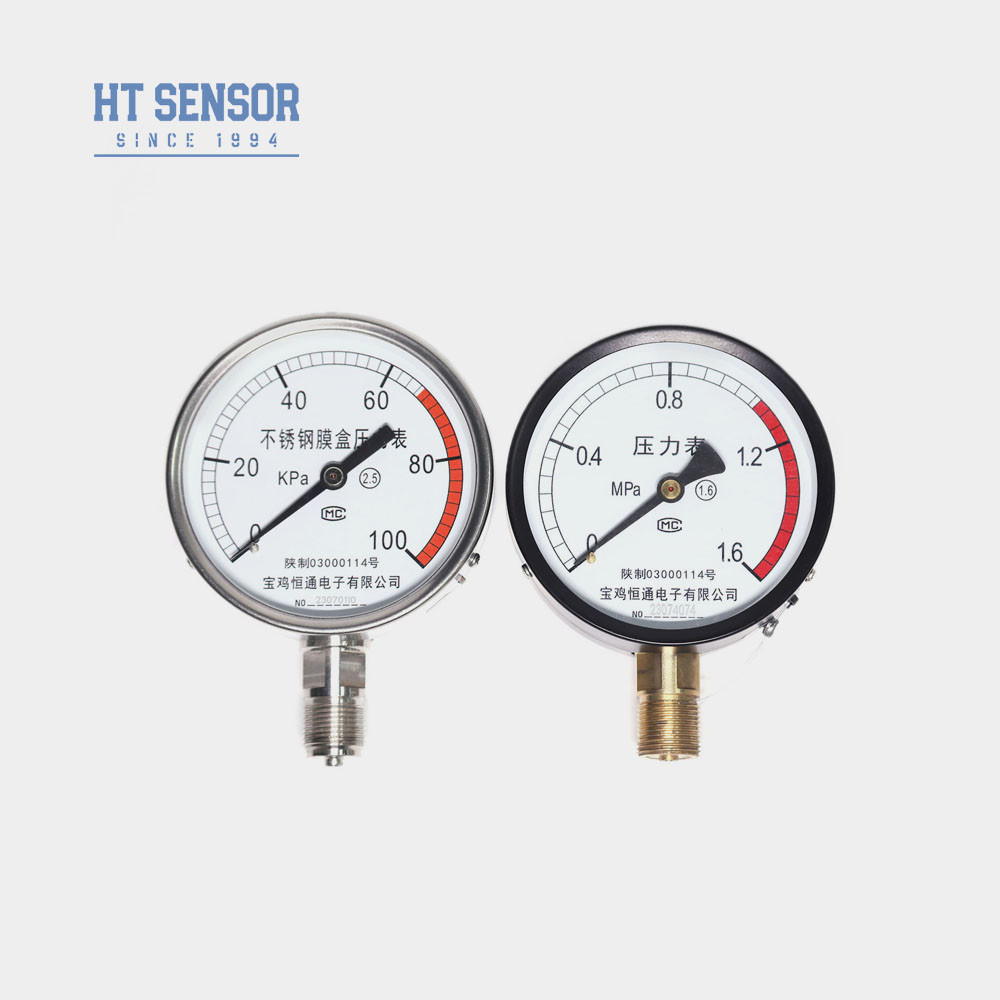

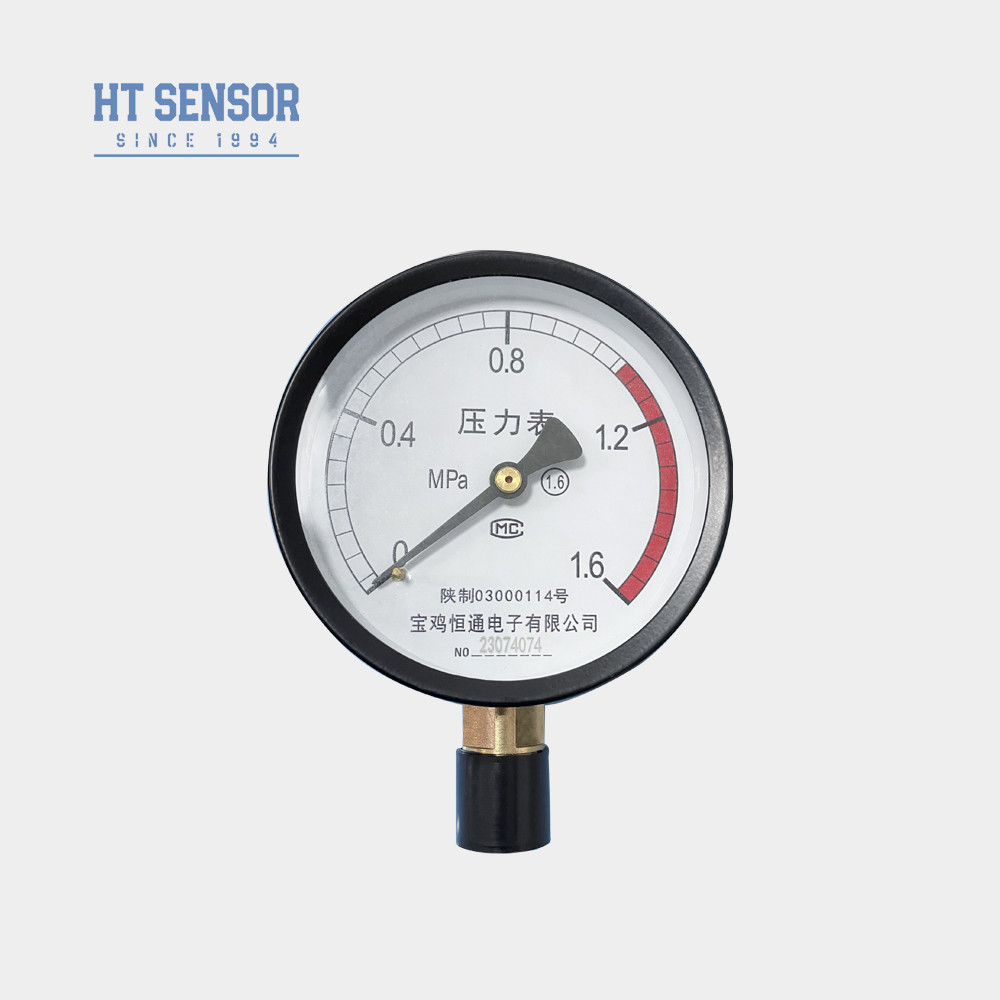

Pointer Mechanical Pressure Gauge Passive Pressure Display
Description of pressure gauge:
The general pressure gauge series is suitable for the measurement of non-explosive, non-crystallization, non-solidification, non-corrosive effect on copper and copper alloys of liquid, gas or steam.The pressure of Installation mode: radial direct installation; Radial belt front side installation; Radial belt installed behind; Axial installation; Axial belt front installation; Axial direction Belt behind installation; Clamp type installation; Screw mounting; Flange mounting.Products are widely used in steelmaking, petrochemical, machinery manufacturing, complete sets of automation, supporting business, glass ceramics, plastic rubber, pharmaceutical,Light industry textile, food, water treatment, thermal power and nuclear industry and other industries.
Specification of pressure gauge:
| Dia: | 40mm/50mm/63mm/100mm/150mm |
| Pressure Range: | -1Bar-0-1000Bar(15000Psi) |
| Accuracy: | ±1.6% |
| Operating temperature: | -40°C to +60°C |
| Case: | Stainless steel |
| Bezel: | Stainless steel |
| Bourdon tube: | Copper alloy or Stainless steel |
| <100Bar: C-Type | |
| ≥100Bar: Helical Type | |
| Liquid: | Glycerin or Silicone |
| Connection: | Brass or Stainless steel |
| Mounting method | Bottom Mount, Rear Mount |
| Dial: | Aluminum |
| Pointer: | Aluminum |
| Window: | Polycarbonate or Glass |
| Thread: | 1/8",1/4", 3/8",1/2"; |
| BSP/NPT etc. |
| Ordering tips |
- When selecting the product, please ensure that the measured medium is compatible with the product's contacting parts.
- To ensure reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter, ensuring a slow and uniform pressure application to the positive and negative pressure chambers of the transmitter.
- During installation, it is advisable to position the pressure interfaces at both ends horizontally to minimize the impact of the installation location on the product.
- For special requirements such as strong vibration, instant impact force, strong electromagnetic interference, or radio frequency interference, please inform our company and specify these requirements in the order
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
