| Place of Origin: | Baoji，China |
|---|---|
| Brand Name: | HT SENSOR |
| Certification: | ISO9001 |
| Model Number: | BT93420-I |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Model NO.: | BT93420-I | Measuring Medium: | Temperature Sensor |
|---|---|---|---|
| Customized: | Thread And Length Can Be OEM | Trademark: | HT SENSOR |
| Origin: | Baoji China | Installation Type: | Blue Junction Box |
| Sensing Type: | PT100 PT1000 | Output: | 4-20mA PT100 PT1000 |
| High Light: | Liquid Temperature Indicator Transmitter,4-20mA Temperature Indicator Transmitter,Gas Temperature Indicator Transmitter |
||

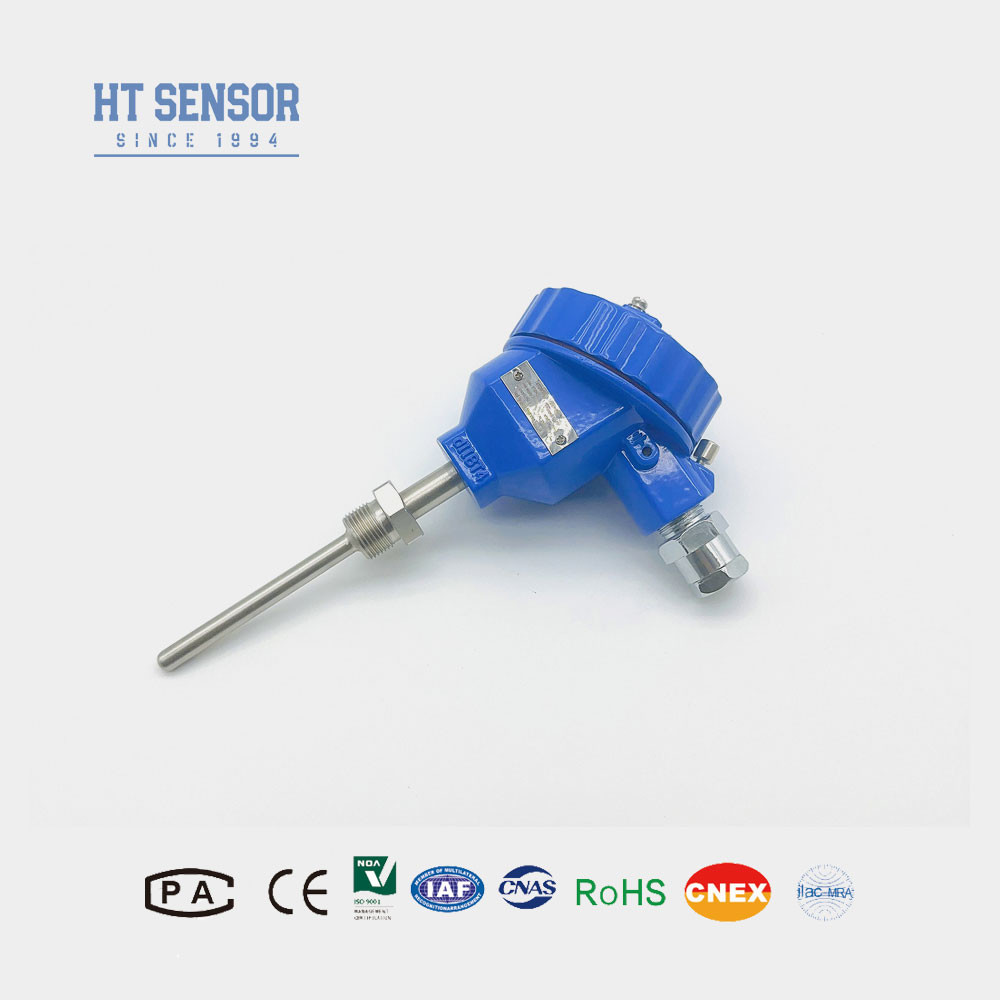

BT93420 Temperature Indicator Transmitter
Introduction of temperature induicator transmitter:
The BT93420-I temperature indicating transmitter is equipped with a specialized temperature module or PCB, allowing for linear correction of various thermocouples and resistance temperature detectors (RTD). It offers high accuracy, excellent stability, strong anti-interference capability, as well as waterproof and explosion-proof design. Additionally, it provides high-temperature resistance and impact resistance. When integrated with the control system, it enables automatic temperature control and monitoring. This 24V-powered two-wire integrated transmitter utilizes imported integrated circuits to amplify thermistor or thermocouple signals and convert them into 4-20mA or other output Armored transmitters can directly measure the temperature of gas or liquid, especially suitable for low-temperature range measurement to mitigate the influence of condensation water on temperature readings.
| Performance Parameters of temperature induicator transmitter | |
| Measurement Range | -55~400ºC |
| Accuracy @ 25ºC | ±0.5% (Typ.) ±1% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -30~80ºC |
| Storage Temperature | -40~100ºC |
| Housing Material | 1Cr18Ni9Ti |
| Insulation Resistance | >=100MΩ@100VDC |
| Maximum temperature | 120% of the rated temperature range |
| Protection Rating | IP65 |
| Weight | ~0.5Kg |
| Outline Construction of temperature induicator transmitter | |
| Terminal Box |  |
| Order Guide | |||||||
| BT93420 | Temperature Indicator Transmitter | ||||||
| Code | Outline Construction | ||||||
| I | Blue Terminal Box | ||||||
| II | 2088 housing | ||||||
| III | 2088+LED | ||||||
| IIIA | 3051+LED | ||||||
| Measurement Range | -55~1200ºC | ||||||
| Code | Power Supply | ||||||
| D1 | 24VDC | ||||||
| D2 | Other | ||||||
| Code | Output Signal | ||||||
| S1 | 4~20mADC | S4 | 0~10mADC | ||||
| S2 | 1~5VDC | S5 | 0~20mADC | ||||
| S3 | 0~5VDC | S6 | 0~10VDC | ||||
| Code | Pressure Connection | ||||||
| J1 | M27X2 Male | ||||||
| J2 | Other | ||||||
| Code | Insertion depth | ||||||
| L | Actual insertion depth | ||||||
| company |
| FAQ |
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
